GPR Concrete Scanning Common Misconceptions
Ground Penetrating Radar (GPR) has revolutionized safety and precision in the construction industry. By allowing analysts to see inside concrete slabs before cutting or coring, GPR scanning prevents catastrophic damage to post-tension cables, rebar, and electrical conduits, saving both time and millions of dollars.
However, because GPR is a technology that relies on specialized interpretation, many misconceptions about its capabilities and limitations persist. Before scheduling your project’s next concrete scan, debunk the top five myths about GPR to ensure you understand what the technology can and cannot do.
Debunking the Top 5 Myths About Concrete Ground Penetrating Radar
Myth 1: GPR Provides a Clear, Photographic Image of the Subsurface
The Reality: Operating the equipment is easy; interpreting the data is a specialized skill.
Many people believe the GPR screen shows a crystal-clear picture—like an MRI or X-ray—of rebar, wires, and pipes. The truth is less cinematic. The GPR equipment measures reflected radio waves, and the resulting image is a complex black and white display resembling static or a jagged line profile.
When the radar pulse encounters an object (like a pipe or rebar), the signal reflects back to the antenna, appearing as a characteristic hyperbola shape on the screen. The analyst's job is not just to point the machine, but to interpret the size, shape, and depth of hundreds of these hyperbolas and differentiate them from background noise. This critical analysis requires extensive training and experience, not just owning the equipment.
Myth 2: If I Buy the GPR Equipment, I Can Scan Myself
The Reality: Operating the equipment is easy; interpreting the data is a specialized skill.
GPR devices are designed to be user-friendly, leading many to believe that simply running the unit over concrete is sufficient. As noted above, the value of GPR lies entirely in the expertise of the analyst.

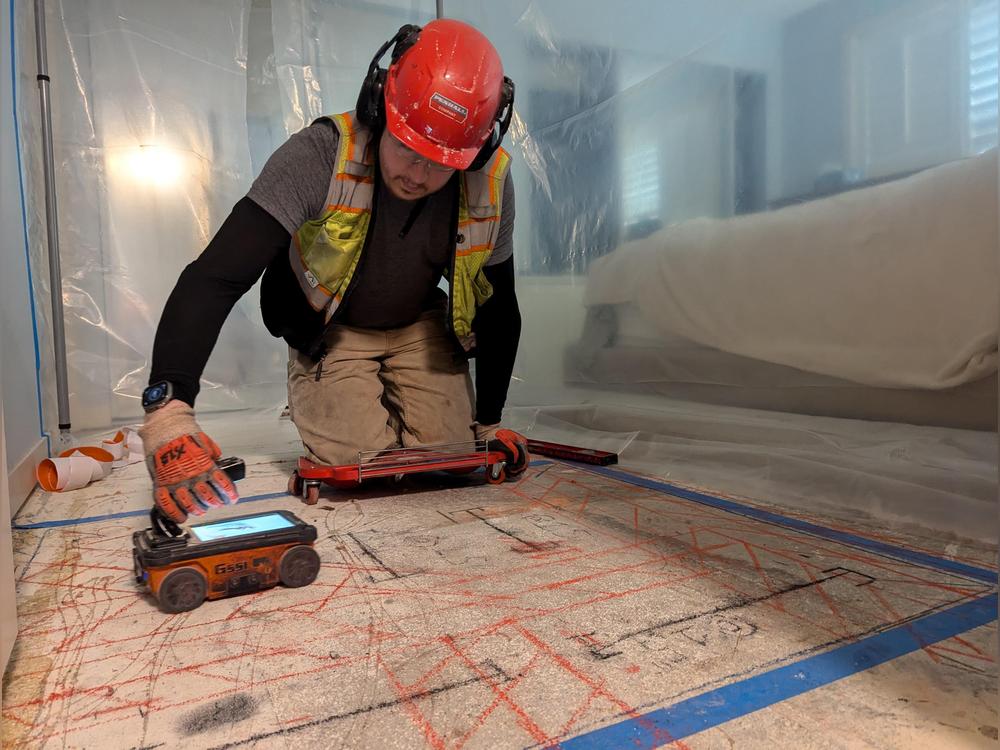

Professional GPR analysts are trained to read specific patterns and subtle changes in the data that distinguish between different objects. For instance, a skilled analyst can often use the spacing and pattern of the hyperbolas to differentiate between structural rebar, which is intentionally spaced, and random, non-structural elements like an abandoned electrical conduit. Buying the scanner gets you the data; hiring an analyst gets you the accurate, marked-up answer.
Myth 3: GPR Can Scan Successfully Under Any Surface Condition
The Reality: Surface conditions, especially moisture, significantly affect GPR success.
GPR works by transmitting electromagnetic signals into the concrete and timing the return echoes. This process is highly sensitive to the electrical properties of the material being scanned.
Moisture Content: Concrete that is less than three months old or that is saturated with water has a very high moisture content. Moisture dramatically increases electrical conductivity, causing the radar signal to scatter or reflect immediately back to the antenna. This prevents the signal from penetrating deeply, resulting in poor or unusable data.
Surface Finish: Highly conductive surfaces or dense materials like aluminum plating, granite, or marble flooring can also impede the signal, making successful penetration difficult or impossible. For best results, concrete should be well-cured and dry.
Myth 4: GPR Can Scan at Unlimited Depth
The Reality: GPR depth penetration is limited, especially in dense concrete.
While some low-frequency GPR units can scan deep into the ground (e.g., utility locating), the high-frequency equipment used for detailed concrete scanning is restricted. In standard concrete applications, GPR is typically limited to a maximum depth of approximately 18 to 24 inches.
If your project requires scanning concrete thicker than this range, or if the slab is inaccessible from one side, GPR may not be the ideal solution. In such cases, other non-destructive testing (NDT) methods, like concrete X-ray imaging, may be necessary to gain a clear view of the lower layers.
Myth 5: GPR is 100% Precise—It Guarantees the Location Within a Millimeter
The Reality: GPR is non-destructive but offers a practical range of accuracy.
GPR is considered highly accurate, but it is not a perfect pinpoint tool. Under ideal conditions (dry, well-aged concrete), a professional GPR analyst can typically locate the center of a target within one-quarter of an inch and determine its depth within a half-inch.
Several factors common on job sites can affect this accuracy:
Dense Reinforcement: Multiple layers of rebar, dense wire mesh, or complex internal structures (like pan decking) can cause signal clutter, making it harder to isolate individual targets.
Target Size and Material: Small, irregular objects are harder to define than large, uniform pipes.
By choosing to incorporate GPR scanning into your project and understanding its true capabilities, you transform a potential blind cutting operation into a precise, planned, and far safer procedure.
