At a Glance

  • GPR rebar scanning locates embedded rebar without demolition or core drilling, preserving structural integrity during assessment.
  • When original drawings are missing, outdated, or inaccurate, rebar mapping provides a reliable basis for repair and retrofit decisions.
  • Rebar depth, spacing, diameter estimates, and cover thickness data all inform corrosion risk evaluation and load capacity analysis.
  • Bridges, parking structures, and industrial facilities each present distinct scanning challenges that require field-experienced crews and proper equipment calibration.
  • Early identification of reinforcement anomalies -- such as congested zones, misplaced bars, or insufficient cover -- can prevent costly structural failures and project overruns.
  • GPR rebar scanning integrates with broader structural assessment workflows, including structural repair planning, concrete rehabilitation, and bridge inspection programs.
truck with view
Penhall GPR Scanning (2)

The Problem with Aging Infrastructure Documentation

When a structural engineer walks onto a 1960s-era parking deck or a bridge built before computerized documentation became standard, the first question is often the same: where is the rebar, and is it where it should be?

Original construction drawings, when they exist at all, may reflect design intent rather than as-built conditions. Reinforcement placement in older structures frequently deviated from plans due to field adjustments, substitutions, or simple human error during placement. Decades of carbonation, chloride ingress, and repeated load cycles compound the uncertainty. Before any repair scope can be defined, engineers need to know what is actually inside the concrete.

Ground penetrating radar (GPR) rebar scanning answers that question without a jackhammer.

What GPR Rebar Scanning Actually Does

GPR works by emitting high-frequency electromagnetic pulses into a concrete substrate and recording the time it takes for those signals to reflect back from embedded objects and interfaces. Rebar, post-tension cables, voids, and layer boundaries all produce distinct return signatures. The result is a subsurface profile that a trained technician can interpret in real time.

In the context of rebar mapping, GPR rebar scanning produces:

  • Rebar location in both plan view and cross-section
  • Depth of cover from the surface to the top of each bar
  • Bar spacing across a given area
  • Estimated bar diameter based on signal amplitude and hyperbola geometry
  • Identification of anomalies such as missing bars, crossed layers, congested zones, or significant section loss

Modern GPR systems used for concrete rebar scanning can resolve features at depths of 12 to 18 inches in typical reinforced concrete, with accuracy sufficient to guide core sample placement, anchor installation, and saw-cut operations.

Why Aging Infrastructure Creates Higher Stakes

Newer construction typically comes with complete, accessible documentation. Design drawings, submittals, pour records, and inspection reports are available digitally and provide a starting point for any structural assessment.

Aging infrastructure is a different situation. Consider what engineers routinely encounter:

Missing or incomplete drawings. Structures built before the 1990s may have paper-only records that were lost, damaged, or never archived. In some cases, only partial plans survived -- covering the original footprint but not subsequent additions or modifications.

Undocumented repairs and modifications. A parking structure that underwent deck patching in 1988 may have had rebar added, removed, or relocated without formal documentation. A bridge with a widened deck may have integrated new reinforcement in ways that are not reflected in the original as-builts.

Deterioration that obscures assessment. Spalled concrete, corroded rebar, and carbonated cover layers change the acoustic and electrical properties of the substrate. Scanning rebar in concrete that has experienced significant deterioration requires technicians who understand how signal return patterns shift in compromised material.

Regulatory and liability pressure. Bridge inspection programs, building department audits, and litigation-related assessments all place a premium on documented, defensible data. Visual inspection alone does not satisfy that standard when subsurface reinforcement is in question.

For all of these reasons, GPR rebar scanning has become a standard component of structural due diligence on assets built before modern documentation practices were widespread.

Three Asset Classes Where Rebar Mapping Is Particularly Valuable

Bridges

Bridge decks are among the most demanding environments for concrete rebar scanning. Chloride exposure from deicing chemicals is the leading cause of reinforcement corrosion in northern climates, and early corrosion is often invisible at the surface. GPR allows engineers to map cover depth across an entire deck, identifying zones where reduced cover creates higher corrosion risk -- and where patch repairs may have introduced rebar at inconsistent depths.

For bridges undergoing load rating analysis, rebar mapping provides input data for moment capacity calculations. A bar that is one inch deeper than assumed in the original analysis can meaningfully affect the calculated capacity of a member. When original drawings are unavailable or suspect, GPR-derived rebar location data becomes the input for finite element models and rating calculations.

Penhall's Bridge Services capabilities include scanning integrated with bridge inspection and repair scopes, providing engineers with a single source for assessment and execution.

Parking Structures

Multi-level parking structures are consistently among the most deterioration-prone concrete assets in urban environments. They combine thin deck slabs, high chloride exposure from vehicle drip, repetitive dynamic loading, and construction methods that, historically, did not always achieve specified cover depths.

Rebar mapping on parking structures is used to:

  • Establish baseline cover depth data for corrosion risk zonation
  • Confirm reinforcement layout before slab saw-cutting or core drilling during drainage system repairs
  • Support repair design by identifying areas of reduced section that may require supplemental reinforcement
  • Document existing conditions before ownership transfer or refinancing that triggers structural review

Because parking decks often have post-tensioned components in addition to mild reinforcement, scanning rebar in concrete in these environments requires equipment and operators capable of distinguishing PT tendons from rebar -- a distinction that matters significantly for saw-cut clearance.

Industrial Facilities

Industrial floors, equipment foundations, and elevated slabs present their own set of challenges. These structures are often heavily loaded, have been modified repeatedly, and may contain embedded conduit, anchor systems, and drainage structures that complicate the reinforcement picture.

For structural repair or new penetration work, engineers and contractors need to know not just where the rebar is, but what else is in the slab. GPR concrete rebar scanning at industrial facilities typically occurs alongside utility mapping, so the subsurface model reflects all embedded elements -- not just reinforcement.

How Rebar Mapping Informs Repair and Retrofit Decisions

The output of a GPR rebar scanning engagement is not just a map. When used correctly, it becomes part of a structural decision chain.

Defining repair boundaries. Engineers specifying full-depth deck replacement or partial-depth patching need to know whether the underlying reinforcement is in a location that allows the repair to be executed as designed. Rebar too close to the surface can require modified saw-cut depths; unanticipated bar clustering can require revised joint layouts.

Evaluating corrosion risk by zone. Cover depth data from scanning rebar in concrete, combined with half-cell potential surveys and chloride content testing, allows engineers to produce a risk-stratified deterioration map. This directly supports the prioritization of repair zones and the sequencing of maintenance budgets.

Supporting retrofit design. When structural upgrades require new anchors, adhesive anchors, or mechanical fasteners, GPR rebar scanning confirms clear zones ahead of drilling. For seismic retrofit work on bridges and industrial structures, rebar mapping verifies that existing reinforcement is sufficient to develop the forces required by new connection elements -- or flags where supplemental reinforcement may be needed.

Reducing contractor risk. A repair contractor working from a GPR-verified rebar map can submit more confident unit prices and avoid change orders driven by subsurface surprises. That has direct value to asset owners managing fixed-budget repair programs.

What to Expect from a GPR Rebar Scanning Engagement

A well-executed concrete rebar scanning scope includes:

Pre-field coordination. Any available drawings, repair records, or prior inspection reports should be reviewed before scanning. Even incomplete documentation improves the accuracy of field interpretation.

Equipment selection. Antenna frequency selection affects both depth penetration and resolution. Assessments focused on cover depth and near-surface rebar typically use higher-frequency antennas (900 MHz to 2.6 GHz). Deeper investigations, such as evaluating post-tension tendons or thick foundations, use lower frequencies with wider beam angles.

Systematic grid scanning. Accurate rebar mapping requires overlapping scan lines in orthogonal directions. Skipping lines or relying on spot checks produces incomplete data and is not appropriate for structural assessment applications.

Data processing and reporting. Raw GPR data requires processing to convert two-way travel time to depth and to produce plan-view rebar maps. Reports should include calibration methodology, depth confidence intervals, and any areas where signal quality was compromised by reinforcement congestion or surface conditions.

Integration with the broader assessment. Rebar scanning data is most useful when it feeds directly into the structural engineer's assessment model, repair specification, or drawing set. The scanning provider and the engineer of record should coordinate on deliverable format requirements before the field work begins.

Limitations Engineers Should Understand

GPR rebar scanning is a powerful assessment tool, but it has real limitations that need to be factored into project planning.

Congested reinforcement. When multiple layers of closely spaced rebar are present, signals from deeper bars can be obscured by shallower ones. This is common in bridge girder flanges and heavily reinforced industrial foundations. In these conditions, GPR provides reliable data on the top mat but may not fully resolve lower layers.

Highly conductive concrete. Salt-contaminated concrete and conductive aggregates absorb electromagnetic energy and reduce effective depth penetration. Scanning results in severely deteriorated or chloride-saturated decks should be interpreted with awareness of signal attenuation effects.

Diameter estimation accuracy. GPR provides estimated bar diameters based on signal amplitude. These estimates are useful for preliminary assessment but should be confirmed by core extraction in critical applications.

The scanning is not the engineering. GPR rebar scanning services produce field data. Converting that data into structural conclusions requires a licensed engineer applying appropriate analysis methods. The scan itself does not constitute a structural assessment.

Connecting Rebar Mapping to a Complete Assessment Program

Rebar mapping rarely stands alone. On aging infrastructure, it typically occurs as part of a larger condition assessment that may include:

  • Visual inspection and distress mapping
  • Delamination surveys by sounding or impact echo
  • Half-cell potential and resistivity testing for corrosion activity
  • Chloride content sampling at multiple depths
  • Core extraction for compressive strength and petrographic analysis

When the full picture is assembled, the structural engineer has a defensible, data-supported basis for repair prioritization, specification development, and cost estimation.

Penhall provides Concrete Scanning, Structural Repair, and Bridge Services as integrated capabilities, which means the assessment data and the repair execution can stay within a single accountable relationship. For asset owners managing aging infrastructure on a defined maintenance budget, that continuity reduces coordination overhead and improves the reliability of scope-to-cost translation.

Penhall LAX GPR-3
penhall lax edited-43

frequently asked questions

Concrete Removal and Breaking: Methods, Equipment, and Applications on Commercial Projects

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Commercial concrete removal requires selecting the right method based on site conditions, proximity to active operations, structural sensitivity, and debris management requirements.
  • The four primary methods used on commercial and industrial projects are hydraulic breaking, robotic demolition, sawing and removal, and selective hand demolition.
  • Utility scanning and coordination must precede any concrete breaking work to protect embedded systems and avoid costly damage or safety incidents.
  • Robotic demolition equipment is the preferred approach in low-headroom, confined, or high-vibration-sensitive environments where full-size equipment cannot safely operate.
  • Sawing and removal produces clean, controlled cuts that protect adjacent structures and allow for precise removal boundaries, making it well suited for phased work in occupied facilities.
  • Project sequencing matters: concrete removal that happens without proper planning for debris handling, utility protection, and replacement phasing leads to schedule overruns and rework.

Why Method Selection Matters on Commercial and Industrial Sites

Concrete removal on a commercial construction or industrial maintenance project is not a uniform task. A warehouse floor replacement, a bridge deck rehabilitation, a parking structure repair, and a manufacturing facility expansion each present different constraints: vibration sensitivity, access limitations, dust and noise restrictions, structural adjacency concerns, and the need to maintain operations in surrounding areas.

Choosing the wrong removal method creates problems that go beyond the breaking work itself. Excessive vibration can damage adjacent structures or sensitive equipment. Uncontrolled demolition near active utilities creates serious risk. Poor sequencing between removal, scanning, and replacement can stall downstream trades and push a project off schedule.

The methods covered here -- hydraulic breaking, robotic demolition, sawing and removal, and selective hand demolition -- each have conditions where they perform well and conditions where they should be avoided. Understanding those distinctions allows general contractors, project owners, and facility managers to plan work that is efficient, safe, and appropriate for the site.

Hydraulic Breaking

Hydraulic breaking is the standard approach for large-scale concrete removal on open commercial and infrastructure projects. Hydraulic breakers, typically mounted on excavators or skid steers, deliver high-impact force through a steel tool driven into the concrete surface. This breaks the slab or structure into manageable sections that can be loaded and removed.

When hydraulic breaking is appropriate:

  • Open sites with sufficient equipment access and overhead clearance
  • Large volume removal where production rate is a priority
  • Exterior work or interior spaces where vibration and noise are not primary constraints
  • Projects where demolition debris will be stockpiled and processed on site

Limitations to account for:

Hydraulic breaking is not precise. It generates significant vibration, noise, and airborne dust. On projects adjacent to occupied spaces, sensitive equipment, or existing structures with limited tolerance for vibration, the method requires careful evaluation or may need to be replaced with an alternative. Debris management also requires planning: broken concrete must be removed from the work zone efficiently to maintain production rates and site safety.

For large commercial demolition projects -- parking lots, industrial slabs, bridge approach slabs -- hydraulic breaking remains one of the most cost-effective and time-efficient options available when site conditions allow.

Robotic Demolition

Robotic demolition equipment has expanded the range of projects where controlled, mechanical concrete breaking is feasible. Remote-controlled demolition robots are compact, low-profile machines that can work in environments inaccessible to standard excavators -- low-headroom parking structures, occupied buildings, confined utility vaults, and spaces where operator safety in close proximity to unstable structure is a concern.

When robotic demolition is appropriate:

  • Interior demolition in occupied or partially occupied facilities
  • Low-headroom environments such as parking garages or basement levels
  • Spaces with ventilation restrictions where full-size diesel equipment is not permitted
  • Projects where precision and reduced vibration are required alongside mechanical breaking force
  • Hazardous environments where remote operation protects workers

Equipment capabilities:

Modern demolition robots can be fitted with hydraulic breakers, crushers, and shear attachments, allowing them to perform a range of tasks beyond simple breaking. Their electric or hydraulic drive systems reduce emissions concerns in enclosed spaces. Operators work at a safe distance from the demolition face, which is a significant advantage in structurally compromised or hazardous environments.

Robotic demolition does not replace high-volume breaking for large open sites, but it fills a critical role in the commercial and industrial project mix where access, safety, or environmental constraints make conventional equipment unsuitable. Learn more about Penhall's demolition services.

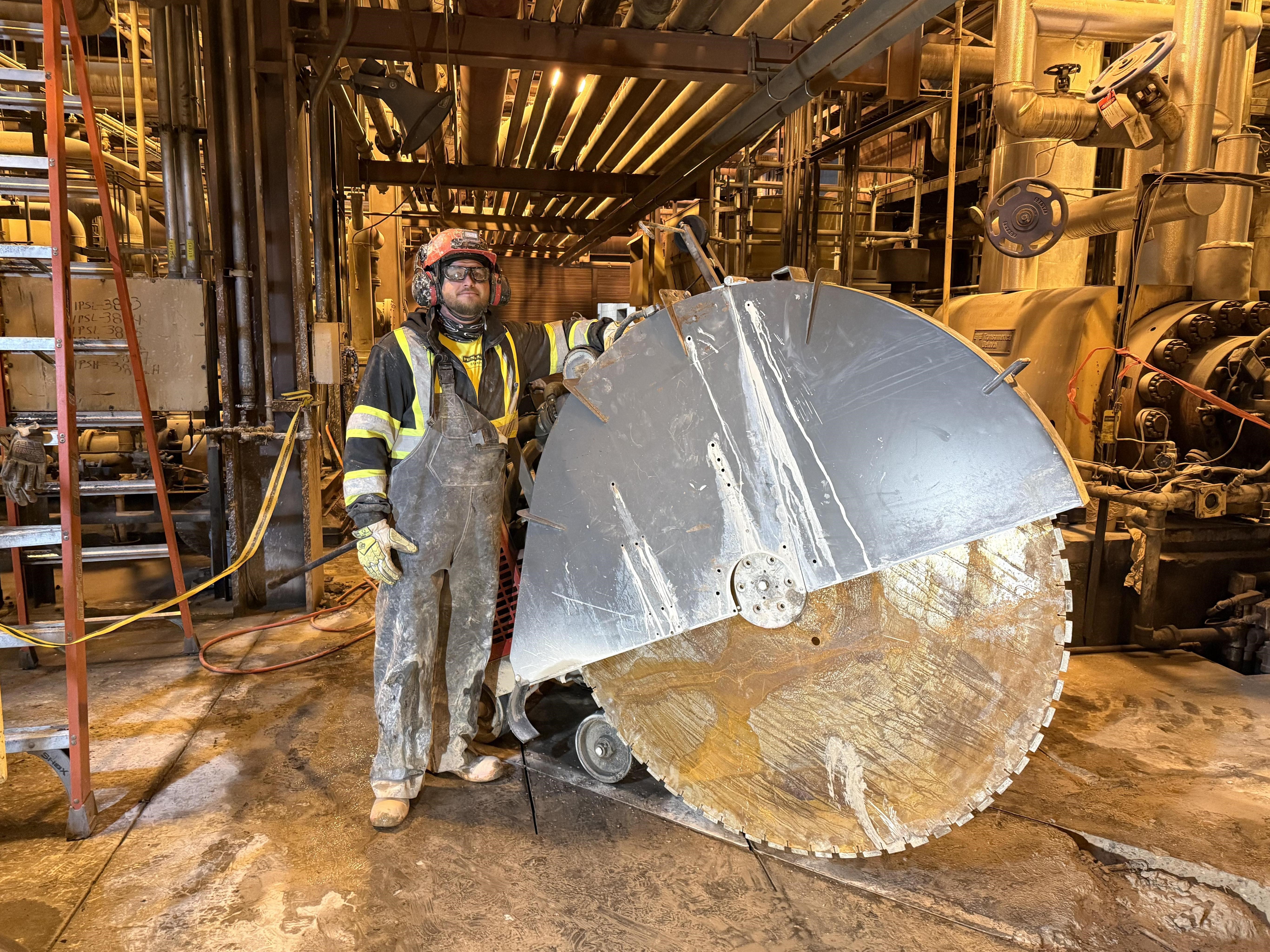

Sawing and Removal

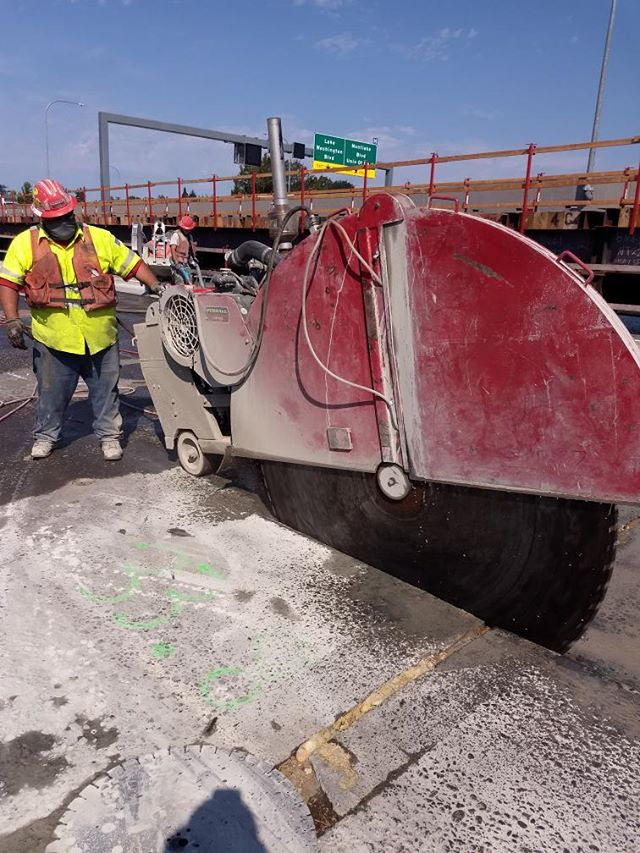

Concrete sawing is a controlled cutting process that uses diamond-tipped saw blades or wire to produce precise, straight cuts through concrete slabs, walls, and structural members. On commercial projects, sawing is frequently used to define removal boundaries before breaking begins, or as the primary removal method when the work requires clean edges, minimal vibration, and controlled depth.

Common sawing applications on commercial projects:

  • Defining saw-cut joints at the perimeter of a repair area before slab removal
  • Full-depth slab cutting for section removal and replacement
  • Wall sawing to create openings in concrete walls or barriers
  • Wire sawing for large-section cuts on bridge piers, foundations, or thick structural elements
  • Removing concrete in occupied facilities where vibration and noise must be minimized

Why sawing and removal fits phased commercial work:

Many commercial and industrial facilities cannot shut down completely for concrete replacement. A distribution center, hospital, data center, or manufacturing plant may need concrete work completed in sections, around active operations, without disturbing adjacent areas. Sawing defines clean removal boundaries that protect in-service sections of floor or structure, allows for precise coordination with replacement phasing, and reduces vibration transmission to surrounding areas.

Sawing also produces a cleaner substrate at the repair boundary. In overlay and repair applications, a saw-cut edge performs better than a broken edge because it provides a uniform interface for bonding.

Explore Penhall's concrete breaking and removal capabilities to understand how sawing integrates with broader project scopes.

Selective Hand Demolition

Not every concrete removal task calls for mechanical equipment. In areas with extremely tight access, near sensitive embedded utilities or structural elements, or where the removal must be executed with fine control to protect adjacent work, selective hand demolition with jackhammers, chipping guns, and hand tools is the right approach.

When selective hand demolition is appropriate:

  • Removing concrete immediately around embedded utilities, conduit, or rebar that must be preserved
  • Partial-depth removal such as scarifying a deteriorated surface layer while leaving the substrate intact
  • Areas too confined for even compact robotic equipment
  • Final cleanup and detailing after mechanical breaking
  • Situations where removal boundaries are irregular or defined by structural conditions that require real-time judgment

Integration with other methods:

Selective hand demolition rarely stands alone as the primary method on a commercial project. It typically follows mechanical breaking to clean out corners, remove material adjacent to sensitive elements, or achieve final elevations and edges that equipment cannot reach. On projects where sawing defines the removal boundary, hand demolition may be used to break and remove the cut section in areas where lifting equipment cannot work effectively.

Scanning and Utility Coordination Before Breaking Begins

One of the most consequential steps in any concrete removal project is what happens before the first break. Concrete slabs, walls, and structures on commercial and industrial sites routinely contain embedded post-tension cables, conduit, rebar, water lines, and other utilities that are not visible from the surface and may not be fully documented in as-built drawings.

Ground-penetrating radar (GPR) scanning identifies subsurface conditions before breaking begins. This is not optional on commercial projects -- hitting a post-tension cable during demolition creates an immediate safety hazard and can cause structural distress to adjacent sections. Severing an active conduit delays the project and creates liability. Damaging a waterline in an occupied facility creates far larger problems than the cost of the scan.

Utility coordination with facility managers and applicable utility owners should accompany the scanning process. On projects where as-built documentation is incomplete or where the facility has been modified over time, field scanning is the baseline for safe removal planning.

Proper sequencing looks like this:

  1. Review available as-built drawings and identify known embedded systems
  2. Complete GPR scanning across the removal area
  3. Mark subsurface findings on the slab surface for field reference
  4. Coordinate with facility management and utility owners to confirm findings and establish protection requirements
  5. Define removal boundaries and method selection based on scanning results
  6. Execute breaking work with markings maintained and visible to equipment operators

Skipping or abbreviating this process is one of the most common reasons commercial concrete removal projects encounter unplanned delays and cost overruns.

Sequencing Concrete Removal with the Broader Project Scope

On commercial construction and infrastructure projects, concrete removal is rarely an isolated scope item. It connects to the trades and activities that follow: base preparation, utility rough-in or replacement, formwork, and concrete placement. How removal is sequenced affects everything downstream.

Common sequencing considerations:

Phased removal in occupied facilities. When the facility must remain in operation, removal must be sequenced in sections that maintain safe access and operations. This typically means establishing clear separation between work zones and in-service areas, often using concrete saw cuts as the defining boundary between active and inactive sections.

Debris handling and haul routes. Broken concrete must leave the site. On projects with limited site access or tight schedules, debris staging and haul-out timing must be planned alongside the breaking work itself. Equipment congestion that delays haul-out slows breaking production.

Substrate preparation. Replacement concrete or overlays require a prepared substrate. The removal method affects what preparation is needed. Hydraulic breaking typically leaves a rough, fractured surface that may require additional grinding or scarification. Saw cuts leave clean edges that are ready for repair material. Planning for substrate preparation as part of the removal scope prevents surprises during replacement.

Utility replacement integration. If existing utilities within the slab are being replaced as part of the project, utility rough-in typically follows removal and precedes replacement concrete. Coordinating the removal scope with utility contractors avoids conflicts and rework.

Choosing a Contractor for Commercial Concrete Removal

The scale and complexity of commercial and industrial concrete removal requires a contractor with the equipment, experience, and project management capability to execute the work safely and on schedule. Key factors to evaluate:

  • Experience on projects of similar scale and type (industrial, infrastructure, occupied facilities)
  • In-house scanning capabilities or established scanning coordination processes
  • Equipment fleet that covers the range of methods likely to be required: hydraulic breaking, robotic demolition, sawing, and hand demolition
  • Familiarity with utility coordination requirements and post-tension slab protocols
  • Demonstrated ability to work within facility operating schedules on phased projects

Concrete removal scopes that appear straightforward at the outset frequently encounter conditions -- hidden utilities, post-tension systems, structural constraints -- that require the contractor to adapt. A contractor with limited method capability or experience will have fewer options when conditions change.

Penhall has performed concrete breaking and removal on commercial, industrial, and infrastructure projects across the country. Our crews are equipped for hydraulic breaking, robotic demolition, sawing and removal, and hand demolition, and our scanning capabilities support proper pre-work planning on every project.

Scope definition before assessment is a risk signal. A contractor who quotes square footage without a floor condition assessment is pricing based on assumptions. Those assumptions may be wrong in either direction.

The Bottom Line: Matching the Repair to the Condition

Concrete floor repair in commercial and industrial facilities works best when the decision follows the condition rather than leading it. Patching, resurfacing, and replacement are each the right answer for a specific set of conditions. The cost difference between them is significant, and so is the operational disruption. Getting the assessment right at the front end avoids the more expensive outcome of a repair approach that does not match the actual damage.

Surface preparation is what makes any of these approaches work. The repair material is only as durable as the bond to the substrate beneath it.

For facilities with active deterioration or upcoming floor repair work, early involvement of an experienced contractor produces better scope definition and better outcomes than waiting until conditions become critical.

Learn more about Penhall's capabilities in structural repair and scarifying and shaving.

201_ Demo_ Estancia HS Pool _ Doyle Palmer.jpg2
0607

frequently asked questions

Commercial and Industrial Concrete Floor Repair: When to Patch, Resurface, or Replace

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Concrete floor deterioration in warehouses, manufacturing plants, and distribution centers follows predictable patterns. Early identification of damage type determines the right repair strategy.
  • Patching is appropriate for localized, isolated damage covering less than 25% of the floor surface with no underlying structural issues.
  • Resurfacing works best when damage is widespread but shallow, and when the existing slab retains structural integrity.
  • Full removal and replacement is warranted when the slab has systemic structural failure, extensive subbase problems, or when repeated patching has failed.
  • Surface preparation is the single biggest factor in repair durability. A repair that bonds poorly to the existing slab will fail regardless of the material used.
  • Scarifying and shaving the concrete before any repair restores proper surface profile and removes contamination that prevents bonding.
  • Consulting a qualified contractor early in the evaluation process prevents costly over-engineering or under-engineering of the repair scope.

Why Industrial Concrete Floors Deteriorate

Concrete floors in commercial and industrial settings endure conditions that accelerate deterioration far beyond what residential or light commercial slabs experience. Forklift traffic, heavy point loads from racking systems, chemical spills, thermal cycling, and deicing salt infiltration all work against slab integrity over time.

The result is a spectrum of damage conditions, from minor surface scaling to full-depth cracking and subbase failure. Each condition has a distinct cause, a distinct failure mechanism, and a distinct repair approach. Misidentifying the damage type leads to repairs that fail early, which wastes budget and creates the same safety and operational hazards the repair was meant to eliminate.

Understanding what you are looking at before committing to a scope of work is the foundation of effective concrete floor repair in warehouses, manufacturing plants, and distribution centers.

Evaluating Floor Condition: A Systematic Approach

Before any decision about patching, resurfacing, or replacement, a proper condition assessment is necessary. The assessment should cover four areas.

Surface condition. Look for scaling, spalling, delamination, and surface erosion. These are the most visible signs of deterioration, but surface damage alone does not indicate the depth or severity of the problem.

Crack mapping. Document crack patterns, widths, and locations. Hairline shrinkage cracks are normal and generally non-structural. Cracks wider than 1/4 inch, pattern (map) cracking across large areas, and cracks with vertical displacement (faulting) are more serious indicators of structural movement or subbase failure.

Slab stability. Rocking or deflecting slabs indicate voids beneath the surface. Chain drag testing, where an experienced contractor drags a chain across the floor and listens for hollow sounds, is a simple field method. Ground-penetrating radar provides a more definitive picture of void locations and subbase conditions.

Joint condition. Control joints and expansion joints protect the slab from stress buildup. When joint edges have spalled or the joint filler has failed, wheels and forks impact the unsupported edge repeatedly, causing progressive damage in a pattern called joint edge spalling or joint deterioration.

This assessment produces a damage map of the facility, which forms the basis for the repair decision matrix.

The Decision Framework: Patch, Resurface, or Replace

No single rule covers every situation, but the following criteria provide a starting framework for facility managers and project engineers working through the decision.

When to Patch

Patching is appropriate when:

  • Damage is localized to specific areas representing less than 20 to 25 percent of the total floor surface
  • The surrounding slab is structurally sound with no evidence of voids, subbase failure, or systemic cracking
  • Damage is full-depth in isolated areas, such as around drain openings, column bases, or areas with documented point load history
  • Joint edge spalling is limited in scope and confined to identifiable high-traffic lanes
20210501_031530

Resurfacing is not a structural repair. If applied over a slab with movement, voids, or ongoing cracking, the overlay will reflect the same cracks and fail. A resurfacing decision must be preceded by a subbase assessment and any necessary void filling.

When to Replace

Full removal and replacement is the appropriate scope when:

  • Structural cracking is systemic, with crack widths exceeding 1/4 inch, vertical displacement, or pattern cracking across more than 30 to 40 percent of the slab area.
  • Subbase investigation reveals extensive voids, saturated soils, or compromised base course material.
  • Previous repair attempts have failed repeatedly in the same locations, indicating an underlying condition that surface repairs cannot address.
  • The floor has settled unevenly and cannot be corrected to acceptable flatness tolerances without full-depth work.
  • Chemical contamination has penetrated the full slab depth, preventing adequate bond for any overlay or patch system.

Replacement is the highest-cost option in the short term but is often the most cost-effective decision over the facility's operational life when the underlying conditions make lower-intervention approaches unreliable.

Surface Preparation: The Factor That Determines Repair Success

Surface preparation receives less attention than material selection in most discussions of concrete floor repair, but it has greater influence over long-term repair performance. A premium repair material applied to a poorly prepared substrate will fail. A standard repair material applied to a properly prepared substrate will outperform it significantly.

The goal of surface preparation is twofold: remove all contamination that would inhibit bond, and create a surface profile that gives the repair material mechanical interlock with the existing concrete.

Common Contamination Sources in Industrial Facilities

  • Hydraulic fluid and lubricant infiltration from equipment maintenance
  • Forklift battery acid
  • Curing compounds and surface sealers from previous treatments
  • Laitance (the weak surface layer that forms during concrete placement)
  • Carbonation of the concrete surface from atmospheric exposure

Any of these contaminants, left in place, creates a bond-breaking layer between the old concrete and the repair material. Mechanical preparation removes them.

Mechanical Preparation Methods

Shot blasting is the standard preparation method for large floor areas. It removes the surface layer, exposes aggregate, and creates a consistent surface profile (measured in CSP, or Concrete Surface Profile). Shot blasting is fast, contained, and produces minimal dust with proper equipment.

Scarifying and shaving is used when more aggressive material removal is needed, when existing coatings must be removed, or when high spots must be brought down to restore floor flatness. Scarifying cuts into the concrete surface with rotating carbide cutters, producing a more open, aggressive profile suitable for thick overlays or where the surface layer is significantly contaminated or deteriorated.

Grinding is appropriate for lighter profiling work, seam preparation, or when the objective is a smoother finish profile.

Saw cutting defines the perimeter of patch areas with clean, vertical edges. Feathered edges on patches fail; saw-cut boundaries with a minimum depth of 1/4 inch prevent edge delamination.

Profile Requirements by Repair Type

  • Thin overlays (less than 1/4 inch): CSP 3 to 4 (shot blast or light scarify)
  • Thick overlays (1/4 inch or greater): CSP 5 to 7 (medium to heavy scarify)
  • Full-depth patching: saw cut perimeter, removal to sound concrete, aggregate exposure

Getting surface preparation right requires equipment matched to the scale of the project and operators experienced with industrial floor conditions. Over-preparation (too aggressive a profile for the overlay thickness) and under-preparation (insufficient profile for bond strength) are both common errors.

Special Considerations for Warehouses and Distribution Centers

Warehouse floor repair introduces operational constraints that manufacturing environments may not share. The floor is a production asset. Downtime for repairs has a direct cost in throughput, and repairs that fail within months of installation create recurring disruptions.

Several factors specific to warehouse and distribution center floor repair warrant attention.

Floor flatness tolerance. Modern racking systems and high-reach forklifts operate within strict floor flatness tolerances (F-number systems define these limits). A repair that restores the floor structurally but leaves a high spot or low spot within a racking aisle creates an equipment clearance problem. Grinding and shaving after patching or resurfacing may be required to restore tolerance.

Joint protection. Armored joint systems, where a steel or polymer insert is installed at the joint edge, substantially extend joint life in high-traffic aisles. If joints are being opened for repair, incorporating armored joints is worth evaluating for the aisles with the highest forklift frequency.

Rapid-return materials. Standard repair mortars cure over 24 to 72 hours. Rapid-setting repair materials return to service in as little as one to four hours, which significantly reduces the operational impact of floor repair in active facilities. These materials carry a cost premium, but the tradeoff is often favorable when dock throughput is the constraint.

Staging repair in sections. Large-scale floor repair in operating warehouses is almost always staged in sections, working around active racking and operations. Proper sequencing and coordination with facility operations is as important to project success as the technical execution.

Working With a Qualified Contractor

Industrial concrete floor repair is not a commodity service. The range of damage conditions, substrate variables, repair materials, and preparation requirements means that contractor experience and equipment capability have a direct effect on repair longevity.

When evaluating contractors for warehouse floor repair or industrial concrete floor repair, look for:

  • Direct experience with your facility type (warehouse, manufacturing, food processing, etc.)
  • Access to appropriate surface preparation equipment for the project scale
  • Familiarity with rapid-return material systems if operational constraints are tight
  • A clear assessment process before the scope is defined, not after

Scope definition before assessment is a risk signal. A contractor who quotes square footage without a floor condition assessment is pricing based on assumptions. Those assumptions may be wrong in either direction.

The Bottom Line: Matching the Repair to the Condition

Concrete floor repair in commercial and industrial facilities works best when the decision follows the condition rather than leading it. Patching, resurfacing, and replacement are each the right answer for a specific set of conditions. The cost difference between them is significant, and so is the operational disruption. Getting the assessment right at the front end avoids the more expensive outcome of a repair approach that does not match the actual damage.

Surface preparation is what makes any of these approaches work. The repair material is only as durable as the bond to the substrate beneath it.

For facilities with active deterioration or upcoming floor repair work, early involvement of an experienced contractor produces better scope definition and better outcomes than waiting until conditions become critical.

Learn more about Penhall's capabilities in structural repair and scarifying and shaving.

61276246099__92CC9FDE-2301-4BCF-B83B-C45444193F85
TGC 6

frequently asked questions

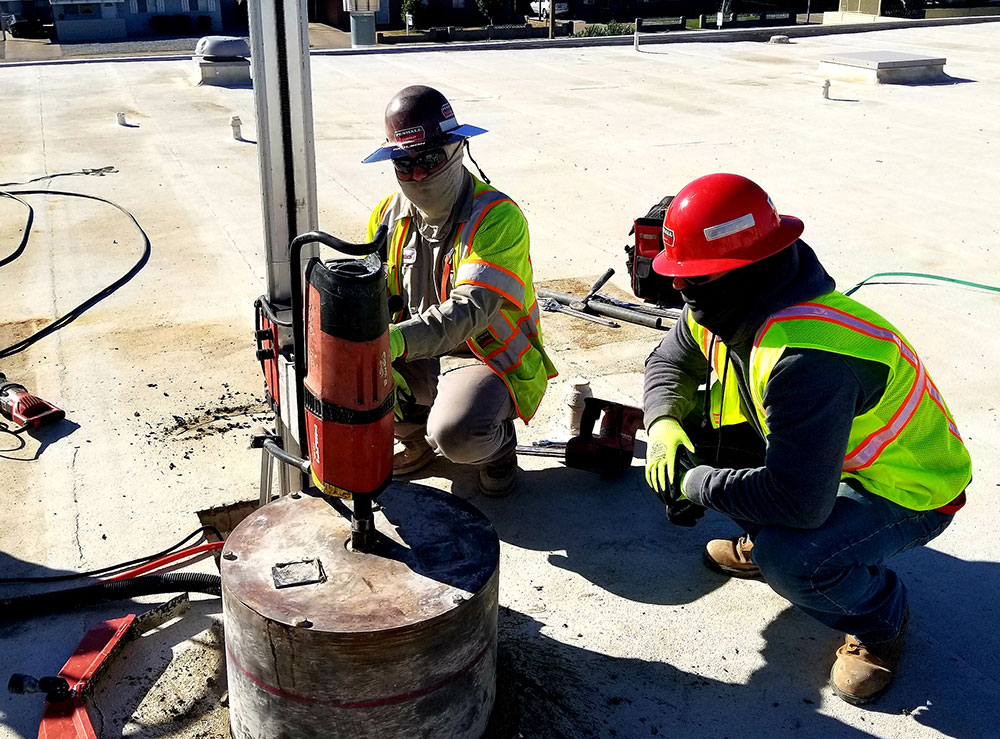

Precision Concrete Cutting for Infrastructure & Utility Upgrades

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Commercial concrete cutting and coring are load-bearing decisions, not just demolition tasks. Wrong sequencing damages structural integrity and delays adjacent trades.
  • GPR scanning before any cut or core is the standard that separates responsible contractors from reactive ones. It maps rebar, post-tension cables, conduits, and voids without a single saw blade touching the slab.
  • Horizontal directional drilling installs utility conduit beneath roads, bridges, and waterways without surface disruption, protecting existing infrastructure and eliminating lane closures in many scenarios.
  • Phased execution and underground utility coordination are not optional on infrastructure projects. They are the methodology.
  • Penhall integrates scanning, cutting, coring, and directional drilling under one contractor scope, reducing interface risk across trades.

Why Structural Concrete Repair in Commercial Facilities Is Different from Standard Patching

Structural concrete repair in commercial and industrial settings is an engineering intervention, not a maintenance task. A cosmetic crack in a parking garage fascia and a corroded post-tension cable in the same structure both present as concrete problems, but they occupy entirely different categories of risk, methodology, and urgency.

The deterioration mechanisms that affect commercial and industrial concrete are specific to how those structures are built and how they are used. Post-tensioned floor systems, hollow core slab assemblies, and reinforced industrial foundations each fail through distinct pathways. Applying the wrong repair approach to any of them does not fix the structure. Epoxy injection on a delaminating hollow core unit, or patching over a corroded tendon anchorage zone, conceals the failure while it continues to progress underneath.

Penhall's structural repair work in commercial and industrial environments starts with accurate diagnosis. The repair specification follows from what the structure actually needs, not from what is easiest to apply. That distinction separates structural repair from maintenance patching, and it is the difference between a repair that holds and one that fails on a shorter cycle than the original deterioration.

Post-Tensioned Concrete: What Fails, Why, and What Repair Requires

How Post-Tension Systems Work and Where They Break Down

Post-tensioned concrete uses high-strength steel tendons or cables threaded through ducts cast into the concrete slab or beam. After the concrete reaches design strength, hydraulic jacks tension the cables to predetermined loads, then anchor them at each end. The compressed concrete gains significant flexural capacity as a result. This system is common in parking structures, mid-rise commercial floors, and transfer slabs because it allows longer spans with thinner sections.

The failure modes are specific to this configuration. Corrosion of post-tension cables is the most consequential. In bonded systems, moisture that infiltrates duct failures or inadequate grout fill reaches the high-strength steel, which is more susceptible to hydrogen embrittlement and stress corrosion cracking than conventional rebar. In unbonded systems, the sheathing that protects individual tendons can be damaged during construction, deteriorated by age, or compromised by later construction activity. Coring through an unmarked tendon location is one of the most common causes of sudden, localized strand failure.

Anchorage zone deterioration is a separate but related failure path. The concrete at each bearing point concentrates the tendon load. Corrosion at the anchor plate, deterioration of the pocket cap, or carbonation of the grout can reduce the effective bearing area and cause the tendon to lose tension or, in advanced cases, fail at the anchor.

Diagnosing Post-Tension Failures Before They Become Structural Emergencies

Ground-penetrating radar (GPR) and half-cell potential surveys identify the location of tendons and indicate areas of active corrosion before visible distress appears. Lift-off testing measures actual tendon stress and identifies cables that have lost a meaningful portion of their design prestress. In bonded systems, radiography or borescope inspection of duct grout voids can confirm whether moisture pathways exist.

The diagnostic phase is not optional. Tendon locations must be confirmed before any core drilling, saw cutting, or mechanical anchoring in a post-tensioned floor. Severing a stressed tendon releases energy and can cause immediate local collapse of the slab. Penhall's GPR scanning capabilities exist specifically to protect against this scenario in both planned repair work and emergency response situations.

Repairing Post-Tensioned Concrete: The Technical Requirements

Repair of corroded or failed post-tension cables in occupied commercial buildings requires careful planning because the structural system is continuous. Replacing a failed tendon section means cutting back concrete to expose the duct, removing the damaged strand, threading a replacement or coupling to an intact section, re-tensioning to design load, and restoring the concrete. Each step affects the stress state of adjacent bays.

Anchorage zone repairs involve removing deteriorated concrete to the depth of sound material, treating corroded anchor hardware, and placing high-strength repair mortar or concrete to restore bearing. Where the tendon has lost stress and replacement is not feasible, supplemental post-tensioning or supplemental mild steel reinforcement in a new concrete overlay may restore design capacity.

This work requires close coordination with a structural engineer of record. Penhall operates as the execution contractor, providing the concrete removal, scanning, and placement capabilities, working from repair drawings that specify the structural requirements for each intervention.

Hollow Core Slab Repair: Understanding a Frequently Misdiagnosed System

What Hollow Core Slabs Are and How They Carry Load

Hollow core slabs are precast prestressed concrete units manufactured with longitudinal voids running the length of each plank. The voids reduce dead load while retaining depth for flexural stiffness. Hollow core systems are standard in commercial office buildings, parking structures, multi-family construction, and industrial mezzanines because they can be fabricated to long spans, delivered to site, and erected quickly.

The structural behavior of a hollow core slab depends on the integrity of the prestressing strands at the bottom of each unit, the topping slab where one exists, and the grout keys at the longitudinal joints between planks. Each of these elements deteriorates through different mechanisms, and a repair approach that addresses one without accounting for the others will not restore full system performance.

How Hollow Core Units Fail in Commercial and Industrial Buildings

Strand corrosion is the primary structural failure mechanism. Because the prestressing strands in hollow core units carry the full flexural tension, even partial section loss from corrosion significantly reduces load capacity. Moisture access occurs through joint grout failures, deteriorated topping slabs, or penetrations that were not properly sealed. In parking structures, chloride-laden water migrating down through failed waterproofing reaches the planks and initiates active corrosion.

Longitudinal joint failures are a less dramatic but important performance issue. When grout keys between planks crack or erode, the load-sharing behavior of the system degrades and individual planks carry higher-than-designed loads. In industrial settings with heavy point loads from racking systems or forklifts, this redistribution can be significant.

End bearing failures occur when hollow core units do not have sufficient bearing length on their support, when the support material deteriorates, or when thermal movement causes the unit to creep off its bearing. This failure mode often presents as a diagonal crack near the support end.

Concrete in the webs between voids can spall or crack without obvious external symptoms. Internal delamination is not visible from the underside and requires destructive investigation or specialized scanning to detect.

Repair Methodology for Hollow Core Systems

Repair of hollow core slabs depends heavily on the extent and location of deterioration. Where damage is limited to the topping slab or grout keys, removing the failed material and replacing it with a properly bonded repair mortar or a new topping can restore system integrity. Where strand corrosion is active and the section has lost structural capacity, the plank requires either removal and replacement or supplemental structural reinforcement.

Partial plank replacement is more common in commercial buildings than full-floor replacement. It involves temporary shoring of adjacent structure, saw cutting to isolate the affected unit or section, carefully removing the damaged plank without disturbing adjacent bays, and installing a new precast unit or cast-in-place replacement section with appropriate connections to the existing system.

Penhall's selective demolition capabilities are directly relevant here. Removing a hollow core plank in an occupied building without damaging adjacent units, the supporting structure below, or the finishes above requires controlled saw cutting and specialized lifting. The precision required is the same precision that Penhall brings to any selective demolition project in occupied or sensitive environments.

Industrial Concrete Repair: Foundation and Floor Systems Under Sustained Attack

What Makes Industrial Concrete Deterioration Different

Industrial facilities subject their concrete floors, foundations, slabs-on-grade, and containment structures to conditions that commercial buildings do not experience. Chemical attack from process fluids, oils, and cleaning agents degrades the cement matrix from the surface inward. Thermal cycling in facilities with high-temperature processes creates expansion and contraction stresses beyond normal service ranges. Vibration and impact loading from heavy equipment accelerates fatigue cracking. Hydrostatic pressure in below-grade slabs can cause uplift, delamination, or steady moisture infiltration that softens the slab and initiates reinforcement corrosion.

Industrial concrete repair cannot be specified from a product datasheet as a result. The repair material and method must be selected based on the specific deterioration mechanism present, the chemistry of the attacking agents, the structural loads that will continue after repair, and the operational constraints of the facility.

Foundation Deterioration in Industrial Settings

Industrial foundations often support equipment with significant dynamic loads: presses, compressors, turbines, and conveyor systems. Concrete under sustained vibration develops fatigue cracking that propagates differently than static-load cracking. Grout pads under equipment base plates can deteriorate through chemical contamination or abrasion, transferring loads in an uneven pattern that damages the concrete below.

Repair of industrial foundations involves removing contaminated or deteriorated concrete to sound material, cleaning and preparing the reinforcing steel, placing a cementitious or epoxy repair mortar matched to the load and chemical exposure conditions, and restoring equipment alignment. Where the foundation has lost section, structural analysis may require supplemental reinforcement or a new concrete cap.

Slab-on-Grade Repair in High-Load Industrial Environments

Industrial slabs-on-grade fail through joint deterioration, subgrade settlement, and surface abrasion, but also through more serious mechanisms including reinforcement corrosion from below and full-depth cracking from overloading or inadequate design for changes in use. Repair strategy depends on root cause. A surface repair applied over an actively settling subgrade will fail. A full-depth slab repair placed without addressing drainage or waterproofing will re-saturate.

Penhall's concrete removal capabilities allow precise full-depth removal of failed slab sections for replacement, controlled joint reconstruction, and preparation of repair areas to the standard profiles required for bonded repair systems. The removal work is as technical as the repair work; removing only what needs to come out, without damaging sound adjacent material or embedded infrastructure, is a precision requirement, not an approximation.

Grounding Grid Integrity and Structural Concrete Repair

Why Grounding Systems Are a Structural Repair Consideration

In industrial facilities including power generation plants, substations, manufacturing facilities, and data centers, a buried grounding grid connects electrical equipment to earth ground through a network of conductors embedded in or below the concrete. This grounding grid is safety-critical infrastructure. A compromised grounding system creates shock hazards, equipment damage risk, and potential regulatory non-compliance.

Structural concrete repair work in these environments intersects with grounding grid integrity in specific ways. Core drilling, saw cutting, and mechanical anchoring all have the potential to sever grounding conductors embedded in or passing through concrete slabs and foundations. In facilities where the grounding grid was installed during original construction and documentation is incomplete, the exact routing of conductors may not be known.

Where corrosion is the deterioration mechanism affecting the concrete, the same electrochemical conditions attacking the reinforcing steel may also be affecting buried grounding conductors. Identifying areas of active corrosion during the repair investigation phase should prompt a review of grounding grid continuity in the same zones.

Managing Grounding Grid Risk During Concrete Repair Projects

Pre-work scanning of concrete in industrial facilities where grounding grids are present is a direct safety requirement. GPR scanning identifies metallic conductors, including grounding grid elements, before cutting or drilling begins. In facilities where grid documentation exists, field verification against as-built drawings is standard practice.

Repair work that requires removal of concrete containing grounding conductors must include a plan for temporary grounding continuity during the work and permanent reconnection that meets the facility's electrical engineering requirements. Penhall coordinates with the facility's electrical engineering team on these requirements as a standard part of pre-work planning for industrial concrete repair in affected facility types.

The grounding grid is one of several embedded infrastructure systems, alongside post-tension cables, conduit runs, and piping sleeves, that make industrial concrete repair fundamentally different from work in simpler structures. Managing all of them accurately is a project management and technical competency requirement, not a safety checkbox alone.

Selective Demolition as a Structural Repair Strategy

Why What You Remove Matters

Selective demolition in structural repair is not simply making room for new material. The removal process itself determines whether the repair will perform. Over-removal damages adjacent sound concrete and creates stress concentrations at repair boundaries. Under-removal leaves deteriorated material that will continue to degrade and undermine the repair from within.

The standard for concrete removal in structural repair is removal to sound concrete, confirmed by hammer sounding, pull-off testing, or petrographic analysis where the failure mechanism warrants it. In post-tension and hollow core systems, the geometry of the removal must also account for the structural consequences of removing restraint from a pre-stressed system. That calculation belongs in the repair specification, not in field decision-making.

Penhall's selective demolition work in structural repair contexts uses hydrodemolition, saw cutting, and mechanical breaking depending on the geometry of the repair area, the required boundary profile, and the sensitivity of adjacent structure. Hydrodemolition uses high-pressure water to remove deteriorated material while leaving sound concrete and intact reinforcing steel largely undisturbed. This produces a better repair bond surface than mechanical methods in many applications and reduces micro-cracking at the repair perimeter.

Occupied Facility Constraints

Commercial and industrial concrete repair almost always occurs in partially or fully occupied facilities. Operational shutdowns for concrete repair work carry significant cost and business disruption. Repair sequences must be phased to maintain structural continuity throughout the work, temporary shoring must be adequate for the loads that will be on the structure during each phase, and construction activity must be managed to protect occupants, operations, and adjacent structure.

Penhall's experience in occupied commercial and industrial facilities, where the operational context is as much a project constraint as the structural one, is a direct differentiator in complex structural repair engagements.

When to Escalate from Maintenance Repair to Structural Assessment

The indicators that a concrete repair situation has crossed from maintenance to structural concern include:

  • •Cracks that are wide, actively growing, or accompanied by differential deflection between adjacent structural elements
  • •Any sign of post-tension tendon failure: sudden cracking in a fan pattern, visible tendon exposure, or audible wire breaks
  • •Hollow core planks with visible longitudinal cracking along the prestress strand lines, significant deflection, or evidence of end bearing movement
  • •Spalling or delamination over a large area of an industrial foundation or floor under equipment loads
  • •Recurring repairs in the same location after multiple repair cycles
  • •Any structural concern in a post-tensioned or prestressed system that cannot be fully explained by available documentation

In all of these situations, the appropriate first step is a structural assessment by a licensed structural engineer before repair work begins. Penhall works alongside engineering teams on structural repair projects, providing the technical concrete removal, scanning, and construction capabilities that translate a repair specification into executed work.

frequently asked questions

Structural Concrete Repair in Commercial & Industrial Facilities

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Post-tension cable failures are often invisible until significant structural capacity has already been lost; early detection through specialized scanning prevents catastrophic outcomes.
  • Hollow core slab systems require a different repair methodology than cast-in-place concrete; misdiagnosis leads to ineffective repairs and recurring failures.
  • Industrial concrete foundations face unique deterioration mechanisms including chemical attack, dynamic loading, and hydrostatic pressure that standard repair protocols do not address.
  • Selective demolition and concrete removal are active parts of a structural repair strategy, not just preparatory steps; what you remove matters as much as what you replace.
  • Grounding grid integrity is a structural concern in industrial facilities, not only an electrical one; concrete repair work that disrupts buried grounding systems creates compounding liability.
  • Repair cost trajectories accelerate sharply once deterioration crosses structural thresholds; the window for targeted intervention is narrower than most facility managers expect.

Why Structural Concrete Repair in Commercial Facilities Is Different from Standard Patching

Structural concrete repair in commercial and industrial settings is an engineering intervention, not a maintenance task. A cosmetic crack in a parking garage fascia and a corroded post-tension cable in the same structure both present as concrete problems, but they occupy entirely different categories of risk, methodology, and urgency.

The deterioration mechanisms that affect commercial and industrial concrete are specific to how those structures are built and how they are used. Post-tensioned floor systems, hollow core slab assemblies, and reinforced industrial foundations each fail through distinct pathways. Applying the wrong repair approach to any of them does not fix the structure. Epoxy injection on a delaminating hollow core unit, or patching over a corroded tendon anchorage zone, conceals the failure while it continues to progress underneath.

Penhall's structural repair work in commercial and industrial environments starts with accurate diagnosis. The repair specification follows from what the structure actually needs, not from what is easiest to apply. That distinction separates structural repair from maintenance patching, and it is the difference between a repair that holds and one that fails on a shorter cycle than the original deterioration.

Post-Tensioned Concrete: What Fails, Why, and What Repair Requires

How Post-Tension Systems Work and Where They Break Down

Post-tensioned concrete uses high-strength steel tendons or cables threaded through ducts cast into the concrete slab or beam. After the concrete reaches design strength, hydraulic jacks tension the cables to predetermined loads, then anchor them at each end. The compressed concrete gains significant flexural capacity as a result. This system is common in parking structures, mid-rise commercial floors, and transfer slabs because it allows longer spans with thinner sections.

The failure modes are specific to this configuration. Corrosion of post-tension cables is the most consequential. In bonded systems, moisture that infiltrates duct failures or inadequate grout fill reaches the high-strength steel, which is more susceptible to hydrogen embrittlement and stress corrosion cracking than conventional rebar. In unbonded systems, the sheathing that protects individual tendons can be damaged during construction, deteriorated by age, or compromised by later construction activity. Coring through an unmarked tendon location is one of the most common causes of sudden, localized strand failure.

Anchorage zone deterioration is a separate but related failure path. The concrete at each bearing point concentrates the tendon load. Corrosion at the anchor plate, deterioration of the pocket cap, or carbonation of the grout can reduce the effective bearing area and cause the tendon to lose tension or, in advanced cases, fail at the anchor.

Diagnosing Post-Tension Failures Before They Become Structural Emergencies

Ground-penetrating radar (GPR) and half-cell potential surveys identify the location of tendons and indicate areas of active corrosion before visible distress appears. Lift-off testing measures actual tendon stress and identifies cables that have lost a meaningful portion of their design prestress. In bonded systems, radiography or borescope inspection of duct grout voids can confirm whether moisture pathways exist.

The diagnostic phase is not optional. Tendon locations must be confirmed before any core drilling, saw cutting, or mechanical anchoring in a post-tensioned floor. Severing a stressed tendon releases energy and can cause immediate local collapse of the slab. Penhall's GPR scanning capabilities exist specifically to protect against this scenario in both planned repair work and emergency response situations.

Repairing Post-Tensioned Concrete: The Technical Requirements

Repair of corroded or failed post-tension cables in occupied commercial buildings requires careful planning because the structural system is continuous. Replacing a failed tendon section means cutting back concrete to expose the duct, removing the damaged strand, threading a replacement or coupling to an intact section, re-tensioning to design load, and restoring the concrete. Each step affects the stress state of adjacent bays.

Anchorage zone repairs involve removing deteriorated concrete to the depth of sound material, treating corroded anchor hardware, and placing high-strength repair mortar or concrete to restore bearing. Where the tendon has lost stress and replacement is not feasible, supplemental post-tensioning or supplemental mild steel reinforcement in a new concrete overlay may restore design capacity.

This work requires close coordination with a structural engineer of record. Penhall operates as the execution contractor, providing the concrete removal, scanning, and placement capabilities, working from repair drawings that specify the structural requirements for each intervention.

Hollow Core Slab Repair: Understanding a Frequently Misdiagnosed System

What Hollow Core Slabs Are and How They Carry Load

Hollow core slabs are precast prestressed concrete units manufactured with longitudinal voids running the length of each plank. The voids reduce dead load while retaining depth for flexural stiffness. Hollow core systems are standard in commercial office buildings, parking structures, multi-family construction, and industrial mezzanines because they can be fabricated to long spans, delivered to site, and erected quickly.

The structural behavior of a hollow core slab depends on the integrity of the prestressing strands at the bottom of each unit, the topping slab where one exists, and the grout keys at the longitudinal joints between planks. Each of these elements deteriorates through different mechanisms, and a repair approach that addresses one without accounting for the others will not restore full system performance.

How Hollow Core Units Fail in Commercial and Industrial Buildings

Strand corrosion is the primary structural failure mechanism. Because the prestressing strands in hollow core units carry the full flexural tension, even partial section loss from corrosion significantly reduces load capacity. Moisture access occurs through joint grout failures, deteriorated topping slabs, or penetrations that were not properly sealed. In parking structures, chloride-laden water migrating down through failed waterproofing reaches the planks and initiates active corrosion.

Longitudinal joint failures are a less dramatic but important performance issue. When grout keys between planks crack or erode, the load-sharing behavior of the system degrades and individual planks carry higher-than-designed loads. In industrial settings with heavy point loads from racking systems or forklifts, this redistribution can be significant.

End bearing failures occur when hollow core units do not have sufficient bearing length on their support, when the support material deteriorates, or when thermal movement causes the unit to creep off its bearing. This failure mode often presents as a diagonal crack near the support end.

Concrete in the webs between voids can spall or crack without obvious external symptoms. Internal delamination is not visible from the underside and requires destructive investigation or specialized scanning to detect.

Repair Methodology for Hollow Core Systems

Repair of hollow core slabs depends heavily on the extent and location of deterioration. Where damage is limited to the topping slab or grout keys, removing the failed material and replacing it with a properly bonded repair mortar or a new topping can restore system integrity. Where strand corrosion is active and the section has lost structural capacity, the plank requires either removal and replacement or supplemental structural reinforcement.

Partial plank replacement is more common in commercial buildings than full-floor replacement. It involves temporary shoring of adjacent structure, saw cutting to isolate the affected unit or section, carefully removing the damaged plank without disturbing adjacent bays, and installing a new precast unit or cast-in-place replacement section with appropriate connections to the existing system.

Penhall's selective demolition capabilities are directly relevant here. Removing a hollow core plank in an occupied building without damaging adjacent units, the supporting structure below, or the finishes above requires controlled saw cutting and specialized lifting. The precision required is the same precision that Penhall brings to any selective demolition project in occupied or sensitive environments.

Industrial Concrete Repair: Foundation and Floor Systems Under Sustained Attack

What Makes Industrial Concrete Deterioration Different

Industrial facilities subject their concrete floors, foundations, slabs-on-grade, and containment structures to conditions that commercial buildings do not experience. Chemical attack from process fluids, oils, and cleaning agents degrades the cement matrix from the surface inward. Thermal cycling in facilities with high-temperature processes creates expansion and contraction stresses beyond normal service ranges. Vibration and impact loading from heavy equipment accelerates fatigue cracking. Hydrostatic pressure in below-grade slabs can cause uplift, delamination, or steady moisture infiltration that softens the slab and initiates reinforcement corrosion.

Industrial concrete repair cannot be specified from a product datasheet as a result. The repair material and method must be selected based on the specific deterioration mechanism present, the chemistry of the attacking agents, the structural loads that will continue after repair, and the operational constraints of the facility.

Foundation Deterioration in Industrial Settings

Industrial foundations often support equipment with significant dynamic loads: presses, compressors, turbines, and conveyor systems. Concrete under sustained vibration develops fatigue cracking that propagates differently than static-load cracking. Grout pads under equipment base plates can deteriorate through chemical contamination or abrasion, transferring loads in an uneven pattern that damages the concrete below.

Repair of industrial foundations involves removing contaminated or deteriorated concrete to sound material, cleaning and preparing the reinforcing steel, placing a cementitious or epoxy repair mortar matched to the load and chemical exposure conditions, and restoring equipment alignment. Where the foundation has lost section, structural analysis may require supplemental reinforcement or a new concrete cap.

Slab-on-Grade Repair in High-Load Industrial Environments

Industrial slabs-on-grade fail through joint deterioration, subgrade settlement, and surface abrasion, but also through more serious mechanisms including reinforcement corrosion from below and full-depth cracking from overloading or inadequate design for changes in use. Repair strategy depends on root cause. A surface repair applied over an actively settling subgrade will fail. A full-depth slab repair placed without addressing drainage or waterproofing will re-saturate.

Penhall's concrete removal capabilities allow precise full-depth removal of failed slab sections for replacement, controlled joint reconstruction, and preparation of repair areas to the standard profiles required for bonded repair systems. The removal work is as technical as the repair work; removing only what needs to come out, without damaging sound adjacent material or embedded infrastructure, is a precision requirement, not an approximation.

Grounding Grid Integrity and Structural Concrete Repair

Why Grounding Systems Are a Structural Repair Consideration

In industrial facilities including power generation plants, substations, manufacturing facilities, and data centers, a buried grounding grid connects electrical equipment to earth ground through a network of conductors embedded in or below the concrete. This grounding grid is safety-critical infrastructure. A compromised grounding system creates shock hazards, equipment damage risk, and potential regulatory non-compliance.

Structural concrete repair work in these environments intersects with grounding grid integrity in specific ways. Core drilling, saw cutting, and mechanical anchoring all have the potential to sever grounding conductors embedded in or passing through concrete slabs and foundations. In facilities where the grounding grid was installed during original construction and documentation is incomplete, the exact routing of conductors may not be known.

Where corrosion is the deterioration mechanism affecting the concrete, the same electrochemical conditions attacking the reinforcing steel may also be affecting buried grounding conductors. Identifying areas of active corrosion during the repair investigation phase should prompt a review of grounding grid continuity in the same zones.

Managing Grounding Grid Risk During Concrete Repair Projects

Pre-work scanning of concrete in industrial facilities where grounding grids are present is a direct safety requirement. GPR scanning identifies metallic conductors, including grounding grid elements, before cutting or drilling begins. In facilities where grid documentation exists, field verification against as-built drawings is standard practice.

Repair work that requires removal of concrete containing grounding conductors must include a plan for temporary grounding continuity during the work and permanent reconnection that meets the facility's electrical engineering requirements. Penhall coordinates with the facility's electrical engineering team on these requirements as a standard part of pre-work planning for industrial concrete repair in affected facility types.

The grounding grid is one of several embedded infrastructure systems, alongside post-tension cables, conduit runs, and piping sleeves, that make industrial concrete repair fundamentally different from work in simpler structures. Managing all of them accurately is a project management and technical competency requirement, not a safety checkbox alone.

Selective Demolition as a Structural Repair Strategy

Why What You Remove Matters

Selective demolition in structural repair is not simply making room for new material. The removal process itself determines whether the repair will perform. Over-removal damages adjacent sound concrete and creates stress concentrations at repair boundaries. Under-removal leaves deteriorated material that will continue to degrade and undermine the repair from within.

The standard for concrete removal in structural repair is removal to sound concrete, confirmed by hammer sounding, pull-off testing, or petrographic analysis where the failure mechanism warrants it. In post-tension and hollow core systems, the geometry of the removal must also account for the structural consequences of removing restraint from a pre-stressed system. That calculation belongs in the repair specification, not in field decision-making.

Penhall's selective demolition work in structural repair contexts uses hydrodemolition, saw cutting, and mechanical breaking depending on the geometry of the repair area, the required boundary profile, and the sensitivity of adjacent structure. Hydrodemolition uses high-pressure water to remove deteriorated material while leaving sound concrete and intact reinforcing steel largely undisturbed. This produces a better repair bond surface than mechanical methods in many applications and reduces micro-cracking at the repair perimeter.

Occupied Facility Constraints

Commercial and industrial concrete repair almost always occurs in partially or fully occupied facilities. Operational shutdowns for concrete repair work carry significant cost and business disruption. Repair sequences must be phased to maintain structural continuity throughout the work, temporary shoring must be adequate for the loads that will be on the structure during each phase, and construction activity must be managed to protect occupants, operations, and adjacent structure.

Penhall's experience in occupied commercial and industrial facilities, where the operational context is as much a project constraint as the structural one, is a direct differentiator in complex structural repair engagements.

When to Escalate from Maintenance Repair to Structural Assessment

The indicators that a concrete repair situation has crossed from maintenance to structural concern include:

  • •Cracks that are wide, actively growing, or accompanied by differential deflection between adjacent structural elements
  • •Any sign of post-tension tendon failure: sudden cracking in a fan pattern, visible tendon exposure, or audible wire breaks
  • •Hollow core planks with visible longitudinal cracking along the prestress strand lines, significant deflection, or evidence of end bearing movement
  • •Spalling or delamination over a large area of an industrial foundation or floor under equipment loads
  • •Recurring repairs in the same location after multiple repair cycles
  • •Any structural concern in a post-tensioned or prestressed system that cannot be fully explained by available documentation

In all of these situations, the appropriate first step is a structural assessment by a licensed structural engineer before repair work begins. Penhall works alongside engineering teams on structural repair projects, providing the technical concrete removal, scanning, and construction capabilities that translate a repair specification into executed work.

frequently asked questions

GPR Utility Locating: How It Fits Into Subsurface Utility Locating and Mapping

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Ground penetrating radar utility locating is one method within a broader subsurface utility investigation workflow. It excels at locating non-conductive utilities that electromagnetic induction cannot detect, including plastic gas lines and PVC conduit.
  • GPR does not positively identify every utility in the ground on its own. Soil conditions, depth, utility material, and signal interference all affect data quality and require trained interpretation.
  • The most accurate subsurface utility locating programs layer GPR with electromagnetic (EM) methods, vacuum excavation confirmation, and existing record review.
  • Proper site preparation, antenna frequency selection, and grid pattern scanning meaningfully improve GPR data reliability.
  • Quality Level B subsurface utility location work, which includes both EM and GPR, produces the type of documented output required for ASCE 38 design-level projects.
scan w truck outside
scan wall

What Ground Penetrating Radar Utility Locating Actually Does

GPR maps subsurface anomalies based on material contrast. It detects what EM cannot, but it requires skilled interpretation and site-specific calibration to produce reliable data.

Ground penetrating radar utility locating works by transmitting radio wave energy pulses into the ground and recording the reflections that return when those waves encounter a change in material density. A buried pipe, conduit, or void creates a reflective boundary that appears on the GPR screen as a hyperbolic arc. A trained technician reads those arcs, accounts for signal velocity in the specific soil type present, and marks the approximate depth and horizontal position of the anomaly.

The fundamental output of a GPR scan is a two-dimensional cross-section of the subsurface called a radargram. On a radargram, depth is represented on the vertical axis and horizontal distance traveled is on the horizontal axis. Each hyperbolic shape represents a point-source reflection, typically a pipe, cable, or conduit crossing the scan line perpendicularly. The apex of that hyperbola marks the utility's location. Reading radargrams accurately takes field experience and cannot be automated reliably on complex or congested sites.

GPR is not a metal detector. It responds to dielectric contrast, meaning the difference in electrical properties between a buried object and the surrounding soil. This is why GPR can locate plastic water mains, PVC conduit, fiber optic ducts, and concrete-encased duct banks that electromagnetic induction misses entirely. Conversely, GPR can struggle to distinguish a steel pipe from a concrete foundation edge if both produce similar reflective signatures in the same scan line.

Where GPR Fits in a Subsurface Utility Investigation Workflow

Subsurface utility locating is not a single-method process. The American Society of Civil Engineers standard ASCE 38-22 defines four Quality Levels of subsurface utility information, ranging from D (records only) through A (vacuum excavation confirmation). GPR utility locating operates primarily at Quality Level B, alongside electromagnetic induction, as part of the field investigation that produces designatable utility data.

A standard workflow for a commercial or infrastructure site typically moves through these stages:

Stage 1: Records collection and conflict assessment. The crew gathers as-built drawings, 811 one-call markings, utility owner records, and any prior survey data. These records establish expected utility corridors and flag potential conflicts before field work begins.

Stage 2: Electromagnetic induction scanning. EM locating traces conductive utilities, including metallic water mains, gas lines, electrical conduit, and steel-jacketed telecommunications lines. EM is faster across large areas and produces a reliable signal on conductive targets with a good ground contact.

Stage 3: GPR scanning to fill detection gaps. Non-conductive utilities, abandoned lines not visible on records, and congested duct banks in close proximity often fall outside what EM detects reliably. GPR scanning runs in a grid pattern over the investigation area to capture these targets. It also provides independent depth confirmation on lines already located by EM.

Stage 4: Correlation and mapping. Field data from EM and GPR is correlated with the records from Stage 1. Anomalies that do not match any known utility are flagged for vacuum excavation confirmation before excavation proceeds.

Stage 5: Quality Level A confirmation where required. On high-consequence projects, vacuum excavation exposes selected utilities for physical measurement of depth, diameter, and material, converting Quality Level B data to Quality Level A.

Running GPR in isolation without EM correlation and records review is how misses happen. Each method covers detection gaps the others leave behind.

What GPR Utility Locating Can and Cannot Detect

Understanding GPR's detection envelope prevents both overconfidence in its results and unnecessary skepticism about its role.

GPR reliably detects:

  • Plastic, PVC, and HDPE water and gas lines
  • Concrete-encased duct banks and conduit systems
  • Fiber optic and telecommunications ducts
  • Steel, ductile iron, and copper metallic utilities (though EM is typically more efficient for these)
  • Concrete structures, footings, and slabs below grade
  • Voids, sinkholes, and subsidence zones
  • Reinforcement steel (rebar) in concrete structures

GPR detection is reduced or unreliable when:

  • Soils are high in clay content or moisture-saturated. Clay attenuates the GPR signal rapidly, often limiting penetration depth to 18 inches or less in severe conditions.
  • Utilities run parallel to the scan line rather than perpendicular to it. Parallel targets do not produce the hyperbolic reflection needed for confident identification.
  • Multiple utilities are closely spaced. Signal overlap between adjacent lines can obscure individual pipes in congested corridors.
  • Conductive soil fills, road base material, or buried debris create high-amplitude background clutter that masks weaker reflections from smaller-diameter utilities.
  • Depth exceeds the antenna's effective penetration range for the soil conditions present.

These limitations are not reasons to avoid GPR. They are inputs for planning scan frequency, antenna selection, and field confirmation strategy.

Antenna Frequency Selection and Its Effect on Results

GPR antenna frequency is the primary variable that controls the trade-off between penetration depth and resolution. Higher frequency antennas resolve smaller targets more clearly but attenuate faster in the ground. Lower frequency antennas penetrate deeper but cannot distinguish closely spaced targets or small-diameter utilities.

The most common antenna ranges used in underground utility locating services work are:

200 to 400 MHz antennas are standard for utility locating on most site types. They balance depth penetration (typically 8 to 15 feet in moderate soils) with enough resolution to identify pipes in the 4-inch diameter range and larger. Most municipal infrastructure and commercial utility corridors fall within this range.

500 to 900 MHz antennas resolve shallower targets with greater clarity. They are appropriate for congested shallow duct banks, shallow conduit, and sites where maximum depth is less important than distinguishing closely spaced utilities at 3 to 6 feet of depth.

100 MHz and below are used when deep penetration is required, such as geological investigation, deep foundation work, or void detection below 20 feet. Resolution at these frequencies is insufficient for standard utility line differentiation.

On sites with variable soil conditions or uncertain utility depth, crews may run dual-frequency passes to capture both shallow and deep targets in a single investigation. Antenna selection should be part of the pre-job planning conversation, not a default choice made in the field.

How to Set Up a Job Site for Reliable GPR Results

Site preparation is where GPR data quality is won or lost before the antenna touches the ground. Several field conditions are within the project team's control and directly affect signal quality.

Surface condition. GPR antennas must maintain contact with the surface. Broken pavement, standing water, thick gravel beds, and heavy debris scatter the signal before it enters the ground. Surface preparation, including clearing loose material from scan lanes, measurably improves data coherence.

Scan line grid planning. Utilities run in multiple orientations across a site. Scanning in a single direction only captures utilities oriented perpendicular to that pass. A complete investigation covers orthogonal scan lines, typically in both X and Y directions at a maximum of 18-inch spacing for comprehensive coverage, tighter on congested sites. Mark scan lines before field work begins so coverage is documented.

Interference identification. Metal objects at or near the surface, overhead utilities directly above the scan corridor, and vehicles parked adjacent to the scan area all introduce noise. Identifying and removing or documenting these interference sources before scanning prevents false positives and ambiguous data interpretation.

Calibration passes. On sites where known utility depths exist from records or previous vacuum excavation, a calibration pass over a known target allows the technician to determine the actual signal velocity in the site's specific soil matrix. Calibrated velocity produces more accurate depth estimates across the rest of the site.

Pre-scan EM work first. Complete electromagnetic induction passes before GPR whenever possible. EM results allow the GPR crew to cross-reference expected utility locations and orient their scan lines for maximum perpendicular intercept with target utilities.

GPR Data Output and Documentation Standards

GPR utility locating produces deliverables that should be documented, not just verbally communicated. On projects governed by ASCE 38-22, Quality Level B data must be recorded in a format that supports plan incorporation.

Standard GPR documentation outputs include:

Radargram files. Raw data files from the GPR control unit, stored in the equipment manufacturer's format and archived for re-processing or review if questions arise post-investigation.

Interpreted utility maps. Field-marked surface positions transferred to a site base map, annotated with estimated depth, utility type where identified, confidence rating, and anomaly flags for targets requiring confirmation.

Scan coverage diagrams. A record of scan line locations and directions, confirming that the investigation area was systematically covered. This is the basis for demonstrating that negative results (no utility found in a given area) reflect actual coverage, not missed scans.

Field notes. Documentation of soil conditions, surface preparation status, antenna frequencies used, calibration data, interference sources, and any conditions that may have limited signal quality in specific zones.

Quality Level B deliverables are the standard for projects where designers need subsurface utility information before finalizing plans. Providing raw field marks without documented backup leaves the project team without the chain of evidence needed to defend excavation decisions if a utility conflict occurs.

How Penhall Approaches Underground Utility Locating Services

Penhall's underground utility locating services combine GPR utility locating, electromagnetic induction, and vacuum excavation into a coordinated workflow managed by experienced field crews. The process is calibrated to each site's soil conditions, utility complexity, and project Quality Level requirements before the first scan pass begins.

Penhall's field technicians document GPR results in a format that supports plan-level deliverables, conflict mapping, and vacuum excavation follow-up on anomalies that require physical confirmation. For projects with tight excavation schedules or congested utility corridors, coordinating the subsurface utility locating scope early, before design is finalized or excavation permits are pulled, reduces the risk of field-discovered conflicts that delay work.

To discuss a subsurface utility locating scope for an upcoming project, contact Penhall directly.

frequently asked questions

Utility Mapping for Construction: How Subsurface Utility Mapping Prevents Conflicts and Rework

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Subsurface utility mapping combines ground penetrating radar (GPR), electromagnetic locating, and vacuum excavation to produce verified, georeferenced maps of underground infrastructure before excavation begins.
  • Utility mapping is a retrieval-stage deliverable, not just a safety checkbox. Crews get scaled plan drawings, 3D models, and field-marked layouts they can act on immediately.
  • Unlocated or mislocated utilities are among the leading causes of costly rework, project delays, and utility strikes. Mapping addresses all three.
  • ASCE 38-22 defines four Quality Levels (QL-D through QL-A) for subsurface utility engineering. Higher quality levels require physical verification, which is what distinguishes professional SUE services from simple record review.
  • Mapping integrates directly into phasing, sequencing, and subcontractor coordination, reducing last-minute conflicts during cuts, boring, and deep excavation.
  • GPR mapping works on concrete, asphalt, and open soil, making it applicable across site types from urban street cuts to greenfield development.
Screenshot 2026-03-04 184118
utility locating flags

What "Utility Mapping" Actually Means on a Construction Site

Utility mapping is a planning and risk management tool. The value of the deliverable is directly proportional to the rigor of the investigation method.

Utility mapping is the process of identifying, locating, and documenting the position of underground utilities before excavation, demolition, or construction activity begins. In practice, that means combining multiple detection technologies with field verification and translating the findings into a deliverable format the project team can use: scaled drawings, georeferenced data files, or physical surface markings that show where gas lines, water mains, electrical conduits, telecommunications infrastructure, and drainage systems are buried.

The term covers a spectrum of rigor. At the lowest end, a utility map might be assembled from as-built records and utility owner mark-outs, which are frequently incomplete or inaccurate due to decades of undocumented repairs, relocations, and additions. At the highest end, a subsurface utility engineering (SUE) investigation combines geophysical detection with vacuum excavation to physically expose and measure utility positions, then integrates those findings into a deliverable tied to project survey control.

For construction teams, the distinction matters because the quality of the mapping determines how much confidence the field crew has when making the first cut. A map assembled from outdated records provides liability documentation. A map produced through professional subsurface utility mapping provides operational intelligence.

The Outputs: What Your Team Actually Receives

The output of a utility mapping engagement should be a usable, actionable deliverable tied to your project's coordinate system and immediately applicable to design, phasing, and field operations.

A professional subsurface utility mapping engagement produces deliverables that feed directly into project documentation, not a report that sits in a folder.

Scaled plan drawings show horizontal utility positions overlaid on the project survey base map, typically in plan view with depth annotations where physical verification was performed. These drawings can be issued in CAD format (DWG/DXF) or PDF, and they reference the project coordinate system so they align with civil drawings from day one.

GPR scan data and processed interpretations show anomalies and reflections in the subsurface profile, reviewed by trained technicians who interpret utility signatures from background noise. Raw data is often retained for QA documentation.

Surface markings applied using color-coded paint or flags follow APWA standards and allow field crews to visualize utility corridors directly on the ground surface. This is the format that saw operators, drill crews, and excavator operators work from in real time.

3D utility models are increasingly common on larger projects, particularly those using BIM workflows. Georeferenced utility data is integrated into the project model, allowing clash detection between proposed structures, foundations, and buried infrastructure before a single shovel moves dirt.

Depth data is the critical variable that record drawings rarely provide accurately. Where vacuum excavation or test holes are performed, actual depth measurements are incorporated into the deliverable, eliminating the guesswork that drives conservative and expensive utility avoidance buffers.

The ASCE 38-22 Quality Level Framework

Scoping the right quality level for each project zone is a cost management decision as much as a technical one. Blanket QL-A coverage is rarely necessary; targeted application is the professional standard.

Understanding quality levels is essential for scoping a subsurface utility mapping engagement correctly. ASCE 38-22 (Standard Guideline for Investigating and Documenting Existing Utilities) defines four quality levels that represent increasing degrees of accuracy and verification.

Quality Level D (QL-D) is a records review only. Utility owner records, as-builts, and permit drawings are compiled and reviewed. No field investigation is performed. QL-D is useful for early desktop screening but provides the lowest confidence for field operations.

Quality Level C (QL-C) adds a field survey of visible utility appurtenances such as manholes, valve boxes, and meters, and reconciles them with available records. Still no subsurface detection.

Quality Level B (QL-B) is where subsurface utility locating begins. Geophysical methods, primarily GPR mapping and electromagnetic locating, are applied to detect and horizontally position buried utilities. This is the most common scope for pre-construction utility mapping on commercial and infrastructure projects.

Quality Level A (QL-A) adds physical verification through vacuum excavation or test holes, providing precise three-dimensional position data for critical utilities. QL-A is required where design decisions, structural elements, or deep excavation will occur in close proximity to high-risk utilities.

Project teams should specify quality levels by zone, concentrating QL-A investigation in high-conflict areas such as proposed pile locations, deep utility crossings, and areas with known utility congestion, while applying QL-B across broader project areas.

How GPR Mapping Works in the Field

GPR mapping and electromagnetic locating are complementary technologies. Professional subsurface utility mapping engagements deploy both, with field technicians experienced enough to interpret results accurately.

Ground penetrating radar is the primary geophysical technology used in subsurface utility locating and mapping. A GPR antenna transmits electromagnetic pulses into the ground and records the reflections that return when those pulses encounter materials with different dielectric properties, including pipe walls, conduit, and the disturbed soil that surrounds buried utilities.

The antenna is moved across the survey area in a systematic grid pattern. Data is collected continuously and displayed as a radargram showing subsurface reflections at depth. Trained technicians interpret hyperbolic reflection signatures characteristic of cylindrical utilities and distinguish them from geological features, reinforcement, and interference.

GPR works through concrete, asphalt, and native soil. It is particularly effective for detecting non-conductive utilities such as plastic pipe and fiber conduit that electromagnetic locating cannot identify through induction. On concrete surfaces, GPR also detects rebar and post-tensioning cables, a critical capability for concrete cutting scopes.

Electromagnetic locating complements GPR by applying a signal directly to conductive utilities through physical connection or inductive coupling. The signal is then traced from the surface, providing high positional accuracy for metallic utilities where a connection point can be established.

The combination of both methods is the professional standard for underground utility mapping because each technology addresses the other's blind spots.

Timing and Logistics

Utility mapping is most cost-effective as a pre-design or pre-construction investment. The later in the project sequence it is commissioned, the narrower the window to act on what it finds.

The highest-value window for utility mapping is during design development, when there is still time to adjust alignments, relocate utilities proactively, and sequence work to avoid high-conflict zones. Mapping at this stage informs the design rather than reacting to it.

The second-highest-value window is during pre-construction, before subcontractors mobilize and before excavation begins. At this stage, mapping deliverables drive subcontractor coordination meetings, establish no-dig zones, and inform the shoring and dewatering design for deep excavation.

Mapping requested reactively, after a utility conflict is discovered during excavation, costs many times more than proactive mapping because the project is already stopped. Emergency utility locating can be mobilized, but it cannot recover the schedule time already lost.

For phasing and sequencing specifically, mapping deliverables allow project managers to phase excavation work around utility corridors rather than through them. Areas with high utility density can be scheduled for hand dig or vacuum excavation. Boring and HDD alignments can be designed with verified utility positions rather than record drawings alone. Pile layout can be adjusted to clear identified utilities before the drilling subcontractor mobilizes.

The Cost of Not Mapping: Utility Strikes, Rework, and Project Delays

The ROI on utility mapping is calculated against the cost of utility strikes, rework, and delay, not against the cost of doing nothing. On most projects, the calculus is straightforward.

The Common Ground Alliance publishes annual data on excavation damage in the United States. Utility strikes cause service outages, environmental releases, project shutdowns, and in cases involving gas or electrical infrastructure, fatalities. Beyond the safety dimension, a single utility strike on a congested urban site can trigger a cascade of consequences: the utility must be repaired by the utility owner on their timeline, not the contractor's. The excavation area is typically placed off-limits pending investigation. Subcontractors already mobilized absorb standby costs. Schedule float that took months to build disappears in hours.

Rework costs from utility conflicts extend beyond strike events. Crews that discover an unmarked utility mid-excavation face decisions with no good options: work around it with improvised methods, stop and wait for locating, or remove and reinstall the conflicting utility. None of these are in the original budget.

Utility mapping quantifies and manages this risk rather than accepting it. The investment in professional subsurface utility locating and mapping is a fraction of the cost of a single significant utility conflict on most project types.

Penhall's Subsurface Utility Mapping Capabilities

Penhall delivers subsurface utility mapping and locating services across the United States, supporting owners, general contractors, engineers, and utility owners on projects ranging from urban infrastructure rehabilitation to large-scale site development.

Penhall's utility mapping crews combine GPR scanning, electromagnetic locating, and field interpretation to produce deliverables that meet project requirements from early planning through construction support. Where physical verification is required, Penhall integrates vacuum excavation capabilities to support QL-A investigation in critical zones.

Deliverables are produced in the formats project teams use, including CAD drawings, georeferenced data, and BIM-compatible formats. Field crews apply APWA color-coded surface markings coordinated with plan deliverables, so the documentation and the field layout tell the same story.

Penhall has the national footprint to support multi-site programs and the field experience to work efficiently in the complex, congested utility environments common to urban construction, transportation infrastructure, and industrial facility projects.

frequently asked questions

Precision Commercial Concrete Resurfacing and Surface Preparation for Infrastructure Projects

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Commercial concrete resurfacing extends service life 15-25 years by bonding a new wear layer to a structurally sound slab. ICRI CSP 3-5 surface profiles are required for polymer-modified overlays; inadequate prep is the leading cause of delamination failure.
  • Concrete surface preparation is not a single method but a decision tree: the appropriate technique (scarifying, shot blasting, diamond grinding, or hydrodemolition) depends on contamination depth, existing profile, overlay system, and project specification per ICRI Guideline No. 310.2R.
  • Scarifying concrete removes up to 1/2" of surface per pass using rotating cutting wheels, making it the correct tool for coating removal, deep laitance elimination, and CSP 4-9 profile creation on heavily scaled or contaminated slabs.
  • Coring concrete per ASTM C42 extracts 2"- to 4"-diameter cylinders to measure compressive strength, carbonation depth, chloride ion penetration, and delamination thickness before any overlay or resurfacing decision is made.
  • Cross slope correction on commercial parking lots, roadways, and accessible routes must target 1%-2% per AASHTO and ADA standards. Deviations beyond 2% on pedestrian surfaces trigger ADA non-compliance; deviations below 1% cause standing water and freeze-thaw deterioration.
20201004_151910
20201004_152105

What Is Commercial Concrete Resurfacing?

Commercial concrete resurfacing is the application of a bonded overlay system, typically 1/4" to 2" thick, to a structurally sound but deteriorated slab to restore load-bearing capacity, surface texture, cross slope, and service life without full-depth replacement.

Resurfacing is appropriate when the existing slab retains structural integrity (compressive strength of at least 3,000 psi verified by core testing per ASTM C42), but the surface exhibits scaling, spalling, delamination, freeze-thaw damage, or loss of skid resistance. It is not appropriate over slabs with active cracking from differential settlement, insufficient subbase compaction, or expansive soils without addressing the root cause first.

Overlay System Selection by Application

Overlay Type Thickness Range Compressive Strength Best Application Bond Mechanism
Thin-Bonded Polymer-Modified 1/4" - 3/4" 4,000-6,000 psi Parking decks, walkways, industrial floors Epoxy or latex bonding agent; CSP 3-5 required
Unbonded Concrete Overlay 4" - 6" 4,500+ psi Heavy-traffic roadways, truck courts Separation layer (bond breaker); no profile required
Ultrathin Bonded Wearing Course 3/4" - 1.5" 5,000-8,000 psi Bridge decks, airport aprons, DOT roads Epoxy binder; ICRI CSP 5-7 required
Polyurea/Polyurethane Coating 40-80 mils N/A (flexible) Waterproofing, chemical resistance Mechanical adhesion; CSP 3-4 required
Cementitious Microtoping 1/8" - 1/4" 3,000-4,500 psi Aesthetic restoration, light pedestrian Moisture-tolerant primer; CSP 2-3 required

Resurfacing becomes cost-ineffective when full-depth delamination affects more than 25% of the slab area (identified via chain-drag sounding per ASTM D4580 or ground-penetrating radar), when rebar is corroding and section loss exceeds 20%, or when subgrade conditions have produced slab deflection under load. In these cases, partial or full-depth replacement is the more durable and economical solution.

What Is Concrete Surface Preparation?

Concrete surface preparation is the systematic mechanical, chemical, or thermal treatment of a slab surface to achieve a defined International Concrete Repair Institute (ICRI) Concrete Surface Profile (CSP), remove contaminants, eliminate laitance, and establish the tensile bond strength necessary for an overlay or coating system to perform to specification.

ICRI Guideline No. 310.2R-2013 defines 9 CSP levels (CSP 1-9) measured in surface amplitude. Selecting the wrong profile level is the most common cause of premature delamination. A thin epoxy coating requires CSP 2-3 (0.001"-0.006" amplitude). A bonded cementitious overlay requires CSP 4-6. An ultrathin structural wearing course requires CSP 5-7. Mismatch between specified and achieved profile voids most manufacturer warranties.

Surface Preparation Methods Compared

Method CSP Range Achieved Removal Depth Best For Limitations
Diamond Grinding CSP 1-3 < 1/16" Profile leveling, joint grinding, cross slope correction Cannot remove coatings > 20 mils or heavy contamination
Scarifying CSP 4-9 1/16" - 1/2" per pass Coating removal, laitance, scaling, surface profiling Produces aggressive texture; requires follow-up grind for some coatings
Shot Blasting CSP 3-7 < 1/8" Large flat areas, parking structures, warehouse floors Ineffective near edges/walls; requires containment system
Milling / Cold Planing CSP 6-9 1/4" - 2" per pass Full overlay removal, cross slope restoration, pavement rehab High vibration; not suitable for bridge decks or thin slabs
Hydrodemolition CSP 5-9 Variable, selective Selective removal, rebar-tight areas, bridge decks Water management required; higher mobilization cost
Abrasive Blasting CSP 3-5 < 1/16" Spot treatment, vertical surfaces, small areas Slow; not suitable for large horizontal areas

Pre-Preparation Diagnostics: Advanced Entity Testing

Before selecting a preparation method, a competent contractor performs subsurface diagnostic testing to characterize the slab condition. Skipping this step produces incorrect method selection and scope errors.

  • Chain drag / hammer sounding (ASTM D4580): Identifies hollow, delaminated areas acoustically. Cost-effective first screen; covers 100% of surface area.
  • Ground-penetrating radar (GPR): Maps rebar depth, spacing, and condition; detects subsurface voids; locates post-tension cables without contact. Penetrates 18"-24" in concrete.
  • Electromagnetic induction (cover meter): Measures precise rebar depth (accurate to +/- 1/4") and estimates bar diameter. Required before any coring or milling operation.
  • Phenolphthalein carbonation testing: Determines carbonation front depth (typically 0.25" to 1.5" in aged slabs). Carbonated concrete has reduced pH, compromising passive rebar protection.
  • Chloride ion profiling (ASTM C1152): Quantifies chloride concentration at 1" depth increments. Chloride levels above 0.6 lb/yd3 at rebar depth indicate active corrosion risk.
  • Tensile pull-off testing (ASTM C1583): Measures in-place tensile bond strength of existing overlay or substrate. Minimum 200 psi required for most bonded overlay systems.

What Is Scarifying Concrete?

Scarifying concrete is a high-production mechanical surface preparation method that uses a rotating drum equipped with multiple tungsten carbide or hardened steel cutting wheels to fracture and remove surface concrete at a controlled depth, creating ICRI CSP 4-9 profiles appropriate for bonded overlays, coating systems, and coating removal.

A single-pass concrete scarifier removes between 1/16" and 1/2" of material depending on drum configuration, cutter spacing, machine speed, and concrete hardness. Multiple passes increase removal depth. Walk-behind units process 1,500-3,000 SF/hour; ride-on scarifiers achieve 8,000-15,000 SF/hour on open floor areas.

Scarifying vs. Shot Blasting vs. Diamond Grinding

Factor Scarifying Shot Blasting Diamond Grinding
ICRI CSP Output CSP 4-9 (aggressive) CSP 3-7 (moderate) CSP 1-3 (fine)
Removal Depth 1/16" - 1/2" per pass < 1/8" < 1/16"
Coating Removal Yes, up to 1/4" thick coatings Yes, up to 50 mils No; for profile only
Production Rate 1,500-15,000 SF/hr 3,000-10,000 SF/hr 500-3,000 SF/hr
Edge Access Within 1/2" of walls Limited (4"-6" from edges) Within 1/4" of walls
Dust Generation High; HEPA vacuum required Contained in blast cycle Moderate; wet or dry
Substrate Vibration Moderate Low Low
Ideal Follow-on Shot blast or grind to refine Ready for most overlays Apply coating directly

When scarifying is the correct preparation method, the existing surface has contamination deeper than 1/8" (oils, deicers, chlorides); failed coatings or membranes bonded to the slab; scaling damage from freeze-thaw exceeding CSP 3; or a specified bonded overlay requiring CSP 5+. It is also used to roughen slabs that have been over-ground or trowel-burnished to a CSP below the overlay manufacturer's requirement.

What Is Coring Concrete?

Coring concrete is the extraction of cylindrical samples from in-place concrete using a diamond-tipped rotary drill per ASTM C42, producing 2" to 4" diameter cores used to evaluate compressive strength, carbonation depth, chloride ion penetration, delamination presence, overlay bond integrity, and existing slab thickness prior to any resurfacing or structural modification.

Compressive strength from field cores is evaluated at a diameter-to-length ratio of 2:1 after correction factors are applied per ASTM C42 Section 7.4. A core with a length-to-diameter ratio below 1.75 requires a strength correction factor of 0.87-0.96. Results below 3,000 psi typically indicate the slab cannot support a bonded overlay without full-depth repair or replacement in that zone.

Coring Protocol for Pre-Resurfacing Assessment

  • Core frequency: Minimum 1 core per 1,000 SF for condition assessment; 1 per 500 SF in areas with visible distress or suspected delamination.
  • Core diameter: 3" standard for compressive strength testing; 4" when extracting cores through existing overlays to preserve bond interface for examination.
  • Rebar clearance: Use electromagnetic cover meter before drilling. Maintain minimum 3" clear from rebar to avoid cutting reinforcement and generating ASTM C42 exclusion conditions.
  • Chloride sampling: Extract concrete powder at 0"-1", 1"-2", and 2"-3" increments during coring using a vacuum drill system. Submit to lab per ASTM C1152 within 24 hours of extraction.
  • Documentation: Photograph core extraction location, core top and bottom surfaces, and any delamination or voids encountered. Map core locations on site plan with GPS coordinates or dimensioned reference points.

Advanced Diagnostic Integration: Beyond the Core

Coring alone provides point data. For large infrastructure projects, core results are most valuable when integrated with GPR scan data to correlate anomalies with physical samples. A GPR anomaly at 1.5" depth confirmed by a core showing delaminated overlay and zero bond strength at the same depth produces a defensible condition map for scope and pricing.

What Is Cross Slope and Why Does It Matter for Commercial Concrete?

Cross slope is the transverse grade of a paved surface measured perpendicular to the direction of travel, expressed as a percentage, and it governs surface drainage performance, vehicle stability, pavement structural durability, and ADA pedestrian accessibility compliance on commercial facilities and public infrastructure.

On roadways and parking lots, AASHTO Green Book standards specify a cross slope of 1.5%–2% on tangent sections to ensure positive drainage without exceeding vehicle stability thresholds. Under ADA Standards for Accessible Design (Section 402.2), pedestrian accessible routes may not exceed a 2% (1:50) cross slope in any direction; running slope is separately governed. FHWA Technical Advisory T 5040.36 cross-references these standards for federal-aid highway projects.

Cross Slope Failure Modes and Their Consequences

Cross Slope Condition Primary Failure Mode Secondary Effect Applicable Standard
< 1% (insufficient drainage) Standing water, freeze-thaw D-cracking Black ice formation; slip liability AASHTO Green Book 3-22
1% - 2% (target range) No failure mode; optimal performance Positive drainage; ADA-compliant if pedestrian ADA Sec. 402.2; AASHTO
2% - 4% (marginal; roadway acceptable) ADA non-compliance on ped. routes Tire wear asymmetry on tangent roads ADA Sec. 402.2
> 4% (excessive) Vehicle stability risk; hydro pooling at transitions Accelerated overlay delamination at transitions AASHTO; local traffic eng.
Reverse cross slope (negative) Ponding at curb or gutter; structural undercutting Frost heave amplification All drainage standards

Cross Slope Correction Methods for Commercial Infrastructure

Correcting out-of-tolerance cross slope on existing commercial concrete requires one of three approaches, selected based on deviation magnitude, slab condition, and overlay compatibility:

  • Diamond grinding (deviation < 3/8"): Removes high spots to restore correct slope geometry. Achieves tolerance of +/- 1/8" over 10-foot straightedge per ACPA grinding specifications. Best suited for joints, localized high crowns, and ADA ramp corrections.
  • Bonded overlay with variable thickness (deviation 3/8" to 1.5"): Places a polymer-modified or cementitious overlay in feathered variable depth to build up low areas and restore positive drainage slope. Requires substrate preparation to CSP 4-5.
  • Full-depth milling and resurfacing (deviation > 1.5" or slab approaching end of service life): Cold milling removes the existing surface to a grade-controlled depth, restoring designed cross slope geometry before overlay application. Most precise method for large-area slope restoration.

Measurement and Verification

Cross slope on commercial facilities is measured using a digital level or slope measurement device calibrated to +/- 0.01%, with readings taken at 5-foot intervals across the cross section and 10-foot intervals in the direction of travel. Pre-construction and post-construction cross slope surveys are documented on as-built drawings and retained for ADA compliance records. On federally funded projects, FHWA requires pavement smoothness testing per ASTM E1274 (Profilograph Index) alongside cross slope verification.

How Proper Surface Preparation Impacts Long-Term Durability

The service life of any bonded concrete overlay system is more sensitive to surface preparation quality than to overlay material selection. A premium polyurea coating applied over a CSP 1 substrate on a contaminated slab will delaminate faster than a commodity latex-modified overlay applied over a properly scarified CSP 4-5 surface free of laitance and chloride contamination.

Three failure mechanisms account for the majority of premature overlay failures in commercial and infrastructure applications:

  • Insufficient profile amplitude: The overlay cannot achieve mechanical interlock. Tensile pull-off strength falls below 200 psi (ASTM C1583 threshold), leading to delamination under thermal cycling or traffic load.
  • Subsurface moisture vapor transmission (MVT): Vapor pressure from the substrate migrates through the overlay bond line. On slabs-on-grade, MVT should be below 3 lbs per 1,000 SF per 24 hours (ASTM F1869 calcium chloride test) or RH below 75% at 40% slab depth (ASTM F2170) before coating application.
  • Residual contaminants: Chloride ions, petroleum products, or curing compounds below the mechanical preparation depth suppress bonding chemistry. Chloride levels above 0.2 lb/yd3 at the surface are incompatible with most cement-based overlays without inhibitor treatment.
IMG_0289
20240910_132647

frequently asked questions

Precision Concrete Coring in Post-Tension & Structural Slabs

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • What this covers: Safe concrete coring in post-tension and structural slabs requires GPR subsurface scanning to +/- 0.5 in. accuracy before a drill touches the surface. Skipping this step risks severing tendons under 30,000+ psi of stored stress.
  • Who performs this work: ACI- or ASCC-certified core drilling contractors with documented ground-penetrating radar capability and structural engineer coordination, in compliance with ACI 318-19 and OSHA 29 CFR 1926 Subpart Q.
  • How cables are found: A 1.6 GHz or 2.0 GHz GPR antenna maps post-tension tendon position, depth, and drape profile before layout is marked; electromagnetic induction provides secondary confirmation for unbonded mono-strand systems.
  • How deep cables sit: Draped post-tension cables in a typical 8-to-10-inch commercial slab range from 1 inch above the bottom at midspan to near mid-depth at supports; depth varies continuously along the span and must be mapped, not assumed.
  • Why precision matters: Diamond wet-core drilling maintains a bore diameter tolerance of +/- 1/16 in., and every penetration larger than 6 inches in a post-tension slab requires structural engineer review to assess load-path and tendon stress-field impact.
  • What sets specialists apart: Experienced core drilling contractors deliver GPR scan images, core logs, and as-drilled records that satisfy building department documentation requirements and protect GCs from structural liability on commercial projects.

What Is Concrete Coring and Why Does It Matter on Structural Slabs?

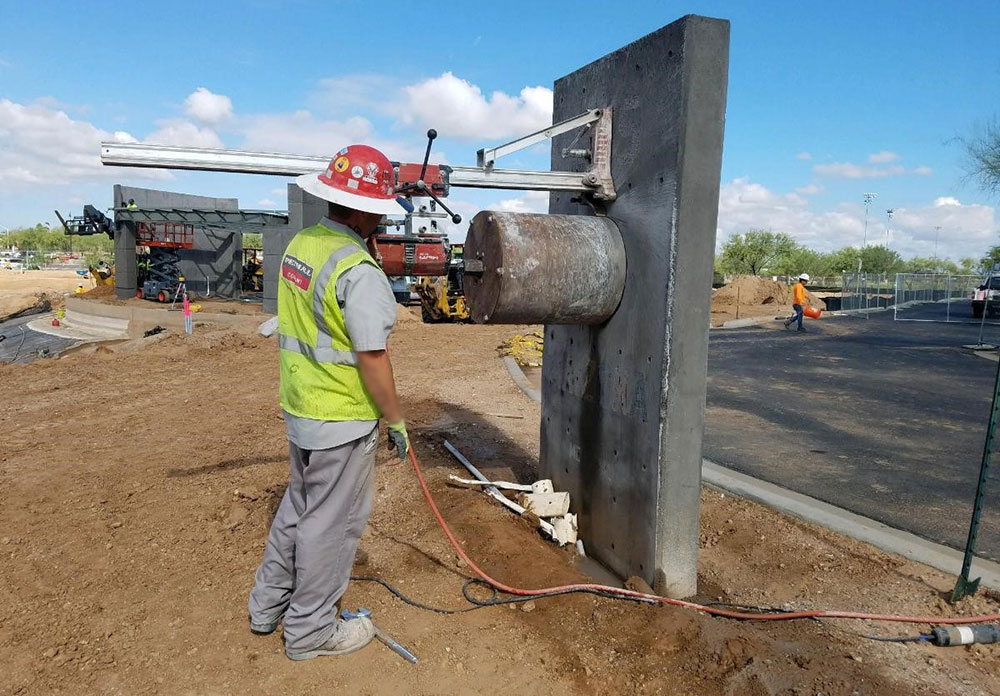

Concrete coring is the process of cutting a precise cylindrical hole through a concrete slab, wall, or foundation using a rotating diamond-tipped drill barrel. On post-tension or structural slabs, the method used before and during drilling determines whether the structure remains safe or suffers irreversible damage.

Standard coring on unreinforced or lightly reinforced slabs is a relatively forgiving operation. Structural slab coring is not. Commercial buildings constructed after the 1970s, including office towers, parking structures, hospitals, and mixed-use podiums, overwhelmingly rely on post-tensioned concrete for their floor systems. These slabs contain high-strength steel tendons stressed to between 150,000 and 200,000 psi and anchored at the slab perimeter. A single severed tendon releases stored elastic energy that can initiate progressive cracking, permanent deflection, or partial collapse of the bay.

Mechanical, electrical, plumbing, fire suppression, and data infrastructure all require penetrations through these slabs. Placing those penetrations accurately without compromising structural integrity is the defining competency of a qualified core drilling contractor.

Understanding Post-Tension Slabs Before Any Core Drill Touches the Surface

A post-tension slab is a reinforced concrete floor system in which high-strength steel tendons, either unbonded monostrand (wrapped in grease and plastic sheathing) or grouted multi-strand, are threaded through the slab formwork, cast in place, and then tensioned against anchorage hardware after the concrete reaches design strength, typically at 75% or greater of the 28-day compressive strength per ACI 318-19 Section 26.10.

How Post-Tension Cables Are Positioned in a Slab

Post-tension tendons in a flat-plate or flat-slab system are arranged in two perpendicular banded and distributed patterns, with banded tendons concentrated near column lines and distributed tendons spread across the bay at regular intervals. Spacing between individual strands typically ranges from 4 to 6 feet in the banded direction and 4 to 5 feet in the distributed direction, though field conditions, pour sequence, and contractor installation variability mean actual positions frequently deviate from structural drawings.

This deviation is precisely why structural drawing review alone is insufficient before coring. On renovation and tenant improvement projects, the original structural engineer of record (EOR) may no longer be accessible, and as-built post-tension layout drawings may not exist. GPR scanning resolves the actual installed condition, not the design intent.

How Deep Are Post-Tension Cables in a Slab?

Post-tension cables in a standard 8-to-10-inch commercial slab are profiled at a variable depth along their span. This variable positioning is the drape profile, and it is deliberate. At midspan, where bending tension is highest at the bottom of the slab, tendons are positioned approximately 1 to 1.5 inches above the bottom surface (inside the minimum cover requirement of 3/4 inch for interior conditions per ACI 318-19 Table 20.6.1.3). At column supports, where bending reverses, tendons rise toward the mid-depth or upper third of the slab section.

The practical implication: a tendon that a GPR scan shows at 3 inches of depth at one location may be at 1.5 inches of depth just 4 feet away. Depth changes continuously. Assuming a safe drilling depth based on a single scan point is a structural risk. A qualified core drilling contractor maps the full drape profile across the intended core location and establishes a minimum safe clearance before committing core barrel position.

Key figure: Typical post-tension tendon drape in an 8-inch slab spans from 1.0 in. above the soffit at midspan to approximately 3.5 to 4.0 in. from the bottom (mid-depth) at column supports. GPR resolution at 1.6-2.0 GHz provides depth accuracy to +/-0.5 in. in concrete with 28-day compressive strength of 4,000-5,000 psi.

Locating Post-Tension Canyons Before Coring

Locating post-tension cables before coring is a non-negotiable first step on any structural slab, and ground-penetrating radar (GPR) is the industry-standard technology for doing it accurately, non-destructively, and without cutting power or coordinating with the building's electrical systems.

Ground-Penetrating Radar (GPR) Scanning

GPR emits short pulses of electromagnetic energy into the concrete substrate and measures the reflected signals that return when the wave encounters a material with different dielectric properties. Steel tendons, rebar, conduit, and voids all produce distinct hyperbolic reflection signatures. A 1.6 GHz or 2.0 GHz ground-coupled antenna provides the frequency-depth trade-off required for standard slab thickness: sufficient resolution to differentiate a 0.5-inch tendon from adjacent reinforcing steel, at penetration depths reaching 12 to 18 inches.

The output is a B-scan radargram, a cross-sectional subsurface image, that a trained GPR operator interprets to identify tendon location, depth, and spacing. Safe core locations are marked directly on the slab surface, typically with paint or chalk grid lines, at a standoff distance of not less than 2 inches from any identified tendon. On dense layouts, the operator works with the project structural engineer to evaluate whether a safe core path exists or whether the core location must be relocated.

GPR scanning also detects secondary hazards that traditional coring misses: embedded conduit runs, post-installed anchor locations, sleeves, waterproofing membrane layers, and subsurface voids from incomplete consolidation or prior water intrusion. Detecting these entities before drilling prevents costly rework and reduces schedule impact on occupied facilities.

Electromagnetic Induction and X-Ray Subsurface Imaging

Electromagnetic induction (EMI) scanning provides a complementary confirmation method for unbonded mono-strand post-tension systems. Monostrand tendons are ferromagnetic, and an EMI scanner detects the disruption in a generated magnetic field caused by each tendon, producing a plan-view heat map of steel density across the scan area. EMI is particularly effective at distinguishing the closely spaced, parallel tendons of a banded post-tension layout in areas where GPR radargrams are difficult to interpret due to signal interference from wire mesh or tight rebar spacing.

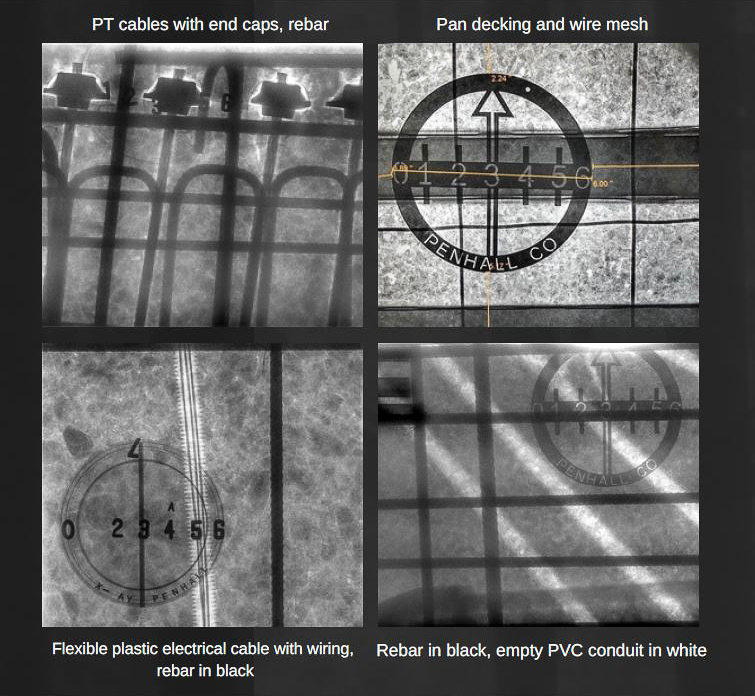

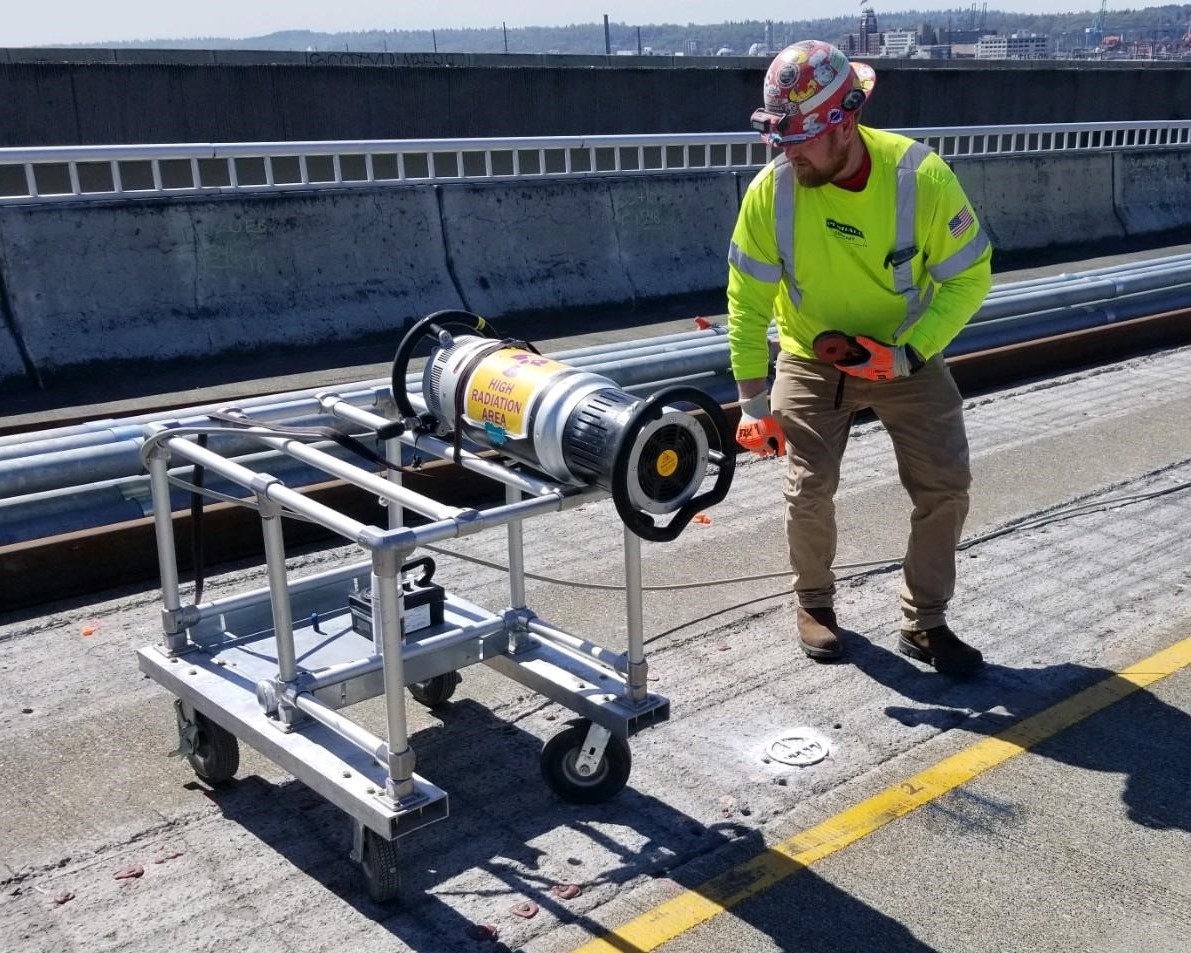

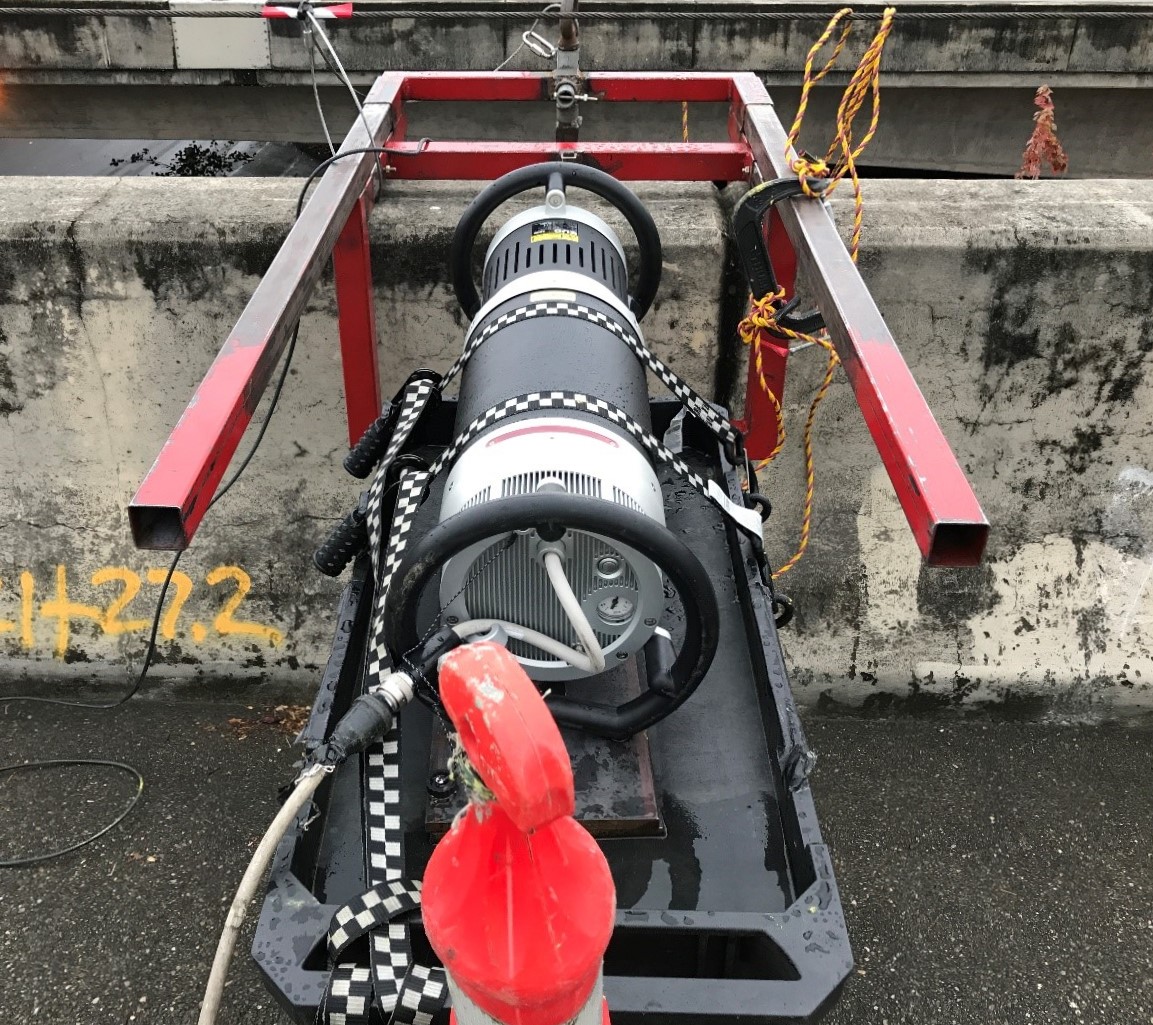

Concrete x-ray imaging remains the highest-resolution subsurface imaging method available for concrete, capable of resolving tendon position to within 1/8 inch, but its application on commercial coring projects is limited by radiation safety exclusion zone requirements and the logistics of positioning both the X-ray source and detector plate on opposite sides of the slab. X-ray is typically reserved for forensic structural investigation or highly congested areas where GPR interpretation is inconclusive and the structural consequence of error is severe.

The Step-by-Step Process for Safe Coring in Post-Tension Slabs

Safe post-tension slab coring follows a defined sequence that integrates structural coordination, subsurface scanning, and precision drilling. Each phase builds on the last and cannot be safely skipped or reversed.

1. Pre-Mobilization Document Review: Obtain available structural drawings, post-tension shop drawings, and as-built records from the EOR or building owner. Identify banded vs. distributed tendon zones, column bay dimensions, and any documented prior penetrations or repairs.

2. Structural Engineer Coordination: Submit proposed core locations to the EOR or a licensed structural engineer for review before scanning begins. For cores larger than 6 inches in diameter or within 18 inches of a column, written engineer approval is standard practice and required by many jurisdictions.

3. GPR Scan Grid Execution: Establish a minimum 24 x 24 inch scan grid centered on each proposed core location. Scan in both perpendicular directions to generate crossing B-scans that confirm tendon position in plan and depth in profile.

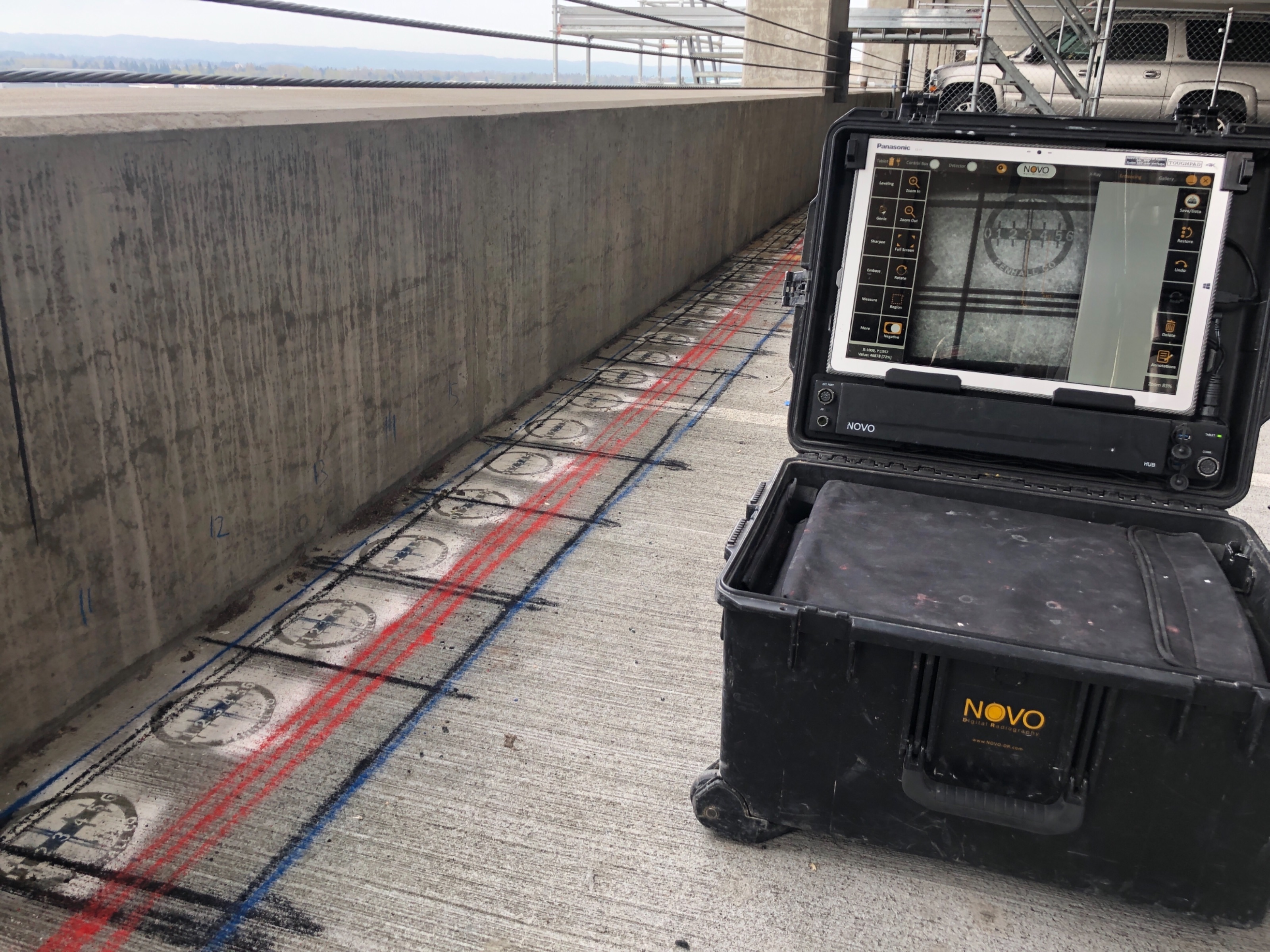

4. Safe-Zone Marking: Mark the exact tendon centerlines and depth annotations on the slab surface. Confirm a minimum 2-inch horizontal clearance from any tendon before approving the final drill point.

5. Core Drill Setup and Wet Drilling: Mount the core drill stand on a vacuum pad or mechanical anchor. Begin wet-method diamond coring using continuous water flow to control heat, reduce dust, and extend barrel life. Maintain a controlled penetration rate of 1 to 3 inches per minute in 4,000-5,000 psi concrete to prevent barrel deflection.

6. Real-Time Depth Monitoring: Track core barrel penetration depth against the mapped tendon profile throughout the cut. If the drill operator encounters unexpected resistance or a change in cutting behavior consistent with steel contact, drilling stops immediately.

7. Core Removal and Void Documentation: Remove the core plug intact where possible to allow visual inspection of the cut concrete matrix. Document core length, diameter, any reinforcement or tendon contact, and final penetration depth.

8. As-Drilled Record and Closeout: Deliver a complete as-drilled package including the GPR scan image, annotated slab plan, core log, operator certification, and equipment calibration records. This documentation satisfies building department requirements and provides the GC with structural liability protection.

Precision Coring vs. Traditional Coring: A Technical Comparison

The table below compares GPR-guided precision coring against traditional unguided coring across the dimensions that matter most on commercial structural slab projects.

Factor Precision Coring (GPR + Wet Core Drill) Traditional Unguided Coring
Cable detection before drilling GPR scan to +/-0.5 in. accuracy prior to setup None; relies on operator judgment
Tendon strike risk Minimal; cores placed in verified safe zones High; undocumented tendon layouts common
Structural engineer sign-off Standard on all post-tension work Rarely required
Dust & slurry control Wet-method diamond core with vacuum slurry recovery Dry or wet; slurry often uncontrolled
Core diameter tolerance +/-1/16 in. with carbide-tipped diamond barrel Variable; operator skill-dependent
Documentation GPR scan image, core log, as-drilled record Typically none
Typical mobilization notice 24-48 hours with site coordination Same-day common
Regulatory compliance ACI 318-19 structural concrete, OSHA 29 CFR 1926 Inconsistent

The cost difference between precision coring and unguided coring is real but modest relative to the liability exposure of a tendon strike. Tendon repair on a typical commercial slab involves structural engineer assessment, specialized coupler hardware, post-tension re-stressing equipment, and potential structural shoring. That repair scope routinely exceeds $25,000 to $75,000 per incident, exclusive of schedule impact, tenant disruption, and litigation risk.

Structural Risk Mitigation and Subsurface Coordination on Large Commercial Sites

Large commercial sites, including multi-building campuses, hospital systems, airport facilities, and institutional structures, present coring risk at a different scale than a single-tenant renovation. Volume of penetrations, coordination across multiple trades, occupied-facility constraints, and distributed structural documentation all compound the challenge.

Effective structural risk mitigation on these projects starts with a pre-construction subsurface coordination meeting that aligns the GC, structural engineer, core drilling contractor, MEP engineers, and the commissioning building owner. The agenda should cover:

  • A centralized core penetration log that tracks requested, scanned, approved, and completed cores by location and date across the entire project
  • A defined submittal process for GPR scan results, with a minimum 48-hour review window before drilling begins at any new location
  • Clear rules for core relocation authority, covering who can approve a field adjustment to a core point if scanning reveals a conflict and what documentation is required
  • Occupied-floor protocols for noise, vibration, and slurry containment, including after-hours drilling windows where structural slab penetrations are directly above operating clinical, data center, or manufacturing environments
  • A stop-work trigger definition: any GPR anomaly that cannot be conclusively interpreted as rebar, tendon, or conduit halts drilling at that location pending engineer review

On projects with BIM coordination workflows, post-tension tendon models at LOD 300 or higher can be imported into the clash detection environment to pre-screen proposed MEP penetration locations before any field scanning occurs. This digital pre-coordination layer reduces the volume of conflict discoveries in the field and shortens the GPR scan scope to confirming as-installed conditions rather than discovering them from scratch.

When to Call Specialized Core Drilling Contractors

The selection question is not whether a contractor can operate a core drill. It is whether they have the scanning capability, the structural literacy, and the documentation discipline to protect the building, the schedule, and the GC's liability position when they work in a post-tension slab.

Penhall's concrete coring teams operate across commercial, industrial, and infrastructure markets with in-house GPR scanning capability, structural engineer coordination protocols, and full documentation workflows on every post-tension slab project. Contact your regional Penhall office to discuss project scope and mobilization requirements.

penhall concrete coring
penhall concrete coring

frequently asked questions

Concrete Demolition Equipment Used on Commercial and Infrastructure Projects

A complete guide to the concrete demolition tools and equipment used on commercial and infrastructure projects: hydraulic breakers, concrete crushers, concrete cutters, demolition robots, rotary drum cutters, excavator attachments, and specialty systems, with guidance on how each is selected based on project requirements.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Concrete demolition equipment is not one-size-fits-all. Tool selection depends on concrete type and volume, structural system, access constraints, and environmental requirements.
  • Excavator attachments, including hydraulic breakers, concrete crushers, concrete cutters, and rotary drum cutters, are the workhorse class for most large-scale demolition. A single excavator with a quick-coupler can run multiple attachment types across the phases of a job.
  • Demolition robots extend the reach of concrete demolition into confined spaces, interior environments, and low-clearance structures where excavator-mounted equipment cannot operate. Remote operation eliminates direct operator exposure to demolition hazards.
  • Hydraulic breakers handle general breaking. Concrete crushers process broken material and separate rebar. Concrete cutters and shears cut reinforced structural members. Each plays a distinct role in the demolition sequence.
  • Specialty systems, including wire saws, hydrodemolition robots, and rotary drum cutters, address applications that impact-based tools cannot: large structural cuts, selective removal without microfracturing, and precision milling in vibration-sensitive environments.
  • Pre-work GPR scanning is a standard first step before any demolition scope to identify post-tension cables, rebar layout, and embedded utilities before any concrete demolition equipment enters the structure.
LosAl#2
IMG_3665

Why Concrete Demolition Equipment Selection Matters

Concrete demolition is not a single activity performed by a single piece of equipment. On commercial and infrastructure projects, the concrete to be removed spans a wide range of structural types, thicknesses, reinforcement densities, access conditions, and proximity constraints that make each project a distinct equipment selection problem.

The hydraulic breaker that efficiently demolishes a plain concrete pavement slab is not the right tool for selectively removing the deteriorated surface layer of a bridge deck without damaging the rebar beneath it. The concrete crusher that processes a demolished parking structure into recyclable aggregate is not the right tool for cutting through a post-tensioned transfer beam in a high-rise renovation. The demolition robot that removes interior concrete in a low-ceiling basement is not the right tool for breaking a massive bridge pier abutment.

Using the wrong tool creates one or more of three problems. Production suffers: the tool works harder, slower, and less efficiently than a matched alternative. Quality suffers: the tool may cause collateral damage to adjacent structures, introduce microfractures, or produce debris in a form that complicates disposal. Safety suffers: the wrong tool in the wrong environment creates hazards that matched equipment selection would have avoided.

Understanding the concrete demolition tools and equipment available, and the specific conditions that call for each, is what separates a contractor who can execute a complex demolition scope from one who brings a breaker to every job and hopes for the best.

Concrete Demolition Equipment: Quick Reference

Equipment Category Best For Key Limitations
Hydraulic breaker Excavator attachment General concrete breaking, pavement, foundations, footings Noise, vibration, dust; not selective; rough fragmentation
Concrete crusher Excavator attachment Primary and secondary reduction of broken concrete, rebar separation Requires pre-broken material or complement with breaker
Concrete cutter / shear Excavator attachment Structural steel cutting, reinforced concrete members, selective demolition Limited to cutting; not a breaking or crushing tool
Rotary drum cutter Excavator attachment Precision concrete milling, selective removal, tunnels, low-vibration environments Slower production rate than breaking; higher equipment cost
Demolition robot Remote-operated machine Confined spaces, interior demolition, hazardous environments, low-clearance areas Lower production rate than excavator-mounted tools; specialized mobilization

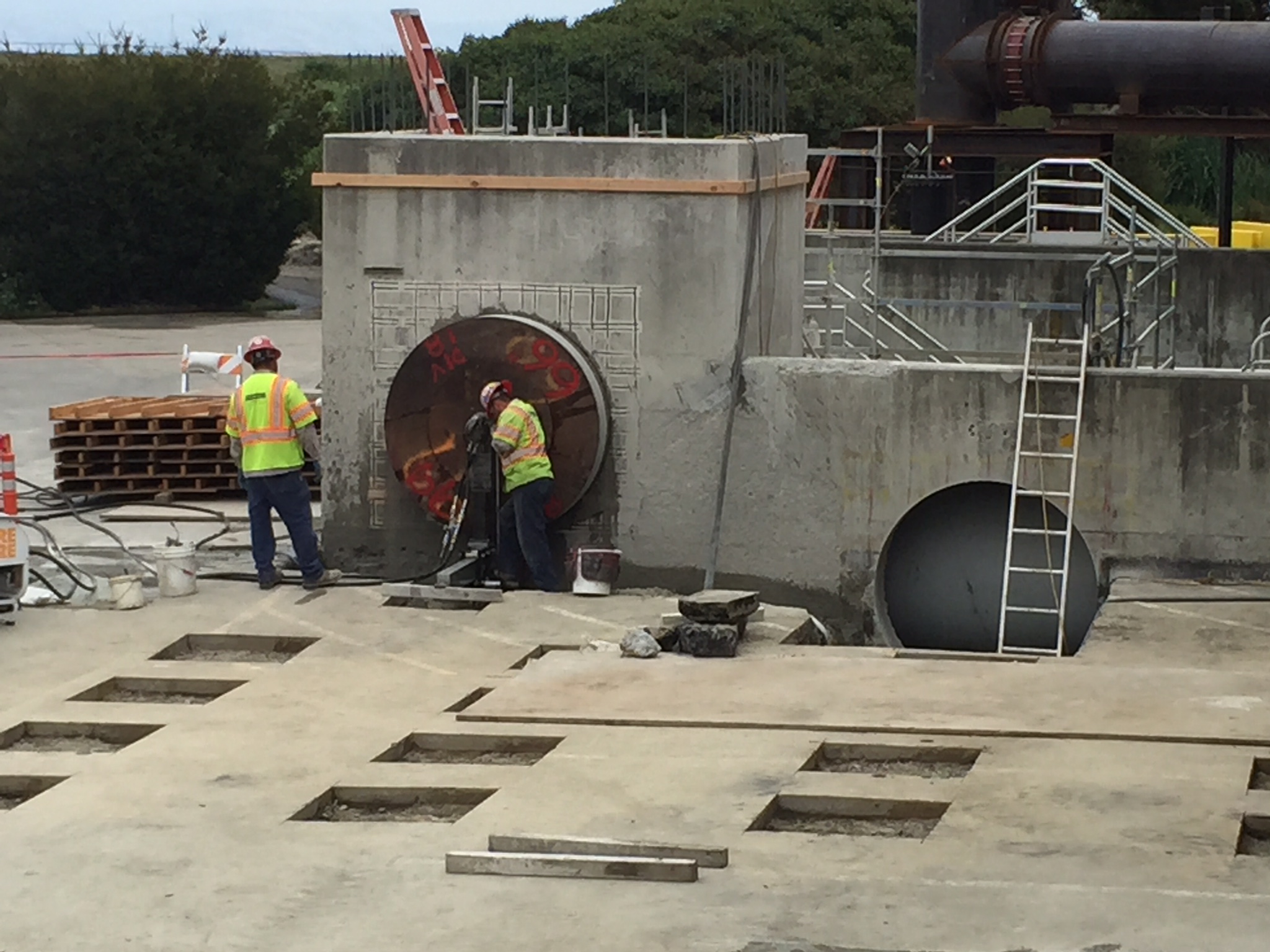

Wire saw Tracked / rail-mounted Large structural elements, bridge piers, complex geometry cuts, full-depth removal Setup time; specialized rigging; higher cost per cut

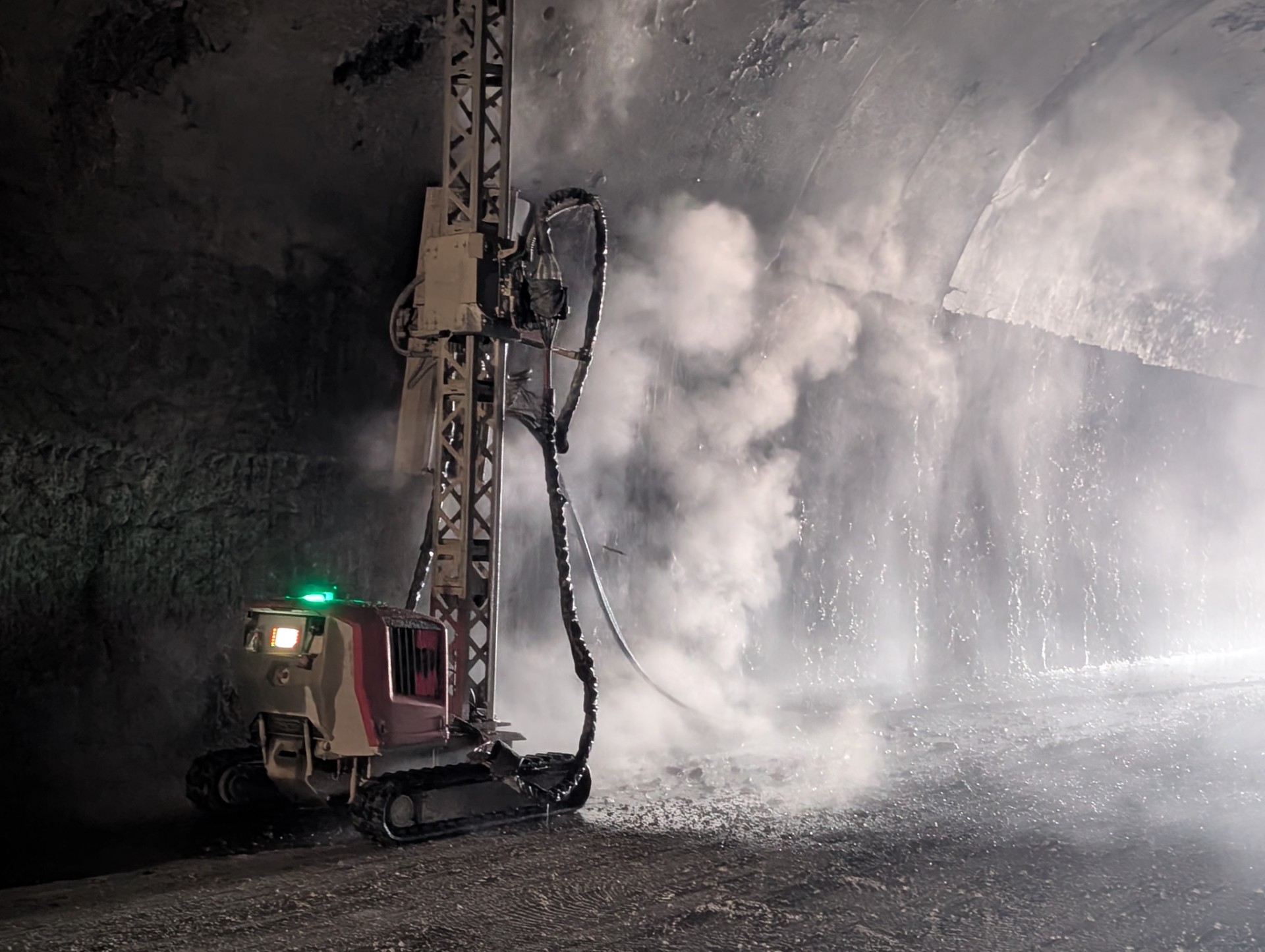

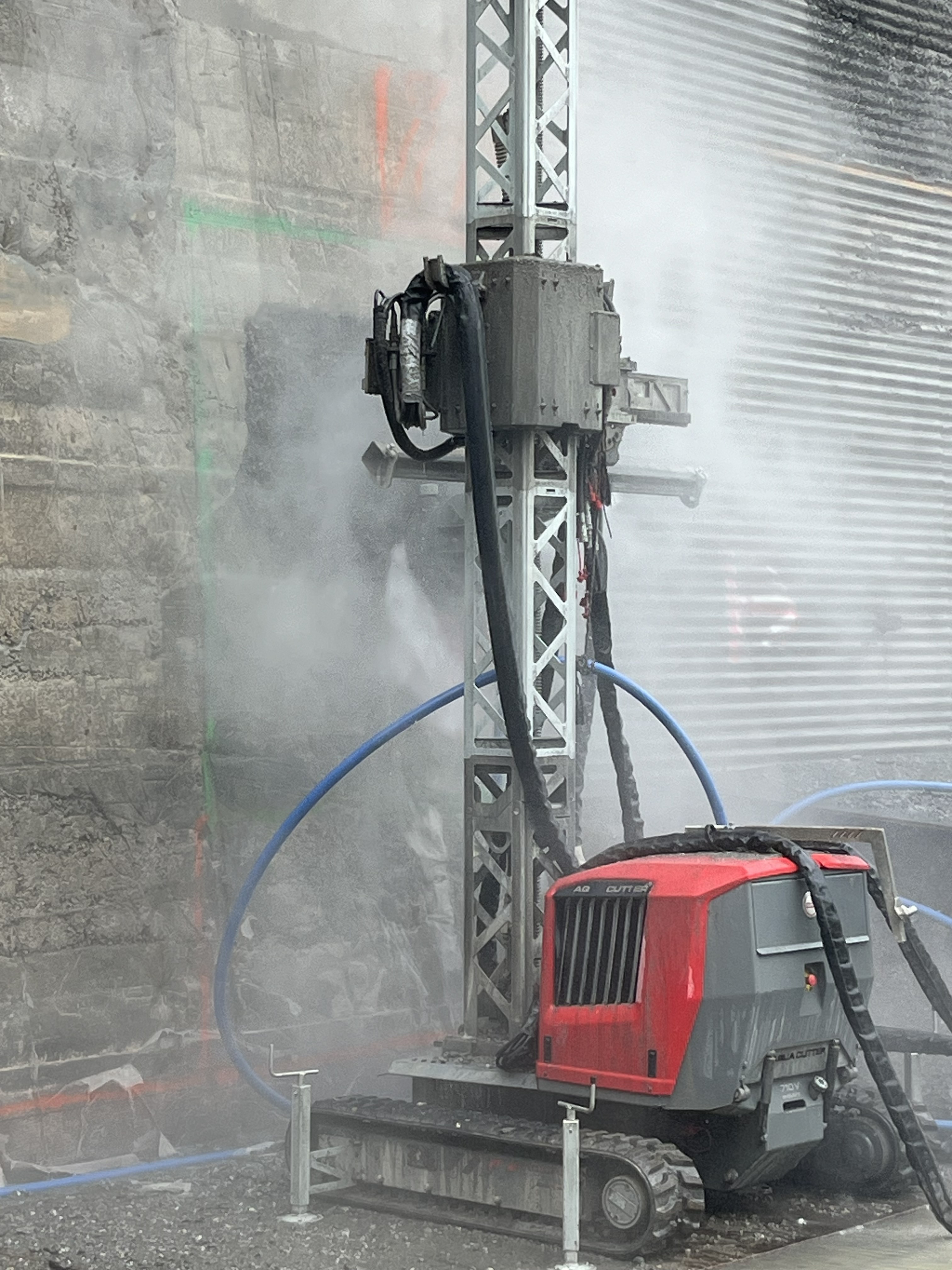

Hydrodemolition robot Remote-operated machine Bridge deck rehab, selective concrete removal, rebar cleaning, large-area scarifying Water management required; slower than mechanical breaking on sound concrete
Hydraulic hammer drill Handheld / rig-mounted Precision breaking, chipping, and spalling in confined or detail work areas Low production rate; manual labor intensive

Excavator Attachments for Concrete Demolition

Excavator attachments are the core concrete demolition equipment class on most commercial and infrastructure projects. A modern excavator with a quick-coupler can run multiple attachment types in a single workday, matching the tool to each phase of the demolition sequence without moving the base machine. The main attachment categories used in concrete demolition work are hydraulic breakers, concrete crushers, concrete cutters and shears, and rotary drum cutters.

Hydraulic Breakers

The hydraulic breaker (also called a hydraulic hammer) is the most widely used piece of concrete demolition equipment in commercial and infrastructure work. It operates as an excavator attachment by drawing hydraulic power from the excavator's hydraulic system to drive a steel chisel, moil point, or blunt tool into the concrete at high frequency, fracturing the material through rapid repetitive impact.

Hydraulic breakers are available in a wide range of operating weights, from small units in the 200 to 500 pound range suited to compact excavators working in confined areas, to massive units exceeding 10,000 pounds for use on large excavators demolishing heavy foundations, piers, and mass concrete structures. The impact energy delivered by a hydraulic breaker scales with size: smaller units deliver hundreds of foot-pounds per blow; large units deliver tens of thousands.

Hydraulic breakers are most effectively used for:

  • General concrete breaking of slabs, pavements, driveways, and flatwork.
  • Foundation and footing demolition where mass removal is the objective.
  • Primary breaking of large structural concrete elements before crushing or processing.
  • Pavement and roadway demolition on infrastructure and highway projects.
  • Demolition of retaining walls, bridge abutments, and other mass concrete structures.

Concrete Crushers

A concrete crusher is an excavator attachment with two opposing jaws, typically tipped with hardened steel or carbide inserts, that crush concrete between them by hydraulic compression. Unlike breakers, which fracture concrete through impact, concrete crushers apply compressive force directly to the material, cracking and crushing it progressively between the jaws.

Concrete crushers are designed for two distinct roles in the demolition sequence. Primary concrete crushers have wide jaws capable of grasping and crushing large sections of structural concrete directly, making them suitable for demolishing reinforced beams, columns, walls, and slabs without pre-breaking. Secondary concrete crushers (sometimes called pulverizers or concrete pulverizer attachments) have narrower jaw profiles optimized for further reducing already-broken concrete to smaller, more uniform fragment sizes.

A key advantage of concrete crushers over hydraulic breakers in many applications is their ability to separate rebar from concrete during the crushing process. As the jaws compress and fragment the concrete, the steel reinforcement is exposed and can be extracted, either by the crusher's integral rebar cutters or by a separate shear attachment. This rebar separation reduces the volume of mixed-waste concrete and steel that must be disposed of together, and allows the clean concrete aggregate to be recycled separately.

Concrete crushers are particularly valuable for:

  • Primary demolition of reinforced structural members including beams, columns, and walls.
  • Secondary reduction of broken concrete to process-ready fragment sizes.
  • Rebar separation and extraction during demolition to facilitate recycling.
  • Demolition in areas where the impact energy and noise of a hydraulic breaker must be reduced.
  • Processing demolished concrete for on-site recycling as subbase or fill material.

Concrete Cutters and Shears

Concrete cutters, also called hydraulic shears or demolition shears, are excavator attachments with scissor-action cutting jaws designed to cut through reinforced concrete members and structural steel. Unlike breakers and crushers, which work by impact and compression, concrete cutters sever material along a defined cutting plane, making them the precision tool in the excavator attachment toolkit.

Concrete cutters are available in multiple configurations. Concrete and steel shears have wide-jaw, high-force designs for cutting through reinforced concrete beams, columns, and walls as well as structural steel sections. Multi-demolition processors combine crusher and shear capabilities in a single rotating attachment head, allowing the operator to alternate between crushing and cutting functions without changing attachments.

The primary applications for concrete cutter attachments include:

  • Cutting reinforced concrete beams, columns, and wall sections to defined lengths for removal.
  • Severing structural steel framing, rebar bundles, and embedded steel sections during demolition.
  • Selective demolition of specific structural members while preserving adjacent structure.
  • Processing demolished structural members into manageable sections for loading and disposal.
  • Cutting post-tensioned concrete members under controlled conditions, following structural engineer guidance and GPR-confirmed tendon locations.

Concrete cutters are not general-purpose breaking tools. They are precision cutting attachments best used in combination with breakers and crushers in a complete demolition equipment lineup, rather than as standalone tools for bulk concrete removal.

Rotary Drum Cutters

The rotary drum cutter is a specialized excavator attachment that represents a fundamentally different approach to concrete demolition than impact-based tools. Rather than fracturing concrete through impact or compression, a rotary drum cutter mills and removes concrete by rotating a drum fitted with hardened carbide-tipped cutting picks against the concrete surface. The picks cut and abrade the concrete progressively, removing material in a controlled, measured manner.

The rotary drum cutter's defining characteristic is its low-vibration operation. Because it removes concrete by milling rather than impact, it transmits minimal vibration to the surrounding structure, making it suitable for applications where vibration control is critical:

  • Concrete removal in tunnel linings and underground structures where vibration could affect structural stability or the surrounding rock mass.
  • Rehabilitation of bridge piers, abutments, and other infrastructure elements where the sound concrete surrounding the removal zone must not be damaged by vibration.
  • Concrete removal adjacent to vibration-sensitive equipment, instrumentation, or occupied spaces.
  • Selective removal of concrete to precise depths for overlay preparation or repair material placement.
  • Concrete removal on historic structures or in proximity to historic masonry or heritage materials.

Demolition Robots

The demolition robot represents one of the most significant capability expansions in concrete demolition in the past two decades. Also called a remote-controlled demolition machine or RC demolition unit, a demolition robot is a compact, rubber-tracked machine fitted with a hydraulic breaker (and in some configurations, crusher or other attachments) that is operated entirely by remote control from a safe distance.

The fundamental advantage of demolition robots over excavator-mounted equipment is their ability to work where excavators cannot go: confined spaces, interior environments, low-clearance areas, and hazardous conditions that would be unsafe or impractical for a standard excavator and operator.

How Demolition Robots Work

A demolition robot is typically powered by a diesel or electric engine driving a hydraulic system that powers both the tracked undercarriage and the attachment tool. The wireless remote control unit gives the operator full directional control, attachment positioning, and tool activation from a distance of up to 300 feet or more depending on the system. Modern demolition robots are equipped with cameras that transmit a live view to the operator, allowing precise tool placement even when line-of-sight to the machine is limited.

Demolition robot platforms are available in several size classes, from compact units weighing approximately 1,500 to 2,000 pounds that can pass through standard doorways, to larger units of 5,000 to 8,000 pounds that deliver breaker performance approaching that of a small excavator. The choice of platform size is determined by the access constraints of the work area and the production rate required.

Applications for Demolition Robots

Demolition robots are not general-purpose equipment substitutes for excavators. They are specialized tools for specific access conditions. The scenarios where demolition robots are the appropriate choice include:

  • Interior building demolition on multi-story structures where floor loading capacity or access constraints prevent excavator entry.
  • Basement and underground demolition in confined spaces where standard equipment cannot be lowered or maneuvered.
  • Low-ceiling parking structure demolition where the height clearance is insufficient for an excavator cab.
  • Hazardous environment demolition including asbestos abatement zones, mold remediation, and radiological environments where minimizing human exposure is a priority.
  • Bridge and overpass demolition in areas where the structure cannot support the weight of a full-size excavator.
  • Demolition adjacent to live infrastructure, such as rail lines or active roadways, where the compact footprint of a robot reduces the exclusion zone required.

On projects where access allows both options, excavator-mounted equipment typically delivers higher production rates than demolition robots of comparable attachment size. Demolition robots are selected for access and safety, not for peak production capacity.

Demolition Robots and Remote Operation Safety

The remote operation capability of demolition robots is not just a feature for accessing confined spaces. It is a fundamental safety advantage in any application where the immediate environment of the demolition work is hazardous to an operator. A worker who would otherwise be standing over a jackhammer or operating a skid steer with a breaker attachment in an unstable structure is instead positioned safely away from the work area, controlling the robot through a camera and remote. The risk of injury from falling debris, structural collapse, or unexpected material behavior is substantially reduced.

Penhall's Behavior-Based Safety (BBS) program recognizes remote demolition operation as a standard risk-reduction tool when project conditions warrant, not an exotic option reserved for unusual projects.

Wire Saws for Large-Scale Structural Demolition

Wire sawing is not a breaking or crushing method. It is a diamond cutting method that uses a continuous loop of diamond-impregnated wire, driven at high speed around a series of guide pulleys, to make precise, clean cuts through virtually any thickness of reinforced concrete or structural steel. Wire saws are the tool of choice when the objective is a defined, clean cut through a large structural element rather than fragmentation and removal of a volume of concrete.

Wire sawing is used in concrete demolition for:

  • Cutting through bridge piers, abutments, and columns to defined sections for controlled removal.
  • Full-depth cuts through thick walls, mat foundations, and mass concrete structures.
  • Cutting post-tensioned structural elements where the cutting plane must be precisely located relative to tendon positions confirmed by GPR scanning.
  • Cuts in geometrically complex configurations that blade-based saws cannot reach.
  • Precision cuts in vibration-sensitive environments, as wire sawing transmits minimal vibration compared to impact demolition methods.

Wire sawing requires more setup than excavator-mounted tools, including rigging of the wire loop and guide pulleys around the element being cut, and it commands higher per-cut rates than impact breaking. On projects where the required cut geometry, element thickness, or precision requirements rule out other methods, wire sawing is often the only viable approach.

Hydrodemolition for Selective Concrete Removal

Hydrodemolition is a concrete removal method that uses high-pressure water jets, typically 15,000 to 40,000+ PSI, directed against the concrete surface by a robotic machine to selectively remove deteriorated or target concrete while leaving sound material and embedded rebar intact. Unlike mechanical demolition methods that remove all concrete in their path, hydrodemolition exploits the difference in strength between deteriorated and sound concrete: the water pressure preferentially removes weaker material while leaving stronger material in place.

Hydrodemolition is the preferred removal method when:

  • The removal zone includes rebar that must be preserved and cleaned in place for re-bonding with new concrete.
  • A microfracture-free bonding surface is required for the new overlay or repair material.
  • The boundary between deteriorated and sound concrete is variable and cannot be easily pre-defined, requiring a selective removal method that follows material quality rather than a fixed removal depth.
  • Silica dust generation must be eliminated, as hydrodemolition produces no airborne dust.
  • The scope involves a large surface area where robotic production rates provide a significant efficiency advantage over manual or mechanical methods.
IMG_0289
20240910_132647

Hydrodemolition generates wastewater that must be collected, treated, and managed in compliance with EPA guidelines. On most projects, this is handled by integral wastewater collection systems on the hydrodemolition robot and supplemental treatment equipment on site.

Handheld and Rig-Mounted Concrete Demolition Tools

Not every concrete demolition task calls for excavator-mounted equipment or specialty robots. A range of handheld and rig-mounted concrete demolition tools are used for detail work, confined-area breaking, and small-scale removal that is impractical or disproportionately costly to perform with larger equipment.

Electric and Pneumatic Breakers

Handheld electric and pneumatic breakers (also called chipping hammers or demolition hammers) deliver impact energy at the scale needed for manual concrete breaking, spalling, and chipping. They are used for removing small areas of deteriorated concrete, opening up cores for inspection, breaking isolated areas in confined spaces, and detail work at the edges and perimeters of larger machine-performed demolition scopes.

Electric breakers in the 15 to 70 pound class are the standard tool for floor-level work. Pneumatic breakers (air hammers) are used where electrical power is not available or where spark hazard concerns apply. Both tool types are subject to OSHA's silica standard and require dust suppression or respiratory protection for the operator.

Core Drilling for Demolition Relief Cuts

Core drilling is not typically classified as a demolition tool, but it plays an important supporting role in many selective demolition scopes. Relief cores drilled at the corners of planned openings allow saw cuts to terminate cleanly without overrunning the cut line. Closely spaced cores along a planned cut line can define the edge of a removal zone in areas where a saw cannot reach the full required depth. And core drilling is used to create inspection access into a slab or wall to verify conditions before committing to a larger removal scope.

How Equipment Is Selected for a Demolition Project

Equipment selection for a concrete demolition project is not a catalog decision. It is an engineering and field judgment process that considers multiple variables simultaneously. The factors that most significantly affect which concrete demolition tools and equipment are appropriate for a given project include:

Structural System and Reinforcement Type

The type of concrete and reinforcement in the structure defines the baseline equipment requirement. Plain concrete responds well to hydraulic breaking. Heavily rebar-reinforced concrete requires a rebar-separation step (crusher or shear) after breaking. Post-tensioned concrete requires GPR scanning before any breaking or cutting to locate tendon positions, and PT cables must be de-stressed in a controlled sequence before cutting through them. Structural review by an engineer of record is required before any demolition of PT structural members proceeds.

Volume and Production Rate Requirements

The volume of concrete to be removed and the project schedule together define the required production rate. High-volume demolition on tight schedules calls for the largest practical excavator-mounted equipment, potentially running multiple shifts or multiple machines in parallel. Smaller volumes in less time-critical scopes may be handled efficiently by compact equipment or demolition robots, eliminating the cost and logistics of mobilizing a large excavator fleet.

Access and Overhead Constraints

Access is often the controlling factor in equipment selection. Interior demolition in an occupied building is limited by doorway dimensions, floor loading, and overhead clearance. Basement demolition requires either equipment that can be lowered in sections or demolished-down, or a demolition robot that fits through existing access points. Bridge and elevated structure work may be constrained by load-bearing capacity of the structure below the work area. Each constraint narrows the practical equipment options and may require specialty equipment where standard tools cannot be used.

Vibration and Noise Constraints

Many commercial and infrastructure demolition projects impose vibration and noise constraints driven by adjacent occupied spaces, sensitive equipment, historic structures, or regulatory requirements. Hydraulic breakers are the most vibration-intensive option. Rotary drum cutters, wire saws, diamond saw cutting, and hydrodemolition all deliver significantly lower vibration transmission. On projects with tight vibration limits, vibration monitoring is set up at the constraint boundary, and equipment selection and operating parameters are calibrated to stay within the permitted limits.

Environmental and Regulatory Requirements

Demolition in environmentally sensitive areas, near waterways, or in facilities with hazardous material concerns imposes requirements that affect equipment selection and operating procedures. Hydrodemolition requires wastewater management. Hydraulic breaking near waterways may require containment of debris and water. Interior demolition in buildings with asbestos or lead paint requires equipment and procedures compatible with hazmat abatement protocols. Silica dust controls under OSHA's silica standard apply to all concrete demolition methods that generate respirable dust.

Pre-Work Scanning Before Concrete Demolition

Regardless of which concrete demolition equipment is selected for a project, the standard first step before any demolition work begins on a commercial or infrastructure structure is a GPR scan of the work area.

GPR scanning before demolition serves three purposes. First, it identifies post-tension cables and their locations, enabling the demolition sequence to be planned around them and triggering the structural engineering review required before PT cables can be cut. Second, it maps embedded utilities (electrical conduit, plumbing, gas lines, data cables) that must be isolated or relocated before demolition exposes them. Third, it provides the rebar layout information needed to select the right combination of breaking and processing equipment for the reinforcement density present.

The cost of a GPR scan before demolition is a small fraction of the cost of hitting an undetected PT cable, severing a live utility, or demolishing a structural element in a sequence that compromises the surrounding structure. On any project where the interior condition of the concrete is not fully confirmed by current, verified structural drawings, scanning before demolition is the professional standard of care.

Penhall Demolition
Penhall Demolition

Penhall's Concrete Demolition Services

Penhall Company provides selective and full concrete demolition services on commercial and infrastructure projects across North America, using a project-matched equipment approach that draws on the full range of concrete demolition tools and systems rather than a single-equipment methodology.

Penhall's demolition capabilities span the full equipment spectrum described in this guide. Penhall brings the breadth of equipment and the field expertise to match the right tool to each phase of a complex scope, combining breaker, crusher, wire saw, core drill, and scanning resources under a single project.

Penhall's integrated service model means that pre-work scanning, concrete cutting, coring, and demolition are coordinated under a single contract, eliminating the coordination overhead of managing multiple specialty subcontractors for related scopes. For post-tensioned structures, Penhall coordinates with structural engineers as a standard protocol before any demolition of PT elements proceeds.

Penhall's full concrete services offering includes:

Selective and full demolition: hydraulic breaking, crushing, wire sawing, demolition robot operations, and controlled PT demolition.

Hydrodemolition: robotic high-pressure water concrete removal for bridge decks, parking structures, and large-scale rehabilitation.

Concrete cutting: flat sawing, wall sawing, wire sawing, and hand sawing for demolition, renovation, and infrastructure work.

Concrete coring: core drilling for relief cuts, investigation access, and utility penetrations supporting demolition scopes.

GPR concrete scanning: pre-demolition scanning for PT cable location, rebar mapping, and embedded utility identification.

Structural repair: concrete restoration and repair following demolition, including FRP strengthening.

As North America’s largest provider of concrete cutting, coring, and demolition services, with locations across the country, Penhall can mobilize quickly for slab scanning and concrete work in any region.

frequently asked questions

The Concrete Construction Process: From Utility Mapping to Final Demolition

A complete walkthrough of how complex commercial and infrastructure concrete projects are executed, from underground utility mapping and GPR locating through concrete cutting, coring concrete, hydroexcavation, and final demolition, and how an integrated project approach eliminates the gaps that cause delays, rework, and safety incidents.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Each phase of a commercial concrete project builds on the last. What scanning and mapping reveal in Phase 1 directly shapes how cutting, coring, and demolition are executed in every phase that follows.
  • Subsurface utility locating and utility mapping come first: they establish what is buried below grade and embedded in the structure before any tool enters the concrete.
  • GPR utility locating is the standard non-destructive method for detecting buried pipes, conduit, cables, and rebar without excavation.
  • As-built construction drawings document what was built, but are frequently incomplete or outdated. GPR scanning is required to verify actual conditions when as-builts cannot be confirmed.
  • Hydroexcavation exposes buried utilities non-destructively before mechanical excavation begins, eliminating the strike risk that conventional digging equipment creates.
  • Coring concrete, cutting, and demolition depend on what the pre-work phases reveal. Complete pre-work intelligence is what makes the execution phases fast, safe, and predictable.

Why the Phases of a Concrete Project Are Interconnected

Complex concrete projects fail in predictable ways. A utility that was not mapped gets struck during excavation, triggering an emergency shutdown. A PT cable that was not scanned gets cut during saw cutting, causing a violent energy release. A core that was placed without confirming the drill path hits rebar, destroying the bit and requiring relocation. A demolition sequence that did not account for the PT tendon layout in a structure causes progressive structural damage when tendons are cut in the wrong order.

In every case, the failure occurred not because the crew was incompetent or the project was too difficult. It occurred because information that was available in an earlier phase of the project was not carried forward to the phase where it mattered. The utility location data was not shared with the excavation crew. The GPR scan findings were not reviewed by the drilling crew before work started. The structural drawings that showed the PT layout were not in the hands of the demolition contractor.

This information gap between phases is one of the most common and most preventable sources of delay, cost overrun, and safety incident on commercial construction projects. It is especially prevalent when each phase of the concrete work scope is performed by a different specialty contractor, each operating within their own scope without full visibility into what the others found and what it means for their work.

The concrete construction process, done right, is a continuous chain of discovery and informed execution. Each phase generates information. That information shapes the next phase. A project team that carries full knowledge of the subsurface from the first GPR scan through the final repair pour makes better decisions at every step, avoids the surprises that drive change orders and delays, and executes the work more safely because they know what they are working in.

The Concrete Project Lifecycle: Phase by Phase

# Phase What Happens What It Enables
1 Utility mapping & GPR locating Underground utility mapping, subsurface utility locating, as-built verification Safe excavation, informed cut/core positioning, PT cable identification
2 Pre-work concrete scanning GPR slab scanning for rebar, PT cables, conduit, and voids at proposed work locations Accurate tool selection, safe penetration placement, no mid-job surprises
3 Hydroexcavation (if applicable) Vacuum excavation to expose utilities or excavate near existing infrastructure Non-destructive utility exposure, confirmed utility location before mechanical work
4 Concrete cutting Flat sawing, wall sawing, wire sawing for openings, slab removal, or trench definition Clean-edged removal zones, structural member separation, trench access
5 Coring concrete Core drilling for utility penetrations, anchor locations, test samples Utility routing, MEP installation, structural test data, anchor installation
6 Selective demolition Hydraulic breaking, crushing, wire sawing, demolition robot operations Concrete removal to scope without collateral damage to adjacent structure
7 Restoration and repair Concrete repair, overlay, FRP strengthening, and surface preparation Restored structural integrity, prepared surface for new systems, closeout

Phase 1: Underground Utility Mapping and Subsurface Utility Locating

The first phase of any concrete project that will penetrate, cut, or disturb the ground or an existing structure is establishing what is already there. Underground utility mapping and subsurface utility locating are the processes that answer that question before any work begins.

What Is Utility Mapping?

Utility mapping is the systematic process of locating, identifying, and recording the position and depth of underground utilities (pipes, conduit, cables, tanks, and other infrastructure) within a defined project area. The goal is to produce a subsurface utility map accurate enough that work crews can excavate, cut, drill, or demolish within the area without striking undetected utilities.

On commercial and infrastructure projects, utility mapping typically involves a combination of methods:

  • Review of available records, including as-built drawings, utility company records, and prior survey data.
  • GPR utility locating: Ground Penetrating Radar scanning of the ground surface or slab to detect buried utilities.
  • Electromagnetic induction: used to locate and trace metallic utilities by inducing a signal on the utility and detecting it at the surface.
  • Ground-truthing: confirmation of detected utilities by careful hand excavation or hydroexcavation at selected locations.
1128
20210602_083010_Daniel Plemel

The ASCE 38 Standard for the Collection and Depiction of Existing Subsurface Utility Data defines four quality levels for utility location data, from Quality Level D (record information only, no field verification) to Quality Level A (precise horizontal and vertical location confirmed by excavation). Professional subsurface utility locating services are designed to achieve Quality Level B (non-destructive field detection using surface geophysics including GPR) or Quality Level A (physical verification) for utilities in the project work zone.

GPR Utility Locating

GPR utility locating is the primary non-destructive technology for underground utility mapping on most commercial sites. A GPR antenna moved across the ground or slab surface transmits radar pulses that penetrate the material and reflect off buried utilities. The reflections are recorded and displayed as a radargram showing the depth and position of detected objects.

GPR utility locating is effective for detecting metallic utilities (steel pipe, copper, cast iron, EMT conduit) and many non-metallic utilities (plastic pipe with tracer wire, air-filled conduit, water-filled pipe where the water creates sufficient dielectric contrast). It can also detect structural features within concrete slabs and walls that would be missed by electromagnetic-only approaches.

The limitations of GPR utility locating are the same as for any GPR application: signal attenuation in conductive soils limits depth in some conditions, and non-metallic utilities without tracer wire may not produce a clear reflection. Combining GPR with electromagnetic induction methods provides a more complete picture than either alone, which is why comprehensive utility mapping engagements typically use both technologies.

What Are As-Builts, and Why Can't You Always Trust Them?

As-builts (also called as-built drawings or record drawings) are revised construction drawings that document the actual position of structural elements, utilities, and systems as installed in the field, as distinguished from the original design drawings. As-built construction documents reflect field changes, substitutions, and adjustments that occurred during construction and that may differ from the original design intent.

On paper, as-built drawings should provide a complete and accurate record of what is in the ground and embedded in concrete structures. In practice, their reliability varies widely. Common reasons as-built construction documents cannot be fully trusted include:

  • Field changes made during construction were not consistently recorded in the as-built documents.
  • Renovation work performed after original construction added utilities, conduit, or reinforcement not reflected in the original as-builts.
  • Original as-builts were never produced or were lost over the building's ownership history.
  • The structure is old enough that as-built documentation predates current drawing standards and may be imprecise or incomplete.
  • Utility layouts were changed by the utility owner after original construction without updating the building's as-built records.

For these reasons, as-built drawings should be treated as a starting point for subsurface utility mapping, not as a substitute for field verification. A GPR scan confirms what the as-builts say, identifies where reality departs from the drawings, and provides the location data needed to proceed confidently with cutting, coring, or excavation work.

What Utility Mapping Produces

The output of a utility mapping engagement is a set of marked up plans, field markings, and in more comprehensive engagements, a Geographic Information System (GIS) layer or drawing overlay showing detected utilities with their positions and depths. For projects where work will occur in the mapped area, field markings (color-coded spray paint or flags following the APWA Uniform Color Code) are applied to the surface to give work crews an immediate visual reference.

The APWA color code for utility markings is:

  • Red: electric power lines, cables, conduit, and lighting cables.
  • Yellow: gas, oil, steam, petroleum, or gaseous materials.
  • Orange: communications, alarm, signal lines, cables, or conduit.
  • Blue: potable water.
  • Green: sewers and drain lines.
  • Purple: reclaimed water, irrigation, and slurry lines.
  • White: proposed excavation limits or route.
  • Pink: temporary survey markings, unknown or unidentified facilities.

These markings are the field crew's primary guide to what is below the surface, and they are the direct output of the utility mapping process that makes the rest of the project safe to execute.

Phase 2: Pre-Work Concrete Scanning for Embedded Objects

Once the below-grade utility picture is established, the next step is establishing what is already inside the concrete structure itself. While utility mapping focuses on buried infrastructure below the slab, pre-work concrete scanning addresses the rebar, post-tension cables, embedded conduit, and utilities that are cast into the concrete and that cannot be detected from a surface-level utility map.

Pre-work concrete scanning uses the same GPR technology as utility locating, but with higher-frequency antennas optimized for the shorter depths and finer resolution required to image objects inside a concrete slab (typically 4 to 24 inches thick) rather than utilities buried several feet below grade. The concrete scanning process for pre-work investigation follows the same basic workflow: scan, interpret, mark, and brief.

What Pre-Work Scanning Finds

In a typical commercial slab pre-work scan, the technician identifies and marks:

  • Rebar layout: bar position, spacing, depth, and orientation. This information drives blade and bit selection and allows anchors and cores to be positioned to avoid or minimize rebar encounters.
  • Post-tension cables: PT tendon location, spacing, and depth. This is the highest-priority finding for safety. Any proposed cut or core that falls within the PT cable field requires structural review before work proceeds.
  • Embedded conduit and utilities: metallic conduit, water or gas lines, and other utilities cast into the slab that were not captured in the below-grade utility map.
  • Voids and delamination: subsurface air spaces that may indicate structural deterioration, subgrade erosion, or prior repair failures.
  • Slab thickness: when the bottom reflection is visible, GPR can confirm the slab depth without coring.

The surface markings produced by the concrete scan, combined with the utility markings from the below-grade mapping phase, give the cutting, coring, and demolition crews a complete picture of the subsurface and embedded environment in the work zone before any penetrating tool enters the material.

How Scan Findings Shape the Execution Phases

The value of pre-work scanning is not just safety. It is efficiency. When the crew knows exactly where the rebar is before they start coring concrete, they can position the core bit in the clear window between bars on the first attempt. When they know the PT cable layout before saw cutting, they can select a blade configuration matched to the reinforcement density they will actually encounter. When they know what utilities are in the slab before demolition, they can plan the isolation and removal sequence without stopping work for emergency discoveries.

Every piece of information gathered in Phases 1 and 2 directly reduces the probability of a mid-scope surprise in Phases 3 through 7. This is why the pre-work phases are not overhead. They are the work that makes all the subsequent work faster, safer, and more predictable.

Phase 3: Hydroexcavation for Non-Destructive Utility Exposure

On projects where below-grade utilities must be exposed before mechanical excavation, utility connections, or repair work proceeds, hydroexcavation provides a non-destructive alternative to digging with mechanical equipment.

What Is Hydroexcavation?

Hydroexcavation (also called hydrovac excavation or vacuum excavation) is a method of soil excavation that uses pressurized water to break up and liquefy the soil and a powerful industrial vacuum to remove the resulting slurry, excavating to a precise depth and profile without any mechanical cutting or digging tool contacting the soil. Because there is no blade, bucket, or drill in contact with the excavation zone, hydroexcavation cannot damage buried utilities that fall within the excavated area.

The pressurized water used in hydroexcavation can be either cold water (standard for most applications) or heated water (used in frozen ground conditions to thaw and excavate simultaneously). The vacuum removes the slurry to an onboard tank for transport and disposal. The excavation walls are clean and precise, and the soil removal is limited to the targeted zone without the over-excavation common with mechanical digging.

When Hydroexcavation Is Used in the Concrete Construction Process

Hydroexcavation is most commonly deployed at the intersection of utility mapping and mechanical work. After GPR utility locating has identified the presence and approximate position of buried utilities, hydroexcavation is used to expose those utilities precisely, confirming their exact depth and condition before mechanical excavation begins nearby. This is Quality Level A verification under the ASCE 38 standard: physical exposure that confirms what the GPR found.

Common triggers for hydroexcavation on commercial concrete projects include:

  • Daylighting utilities before mechanical excavation to confirm clearance and prevent utility strikes.
  • Excavating in congested utility corridors where the density of buried infrastructure makes mechanical digging impractical without unacceptable strike risk.
  • Slot trenching for new utility installations in areas where multiple existing utilities are present and must be preserved.
  • Potholing to verify utility depth and condition at specific points before horizontal directional drilling or casing installation.
  • Exposing existing infrastructure for connection, repair, or tie-in work.
  • Cold-weather excavation where ground is frozen and mechanical breaking would damage utilities.

The information that hydroexcavation produces is not just a safety confirmation. It feeds back into the project knowledge base, updating the utility map with precise, ground-truthed positions that the cutting, coring, and demolition phases can rely on.

Phase 4: Concrete Cutting for Openings, Removal Zones, and Trench Definition

With utility mapping, concrete scanning, and any required hydroexcavation complete, the project moves into the execution phases. Concrete cutting is typically the first execution phase for scopes involving slab removal, opening creation, or trench definition. It produces the clean-edged cuts that define removal zones, create new openings in slabs and walls, and establish the boundaries of demolition scopes.

How Pre-Work Intelligence Shapes the Cutting Scope

The findings from the utility mapping and concrete scanning phases are directly applied during cutting. The surface markings showing rebar position and PT cable layout are visible on the slab as the saw operator works. Proposed cut lines that were confirmed clear of PT cables during scanning can be executed with standard protocols. Cut lines that approach or cross PT tendon zones have been flagged for structural review and are handled under engineer-directed protocols.

Rebar density information from the scan allows the crew to select the appropriate blade specification for the actual reinforcement conditions, avoiding under-specified blades that fail prematurely on dense reinforcement and over-specified blades that waste cost on lightly reinforced material. This is a direct, quantifiable efficiency benefit of the pre-work scanning investment.

Cutting Methods by Project Phase

Different cutting methods serve different roles in the project execution sequence:

  • Flat sawing defines slab removal zones, trench boundaries, and joint lines on horizontal surfaces.
  • Wall sawing creates precise openings in vertical concrete surfaces: walls, columns, and elevated slab soffits.
  • Wire sawing cuts through structural members of any thickness and in configurations that blade-based saws cannot reach, including post-tensioned members under engineer-directed controlled conditions.
  • Hand sawing handles detail cuts, edge work, and confined locations that machine-mounted saws cannot access.

Phase 5: Coring Concrete for Penetrations and Test Samples

Coring concrete creates the circular penetrations required for utility routing, mechanical and electrical installations, anchor systems, and structural test sample extraction. Concrete coring is typically sequenced alongside or immediately after cutting, using the same mobilization and often the same crew.

What Coring Concrete Produces

The output of coring concrete is a clean, cylindrical penetration of a specific diameter and depth. For utility installations, this provides a precisely dimensioned path through the concrete for a pipe, conduit, sleeve, or drain body. For structural anchoring, it creates the hole geometry required for the anchor system specification. For testing, the cylindrical core extracted by the drill is submitted to a laboratory for compressive strength testing, petrographic analysis, or chloride content measurement.

Core diameter selection is driven by the component being installed. Standard utility penetrations commonly use 3-inch to 8-inch diameter cores for piping and conduit. Large-diameter infrastructure penetrations (manholes, pump housings, large pipes) may require cores of 12 inches to 36 inches or more. Structural test cores are typically 4 inches in diameter, the standard size for ASTM C42 testing.

How Scanning Findings Protect the Coring Scope

The pre-work concrete scan is what makes coring concrete safe and efficient in reinforced and post-tensioned slabs. Without it, every core location is a guess about what is in the drill path. With it, the crew knows before the first bit turns whether each proposed location is clear, whether rebar is present and at what depth, and whether any PT cables run through the vicinity.

For post-tensioned slabs specifically, coring concrete without a prior GPR scan is not an acceptable risk. The core bit that hits a PT cable does so with full rotational force, severing the tendon and releasing its stored energy through the rig. The core drill operator is in the direct line of that energy release. This is a preventable event with a single pre-work step.

Coring for Structural Test Samples

In renovation, rehabilitation, and infrastructure assessment projects, coring concrete for structural test samples is often one of the first execution steps, occurring before any cutting or demolition begins. The compressive strength data from core tests informs the structural engineer's assessment of the existing slab, confirms whether the concrete has the capacity assumed in the renovation design, and identifies zones of reduced strength that need to be removed or reinforced before new work proceeds.

Core test data is also used to calibrate the GPR scan's depth estimates. By comparing the GPR-measured depth to a core extracted at the same location, the technician can refine the dielectric constant used in the scan calibration and improve depth accuracy for subsequent scan interpretations in the same area.

Phase 6: Selective Demolition and Concrete Removal

After the cut lines and core penetrations have defined the boundaries of the removal scope, selective demolition removes the concrete within those boundaries.

How Pre-Work Intelligence Guides Demolition Sequencing

The utility map and concrete scan findings are not just safety inputs to demolition. They are sequencing inputs. Utilities that must remain active need to be isolated and protected before demolition of surrounding material begins. PT tendons identified by scanning must be de-stressed in a defined sequence before the slab section they serve can be removed. Rebar that connects the removal zone to adjacent structural elements must be cut in the sequence that preserves the load path of the surrounding structure.

A demolition team that has full access to the utility map and concrete scan data from Phases 1 and 2 plans the demolition sequence with complete information. A demolition team that receives only a verbal description of the scope and a set of drawings that may not reflect current conditions is making sequencing decisions with incomplete information, and the gaps in that information are where delays, incidents, and change orders originate.

Concrete Demolition Equipment Selection

Equipment selection for the demolition phase is informed by the pre-work findings. Rebar density from the concrete scan determines whether a hydraulic breaker plus crusher combination is sufficient or whether additional shear or cutter capacity is needed for reinforcement processing. PT tendon locations from the scan define the areas requiring wire sawing under engineering direction rather than impact breaking. Embedded utility locations define the areas requiring hand tools, demolition robot operations, or careful saw cutting rather than excavator-mounted hydraulic breakers.

The most common concrete demolition equipment sequence on a commercial project involves hydraulic breakers for primary breaking of the slab within the defined removal zone, concrete crushers for processing broken material and separating rebar, wire saws or concrete cutters for structural member separation at defined cut planes, and demolition robots for any areas that excavator-mounted equipment cannot access.

For large-scale surface removal on bridge decks, parking structures, and other infrastructure rehabilitation projects, hydrodemolition is often the preferred method, replacing or complementing mechanical demolition by selectively removing deteriorated concrete while leaving sound material and rebar intact and providing a microfracture-free bonding surface for new overlay placement.

Phase 7: Structural Repair and Restoration

The final phase of the concrete construction process closes the scope by restoring the structural integrity and serviceability of the elements affected by cutting, coring, and demolition work. Structural repair work includes concrete placement and finishing in opened or demolished zones, repair mortar installation in surface preparation areas, overlay system application, and where required, Fiber Reinforced Polymer (FRP) strengthening to restore or enhance the capacity of elements from which reinforcement has been removed.

The quality of the repair phase is directly dependent on the quality of the surface preparation that precedes it. Concrete surface preparation, whether by scarifying, grinding, or hydrodemolition, must produce the surface profile (CSP rating) specified by the repair material manufacturer. An overlay or repair mortar placed on an inadequately prepared surface will delaminate regardless of its quality.

On post-tensioned structures, the repair phase also includes re-grouting of any PT tendons that were exposed during demolition, replacement of PT components where existing cables were intentionally cut, and structural re-assessment by the engineer of record to confirm that the repaired section meets the required structural performance criteria.

The Integration Advantage: Why a Single Contractor Changes the Project

Every phase described in this guide can be, and on many projects is, performed by a different specialty subcontractor. A utility locating company does the mapping. A scanning company does the concrete scan. A core drilling subcontractor does the coring. A cutting subcontractor does the saw cuts. A demolition contractor does the removal. A repair contractor closes the scope.

This fragmented model has a structural problem: the information each phase generates is supposed to flow to the next phase, but in practice it often does not. The utility locating company produces a report that the core drilling subcontractor may or may not receive, may or may not read, and may or may not have on the job site when they start drilling. The concrete scan findings are in a document that was emailed to the GC, who may or may not have transmitted them to the saw cutting crew. The demolition contractor who arrives three weeks after the scan was performed may be working from memory of a verbal briefing they received secondhand.

Each gap in this information chain is a potential failure point. Not a theoretical one. A common one.

When a single contractor performs all phases of the concrete work scope, the information chain is internal. The scanning technician briefs the cutting crew directly. The utility map is in the hands of the crew that drills adjacent to the mapped utilities. The structural findings from Phase 1 and Phase 2 are owned by the same organization that executes Phases 3 through 7. There is no handoff. There is no translation. There is no version control problem.

This is the integration advantage: not just cost savings from reduced mobilization, though that is real. It is the elimination of the coordination gaps that cause the most expensive problems on complex commercial and infrastructure projects.

LosAl#2
IMG_3665

Penhall's Integrated Concrete Services

Penhall Company provides all phases of the concrete construction and demolition process under a single contractor relationship. From the first GPR utility locating scan through final structural repair, Penhall brings the equipment, the expertise, and the organizational depth to execute complex multi-phase concrete scopes as a true integrated partner.

Penhall's service offering covers every phase described in this guide:

GPR concrete scanning and utility locating: subsurface utility mapping, rebar and PT cable location, embedded utility identification, void detection, and slab thickness measurement.

Concrete cutting: flat sawing, wall sawing, wire sawing, and hand sawing for all project phases and reinforcement conditions.

Concrete coring: precision core drilling for utility penetrations, anchor installations, and structural test sample extraction.

Hydrodemolition: robotic high-pressure water concrete removal for bridge decks, parking structures, and large-scale rehabilitation projects.

Selective and full demolition: hydraulic breaking, crushing, wire sawing, demolition robot operations, and controlled PT demolition with structural engineering coordination.

Structural repair: concrete restoration, surface preparation, FRP strengthening, and repair following cutting, coring, or demolition.

Penhall's Behavior-Based Safety (BBS) program and over 65 years of concrete industry experience ensure that every phase of a complex multi-phase scope is executed with the professionalism and safety discipline that commercial and infrastructure projects require.

With locations across the country, we can mobilize quickly for any phase of the concrete construction and demolition process in any region.

frequently asked questions

Post-Tension vs. Rebar: How to Tell What You're Dealing With Before You Drill

A practical field guide to post-tension vs. rebar: what the difference is, why it matters before any drilling or cutting work begins, how to identify which type of slab you are working in, and why post-tension slabs require GPR scanning as a non-negotiable first step.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

Rebar is passive: it carries tensile forces only after the concrete cracks. Post-tension cables are active: stressed to 150,000 to 270,000 PSI after the concrete cures, placing the slab in permanent compression.

The core difference in post-tension vs. rebar is stress. Rebar carries no pre-applied load. A single 0.5-inch PT strand carries approximately 30,000 pounds at all times. Cutting through one releases that energy instantaneously.

Post-tension slabs are not dangerous to occupy. They are dangerous to cut or drill without knowing where the cables are. With a GPR scan before work begins, PT cables can be located, avoided, and worked around safely.

PT construction is common in any commercial building with flat-plate floors, parking structures, high-rise towers, and large-span slabs built in the past 40 to 50 years. Assuming a commercial slab is probably conventional rebar is not a safe assumption.

Visual indicators of PT construction include anchor pockets on the slab edge, PT end caps, and tendon blisters on the soffit. Useful, but not reliable: they can be patched over, removed, or absent in certain configurations.

GPR scanning is the only reliable method for confirming PT cable location before cutting or coring. It distinguishes PT cables from rebar by reflection pattern, spacing, and depth, and results are marked directly on the concrete surface.

Post-Tension vs. Rebar: The Fundamental Difference

Both rebar and post-tension cables are steel. Both are embedded in concrete. Both contribute to the structural performance of the slab. Beyond those surface similarities, they are fundamentally different systems with different structural behaviors, different installation methods, and radically different risk profiles when encountered during cutting or drilling work.

How Conventional Rebar Works

Conventional rebar (reinforcing bar) is a passive reinforcement system. Deformed steel bars are placed in the concrete formwork before the pour, positioned at the depth and spacing specified by the structural design, and cast in place as the concrete is poured around them. The rebar carries no load and experiences no stress until the concrete around it cracks under tensile or bending forces.

When the slab bends under load, the tension side of the slab cracks. At that point, the tensile force transfers to the rebar, which resists the crack from widening into a structural failure. The rebar is essential to the slab's performance, but it is not under stress in its resting state. A drill bit or diamond blade that hits an undetected rebar bar will be damaged and may be destroyed, and the anchor or core location may need to be moved. The rebar will not move. There is no stored energy release. The consequences are disruptive and costly, but they are not violent.

How Post-Tension Cables Work

Post-tension cables are an active reinforcement system. High-strength steel strands (typically 270 ksi ultimate tensile strength, compared to 60 ksi for Grade 60 rebar) are threaded through the slab or beam in plastic sheaths before the pour. After the concrete reaches sufficient strength, hydraulic jacks are used to stress the strands to their specified load, typically 70 to 80 percent of their ultimate tensile strength. The stressed ends are then locked against cast-in anchors at the slab edge or soffit, and the jacks are removed.

The result is a slab that is permanently, continuously in compression. The PT cables are not waiting to carry load after cracking occurs. They are actively precompressing the concrete at all times, preventing the tensile cracking that would otherwise occur and allowing the slab to span farther, carry more load, and be built thinner than an equivalent rebar-only design. This is why PT construction is so widely used in long-span commercial and institutional floors and parking structures.

The cables remain under full tensile stress for the life of the structure. A 0.5-inch diameter PT strand stressed to 70 percent of its 270 ksi ultimate carries approximately 30,000 pounds of tensile load, permanently. That load does not relax, fluctuate with live loads, or diminish over time in normal service conditions. It is always there.

Why the Stress Difference Changes Everything for Drilling and Cutting

The stress difference between post-tension cables vs. rebar is the entire reason why the conversation about identifying slab type before drilling or cutting matters at all.

When a diamond blade or drill bit cuts through a rebar bar, the bar is severed. It was not under stress, so there is no energy release. The structural consequence is real and needs to be assessed, but the event itself is not violent. The hazard is to the tooling, to the anchor or core placement, and potentially to the long-term structural performance of the element, not to the worker in the immediate area.

When a diamond blade or drill bit cuts through a PT cable, the result is categorically different. The strand, under 30,000 pounds of tensile load, severs. The stored elastic energy in that strand releases instantly. The cable retracts at high speed in both directions from the cut point. The concrete around the anchor zone may be destroyed as the cable releases its load. Adjacent tendons in the same tendon band may also be affected. The worker standing over the saw or holding the drill is in the immediate area of this energy release.

This is not an abstract risk. PT cable strikes during concrete cutting and coring have caused fatalities. The incidents are documented. The mechanism is well understood. And the prevention is straightforward: scan the slab before cutting or coring, locate the PT cables, and plan the work to avoid them.

Post-Tension Cables vs. Rebar: Quick Reference

Feature Conventional Rebar Post-Tension Cables
How it works Passive: carries tension only after concrete cracks and load transfers to steel Active: cables are stressed after concrete cures, placing slab in permanent compression
Typical steel Deformed steel bars, Grade 40 to Grade 80 High-strength strand (270 ksi) or bar, inside plastic sheath with grease
Stress level No pre-applied stress; steel is unstressed until slab cracks under load 150,000 to 270,000 PSI of tensile stress permanently applied
Visible indicators None visible from surface or slab edge in most cases Anchor pockets, PT end caps, tendon blisters on slab edge or soffit
Slab thickness Typically thicker for equivalent span length Often thinner than rebar-only design for same span and load
Common structures Residential slabs, footings, industrial floors, walls, beams Parking structures, high-rise floors, podium decks, bridges, large-span commercial slabs
If cut accidentally Blade damage, potential rework; no sudden energy release Violent cable retraction, concrete damage, potential structural failure, injury or fatality
Pre-work scanning Recommended to manage tooling cost and avoid utilities Non-negotiable; GPR scanning required before any cutting or coring

How Common Are Post-Tension Slabs?

One of the most significant errors a drilling or cutting crew can make is assuming that post-tensioned construction is rare, exotic, or confined to large-scale infrastructure. It is none of those things.

Post-tensioned concrete construction has been the standard structural system for a large proportion of commercial, institutional, and multi-family residential buildings since the 1970s. Any flat-plate or flat-slab floor system in a commercial building with spans exceeding roughly 20 to 25 feet is a strong candidate for PT design. Parking structures built in the past several decades are almost universally post-tensioned. High-rise residential and office towers use PT floors as a matter of course. Large-span industrial slabs, podium decks over parking, and transfer structures in mixed-use buildings are routinely post-tensioned.

In a commercial construction environment, particularly in urban markets, a crew that proceeds without scanning in any concrete slab is not making a conservative assumption that the slab is probably conventional rebar. They are making an unknowing assumption about a probability they cannot actually assess from visual inspection of the surface.

Structures Where PT Is the Strong Probability

  • Parking structures of any vintage built after roughly 1970, particularly in urban and suburban markets.
  • High-rise office, residential, hotel, and mixed-use building floors, essentially any flat-plate floor system over 4 to 5 stories.
  • Podium deck construction, where a concrete platform spans over a parking structure and supports a building above.
  • Transfer structures and transfer slabs in buildings where columns or walls do not run continuously to the foundation.
  • Large-span commercial and industrial floors in retail, distribution, and manufacturing facilities.
  • Bridges, elevated highway structures, and other infrastructure elements built with segmental or cast-in-place PT design.
  • Swimming pools and water-retaining structures, where PT is used to control cracking under hydrostatic pressure.

Structures Where Conventional Rebar Is More Likely

  • Residential slabs-on-ground, including single-family driveways, patios, and basement floors.
  • Low-rise industrial and warehouse slabs-on-ground with spans supported by the subgrade rather than spanning between columns.
  • Footings, grade beams, and other below-grade structural elements.
  • Tilt-up wall panels and precast wall elements.
  • Lightly loaded commercial floors in buildings with short spans and column-supported designs.

Even in structures where conventional rebar is the most likely reinforcement type, embedded utilities (conduit, pipes, hydronic tubing) are present in many slabs and create their own hazards. GPR scanning is recommended before any penetrating work regardless of PT probability.

How to Tell If a Slab Is Post-Tensioned

Identifying a post-tensioned slab before drilling or cutting work begins involves three sources of information: visual inspection of the structure, review of construction documents, and GPR scanning. Each has different reliability, and only one, GPR scanning, provides confirmed cable locations rather than inferential evidence.

Visual Indicators

Several visual features indicate post-tensioned construction. Knowing what to look for and where to look is the first step in any pre-work assessment:

Indicator What It Looks Like Reliability
Anchor pockets / stressing pockets Rectangular or rounded recesses on slab edge or soffit, approx. 3" x 5" to 4" x 6", spaced 24"–48" apart along the slab edge High when visible; may be patched over or hidden by finishes
PT end caps Plastic caps (often gray or orange) covering exposed strand ends at slab edge or in parking structure fascia High when visible; may be removed or covered
Tendon blisters Raised profile on slab soffit following the path of draped PT tendons in two-way PT slabs Moderate; only visible on exposed soffits
Thinner-than-expected slab Slab is noticeably thin for its span relative to what a rebar-only design would require Low by itself; useful corroborating indicator
Construction drawings Structural drawings specify PT design, tendon layout, anchor schedules, and stressing records Highest; but drawings may be unavailable or outdated for older structures
GPR scan PT cables produce strong, regular hyperbolic reflections at consistent spacing and depth, distinct from rebar pattern Highest available non-destructive method when drawings are unavailable

The most important thing to understand about visual indicators is what they can and cannot tell you. Anchor pockets and PT end caps confirm that PT construction is present. But their absence does not confirm that PT cables are absent. In older buildings, anchor pockets are often patched flush and painted over after stressing. In some PT system configurations, the stressing hardware is recessed or protected in ways that are not visible from a standard walk-through. Visual inspection should be used to raise PT probability, not to dismiss it.

Construction Drawings

The structural drawings for a building are the authoritative source for reinforcement type and layout. Structural drawings that specify post-tensioned design will show tendon layout, spacing, depth, anchor locations, and stressing records. For buildings where structural drawings are available and have been verified against as-built conditions, they are the most reliable source of information about reinforcement type.

The limitation is availability. Structural drawings are frequently unavailable for older buildings, particularly those that have changed ownership multiple times, have been through significant renovations, or were built before drawing digitization was standard. When drawings are not available or cannot be verified as current, they cannot be relied on to confirm the absence of PT cables in a slab.

GPR Scanning: The Only Method That Confirms Cable Location

GPR scanning is the only non-destructive method that can confirm the presence and specific location of PT cables before cutting or coring work begins. A trained GPR technician scanning a PT slab will observe the characteristic reflection pattern produced by PT tendons: strong, regular hyperbolic reflections at consistent spacing (typically 24 to 48 inches on center in one or both directions), at a consistent depth that differs from the top and bottom conventional rebar mats.

The technician marks the PT cable locations directly on the concrete surface using a distinct marking convention (typically red spray paint with a PT notation) to differentiate them from passive rebar. This gives the drilling or cutting crew a surface map of where the cables run before the work begins.

GPR scanning also identifies conventional rebar, embedded conduit, pipes, and other utilities in the same scan pass. The full picture of what is inside the slab, PT cables and passive reinforcement and utilities combined, is the most complete possible pre-work intelligence. Penhall’s concrete scanning services provide this information as a standard step before any cutting or coring work in structures where the slab interior is unknown.

Are Post-Tension Slabs Dangerous?

This question comes up regularly from workers, supervisors, and facility managers who are about to have drilling or cutting work done in a building they suspect is post-tensioned. The honest answer has two parts.

Post-tension slabs are not dangerous to occupy. They are among the most structurally sound, well-engineered floor systems in common use. The compression applied by PT cables actually improves the concrete's resistance to cracking, moisture infiltration, and long-term deterioration. Buildings with PT floors perform well over decades of service under heavy occupancy loads, and the presence of PT cables does not create any hazard to people using the building normally.

Post-tension slabs are dangerous to cut or drill into without knowing where the cables are. This is the critical distinction. The danger is not inherent to the structure. The danger arises when a worker introduces a cutting or drilling tool into the slab without the information needed to avoid the cables.

What Happens When a PT Cable Is Cut

The sequence of events following a PT cable strike is well documented and consistent across incidents. The diamond blade or drill bit severs the steel strand. The stored elastic energy in the strand, the energy that was maintaining 30,000 pounds of tensile load, releases in an instant. The cable retracts rapidly in both directions from the cut point. The momentum of the retracting cable destroys the concrete surrounding the anchor at each end. The anchor pocket may blow out. Concrete fragments are ejected from the area of the anchor.

In a two-way PT slab with cables running in both directions, cutting a cable in one direction can alter the load distribution in the surrounding slab area, potentially stressing adjacent tendons. In severe cases, particularly in post-tensioned beams or heavily PT-loaded transfer structures, cutting a single tendon can initiate a progressive failure.

The worker in the area of the strike is at risk from three sources: the cable itself as it retracts, fragments of concrete ejected from the anchor zone, and potential structural instability in the immediate area of the cut. These are not theoretical risks. They are the documented mechanism of actual fatalities.

The Prevention Is Simple

The entire risk profile associated with post-tension rebar confusion, which is really the risk of mistaking an active PT cable for passive rebar, is preventable with a GPR scan before work begins. The scan locates the PT cables. The cables are marked on the surface. The work is planned to avoid them. If a cable must be cut as part of the planned scope, a structural engineer assesses the impact, controlled de-stressing is performed, and the work proceeds in a planned sequence rather than through an accidental strike.

The cost of a GPR scan before drilling or cutting in a commercial concrete environment is small. The cost of a PT cable strike is not. This is the most straightforward cost-benefit calculation in the concrete industry.

The "Post-Tension Rebar" Confusion and Why It Matters

The search term post-tension rebar is commonly used to describe the steel inside a post-tensioned slab, and while the intent is clear, the terminology reflects a conflation that has practical consequences on job sites.

PT cables are not rebar. They are made from different steel (high-strength prestressing strand, typically 270 ksi, vs. 60 ksi Grade 60 deformed bar). They have a different physical form (multi-wire strand in a greased plastic sheath vs. a solid deformed bar). They behave differently under load (active vs. passive). And they respond differently when cut (violent energy release vs. passive severance).

When a crew refers to the reinforcement in a slab generically as rebar without distinguishing between passive bars and PT cables, the risk is that the differentiation that matters most for safety gets lost. A foreman who says "we scanned for rebar and it came back clear" in a PT slab may mean that the scan confirmed no conventional rebar in the drill path. That is not the same as confirming no PT cables in the drill path.

Professional GPR scanning services for concrete work scan for all embedded objects simultaneously. The technician identifies and marks both conventional rebar and PT cables, using distinct marking conventions for each. The written briefing to the crew explicitly distinguishes between the two. This distinction, between passive rebar and actively stressed PT cables, is the single most important piece of information the crew needs before drilling or cutting in a commercial concrete environment.

Working Safely in Post-Tension Slabs

Post-tensioned construction does not need to be avoided. It simply needs to be respected and worked in with the right information. The following protocols represent industry best practice for cutting and coring work in PT concrete:

Step 1: Establish PT Probability Before Mobilizing

Before any drilling, coring, or cutting crew mobilizes to a commercial concrete project, the project coordinator should establish the PT probability for the structure. For buildings where structural drawings are available, review them. For buildings where drawings are unavailable or where the slab has been modified since original construction, assume PT is possible until a GPR scan confirms otherwise. In parking structures, high-rise floors, and podium decks built in the past 50 years, assume PT is present until proven otherwise.

Step 2: Order a GPR Scan Before Any Penetrating Work

For any project in a structure with confirmed or probable PT design, order a GPR scan before the drilling or cutting crew arrives. The scan should cover all proposed work locations and use a scanning protocol and antenna frequency appropriate for the slab thickness and expected reinforcement. The scan technician should provide marked results and a verbal briefing that explicitly identifies PT cable locations and distinguishes them from conventional rebar.

Step 3: Review Scan Results Before Beginning Work

Before the first drill goes into the concrete, the lead crew member should review the scan markings and briefing with the scanning technician. All proposed work locations should be confirmed as clear of PT cables, or relocated to clear positions, before drilling begins. Any location that falls within the established clear-zone buffer of a detected PT cable should be reviewed with the structural engineer of record before proceeding.

Step 4: If a PT Cable Must Be Cut, Involve an Engineer

In renovation and demolition scopes where PT cables must be cut as part of the planned work, cutting is not simply a field decision. A structural engineer must assess the impact of PT cable removal on the slab's structural integrity, specify a controlled de-stressing sequence, and confirm that the structure can be safely shored and stabilized before and after cable cutting. Penhall's selective demolition teams coordinate with structural engineers on PT work as a standard protocol.

Step 5: Train Crews to Recognize PT Indicators

Field crews that regularly work in commercial concrete environments should be trained to recognize the visual indicators of PT construction: anchor pockets, PT end caps, tendon blisters. This recognition should trigger an automatic protocol: stop, confirm PT status with a scan, and proceed only after confirmed cable locations are in hand. This is not a judgment call for the field crew to make on their own. It is a defined workflow.

penhall rebar locating
20211005_113626_Daniel Plemel

Penhall's Scanning and Concrete Services for Post-Tension Structures

Penhall Company has extensive experience working in post-tensioned concrete structures, with field crews trained to recognize PT indicators, require pre-work scanning, and execute cutting and coring work safely after PT cable locations are confirmed by GPR. Penhall provides the full workflow:

GPR concrete scanning:PT cable detection, rebar mapping, utility location, and void detection before any cutting or coring begins. Scan results are marked directly on the concrete with distinct PT cable markings, and crews receive a full verbal briefing before work starts.

Concrete cutting: flat sawing, wall sawing, wire sawing, and hand sawing in PT and conventionally reinforced concrete, with blade selection and cut planning informed by GPR scan results.

Concrete coring: precision core drilling in PT slabs with core locations confirmed clear by GPR before drilling begins

Selective demolition: controlled removal of post-tensioned concrete with structural engineering coordination, controlled de-stressing protocols, and full pre-work scanning.

Selective demolition: controlled removal of reinforced and post-tensioned concrete.

Structural repair: concrete restoration following PT concrete work, including FRP strengthening for elements where PT reinforcement has been removed.

With locations across the country, Penhall can mobilize quickly for slab scanning and concrete work in any region.

frequently asked questions

Rebar Scanning Services: How Rebar Locating Works Before Drilling, Coring, or Saw Cutting

A contractor-focused guide to rebar scanning services: what rebar locating involves, how scanning concrete for rebar works in the field, what the marked deliverable looks like, and how finding rebar in concrete before any penetrating work begins reduces tooling damage, rework, and safety risk.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

Rebar scanning services use GPR to locate rebar, post-tension cables, conduit, and utilities inside concrete before any drilling, coring, cutting, or trenching begins.

Finding rebar in concrete before penetrating it prevents blade and bit damage, allows anchors and cores to be positioned accurately the first time, and in post-tensioned concrete, avoids a life-safety event: PT cables are not passive rebar.

A rebar detector in concrete can mean several things. Simple electromagnetic cover meters detect a single shallow bar. Professional GPR-based rebar locating services detect rebar at depth, across multiple layers, and identify PT cables, conduit, pipes, and voids in the same pass.

The deliverable is a marked surface: detected rebar, PT cables, and utilities are marked directly on the concrete with spray paint or chalk, giving the crew an immediate, visible guide before work begins.

Rebar scanning services are a standard pre-work step before anchor drilling, core drilling, saw cutting, slab trenching, and renovation scopes involving any concrete penetration.

The cost of a rebar scan is negligible compared to a destroyed blade, a failed anchor, a missed penetration, or a PT cable strike.

Why Finding Rebar in Concrete Before You Cut or Drill Matters

Every concrete slab, wall, beam, and column in commercial and infrastructure construction contains steel reinforcement. That reinforcement is invisible from the surface. It does not show up in a visual inspection. It cannot be detected by tapping or probing. Without a tool specifically designed for finding rebar in concrete, there is no way to know where the bars are, how deep they are, how closely they are spaced, or whether some of the objects inside the concrete are passive rebar or actively tensioned PT cables.

For a drilling or cutting crew working without that information, every penetration is a guess. Most of the time, the guess produces an acceptable outcome: the drill misses the rebar, the anchor goes in cleanly, the core comes out intact. But a meaningful percentage of the time, it does not. The drill hits a bar and stalls. The core bit destroys itself on unexpected reinforcement. The saw blade burns through its diamond segments two passes into a cut that was supposed to take ten. The anchor ends up exactly over a rebar bar and has to be relocated.

Each of these outcomes has a cost. A destroyed diamond blade on a wall saw runs hundreds of dollars to replace. A core bit that hits rebar mid-bore can require pulling the rig, replacing the bit, and re-setting at a new location. Relocated anchors mean additional drilling time, patched holes, and potential re-engineering of the connection. Across a project with dozens of penetrations, the accumulated cost of unplanned rebar hits can far exceed the cost of a comprehensive rebar scan before the work began.
And that calculation assumes the undetected object was passive rebar. In a post-tensioned slab, it might not be. PT cables are under 150,000 to 270,000 PSI of tensile stress. A single 0.5-inch strand carries approximately 30,000 pounds of load. Cutting through one releases that energy instantaneously. The cable retracts at high speed, destroying the concrete around it and creating an immediate danger to anyone in the area. There are documented fatalities associated with undetected PT cable strikes during concrete cutting and coring work.

Rebar scanning services exist to eliminate this uncertainty before the work begins. A scan that takes 30 minutes and costs a fraction of the project budget removes the guesswork entirely.

Penhall LAX rebar zoom in
Penhall LAX rebar - Copy

How Rebar Scanning Services Work

Professional rebar scanning services use Ground Penetrating Radar, not the hand-held electromagnetic rebar detectors available at equipment rental counters. Understanding the difference between these two approaches is important for anyone specifying or purchasing rebar locating services.

GPR vs. Electromagnetic Cover Meters

Electromagnetic cover meters (also called profometers or rebar locators) work by detecting the magnetic field disruption caused by a steel rebar bar near the sensor. They are simple, inexpensive, and effective for a single purpose: measuring the concrete cover depth over a known rebar bar when you are positioning the sensor directly above it.

What cover meters cannot do is equally important to understand:

  • They cannot detect rebar at depths greater than roughly 3 to 4 inches in most models.
  • They cannot detect multiple overlapping rebar layers because the signal saturates in dense reinforcement environments.
  • They cannot detect PT cables, conduit, pipes, or any other embedded utility.
  • They do not produce a cross-sectional image of the slab interior, only a point-by-point signal reading that requires the operator to interpret proximity.

GPR overcomes all of these limitations. A professional GPR rebar scanning service uses a high-frequency antenna (typically 1.5 GHz to 2.6 GHz for standard concrete applications) that transmits pulses of radar energy into the slab and records reflections from all embedded objects, at all depths within the scan range, simultaneously. The result is a continuous cross-sectional image of the slab interior that shows every rebar bar, PT cable, conduit run, and utility in the scan path.

For any concrete work where the stakes are higher than measuring cover depth on a known bar, GPR-based rebar scanning services are the appropriate tool. This includes virtually all commercial and infrastructure drilling, coring, and cutting work.

The GPR Rebar Scanning Workflow

Understanding how a rebar scanning service operates in the field helps project teams integrate it smoothly into the work schedule and get the most value from the scan deliverable.

Step 1: Site and project review. Before scanning begins, the technician reviews available information about the structure: construction drawings if available, the type of construction (conventionally reinforced vs. post-tensioned), the planned work scope, and the proposed locations for anchors, cores, or cuts. This context helps the technician calibrate expectations, identify likely reinforcement patterns, and focus the scan on the highest-priority areas.

Step 2: Equipment setup and calibration. The GPR antenna is connected to the control unit and the system is powered up. For accurate depth estimates, the technician calibrates the signal velocity for the concrete being scanned, either using a known depth reference or a standard dielectric value for the concrete type. Antenna selection is confirmed based on the slab thickness and the required resolution.

Step 3: Scanning. The technician moves the GPR antenna across the concrete surface in systematic passes covering the proposed work areas. For a targeted pre-drill scan, passes are made in two perpendicular directions across each proposed location, capturing the rebar reflections from both orientations. For a full-area grid scan, passes are made at regular intervals across the entire area in both directions.

Step 4: Real-time interpretation. As the antenna moves, the control unit displays the radargram in real time. The technician reads the data as it is collected, identifying the hyperbolic reflections produced by individual rebar bars, the pattern of PT cable reflections, and any anomalies that indicate conduit, pipes, or voids. In most scanning concrete for rebar applications, interpretation is performed live, allowing the technician to immediately respond to unexpected findings.

Step 5: Surface marking. As each embedded object is identified, the technician marks its position on the concrete surface with spray paint or chalk. For rebar, this typically means a short line along the bar's centerline axis, with depth noted beside it. For PT cables, a distinct marking color or symbol is used to distinguish them from passive rebar. Proposed drill or cut locations that are confirmed clear are marked with a positive indicator.

Step 6: Crew briefing. After completing the scan of the work area, the technician briefs the lead crew member on findings: where the rebar runs, where PT cables are present, which locations are clear, and any areas where the data was ambiguous or where additional caution is warranted. This verbal handoff is as important as the surface markings.

What Rebar Locating Reveals Beyond Just Rebar

Rebar scanning services based on GPR do not selectively detect only rebar. The scan detects all embedded objects that produce a dielectric contrast with the surrounding concrete. In practice, this means a rebar scan on a standard commercial floor will also reveal:

This is one of the most important practical advantages of professional rebar locating services over simple electromagnetic detectors. The crew gets not just a rebar map, but a complete picture of everything inside the slab that could affect the safety or outcome of the planned work. A conduit that was not on any drawing, a hydronic tube that runs directly through the proposed core location, a PT cable in a slab the GC assumed was conventionally reinforced: all of these are findings that a GPR scan surfaces before the work begins rather than during it.

What the Rebar Scan Deliverable Looks Like in the Field

The primary output of a rebar scanning service is not a report. It is a marked surface. Here is what that looks like in practice, and why it is designed the way it is.

Spray Paint and Chalk Markings

The technician uses spray paint in high-visibility colors (typically orange or yellow for rebar, red for PT cables and live utilities, green for confirmed-clear locations) to mark the concrete directly. The markings are applied with the antenna still in hand, often within seconds of completing a scan pass, so the crew can see the picture taking shape in real time as the scan progresses.

Standard marking conventions used in rebar locating services include:

  • Parallel lines along a rebar bar centerline, with bar depth noted in inches. For example, a line marked "4" beside it indicates the bar center is 4 inches below the surface.
  • A series of dashes or dots along the path of a PT cable run, connecting to form a line showing the cable's direction of travel. PT markings are typically made in red and may include a notation such as "PT" to confirm the identification.
  • A circle or X at each proposed drill or anchor location that is confirmed clear, indicating the crew can proceed at that point.
  • Hydronic heating tubing, if installed in the slab.
  • A different symbol, an X with a line through it or a red spray mark, at proposed locations that fall over detected rebar or utilities and need to be repositioned.
  • Depth annotations next to key objects, particularly PT cables and utilities, so the crew knows how much clearance exists above the detected object.

The goal of the marking convention is to be immediately interpretable by the drill operator or saw crew without needing to consult a separate document. The marked slab is the working tool. A foreman who can read the spray marks on the floor should be able to position every anchor and core location correctly without additional explanation.

Crew Briefing

Before leaving the site, the scanning technician briefs the lead crew member directly. This briefing covers the key findings: where reinforcement is heavier than expected, where PT cables were detected and what that means for the planned work, which proposed locations are confirmed clear, and any areas of the scan where confidence was lower due to congested reinforcement, surface conditions, or other factors.

This verbal component of the deliverable is not a formality. It is the transfer of interpretive judgment from the person who read the scan data to the person who will act on it. The spray marks show where things are. The briefing communicates confidence levels, identifies the findings that carry the most risk, and gives the crew the context they need to make good decisions when they encounter something in the field that was not anticipated.

Written Scan Reports

On larger projects, in post-tensioned structures, or where documentation is required by the project engineer or owner, the scan deliverable also includes a written report. A standard rebar scanning services report includes the project information and site description, the scan methodology and equipment used, representative radargram images annotated to identify key reflectors, a summary of findings by zone or location, and any recommendations for work sequencing or locations that require structural engineer review before proceeding.

Written reports are standard on structural assessments, bridge deck investigations, parking structure condition surveys, and projects where the scan findings will be incorporated into engineering documentation. For routine pre-work rebar locating on trade work scopes, the marked surface and crew briefing are typically the deliverable, and a written report is provided on request.

The Cost of Skipping Rebar Scanning Services

The decision to skip a rebar scan is usually made for one of two reasons: time pressure or the assumption that the slab is probably fine. Both are understandable on a busy job site. Neither holds up well against the actual cost of the events that rebar scanning services are designed to prevent.

What Was Hit Immediate Consequence Downstream Cost Safety Risk
Rebar (unexpected) Blade or bit destroyed mid-cut Tooling replacement, delay, rework to reposition Low to moderate
Dense rebar mat Multiple blade failures on single cut line High tooling cost, schedule impact, potential rework Moderate
PT cable (unbonded) Violent cable release on strike Structural damage, emergency stop-work, injury or fatality Severe
Live electrical conduit Electrical arc, circuit damage Electrocution risk, facility downtime, repair costs Severe
Pressurized water line Immediate flooding at drill/cut location Water damage, emergency shutdown, repair and dry-out High
Gas line Gas release at work area Evacuation, emergency response, explosion risk Severe
Data/fiber conduit Network or communications outage Operational disruption, emergency splice repair Moderate to high

Tooling Damage and Replacement Cost

Diamond blades and core bits are precision tooling, not commodity items. A quality diamond blade for a wall saw or flat saw represents a meaningful line item in the project tooling budget. A core bit in a larger diameter is more expensive still. When a blade or bit hits unexpected rebar mid-cut, the damage is immediate: segments are torn from the blade, the bit is forced off-center, and the tooling is often destroyed outright. Replacing it requires stopping work, sourcing a replacement, and potentially waiting for delivery if the right size is not on the truck.

In heavily reinforced concrete where the crew proceeds without scanning, multiple tooling failures on a single cut line can turn a half-day scope into a two-day problem. The rebar scan that would have mapped the reinforcement and allowed the crew to select the right blade configuration costs a fraction of two destroyed blades.

Failed Anchor Placements and Rework

An anchor that cannot be installed because rebar is in the path is not just a delay. Depending on the anchor specification, the location may need to be re-engineered. The slab needs to be patched. The new location needs to be verified. The work has to be re-permitted or re-inspected in some cases. What started as a ten-minute anchor installation becomes a multi-day coordination problem.

On large anchor bolt patterns, the math is straightforward. If 10 percent of proposed anchor locations fall over rebar that would have been identified by a pre-work scan, and each failed placement costs two hours of rework plus materials, a 50-anchor-bolt project accumulates five failed placements, ten hours of rework, and the cost of patching and re-drilling. A rebar scan typically identifies those five conflicts in advance and allows them to be repositioned before drilling starts.

PT Cable Strikes: The Non-Negotiable Case for Scanning

No amount of tooling savings math applies to a PT cable strike. The stored energy in a single stressed PT tendon is not a cost variable. It is a life-safety event. A worker in the immediate area of a PT cable strike is at risk from the cable itself, from concrete fragments, and from the structural consequences of abrupt PT force release.

Post-tensioned construction is not rare or exotic. It is the standard structural system in a large proportion of commercial buildings, parking structures, high-rise towers, and infrastructure built in the past 40 years. A crew that proceeds without rebar scanning services in a commercial concrete environment is not operating in a low-PT-probability situation. They are operating with unknown PT probability. That distinction matters.

Rebar Scanning Services by Work Type

Anchor Drilling

Anchor drilling is the single most common trigger for rebar scanning services. Equipment anchors, structural steel connections, racking systems, MEP support brackets, seismic restraints, and fall protection anchors all require drilling into concrete at specific locations. Rebar scanning before anchor drilling confirms which proposed locations are clear, allows conflicts to be repositioned before drilling starts, and identifies PT cables that require structural engineer review before any drilling proceeds in the vicinity.

For large anchor bolt patterns, a comprehensive rebar scan of the full anchor field is typically more efficient than a location-by-location scan because the technician can cover the entire area in a systematic grid, identify all conflicts at once, and brief the crew on the full picture before any drilling begins.

Core Drilling for Utility Penetrations

Core drilling for mechanical, electrical, plumbing, and data penetrations requires placing a circular hole at a specific location defined by the MEP design. That location is determined by the routing requirements of the system being installed, not by the reinforcement layout of the slab. Rebar scanning before core drilling identifies which proposed core locations fall over rebar and need to be adjusted within the allowable tolerance, and which fall over PT cables and require special handling.

Scanning concrete for rebar before core drilling also allows the crew to select core bit diameter and reinforcement-rated tooling configuration based on actual conditions rather than assumptions, reducing mid-bore surprises and bit failures on the first pass through a reinforced slab.

Saw Cutting

Saw cutting for slab removal, trench definition, selective demolition, and control joint installation runs a diamond blade through whatever is embedded along the cut line. Rebar scanning before saw cutting maps the reinforcement layout along the proposed cut path, allowing the contractor to select the right blade specification for the rebar size and spacing encountered, plan cut lines to minimize rebar crossings where design tolerances allow, and identify PT cables that fall in the cut path and require structural assessment before cutting proceeds.

On projects where the cut line is fixed by the design and cannot be adjusted, the rebar scan still provides critical information: it tells the saw operator exactly where rebar hits will occur, how many there are, and what size reinforcement to expect, allowing for proactive blade and tooling management rather than reactive blade replacement mid-cut.

Overhead Core Drilling

Overhead core drilling, drilling up through a slab from below, presents a unique risk profile. Anything in the slab directly above the drill point falls toward the operator when the core punches through: water, debris, or in the worst case, a pressurized utility that begins discharging directly at the person holding the drill. Rebar scanning from above the slab before overhead drilling begins confirms the drill path is clear and identifies utilities that require isolation or relocation before the work proceeds.

Overhead coring in post-tensioned slabs carries all the same PT cable risks as coring from above, with the additional complication that the cable release, if triggered, occurs directly above the operator. Rebar scanning services before overhead coring in any PT structure are non-negotiable.

Renovation and Selective Demolition

Renovation scopes involving selective slab removal, new openings in concrete walls, and partial demolition expose more embedded objects to cutting and breaking tools than any other work type. Rebar scanning before renovation work provides a comprehensive picture of the reinforcement and utility layout across the full work zone, allowing the demolition sequence to be planned around the embedded content and preventing uncontrolled utility strikes during concrete removal.

For post-tensioned structures undergoing renovation, rebar scanning services should be conducted before any concrete removal is planned, and the scan findings should be reviewed by the structural engineer of record to confirm the proposed removal sequence is compatible with the PT system’s structural behavior. Penhall’s selective demolition services include coordination with structural engineers and pre-work scanning as standard components of the project scope.

Penhall Scan Rebar
9E9631EA-7E04-46D9-B25A-733DC164821A

GPR vs. Simple Rebar Detectors: Choosing the Right Tool

The term rebar detector in concrete covers a range of technologies with very different capabilities. Understanding which tool is appropriate for which situation prevents the common mistake of using an inexpensive cover meter when a GPR-based rebar scanning service is what the job actually requires.

When a Simple Rebar Detector Is Sufficient

Handheld electromagnetic cover meters are appropriate in a narrow set of circumstances: measuring concrete cover depth over a known bar for quality control purposes, confirming rebar is present at a specific location before applying a surface treatment, or locating a single shallow bar in a simple, lightly reinforced slab where the reinforcement layout is already known from drawings and the only question is local cover depth.

In these specific use cases, a cover meter is faster, cheaper, and easier to deploy than a full GPR scan. The tool is appropriate for the question being answered.

When GPR-Based Rebar Scanning Services Are Required

GPR is required whenever the question being answered is more complex than cover depth over a known bar. Specifically, GPR-based rebar scanning services are the appropriate choice when:

  • The reinforcement layout is unknown and needs to be mapped before penetrating work begins.
  • Multiple rebar layers are present and need to be individually identified and located.
  • PT cables may be present in addition to conventional rebar.
  • Embedded utilities (conduit, pipes, data lines) may be present in the slab.
  • The depth of embedded objects exceeds the range of electromagnetic cover meters.
  • A documented scan deliverable is required for engineering review or project records.
  • The consequences of a missed detection (PT cable, live utility) justify the higher capability of GPR.

For virtually all commercial and infrastructure concrete work involving penetrations or cuts, GPR-based rebar scanning services are the appropriate standard of care. The cost difference between a cover meter reading and a professional GPR scan is small relative to the project scope. The capability difference is substantial.

Penhall's Rebar Scanning and Concrete Scanning Services

Penhall Company provides professional rebar scanning and concrete scanning services using GPR equipment calibrated for construction and infrastructure applications. Penhall's scanning technicians are trained specifically for rebar locating in commercial and industrial concrete environments, with particular expertise in identifying PT cables, distinguishing rebar from conduit in complex reinforcement environments, and communicating findings clearly to field crews.

Penhall provides rebar scanning as a standard pre-work service before concrete cutting, coring, and demolition, and as a standalone service for structural assessments, renovation planning, and pre-construction investigations. Because Penhall provides both the scanning and the concrete work, the results of the scan are handed directly from the scanning technician to the crew executing the work, eliminating the gap between scan delivery and field application.

Penhall's full service offering for projects requiring rebar scanning services includes:

GPR concrete scanning: rebar locating, PT cable detection, utility mapping, void detection, and structural condition assessment.

Concrete cutting: flat sawing, wall sawing, wire sawing, and hand sawing in all reinforcement conditions.

Concrete coring: precision core drilling from 1 inch to 60-plus inches in diameter, in all reinforcement conditions..

Hydrodemolition: high-pressure water concrete removal for large-scale rehabilitation.

Selective demolition: controlled removal of reinforced and post-tensioned concrete with structural coordination.

Structural repair: concrete restoration and repair following cutting, coring, or demolition.

With locations across the country, Penhall can mobilize quickly for rebar scanning and concrete work in any region.

D38415AE-D79F-4738-B0B8-1ABCE9B699C7
041E313C-2110-4B8B-850B-502CE122BC88

frequently asked questions

Slab Scanning 101: When You Need It and What "Floor Scanning" Really Includes

A practical guide to concrete slab scanning: what the term means, what triggers the need for a scan, what GPR can and cannot find inside a slab, and exactly what the deliverable looks like from the moment the technician arrives to the moment your crew can safely drill, cut, or core.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

Slab scanning, floor scanning, and concrete slab scanning all mean the same thing: using GPR to image the interior of a concrete slab from the surface, without drilling, cutting, or causing any damage.

The purpose is to locate what is inside before any penetrating work begins: rebar, post-tension cables, conduit, pipes, voids, and embedded objects that are invisible from the surface.

The most common triggers are anchor drilling, core drilling for utility penetrations, saw cutting for slab removal or joint work, and slab trenching. Each involves penetrating concrete where undetected objects create safety and operational risk.

In post-tensioned slabs, a scan is not optional. PT cables are under extreme tension and cutting through one without detection causes violent cable release and serious injury. There are documented fatalities associated with undetected PT cable strikes.

The primary deliverable is a marked surface: spray-painted or chalked lines showing the location and depth of detected objects directly on the concrete, immediately usable by the work crew.

A slab scan is fast. A typical pre-drill or pre-core location can be scanned, interpreted, and marked in 5 to 20 minutes, at a fraction of the cost of a single missed utility or PT cable strike.

What Is Slab Scanning?

Slab scanning is the use of Ground Penetrating Radar (GPR) to non-destructively image the interior of a concrete slab. A GPR antenna, held at or near the slab surface, transmits short pulses of high-frequency electromagnetic energy into the concrete. When those pulses encounter embedded objects with different material properties than the surrounding concrete, they reflect back to the antenna. The system records the timing and character of each reflection, building a continuous cross-sectional image of what is below the surface.

The result is a radargram: a two-dimensional image showing the depth and character of reflecting objects beneath the scan line. A trained GPR technician reads this image in real time as the antenna is moved across the slab surface, identifying rebar bars, PT cables, conduit runs, pipes, voids, and other embedded features. The technician then marks the locations of those objects directly on the concrete surface, giving the drilling, cutting, or coring crew a clear visual guide to what is inside the slab before they start work.

The terms slab scanning, floor scanning, and concrete slab scanning are all used by contractors and facility managers to describe this same process. The terminology varies by trade and region, but the method is consistent: GPR-based non-destructive subsurface imaging of horizontal concrete surfaces. Some crews also use the term slab scan as a shorthand for a single-location pre-drill investigation, as distinct from a full-area grid scan of an entire floor.
Regardless of what it is called on the purchase order, the work is the same and the purpose is the same: to know what is inside the concrete before the blade, bit, or drill enters it.

Why the Terminology Matters for Getting the Right Scope

One of the most common sources of confusion on job sites is the gap between what a buyer asks for and what the scan actually needs to cover. "I need a floor scan before we drill" is a reasonable starting point, but it leaves critical details unspecified that affect the time, cost, and value of the scan delivered.

Slab Scan vs. Full Floor Scan

A slab scan in the strictest sense can refer to a targeted investigation of a small area, such as scanning the immediate vicinity of a proposed anchor bolt or core hole location. This is fast, focused, and requires only a few passes with the antenna over the proposed work area. It answers one question: is this specific location clear?

A full floor scan, by contrast, involves systematically scanning an entire floor area in a grid pattern to produce a comprehensive map of all embedded objects across the full area. This is a longer, more involved process that produces a plan-view depth map of the entire floor, useful for renovation planning, structural assessments, and projects involving many drill or cut points distributed across a large area.

Both are legitimate and valuable, but they are not the same service. Specifying which one is needed, and communicating the total number of proposed work locations and the size of the area to be covered, allows the scanning contractor to scope the work accurately and ensures the crew has the information they actually need.

What "Floor Scanning" Typically Includes in Practice

When a general contractor or facility manager requests "floor scanning" before a concrete work scope, the practical service typically includes:

  • GPR scan passes across the proposed cut, core, or drill locations, covering an area sufficient to identify all embedded objects that could be encountered during the planned work.
  • Real-time interpretation of scan data by a trained technician, identifying rebar, PT cables, conduit, pipes, voids, and other reflectors in the data as the scan progresses.
  • Surface marking of all detected objects, with spray paint or chalk applied directly to the concrete surface to indicate object location and, where relevant, depth and object type.
  • Verbal briefing of the work crew by the scanning technician, confirming what was found, where it is marked, and any areas of uncertainty or concern that warrant additional caution.

The Most Common Triggers for a Slab Scan

Most slab scans are initiated by one of a small number of specific work triggers. Understanding which type of work is planned, and what it puts at risk, clarifies why scanning is the appropriate first step in each case.

Work Type Why a Slab Scan Is Needed Risk Without Scanning
Anchor drilling Locate rebar and PT cables before each hole is drilled Rebar damage, PT cable strike, failed anchor placement
Core drilling Confirm clear path for pipe, conduit, or drain penetration Utility strike, PT cable release, structural damage
Saw cutting Map rebar and PT layout along proposed cut lines Accelerated blade wear, PT cable strike, utility hazard
Slab trenching Identify all utilities and reinforcement in trench corridor Electrical, plumbing, or gas line strike; PT hazard
Overhead core drilling Confirm no utilities in overhead slab before drilling up Electrocution, flooding, or gas release above work area
Renovation/demo Establish full subsurface picture before removing any material Uncontrolled utility damage, structural instability
Structural assessment Map rebar layout, measure slab thickness, detect voids Uninformed repair scope; missed delamination or corrosion zones
Concrete Inspection Methods
PXL_20231017_213615925-scaled

Anchor Drilling

Anchor drilling, whether for equipment anchorage, structural attachments, racking systems, or expansion anchors, requires drilling into the concrete slab to a specified depth and diameter at precise locations. Rebar or PT cable in the drill path means the anchor cannot be installed as designed. More critically, in a post-tensioned slab, driving a drill bit through a PT tendon releases the cable's stored energy violently.

A slab scan before anchor drilling confirms whether each proposed anchor location is clear, allows repositioning of anchors that fall directly over rebar, and identifies any PT cables that require special handling. On large anchor bolt patterns, a scan that takes an hour can prevent days of rework and a potentially catastrophic safety incident.

Core Drilling for Utility Penetrations

Core drilling to create penetrations for pipes, conduit, drains, sleeves, and other circular openings is one of the most common reasons a concrete slab scan is ordered. The required opening must be positioned at a specific location determined by the mechanical or electrical design, but that location may fall directly over rebar, conduit, or a PT cable.

A concrete slab scan before core drilling confirms the path through the slab is clear or identifies what must be avoided. For post-tensioned slabs, it is also the only reliable method of confirming PT cable location before the core bit is committed to a path through the slab. GPR scanning before coring in PT concrete is not a best practice recommendation, it is a safety requirement.

Saw Cutting

Saw cutting for slab removal, trench definition, joint installation, or selective concrete removal requires running a diamond blade through the concrete along a defined line. Every inch of that line passes through whatever is embedded in the slab.

A slab scan before saw cutting maps the rebar and PT cable layout along the proposed cut line, allowing the contractor to plan the cut path to minimize reinforcement encounters, identify PT tendons that require structural assessment before cutting, and select the appropriate blade configuration for the reinforcement density present. Without a scan, a saw cutting crew may destroy multiple blades on unplanned rebar hits and, in a PT slab, create a potentially fatal cable strike.

Slab Trenching

Trenching through a concrete slab to install new utility runs, drainage systems, or below-grade conduit involves removing a continuous strip of slab material, including everything embedded in it. Electrical conduit, plumbing, gas lines, and PT cables may all run through the trench corridor.

A concrete slab scan of the full trench corridor before any saw cutting or breaking begins maps all embedded objects in the affected zone. This allows the scope to be planned around existing utilities, prevents undetected strikes during concrete removal, and gives the project team the information needed to coordinate utility relocations before the trench is opened.

H3: Renovation and Demolition Work

Renovation scopes that involve breaking up sections of slab, removing concrete for new openings, or demolishing existing structures put the largest variety of embedded objects at risk. In older buildings especially, the as-built condition of the slab may differ significantly from the original drawings, with utilities added during previous renovation cycles running in locations that are not documented anywhere.

A full-area concrete slab scan before renovation or demolition work begins provides the most complete possible picture of what is inside the slab across the full work zone. This is the scope where investing in a comprehensive grid scan, rather than a targeted point scan, most often pays for itself by preventing costly and dangerous surprises during demolition.

What a Slab Scan Can Find

GPR is effective at detecting a range of embedded objects in concrete slabs. Understanding what is and is not detectable helps set accurate expectations for what the scan deliverable will cover.

Rebar and Welded Wire Reinforcement

Mild steel rebar and welded wire reinforcement are the most reliably detected targets in a concrete slab scan. Steel has a very different dielectric constant than concrete, producing strong, easily interpreted hyperbolic reflections in the radargram. Individual rebar bars can be located horizontally within 1 to 2 inches in typical concrete conditions, and their depth can be estimated to within 10 to 15 percent of the actual depth when the concrete's dielectric properties are known or calibrated.

In heavily reinforced slabs with multiple rebar layers, the upper layer of reinforcement can shadow deeper objects by reflecting much of the signal energy before it penetrates to greater depth. In these conditions, objects below the top mat may be difficult or impossible to reliably detect.

Post-Tension Cables and Tendons

PT cables are among the highest-priority targets in any concrete slab scan. They are detectable by GPR and produce reflections that experienced technicians can distinguish from conventional rebar by their characteristic spacing, layout pattern, and depth. In unbonded PT systems (the most common type in building construction), the cable runs inside a plastic sheath with grease, and the sheath itself is also detectable in favorable conditions.

Bonded PT systems (more common in bridge and infrastructure applications) use grouted ducts and produce different reflection characteristics. In either case, locating PT cables by GPR scan before any cutting or coring is the standard protocol for working safely in post-tensioned concrete.

Electrical Conduit and Embedded Utilities

Metallic conduit, whether rigid steel, IMC, or EMT, produces clear reflections in a concrete slab scan and is reliably detectable. Plastic conduit is detectable when it contains a metallic tracer wire, when it is air-filled (creating a dielectric contrast with the surrounding concrete), or when it runs at sufficient depth to produce a clean reflection without surface interference.

Plumbing pipes, whether copper, steel, or cast iron, produce strong reflections and are reliably detectable. PVC pipes are detectable under favorable conditions but may not produce a clear reflection in all concrete and burial configurations. Hydronic heating tubing embedded in a slab is detectable when it produces sufficient dielectric contrast, though smaller-diameter tubing can be difficult to resolve.

Voids and Delamination

Voids beneath a slab surface and delamination zones within the concrete body produce strong reflections because of the large dielectric contrast between concrete and air. Detecting voids and delamination is an important application of concrete slab scanning in structural assessment contexts, helping identify areas of subsurface deterioration that are not visible at the surface and that could affect the slab's load capacity and service life.

Slab Thickness

When the slab's bottom surface produces a clear reflection, GPR can measure slab thickness non-destructively. This is useful when construction drawings are not available, when slab thickness may have changed in previous renovation work, or when verifying that the slab has the structural depth required for the anchor or penetration being planned.

What GPR Cannot Reliably Detect

Slab scanning has important limitations that should be communicated to the work crew. GFRP (fiberglass) rebar does not produce reliable reflections because its dielectric properties are similar to concrete. Plain plastic conduit without metallic content may not be detectable. Very small-diameter objects, objects in conductive or moisture-saturated concrete, and objects directly beneath a dense rebar mat may all fall below the detection threshold. These limitations mean a slab scan reduces risk dramatically but does not eliminate it entirely. Proceeding with reasonable caution even after a clear scan is always appropriate.

What the Scan Deliverable Looks Like on Site

Understanding what to expect from a slab scan deliverable helps project teams use the results effectively and communicate scan requirements accurately to the scanning contractor.

The Marked Surface

For the vast majority of pre-work slab scans, the primary deliverable is the marked concrete surface. As the technician completes the scan of each proposed work area, they use spray paint (typically in a high-visibility color such as orange, yellow, or red) or chalk to mark the location of detected objects directly on the concrete. Common marking conventions include:

  • Parallel lines marking the centerline of a detected rebar bar or conduit run, often with depth noted in inches next to the line.
  • A series of marks along the path of a PT cable run, connected to indicate the cable's direction of travel across the scan area.
  • An X or circle marking a proposed drill point that is confirmed clear, sometimes accompanied by a notation of the nearest detected object and its distance.
  • A different color or symbol (often red) for PT cables or live utilities, to distinguish them from passive rebar reinforcement.

These markings are applied directly to the work surface and are visible to the drill, saw, or core operator without any translation or interpretation required. The marked slab is the tool the crew uses. It is immediate, intuitive, and exactly as accurate as the scan data that produced it.

The Verbal Briefing

A good scanning technician does not simply mark the surface and leave. After completing the scan of a work area, the technician briefs the lead crew member on what was found: where the reinforcement runs, where the PT cables are, whether any proposed work locations are clear or need to be repositioned, and any areas where the scan data was ambiguous or where caution is specifically warranted.

This verbal handoff is as important as the surface markings. Markings indicate what was detected. The briefing communicates the confidence level of those findings and flags any areas where the data was less conclusive, allowing the crew to make informed decisions about where to proceed with full confidence and where to proceed with additional caution.

The Written Scan Report

On larger projects, in post-tensioned structures, or where the project owner or engineer requires documentation, the scan deliverable also includes a written report. A standard concrete slab scan report includes:

  • Project information: site address, slab location, date and time of scan, equipment used, antenna frequency.
  • Scan methodology: grid spacing, scan direction, calibration information, and any surface conditions that affected scan quality.
  • Radargram images: representative cross-sectional images from the scan, annotated to show the location and interpreted identity of key reflectors.
  • Findings summary: a description of the objects detected, their estimated depths, and any anomalies or areas of concern.
  • Plan-view maps: for grid scans of larger areas, a top-down map showing the spatial distribution of detected objects across the scan area, useful for renovation planning and permitting documentation.

The written report is not always required for routine pre-work scanning, but it is standard practice for structural assessments, bridge deck condition surveys, parking structure evaluations, and any project where the scan findings will inform engineering decisions or be included in project documentation.

How Long It Takes

Scan time depends on the number of proposed work locations, the size of the area to be covered, and the complexity of the subsurface conditions. As a general reference:

  • A single proposed core or anchor location: 5 to 15 minutes to scan, interpret, and mark.
  • A set of 10 to 20 proposed locations in the same floor area: typically 1 to 3 hours for scanning, interpretation, marking, and crew briefing.
  • A full grid scan of a 5,000 to 10,000 square foot floor: typically 3 to 6 hours, depending on grid spacing and required reporting.
  • A full grid scan of a large industrial floor or parking deck: typically a full day or more, with reporting delivered within 24 to 48 hours.

In most cases, the scanning technician is not the bottleneck on the project schedule. A scan conducted the morning of the work scope typically allows the drilling or cutting crew to begin within the same half-day. Scheduling the scan and the concrete work in close sequence minimizes mobilization cost and eliminates the scheduling gap between scan delivery and work execution.

Parking Garage Chargers
20211005_113626_Daniel Plemel

Penhall's Concrete Slab Scanning Services

Penhall Company provides GPR concrete slab scanning as a standard pre-work service before concrete cutting, coring, and demolition projects, as well as a standalone service for structural assessments, renovation planning, and pre-construction investigations.

Because Penhall provides both the scanning and the concrete work, the gap between scan delivery and work execution is eliminated. The technician who scans the slab briefs the crew that cuts or cores it. The scan findings are not a document that travels from one contractor to another, they are a live handoff from the person who read the data to the person acting on it. This integration is one of the most practical advantages of working with a contractor who provides both services.

Penhall's scanning technicians are trained specifically for construction and infrastructure applications, with particular expertise in identifying post-tension cables, distinguishing rebar from conduit in dense reinforcement environments, and communicating scan findings clearly to field crews. Every scan is backed by Penhall's Behavior-Based Safety (BBS) program, which treats pre-work scanning as a non-negotiable safety step rather than an optional line item.

Penhall's full concrete services offering includes:

GPR concrete scanning: slab scanning, wall scanning, and structural condition assessments.

Concrete cutting: flat sawing, wall sawing, wire sawing, and hand sawing.

Concrete coring: 1-inch to 60-inch diameter cores in any orientation and reinforcement condition.

Hydrodemolition: high-pressure water concrete removal for large-scale rehabilitation.

Selective demolition: controlled removal of reinforced and post-tensioned concrete.

Structural repair: concrete restoration and repair following cutting, coring, or demolition.

With locations across the country, Penhall can mobilize quickly for slab scanning and concrete work in any region.

frequently asked questions

What Is GPR? A Complete Guide to Ground Penetrating Radar

Everything you need to know about GPR, what it is, how ground penetrating radar works, what GPR scanning can and cannot detect, where it is used, and why it is the essential first step before any concrete cutting or coring project.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

GPR stands for Ground Penetrating Radar. It is a non-destructive method that uses high-frequency radio waves to image the interior of concrete, pavement, soil, and other materials without drilling, coring, or excavation.

How GPR works: a handheld or cart-mounted antenna transmits short pulses of electromagnetic energy into the material. Those pulses reflect off embedded objects, rebar, PT cables, conduit, voids, and return to the antenna, where the reflections are recorded and displayed as a cross-sectional image called a radargram.

GPR scanning can locate rebar, post-tension cables, welded wire reinforcement, electrical conduit, plumbing pipes, voids, delamination zones, and changes in material thickness, all in real time, from the surface, without damaging the structure.

GPR has limitations: signal depth decreases in conductive materials, dense rebar can shadow deeper objects, and non-metallic materials like GFRP rebar and plain plastic conduit may not be reliably detected.

GPR scanning is the essential pre-work step before any concrete cutting or coring in post-tensioned structures or wherever embedded utilities may be present. Striking an undetected PT cable or live electrical conduit is a life-safety event.

GPR is used across construction, infrastructure assessment, utility locating, geotechnical investigation, environmental remediation, and archaeological surveying.

Penhall Company provides professional GPR concrete scanning services nationwide as a standard pre-work step before concrete cutting, coring, and demolition projects.

PXL_20250114_184117439
8047BB4A-0E72-4BB5-8F6B-276BE2738391

What Is GPR?

GPR, Ground Penetrating Radar, is a geophysical imaging method that uses pulses of electromagnetic energy in the radio frequency range to create subsurface images without disturbing the material being examined. It works on the same fundamental principle as radar used in aviation and weather forecasting: transmit a signal, measure what reflects back, and use the characteristics of those reflections to infer what is below the surface.

Unlike X-ray or gamma-ray methods, GPR uses non-ionizing radiation at very low power levels, making it safe for operators and bystanders and practical for use in occupied buildings, on active construction sites, and in sensitive environments. Unlike core drilling or excavation, it does not damage the structure being investigated. And unlike many other subsurface investigation methods, it can be performed quickly, a typical scan of a concrete slab or wall section takes minutes and delivers results in real time.
The range of materials GPR can image is broad: concrete, asphalt, soil, rock, ice, wood, masonry, and more. Within those materials, it can detect metallic reinforcement, plastic conduit, pipes, cables, voids, moisture zones, delamination, layer boundaries, and other anomalies. This versatility has made GPR one of the most widely used non-destructive testing (NDT) methods across the construction, infrastructure, environmental, and geotechnical industries.

In the concrete industry specifically, GPR scanning has become the standard method for understanding what is inside a slab, wall, or structural member before cutting, coring, or demolition work begins. The alternative, proceeding without knowing what is inside, carries risks that range from costly blade and bit damage to life-threatening PT cable strikes to electrocution from undetected live conduit.

How Does GPR Work?

Understanding how ground penetrating radar works requires a brief look at the physics of electromagnetic wave propagation, but the core concept is more intuitive than it might sound.

The Basic Principle: Transmit, Reflect, Record

A GPR system consists of three main components: a transmitting antenna, a receiving antenna (often combined in a single unit), and a control unit that records and displays data. Here is the sequence of events during a scan:

  • The transmitting antenna emits a short, high-frequency pulse of electromagnetic energy, typically in the range of 100 MHz to 2.6 GHz, depending on the antenna, directed into the material below.
  • That pulse travels through the material at a speed determined by the material’s dielectric properties. As long as the material is uniform, the pulse continues traveling downward.
  • When the pulse encounters a boundary between two materials with different dielectric properties, for example, where steel rebar meets concrete, or where concrete meets an air-filled void, part of the energy is reflected back toward the surface and part continues deeper.
  • The receiving antenna captures the reflected energy and records its amplitude and the time elapsed since the original pulse was transmitted. This two-way travel time directly corresponds to the depth of the reflecting boundary: the longer the travel time, the deeper the object.
  • The control unit processes thousands of these transmit-reflect-record cycles per second as the antenna is moved across the surface, building up a continuous cross-sectional profile of the subsurface.

The result is a radargram: a two-dimensional image in which the horizontal axis represents position along the scan line and the vertical axis represents depth (or two-way travel time). Embedded objects appear as characteristic hyperbolic reflections in the radargram, the familiar “arch” shape that experienced GPR technicians recognize immediately as a point reflector such as a rebar bar or a pipe.

Dielectric Properties and Signal Velocity

The speed at which a GPR signal travels through a material is determined by that material’s dielectric constant (also called relative permittivity). A higher dielectric constant means slower signal propagation. Air has a dielectric constant of 1 (the reference). Dry concrete typically ranges from 4 to 8. Wet or saturated concrete can be 10 to 20 or higher. Water has a dielectric constant of approximately 80.

This matters for two reasons. First, the dielectric constant determines how quickly the signal attenuates (loses energy) as it penetrates deeper. Higher dielectric materials, especially those containing water or salt, absorb signal energy more rapidly and reduce the effective depth range of the scan. Second, accurate depth calculations require knowing the dielectric constant of the material, or calibrating it against a known depth reference point. When the dielectric constant is unknown or variable (as in aged concrete with varying moisture content), depth estimates carry a margin of uncertainty.

Antenna Frequency and the Depth-Resolution Trade-off

GPR antenna frequency is the most important hardware variable in scan planning. It governs a fundamental trade-off between depth penetration and resolution:

  • Lower frequency antennas (100 MHz to 400 MHz) penetrate deeper, up to 15 to 30 feet in favorable soil conditions, or several feet in concrete, but at lower resolution. Features smaller than approximately 6 to 12 inches may not be clearly imaged.
  • Higher frequency antennas (900 MHz to 2.6 GHz) provide excellent resolution, capable of resolving objects as small as 1/4 to 1/2 inch, but have limited penetration depth, typically 12 to 24 inches in concrete or a few feet in soil.

For concrete scanning in typical construction applications, locating rebar, PT cables, and conduit in slabs 4 to 24 inches thick, high-frequency antennas in the 1.5 GHz to 2.6 GHz range are standard. For deeper subsurface investigation in soil or thick concrete structures, lower frequencies are used. Many GPR systems support multiple antennas to address different depth and resolution requirements on the same project.

What the Radargram Shows

The radargram is the primary output of a GPR scan, the image that the technician interprets to identify embedded objects and subsurface features. Several characteristics of radargram reflections help a trained interpreter distinguish between object types:

  • Hyperbolic (arch-shaped) reflections are the signature of discrete point reflectors, individual rebar bars, pipes, or conduit. The arch shape occurs because the GPR begins receiving the reflection before the antenna is directly above the object and continues receiving it after the antenna has passed.
  • Flat, continuous reflections typically indicate layer boundaries, the interface between the concrete slab and the subbase, or between multiple poured lifts.
  • Broken or irregular reflections can indicate delamination, cracking, or void zones where the concrete has separated from itself or from an underlying material.
  • Signal loss or shadowing below a strong reflector is common where a dense rebar mat or metallic surface absorbs most of the signal energy before it can penetrate deeper.
  • Amplitude and polarity of reflections carry information about the relative dielectric properties of the reflecting boundary. A reflection from a high-dielectric material (such as a water-filled pipe) has the opposite polarity from a reflection from a low-dielectric material (such as an air void). Experienced interpreters use polarity to help distinguish object types.

Real-Time Interpretation and Post-Processing

Modern GPR equipment displays the radargram in real time on a screen as the operator scans, allowing immediate identification of embedded objects. For concrete scanning, this means a technician can scan a proposed cut or core location, observe the reflections, and mark the position of rebar and utilities on the surface with spray paint or chalk within minutes.
For more complex applications, structural assessments, condition surveys, 3D grid scans, data can be recorded and processed using dedicated GPR software. Post-processing tools include depth slice mapping (horizontal slices through the data at a specific depth, showing the plan-view distribution of reflectors), 3D volume rendering, and migration algorithms that sharpen hyperbolic reflections into point images for more precise object location.

What Can GPR Detect?

GPR is remarkably versatile in what it can image. The following categories represent the most common targets in construction and infrastructure applications:

In Concrete

  • Rebar and welded wire reinforcement: the most commonly imaged target in concrete scanning. Rebar produces strong, easily recognized hyperbolic reflections and can be located horizontally within 1–2 inches in well-conditioned concrete.
  • Post-tension cables and tendons: PT cables are critical targets in any concrete structure where cutting or coring is planned. They produce strong reflections similar to rebar but with characteristic spacing and layout patterns that differ from conventional reinforcement.
  • Electrical conduit and wiring: metallic conduit produces strong reflections; plastic conduit is detectable if it contains a metallic tracer wire or if there is sufficient dielectric contrast with the surrounding concrete.
  • Plumbing pipes: metallic and, in some conditions, plastic pipes. Detection depends on pipe diameter, depth, and the dielectric contrast between pipe contents and surrounding concrete.
  • Voids and delamination: air-filled voids and delamination zones produce strong reflections because of the large dielectric contrast between concrete and air. These are critical targets in bridge deck and parking structure condition assessments.
  • Moisture zones: areas of elevated moisture content produce distinctive signal attenuation and reflection character, useful in identifying water infiltration pathways and corrosion-active zones.
  • Slab thickness: GPR can measure slab thickness non-destructively by detecting the reflection from the bottom surface of the slab, useful when construction drawings are unavailable or unreliable.

In Soil and Pavement

  • Buried utilities: pipes, conduit, tanks, and cables at depths from a few inches to 15–20 feet depending on soil conditions and antenna frequency.
  • Layer boundaries: interfaces between pavement layers, soil strata, and bedrock.
  • Voids and sinkholes: subsurface air voids beneath pavement or in karst terrain that indicate instability or imminent collapse.
  • Underground storage tanks: metallic and fiberglass tanks, including detecting leaks through surrounding soil anomalies.
  • Archaeological features: buried structures, walls, artifact concentrations, and soil disturbances from historical activity.

What Are the Limitations of GPR?

Understanding GPR’s limitations is as important as understanding its capabilities. A GPR scan is a powerful tool, but it is not infallible, and its results are only as reliable as the conditions allow and the interpreter’s skill enables.

Signal Attenuation in Conductive Materials

GPR signal penetrates well in resistive materials like dry concrete, asphalt, and sandy soil. It attenuates rapidly in conductive materials. Saltwater-saturated concrete, common in bridge decks and parking structures exposed to deicing chemicals, can limit effective scan depth to just a few inches. Saturated clay soils present the same problem for ground-surface scanning. When conductivity is high, low-frequency antennas and adjusted scan parameters can help, but there are physical limits that cannot be overcome.

Rebar Shadowing in Densely Reinforced Concrete

A dense upper rebar mat can reflect a large fraction of the signal energy, leaving insufficient energy to image objects deeper in the slab. In heavily reinforced concrete, multiple layers of large-diameter rebar at tight spacing, objects below the uppermost reinforcement layer may not be reliably detected. This is an important limitation in post-tensioned concrete with top-mat conventional rebar, where the PT cables run beneath the top mat: the rebar may shadow the PT tendons that are the primary safety concern.

Non-Metallic Objects

GPR detects objects based on dielectric contrast with the surrounding material. Metallic objects, steel rebar, copper pipe, metallic conduit, produce strong, easily interpreted reflections because metal has very different dielectric and conductive properties than concrete. Non-metallic objects are more challenging:

  • GFRP (fiberglass) rebar has a dielectric constant similar to concrete and may not be reliably detected by GPR.
  • Plain plastic conduit without a metallic tracer wire may produce only a subtle reflection or none at all, depending on whether it is air-filled, water-filled, or encased in grout.
  • Plastic water supply lines are detectable when full of pressurized water (because water has a much higher dielectric constant than concrete) but harder to detect when empty.

This limitation is particularly relevant in newer construction where GFRP rebar is being used more widely for corrosion resistance. In structures where GFRP may be present, GPR results should be supplemented by a review of construction drawings and, where critical, physical verification.

Interpretation Requires Expertise

A radargram is not a photograph. It is a complex signal dataset that requires training and experience to interpret accurately. The same feature can produce different-looking reflections depending on antenna frequency, scan direction relative to the object orientation, concrete condition, and signal noise. Misinterpreting a PT cable as a conduit, or missing a shallow utility because it overlaps with a surface reflection artifact, are real risks when scans are performed or interpreted by undertrained personnel.

The quality of a GPR scan result is directly proportional to the skill of the technician performing it. Penhall’s GPR scanning technicians are trained specifically for concrete and infrastructure applications and provide interpreted, marked results that crews can act on with confidence, not raw radargram data that leaves interpretation to the operator.

GPR Does Not Identify, It Locates

GPR tells you where something is. It does not always tell you definitively what that something is. A metallic object at 4 inches depth could be a rebar bar, a conduit, a PT cable, or a wire. In most cases, the context, the known type of structure, the pattern of reflections, the depth relative to the slab thickness, provides enough information to make a confident identification. But in ambiguous situations, physical verification at a test location, review of structural drawings, or consultation with a structural engineer may be warranted before proceeding with cutting or coring.

GPR Scanning Applications

GPR is used across a wide range of industries and applications. The following table summarizes the most common uses in construction and infrastructure:

Application What GPR Locates Why It Matters
Concrete cutting & coring Rebar, PT cables, conduit, voids Prevents blade/bit damage, PT cable strike, utility hazards
Utility locating Buried pipes, conduit, tanks, cables Avoids strikes during excavation or directional drilling
Bridge deck assessment Delamination, rebar corrosion, moisture zones Targets repair scope; avoids unnecessary removal
Parking structure evaluation Rebar corrosion, voids, delamination Prioritizes repair areas and extends structure life
Sinkhole & void detection Subsurface voids, soft zones, soil anomalies Identifies instability before surface failure
Forensic investigation Anomalies inconsistent with design drawings Supports litigation, insurance, and structural assessment
Archaeological survey Subsurface features, artifacts, structures Non-destructive site investigation before excavation

Why GPR Scanning Is Required Before Concrete Cutting and Coring

Of all GPR’s applications, its role as a pre-work safety and planning step before concrete cutting and coring is the most directly relevant to Penhall’s work, and the one where the consequences of skipping it are most severe.
H3: Post-Tension Cable Safety

Post-tensioned concrete is present in a large proportion of commercial, institutional, and infrastructure structures built in the past 40 years, parking structures, high-rise floors, podium decks, bridge girders, transfer beams, and large-span industrial slabs. PT cables are under 150,000 to 270,000 PSI of tensile stress. A single 0.5-inch strand carries approximately 30,000 to 33,000 pounds of load.

Cutting through a PT cable with a concrete saw releases that stored energy instantaneously. The cable retracts violently, destroying the concrete around it and potentially causing a cascade of structural damage. Workers in the area are at risk from the cable itself, from concrete fragments, and from the structural instability that can result. There are documented fatalities associated with undetected PT cable strikes.

GPR scanning before cutting or coring in any concrete structure that may be post-tensioned is not a precaution, it is a professional obligation. Penhall’s concrete scanning services are specifically designed to identify PT tendons before cutting or coring begins, and Penhall’s field crews are trained to recognize the visual indicators of PT construction and escalate for a scan when any uncertainty exists.

Embedded Utility Safety

Electrical conduit, plumbing, gas lines, and data cables are routinely embedded in concrete during construction and frequently undocumented in older buildings. Striking a live electrical circuit with a diamond blade is an electrocution and fire hazard. Severing a pressurized water line causes immediate flooding. Cutting a gas line creates an explosion and fire risk. Severing a fiber optic backbone in a hospital or data center causes operational disruption that can cost far more to remedy than the cutting project itself.

GPR scanning systematically identifies these hazards before the blade or bit enters the concrete. For any project where the concrete’s interior is unknown, which in practice means the vast majority of commercial and industrial cutting and coring projects, GPR scanning is the first step, not an optional line item.

Cost and Production Planning

Beyond safety, GPR scanning provides information that directly affects project cost and production planning. Knowing the rebar size, spacing, and depth before cutting or coring begins allows the contractor to select the right tooling, estimate blade and bit consumption accurately, plan cut and core locations to minimize reinforcement encounters, and avoid change orders driven by unexpected subsurface conditions.

A GPR scan that takes 30 minutes and costs a fraction of the overall project budget can prevent days of delay, thousands of dollars in unplanned tooling costs, and, in the case of PT cables or embedded utilities, incidents that stop the project entirely.

What to Expect from a GPR Scanning Service

For contractors and project owners who have not worked with GPR before, understanding what the scanning process looks like helps set expectations and facilitates smooth project coordination.

Pre-Scan Preparation

The GPR technician will need access to the surfaces to be scanned. For concrete scanning, this means the slab, wall, or structural member should be reasonably clear of heavy equipment or material stacked on the scan area. Surface coatings, tiles, carpet, and other floor coverings do not generally prevent GPR scanning, the signal penetrates most common floor finishes, but thick metallic coatings or metallic foil-backed insulation can interfere.

If available, provide the technician with structural drawings, original construction documents, or any prior scanning data. This context helps the technician calibrate expectations, identify likely reinforcement patterns, and recognize anomalies that depart from the designed layout.

The Scan Itself

The GPR antenna is moved across the surface in a systematic grid or along specific scan lines corresponding to proposed cut and core locations. Scan speed is typically 1 to 3 feet per second. The antenna must maintain consistent contact with the surface, gaps due to surface irregularities can introduce noise into the data.

For a standard pre-cut or pre-core location scan, the technician scans in two perpendicular directions across each proposed work location to capture both the along-axis and cross-axis reflections from embedded objects. The entire process for a typical proposed cut or core location, scan, interpret, mark, takes 5 to 15 minutes.

Results and Markings

The primary deliverable of a concrete GPR scan is the marked surface. The technician uses spray paint, chalk, or marking flags to indicate the location and depth of detected objects directly on the concrete, providing the cutting or coring crew with an immediate, actionable guide to where reinforcement and utilities are present.

For condition surveys and structural assessments, the deliverable is typically a written report with radargram images, depth maps, annotated findings, and recommendations. For 3D grid scans, a plan-view depth slice map showing the spatial distribution of reinforcement and anomalies is standard output.

Penhall’s GPR Concrete Scanning Services

Penhall Company’s GPR concrete scanning services are performed by trained technicians using professional-grade GPR equipment calibrated for construction and infrastructure applications. Penhall provides GPR scanning as a standard pre-work service before concrete cutting, coring, and demolition projects, and as a standalone service for structural assessments, condition surveys, and pre-renovation investigations.

Penhall’s integrated service model means that scanning and the subsequent concrete work are coordinated under a single contract: the same company that scans the slab cuts or cores it, eliminating the coordination gap between the scan results and the field crew executing the work. Penhall’s technicians brief the cutting and coring crew directly, ensuring that scan findings are understood and acted on.

Penhall’s broader service offering, covering the full project lifecycle from pre-work scanning through concrete removal, structural repair, and restoration, includes:

Concrete cutting: flat sawing, wall sawing, wire sawing, and hand sawing.

Concrete coring: 1-inch to 60-inch diameter cores in any orientation and reinforcement condition.

Hydrodemolition: high-pressure water concrete removal for bridge deck rehabilitation, parking structure repair, and other large-scale concrete removal where saw cutting is not the optimal method.

Selective demolition: controlled removal of reinforced and post-tensioned concrete with full structural coordination.

Structural repair: concrete restoration, FRP strengthening, and repair following cutting, coring, or demolition.

With locations across the country, Penhall can mobilize quickly for GPR scanning and concrete work in any region.

57EC7E8D-14FD-42AD-9A0D-E326656BAE2A
B469BBCC-2A35-4B84-84ED-48C2C27121C8

frequently asked questions

When to Use Concrete Cutting vs. Concrete Coring

A practical guide to how concrete coring and concrete cutting compare, what each method does, where each one excels, how they work together on complex projects, and how to know which one your project actually needs.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

Concrete cutting uses a diamond blade to make linear cuts, straight lines, curves, and geometric openings, through slabs, walls, pavement, and structural members.

Concrete coring uses a diamond-tipped drill bit to create circular, cylindrical holes through concrete for utility penetrations, test samples, drain installations, and anchor bolt locations.

The fundamental question is simple: do you need a line through the concrete, or do you need a round hole? That single distinction determines which method applies.

Both methods use diamond tooling, require water for cooling and dust control, and are affected by concrete thickness, PSI, and reinforcement type and density.

Many projects require both. A mechanical room renovation, a parking structure repair, or a bridge deck rehabilitation may call for coring at utility penetration locations and cutting to create access openings or remove damaged concrete sections.

In either case, a GPR scan before work begins is essential to locate rebar, post-tension cables, and embedded utilities that affect safety, tooling, and cost.

Penhall Company provides both concrete cutting and concrete coring services nationwide, with the full equipment range to handle any reinforcement condition, slab thickness, or access constraint.

The Core Distinction: Shape of the Opening

Concrete cutting and concrete coring are both diamond-tool methods for removing concrete. They use related technology, share many of the same variables, concrete hardness, reinforcement, thickness, site access, and are often performed by the same crew on the same project. But they serve fundamentally different purposes, and the distinction comes down to one thing: the shape of the opening required.

Concrete cutting creates linear openings. The output of a concrete saw is a straight or curved line through the material, a kerf, a slot, a geometric outline. When you need a door opening in a concrete wall, a section of slab removed for a new mechanical pit, a line of control joints cut across a fresh pour, or a structural beam cut for demolition, the answer is concrete cutting.

Concrete coring creates circular openings. The output of a core drill is a cylindrical bore through the material, a clean, round penetration of a specific diameter. When you need to run a pipe through a slab, install a floor drain, create a penetration for an anchor bolt, or extract a test sample to verify concrete compressive strength in the field, the answer is concrete coring.

In practice, the line between the two is occasionally blurred, a series of closely spaced cores can be used to outline a large irregular opening in situations where sawing is not accessible, for example. But in the vast majority of projects, the required shape of the opening is the deciding factor, and it makes the choice straightforward.

Concrete Cutting vs. Concrete Coring: Quick Reference

Concrete Cutting Concrete Coring
Output shape Linear cut — straight or curved lines through material Circular hole — cylindrical penetration through material
Primary tool Diamond blade (flat saw, wall saw, wire saw, hand saw) Diamond core bit mounted on a drill rig
Typical use Openings, demolition, control joints, slab removal Utility penetrations, anchors, test cores, drain installations
Size range Blade depth: fraction of an inch to 24+ inches Diameter: 1 inch to 60+ inches
Direction Horizontal, vertical, or angled linear path Vertical, horizontal, or angled cylindrical bore
Water required Yes — blade cooling and dust suppression Yes — bit cooling and slurry management
Reinforcement impact Rebar accelerates blade wear; PT cables require GPR pre-scan Rebar accelerates bit wear; PT cables require GPR pre-scan
Structural removal Can remove significant material; structural review may apply Removes a defined cylindrical plug; structural review for larger diameters
2_JoeOsborn
Employee performing concrete coring

Concrete Cutting, What It Is and When to Use It

Concrete cutting encompasses several distinct sawing methods, each suited to different surface orientations, cutting depths, and project constraints. The unifying feature is the diamond blade: a steel core with diamond-impregnated segments on the cutting edge that grind through concrete, aggregate, and reinforcement. Water is applied continuously to cool the blade and suppress silica dust.

Flat Sawing (Slab Sawing)

Flat sawing, also called slab sawing, is the most common form of concrete cutting, used to make cuts in horizontal surfaces: floors, slabs-on-ground, pavement, and bridge decks. A walk-behind or ride-on flat saw rides on the concrete surface and plunges the blade to the specified depth.

Flat sawing is used for:

  • Installing control joints in fresh concrete slabs
  • Removing damaged or deteriorated sections of pavement or flooring
  • Creating trenches in slabs for new utility runs
  • Cutting slab sections for selective removal or replacement
  • Exposing rebar or embedded utilities for repair

Standard flat saws can cut to depths of 13–14 inches in a single pass. Greater depths require multiple passes or a transition to wire sawing. Flat sawing is priced per linear foot, with cost driven primarily by concrete thickness, PSI, and reinforcement density.

Wall Sawing

Wall sawing uses a diamond blade mounted on a track that is fixed to the vertical or overhead surface being cut. The saw travels along the track, making precise cuts in walls, columns, bridge piers, elevated slabs, and any other surface that cannot be accessed by a floor-based flat saw.

Wall sawing is used for:

  • Creating door, window, and equipment openings in concrete walls
  • Cutting openings in elevated slabs for new mechanical or structural penetrations
  • Removing sections of concrete wall or column for demolition or renovation
  • Precise cuts in bridge piers, abutments, and other infrastructure elements

Wall sawing requires more setup than flat sawing, the track must be anchored to the surface, and the saw must be positioned and calibrated, and it commands a higher per-linear-foot rate as a result. Maximum cut depth varies by equipment, but most wall saws can achieve depths of 24 to 30 inches or more with appropriately sized blades.

Wire Sawing

Wire sawing uses a continuous loop of diamond-impregnated wire, threaded through a series of guide pulleys and driven at high speed around the material being cut. Unlike blade-based saws, wire sawing has virtually no depth or size limitation, the wire can be configured to cut through virtually any thickness or geometry, including cuts that a blade cannot reach.

Wire sawing is used for:

  • Large-scale concrete removal where blade depth is insufficient
  • Cutting through massive structural elements: bridge piers, dam sections, foundations
  • Complex cuts in confined geometries where a blade saw cannot be positioned
  • Full-depth cuts through thick walls or slabs in a single pass
  • Precision cutting in sensitive environments where vibration must be minimized

Wire sawing is the highest-cost cutting method on a per-linear-foot basis, but it is often the only viable option for the applications listed above. Its ability to cut any thickness, in virtually any orientation, and with minimal vibration makes it indispensable on major infrastructure and industrial projects.

Hand Sawing

Hand sawing uses a hand-held diamond blade saw, essentially a purpose-built concrete saw operated manually, to make cuts in locations where larger equipment cannot be positioned. It is used for shallow cuts, tight spaces, detail work, and areas with low overhead clearance.

Hand sawing is generally limited to depths of 5–6 inches or less, depending on the blade diameter. It is slower than machine-mounted sawing and more physically demanding on the operator. It is used primarily for supplemental cuts, detail work at the edges of larger machine-sawn cuts, and small scopes in confined areas where other methods are impractical.

When Concrete Cutting Is the Right Choice

Choose concrete cutting when the project requires any of the following:

  • A straight-edged or geometrically defined opening in a slab, wall, or structural member
  • Linear trench cuts for utility installation or repair
  • Control joint installation in fresh or hardened concrete
  • Removal of a defined section of slab or pavement
  • Saw cutting to expose rebar, embedded utilities, or subsurface conditions
  • Demolition cuts to separate structural elements prior to removal
  • Any project where the required output is a line, a slot, or a polygon, not a circle
Concrete Diamond Sawcutting
03070F2E-D51A-4580-B39A-20FBE4B2B433

Concrete Coring, What It Is and When to Use It

Concrete coring uses a hollow diamond-tipped core bit, mounted on a drill rig, to cut a clean cylindrical hole through concrete. The drill rig is anchored to the surface (usually with a vacuum base or mechanical anchor) to maintain precise position and consistent downward pressure throughout the drilling cycle. Water is fed to the bit continuously for cooling and slurry management.

The result is a clean, round penetration with smooth walls, the geometry required for pipe fittings, conduit sleeves, drain bodies, anchor bolt templates, and other round components. The concrete plug removed by the core bit can be extracted and, if needed, submitted as a test sample for compressive strength or petrographic analysis.

Core Diameter Range

Core bit diameters range from approximately 1 inch to 60 inches or more. This gives coring extraordinary versatility across application types:

  • 1–2 inch cores: anchor bolt locations, small conduit penetrations, material test samples
  • 3–6 inch cores: standard utility penetrations (electrical, data, small-diameter plumbing)
  • 6–12 inch cores: medium-diameter pipe penetrations, HVAC sleeve installations, floor drains
  • 12–24 inch and larger cores: large-diameter pipes, manhole frames, structural test samples, specialty penetrations

Core diameter is the single most immediate driver of concrete coring cost. Larger diameters require larger, more expensive bits, greater drill rig capacity, slower penetration rates, and more operator effort to manage the slurry volume generated.

Core Depth and Orientation

Core drilling can be performed vertically (through horizontal slabs), horizontally (through walls), or at any angle required by the geometry of the penetration. Drill rigs are designed to be repositioned and anchored in any orientation. Angled cores, those drilled at a non-perpendicular angle to the surface, require careful setup and are more time-consuming than standard perpendicular drilling.

Core depth is limited primarily by the length of the core barrel and the capacity of the drill rig to maintain straight, consistent alignment over longer penetrations. For very deep cores through thick walls, multiple core barrel extensions may be required, adding setup time and cost.

Test Coring

One specialized application of concrete coring is the extraction of test cores for structural analysis. A 4-inch diameter core extracted from a slab or beam can be submitted to a laboratory for compressive strength testing (ASTM C42), petrographic analysis, chloride content testing, or other analyses that inform structural assessment and repair planning.

Test coring is common in bridge deck rehabilitation, parking structure condition assessments, and post-incident structural investigations. The cylindrical plug extracted by the core drill is the test specimen, its integrity during extraction is critical, which is why core bit condition, drill rig stability, and operator technique all affect the quality of the sample.

When Concrete Coring Is the Right Choice

Choose concrete coring when the project requires any of the following:

  • A round penetration for a pipe, conduit, drain, or other circular component
  • An anchor bolt location requiring a precise-diameter hole
  • A structural or material test sample for laboratory analysis
  • A circular opening in a wall or slab where blade access is limited
  • A clean-edged penetration where saw cutting would produce an irregular shape
  • A penetration through a post-tensioned slab where the exact location must be confirmed by GPR and strategically positioned between PT tendons
  • Any project where the required output is a clean, round, cylindrical hole, not a line
Penhall employee coring concrete wall
66in Diam Core 2 HPark PacWest 6-13-12

When to Use Both Cutting and Coring on the Same Project

Concrete cutting and coring are complementary methods, and many projects require both. Understanding how they work together, and how combining them in a single mobilization affects cost, is valuable for anyone planning or estimating concrete work.

Mechanical and Electrical Room Buildouts

A typical mechanical room installation in a commercial building might require coring through the slab above for pipe and conduit penetrations (coring, multiple diameters), saw cutting to create a new equipment access opening in the adjacent concrete wall (wall sawing), and flat sawing to trench the slab for below-grade drainage (flat sawing). All three methods, two cutting types and coring, are performed in the same space, often in close sequence.

Parking Structure Rehabilitation

Parking structure repair projects commonly combine test coring at representative locations to assess concrete condition (2–4 inch diameter cores for lab analysis), flat sawing to remove deteriorated slab sections and install control joints, and coring for new drain installation or anchor bolt placement. The coring informs the scope; the sawing executes the repair.

Bridge Deck Work

Bridge deck rehabilitation often involves test coring to assess delamination depth and concrete condition, followed by flat sawing or hydrodemolition to remove deteriorated concrete, and then coring for new anchor systems, drainage improvements, or instrumentation installation. Wire sawing may also be required for full-depth section removal at severely deteriorated areas.

New Construction Coordination

In new construction, cutting and coring are often required after concrete is placed to accommodate field changes: penetrations that weren’t sleeved during formwork (coring), openings that need to be enlarged or added after the pour (wall or flat sawing), and control joints that weren’t formed during placement (flat sawing). This is one of the most common scenarios where both services are needed on a single job site within a short time window.

The Mobilization Advantage of Combining Scope

Mobilization costs, travel, equipment transport, setup, are fixed regardless of scope. A crew that can perform both cutting and coring eliminates the need for two separate mobilizations. If your project requires both services, scheduling them together in a single visit is almost always the most cost-efficient approach. Penhall’s crews are equipped and trained for both methods, making combined-scope projects straightforward to coordinate.

Choosing the Right Method: Common Scenarios

“I need to run a 6-inch pipe through my concrete floor.”

Coring. A 6-inch pipe requires a clean, round penetration. Core an 8-inch hole (pipe diameter plus clearance for sleeve and sealant), position it using a GPR scan to avoid rebar and utilities, and you have a clean installation path.

“I need to create a doorway in this concrete wall.”

Cutting, specifically wall sawing. A doorway is a rectangular opening defined by straight cuts. A wall saw mounted on a track makes precise vertical and horizontal cuts to define the opening. The concrete panel is then removed, typically assisted by flat-saw relief cuts or hand saw detail work at corners.

“I need to remove a 10-by-10-foot section of this parking deck.”

Cutting, flat sawing to define the perimeter cuts, followed by a breaking or lifting operation to remove the slab section. If the slab is post-tensioned, a GPR scan is required first, and the PT tendons in the removal zone must be addressed per structural engineering guidance before sawing begins.

“My contractor says he doesn’t know if this slab is post-tensioned.”

Stop. Do not cut or core until a GPR scan confirms what is inside the slab. This applies whether you are cutting or coring. The consequences of cutting through an undetected PT cable are severe. A scan takes minutes and resolves the uncertainty completely.

“I need to install 40 anchor bolts through this concrete floor.”

Coring, small-diameter cores (typically 1–1.5 inch diameter) at each anchor location. Forty cores of the same diameter in the same facility is a highly efficient operation once the drill rig is set up and the locations are confirmed by GPR scan.

“I have a large concrete structure that needs to be partially demolished and the saw can’t reach the cutting plane.”

Wire sawing or a combination of wire sawing and coring. Wire sawing can access cutting planes that blade saws cannot reach, at virtually any depth or geometry. For very large or complex structural demolition, wire sawing is often the only method that can accomplish the cut.

The Role of GPR Scanning in Cutting and Coring Decisions

Regardless of whether a project requires cutting, coring, or both, the decision about where to cut or core is inseparable from knowledge of what is inside the concrete. Rebar density affects tooling cost for both methods. Post-tension cables are a life-safety concern for both. Embedded utilities, electrical conduit, plumbing, gas lines, data cables, create hazards that are equally relevant to a diamond blade and a core bit.

A GPR concrete scan performed before any cutting or coring begins provides the subsurface intelligence needed to plan work safely, position cuts and cores to avoid reinforcement and utilities, price the work accurately, and prevent costly and dangerous surprises in the field. Penhall offers GPR scanning as a standard pre-work service and recommends it before virtually every cutting and coring project, regardless of size or apparent simplicity.

The cost of a GPR scan is negligible compared to the cost of hitting an undetected PT cable, severing a live electrical line, or breaching a pressurized plumbing system. On any project where the concrete’s interior is unknown, scanning is not optional, it is the first step.

116803429_1142487569466531_2135494066790420458_n
Concrete Core Drilling Services Penhall

Penhall’s Concrete Cutting and Coring Services

Penhall Company provides both concrete cutting and concrete coring services across North America, backed by over 65 years of concrete industry experience and the equipment depth to handle any reinforcement condition, access constraint, or project scale.

Penhall’s integrated service offering means that projects requiring both methods can be executed under a single contract, with a single crew, in a single mobilization, eliminating coordination overhead and reducing total project cost. Penhall’s broader capabilities include:

GPR concrete scanning: pre-work scanning to locate rebar, PT cables, embedded utilities, and voids before any cutting or coring begins.

Hydrodemolition: high-pressure water concrete removal for bridge deck rehabilitation, parking structure repair, and other large-scale concrete removal where saw cutting is not the optimal method.

Selective demolition: controlled removal of reinforced concrete elements, including post-tensioned structures, with full structural coordination.

Structural repair: concrete restoration and repair services, including FRP strengthening, following cutting, coring, or demolition work.

With locations across the country, Penhall can mobilize quickly for projects in any region. Whether your project calls for concrete coring vs. concrete cutting, or both, Penhall has the equipment, experience, and safety program to execute it correctly.

frequently asked questions

What Is Concrete Scarifying in Surface Preparation?

A complete guide to concrete scarifying, what it is, how the equipment works, what it removes, when it is the right choice over other concrete surface preparation methods, and why surface profile is the single most important factor in overlay and coating adhesion

CALL FOR A QUOTE
1-800-736-4255

At a Glance

Concrete scarifying is a mechanical surface preparation method that uses a rotating drum fitted with hardened steel cutters, flails, or carbide-tipped teeth to aggressively mill the top layer of a concrete surface, removing coatings, adhesives, laitance, contamination, and deteriorated material.

Scarifying concrete produces one of the most aggressive surface profiles available from a mechanical preparation method, rated CSP 4 to 9 on the ICRI Concrete Surface Profile scale, the roughness required for thick overlays, high-build coatings, and heavy-duty repair mortars.

It is the method of choice when standard grinding or shot blasting cannot remove the material or achieve the profile depth required, particularly for thick epoxy coatings, stubborn adhesive residue, failed overlays, and carbonated or contaminated surface layers.

Concrete surface preparation is not optional, it is the single most important step in any overlay, coating, or repair project. Without a properly prepared, open-pore substrate at the specified CSP, even the best repair materials and coatings will delaminate prematurely.

Scarifying generates significant dust and requires effective dust collection. Job site dust management planning is a non-negotiable part of any scarifying scope.

Penhall Company provides professional concrete surface preparation services, including scarifying, grinding, and hydrodemolition, as part of a full-service offering that includes concrete cutting, coring, scanning, and structural repair.

Why Concrete Surface Preparation Is the Foundation of Every Repair

There is a saying in the concrete repair industry: the repair is only as good as the substrate it is bonded to. This is not a figure of speech. It is the mechanical reality of how overlay systems, coatings, sealers, and repair mortars work.

All of these materials bond to concrete through a combination of mechanical interlock and chemical adhesion. Mechanical interlock requires a surface with sufficient texture and open pores to allow the repair material to penetrate, anchor, and grip. Chemical adhesion requires a surface that is free of contamination, oil, grease, laitance, carbonation, existing coatings, that would create a weak boundary layer between the repair material and the concrete.

When either of these conditions is not met, delamination is not a possibility, it is a certainty. The only question is how soon. A coating applied over an unprepared slab may look perfect on day one. By month three, it is peeling. A repair mortar placed over laitance may pass initial testing. Within a year, it is popping off in sheets. In both cases, the failure was predetermined at the moment the preparation step was skipped or done inadequately.

This is why concrete surface preparation is not a preliminary step that gets scheduled when there is time, it is the step on which everything else depends. And among the range of available surface preparation methods, scarifying concrete occupies a critical niche: it is the method that can do what grinding and shot blasting cannot when the material to be removed is thick, bonded, or mechanically resistant, and when the required surface profile is aggressive.

What Is Concrete Scarifying?

Concrete scarifying, also called concrete planing, milling, or rotary cutting, is a mechanical surface preparation process in which a powered rotating drum, fitted with multiple rows of hardened steel cutting elements, is driven across the concrete surface to aggressively cut, mill, and abrade the top layer.

The cutting action is fundamentally different from grinding or shot blasting. Where diamond grinding uses abrasion to smooth and open the surface, and shot blasting uses kinetic impact to peen and fracture it, scarifying uses direct mechanical cutting: the teeth or flails on the rotating drum strike and cut into the concrete surface repeatedly at high speed, fragmenting and ejecting the material in their path.

The result is a deeply textured, highly irregular surface profile with peaks and valleys that provide exceptional mechanical interlock for overlay materials and repair mortars. The surface looks rough and aggressive, because it is. That roughness is precisely the point.

How a Concrete Scarifier Works

A concrete scarifier, sometimes called a milling machine, planer, or rotary cutter, consists of the following key components:

  • Cutting drum: a steel cylinder mounted horizontally across the width of the machine, driven at high rotational speed by the engine. The drum holds the cutting elements and is the heart of the machine.
  • Cutting elements: hardened steel cutters, carbide-tipped flails, or star-wheel assemblies mounted on the drum in staggered rows. As the drum rotates, each cutter strikes the concrete surface in rapid succession. The type and configuration of cutting elements determines the aggressiveness of the cut, the surface profile produced, and the rate of material removal.
  • Depth adjustment: the drum height is adjustable, controlling how deeply the cutting elements penetrate the surface. Typical removal depths range from 1/16 inch to 1/2 inch per pass. Multiple passes can remove more material.
  • Dust collection: scarifying generates large volumes of airborne concrete dust. Professional scarifiers are equipped with integral shrouds and vacuum systems that capture dust at the source. Supplemental HEPA-filtered vacuum units are commonly used on enclosed job sites to meet OSHA silica exposure regulations.
  • Drive system: scarifiers are available in walk-behind and ride-on configurations, with electric or gasoline/diesel power. Walk-behind units handle tight spaces and smaller areas; large ride-on machines cover broad floor areas efficiently.

As the machine advances across the floor, the rotating drum cuts parallel grooves into the concrete surface. The pattern of these grooves, their depth, width, and spacing, is determined by the cutter configuration. Overlapping passes in multiple directions can produce a more uniform texture for applications requiring a consistent profile across the entire surface.

Types of Cutting Elements

The cutting elements fitted to the drum are the most directly influential variable in the surface profile produced. The three main types used in concrete scarifying are:

  • Star-wheel cutters (flails): multi-pointed star-shaped carbide-tipped cutters that rotate freely on spindles along the drum. They produce a highly aggressive, irregular profile and are the most common configuration for heavy concrete scarifying. The free rotation of each flail allows them to ride over hard aggregate rather than shattering, extending cutter life while maintaining aggressive material removal.
  • Tungsten carbide tipped (TCT) cutters: fixed or semi-fixed carbide-tipped cutting discs that produce a more uniform groove pattern. Used when a more controlled, consistent profile is required, such as preparation for precision overlays or anti-slip texture applications.
  • Milling bits (drum-style): larger carbide-tipped point-attack tools similar to those used in asphalt milling equipment, adapted for concrete. Used on large-scale ride-on machines for high-production material removal on bridge decks, pavements, and industrial floors.

What Concrete Scarifying Removes

Scarifying is particularly effective at removing materials and surface conditions that resist gentler preparation methods. The following are the most common targets:

Coatings and Adhesives

Thick epoxy coatings, urethane floor finishes, rubber-based adhesives, tile adhesive (mastic), and bituminous waterproofing membranes are among the most challenging materials to remove from concrete surfaces. These materials often bond tenaciously to the concrete and are too thick or too resilient for diamond grinding or shot blasting to remove effectively.

Scarifying cuts through these materials mechanically, lifting them from the surface in fragments. The cutting action is not dependent on the brittleness of the material being removed, it works on tough, flexible coatings as effectively as on brittle ones. This makes scarifying the method of choice for coating removal projects where other methods have been tried and failed or are known to be inadequate.

Laitance and Carbonation

Laitance is a weak, chalky layer of fine cement particles and water that rises to the surface during concrete placement and finishing. It is essentially the weakest part of the entire slab, a layer with low strength, low density, and high porosity that will prevent any overlay or coating from bonding properly to the sound concrete beneath it.

Carbonation is the process by which atmospheric carbon dioxide reacts with calcium hydroxide in the concrete near the surface, forming calcium carbonate. Carbonated concrete is chemically different from the deeper matrix and can reduce the alkalinity of the surface, affecting the cure behavior of cementitious repair materials applied over it.

Both laitance and carbonation must be removed before any repair or overlay work. Scarifying is one of the most effective methods for doing so, cutting through and ejecting the weak surface layer to expose the sound concrete beneath.

Contamination: Oil, Grease, and Chemical Residue

Industrial and commercial floors, in manufacturing plants, vehicle maintenance facilities, food processing facilities, and warehouses, are routinely contaminated with oils, greases, hydraulic fluids, chemical spills, and other substances that penetrate the concrete surface. These contaminants create a bond-breaking layer that prevents adhesion of coatings and repair materials.

Scarifying physically removes the contaminated surface layer, eliminating the contamination along with the concrete it has penetrated. In severe contamination cases, multiple passes may be required to remove the contaminated zone entirely. Chemical decontamination treatment may also be needed as a follow-up step, depending on the depth of penetration and the nature of the contaminant.

Deteriorated and Delaminated Surface Concrete

Spalled, delaminated, or structurally weakened surface concrete must be removed before repair materials are placed. Leaving weak or delaminated concrete in place and placing repair material over it is analogous to painting over a rust spot without treating the rust, the repair will fail at the weakest link.

Scarifying can remove deteriorated surface concrete efficiently over large areas, preparing the substrate for repair mortar, overlay systems, or further treatment. For more severe or deeper deterioration, hydrodemolition may be the more appropriate method, as it selectively removes weaker concrete while preserving sound material and does not introduce the micro-impact damage that mechanical scarifying can cause in already-compromised substrates.

Trip Hazards and Surface Irregularities

Minor surface irregularities, raised joints, and slight humps in concrete flatwork can create trip hazards for pedestrians and equipment operators. Scarifying, and its close relative, concrete planing, can level these irregularities by removing the high spots, restoring a safer, flatter surface profile. This is a common application in warehouse and industrial floors before the installation of new floor coatings or overlays.

Understanding Concrete Surface Profile (CSP)

The single most important measurable output of any concrete surface preparation process is the surface profile, the three-dimensional texture of the prepared surface, characterized by the height difference between peaks and valleys across the surface.
The International Concrete Repair Institute (ICRI) has developed a standardized scale called the Concrete Surface Profile (CSP) system, which classifies prepared surfaces on a scale from CSP 1 to CSP 10:

  • CSP 1–2: very light profiles produced by acid etching, light grinding, or fine abrasive blasting. Suitable for penetrating sealers, thin-film coatings, and densifiers.
  • CSP 3–4: moderate profiles produced by grinding, light shot blasting, or light scarifying. Suitable for thin-mil coatings, self-leveling overlays, and light-traffic floor systems.
  • CSP 5–6: aggressive profiles produced by shot blasting, scarifying, or milling. Required for high-build coatings, broadcast epoxy systems, and medium-depth repair mortars.
  • CSP 7–9: very aggressive profiles produced by heavy scarifying, heavy milling, or hydrodemolition. Required for thick overlays, structural repair mortars, heavy-duty polymer concrete, and full-depth repair systems.
  • CSP 10: extreme profile from heavy hydrodemolition or aggressive demolition. Used for the thickest overlay systems and structural concrete replacement.

Scarifying concrete typically produces profiles in the CSP 4 to 9 range, depending on cutter configuration, drum speed, forward speed, and number of passes. This puts it among the most capable methods for achieving the aggressive profiles required by high-performance flooring systems and structural repair specifications.

Matching preparation method to the required CSP is not optional, it is specified. Overlay and coating manufacturers publish minimum required CSP values for their products. Installing a coating system over an inadequate surface profile voids the manufacturer’s warranty and virtually guarantees premature failure. Specifying the correct method requires knowing both the required CSP and the condition of the existing surface.

Concrete Surface Preparation Methods Compared

Scarifying is one of several mechanical concrete surface preparation methods. Understanding how they compare helps in selecting the right approach for each project:

Method Material Removal Surface Profile Best For Limitations
Scarifying Moderate–heavy CSP 4–9 (aggressive) Thick coating removal, failed overlays, high-build prep High dust; aggressive profile may need grinding to refine
Shot blasting Light–moderate CSP 2–6 (controllable) Large open floor areas, warehouse prep, coating adhesion Less effective on coatings; round shot profile less aggressive
Diamond grinding Light CSP 1–3 (fine) Flatness correction, light coating removal, polish prep Limited material removal; not suitable for heavy overlays
Hydrodemolition Heavy CSP 6–9 (very aggressive) Bridge decks, large-scale rehab, rebar cleaning Water management required; specialized equipment
Milling / planing Heavy CSP 5–8 (aggressive) Pavement, bridge decks, high-speed large-area removal Rough profile; finish grinding often required
Acid etching Light CSP 1–3 (fine) Residential and light commercial, smooth slabs Chemical handling; not reliable on contaminated surfaces

When to Use Concrete Scarifying

Scarifying concrete is the right choice in specific scenarios. It is not the universal answer to every surface preparation need, it is the appropriate tool when the work demands its particular combination of aggressive material removal and high surface profile.

Thick or Tenacious Coating Removal

When the material to be removed is thick, bonded, or resistant, heavy epoxy coatings, rubber-based adhesives, tar-backed vinyl tile, bituminous membranes, polyurethane traffic coatings on parking decks, scarifying is often the only mechanical method that can remove it efficiently. Shot blasting can struggle with thick, flexible coatings that absorb the impact energy of the shot. Diamond grinding may clog or glaze in adhesive residue. Scarifying cuts through these materials regardless of their toughness or bond strength.

Failed or Contaminated Overlays

When a previous overlay system has failed and must be removed, whether due to delamination, contamination of the original substrate, or simply age, scarifying provides the combination of material removal capacity and surface profile creation needed to both strip the old system and prepare the substrate for the new one in a single operation. This is one of the most common renovation scenarios in industrial and commercial flooring.

Heavy Industrial Floor Preparation

High-performance floor systems in food processing facilities, pharmaceutical plants, heavy manufacturing, and chemical processing environments require exceptionally well-prepared substrates. The combination of aggressive contamination, demanding service conditions, and the high cost of floor system failures makes thorough surface preparation a priority. Scarifying’s ability to remove contaminated surface concrete, open the pore structure, and achieve high CSP values makes it the preparation method of choice for these environments.

Bridge Deck and Parking Structure Surface Preparation

On bridge decks and parking structures, waterproof membrane systems and traffic-bearing overlays must bond to concrete that has been contaminated by deicing chemicals, exposed to chloride-driven corrosion, and subjected to heavy vehicle loads. The surface preparation requirements for these systems are demanding, and the consequence of failure, water infiltration, rebar corrosion, structural deterioration, is severe.

Scarifying is used for surface preparation on bridge decks and parking structures when the deterioration is limited to the surface layer and the objective is to create a bonding profile for membrane or overlay application. When deterioration is more extensive, involving delamination, corrosion around rebar, or deep chloride contamination, hydrodemolition is typically the preferred method, as it selectively removes deteriorated concrete to the depth required without damaging the surrounding sound material.

Skid Resistance Restoration

Concrete surfaces in pedestrian areas, ramps, loading docks, and vehicle lanes can become dangerously slippery as the original surface texture wears smooth under traffic. Scarifying restores skid resistance by cutting a new textured profile into the surface, creating consistent surface roughness that improves traction for both pedestrians and vehicles. This is a common maintenance application in parking structures, airport terminals, and industrial facilities.

When Scarifying Is Not the Right Choice

Scarifying is not appropriate for every surface preparation scenario. It should not be used when:

  • A fine surface profile (CSP 1–3) is specified, such as for penetrating sealers, densifiers, or polished concrete systems, scarifying creates too aggressive a profile for these applications.
  • The concrete substrate is severely deteriorated, delaminated, or structurally compromised, the impact of scarifying cutters can extend the damage zone rather than limiting it. Hydrodemolition or selective demolition is more appropriate in these conditions.
  • Tight geometric constraints make machine access impossible, scarifiers require a minimum clearance envelope to operate. Hand-held grinders or other manual methods may be needed for corners, edges, and confined spaces.
  • Vibration-sensitive equipment or structures are nearby, scarifying generates significant mechanical vibration and noise that may be unacceptable in certain occupied or sensitive environments.

Dust Management and OSHA Silica Regulations

Concrete scarifying generates large volumes of fine concrete dust, including respirable crystalline silica, the airborne particle that causes silicosis, a serious and irreversible lung disease. OSHA’s Silica Standard for Construction (29 CFR 1926.1153) establishes a permissible exposure limit (PEL) of 50 micrograms per cubic meter of air as an 8-hour time-weighted average, and an action level of 25 micrograms per cubic meter.

For scarifying operations, OSHA’s Table 1 specifies that the required engineering control is a dust collection system, either a vacuum system with HEPA filtration or a wet-suppression method, integrated with the scarifying equipment. Using a properly equipped scarifier with integral shroud and vacuum collection is the baseline compliance requirement.

In practice, effective dust management for scarifying projects includes:

  • Integral vacuum shrouds on the scarifier that capture dust at the drum housing as it is generated.
  • HEPA-filtered industrial vacuums connected to the scarifier’s shroud, capturing fine particles that would otherwise escape into the work area air.
  • Containment barriers and negative air pressure in enclosed spaces to prevent dust migration to adjacent occupied areas.
  • Worker respiratory protection (N95 minimum, P100 preferred) during any scarifying operation, even with engineering controls in place.
  • Regular air monitoring on longer-duration projects to verify that exposure levels remain below OSHA’s action level.

Contractors who skip or underinvest in dust management on scarifying projects expose workers to a documented occupational health hazard and expose the project to OSHA citations, stop-work orders, and liability. Penhall’s Behavior-Based Safety (BBS) program ensures that dust management is planned and executed as a non-negotiable component of every surface preparation scope.

Scarifying vs. Hydrodemolition: Choosing the Right Removal Method

For large-scale concrete surface preparation and removal, particularly on bridge decks, parking structures, and infrastructure, the choice between mechanical scarifying and hydrodemolition is one of the most consequential decisions in the project planning process.
Scarifying is a fast, dry, highly portable method that works well when the preparation objective is surface profile creation and shallow material removal over a sound concrete substrate. It is the right choice when:

  • The removal depth is limited (under 1/2 inch per pass in most applications)
  • The substrate beneath the removal zone is sound and can withstand the mechanical impact of the cutting drum
  • Dry operations are required or water management is impractical
  • The surface to be prepared is accessible to wheeled equipment

Hydrodemolition, high-pressure water concrete removal, is the superior choice when:

  • The removal zone extends to or past the rebar layer, requiring selective removal of deteriorated concrete while leaving sound concrete and rebar intact
  • The substrate is deteriorated, delaminated, or variable in condition, and mechanical impact would extend rather than limit the damage zone
  • A microfracture-free bonding surface is required, hydrodemolition does not create the microfractures in remaining concrete that mechanical scarifying can introduce
  • Rebar cleaning is part of the scope, hydrodemolition cleans corroded rebar simultaneously with concrete removal
  • The project involves bridge deck rehabilitation where long-term bond strength of the overlay is critical and specifications require the superior bonding surface that hydrodemolition provides

Many large rehabilitation projects use both methods in sequence: hydrodemolition for the primary concrete removal phase, followed by scarifying or grinding to refine the surface profile on the remaining sound concrete before overlay placement.

Penhall’s Concrete Surface Preparation Services

Penhall Company provides concrete surface preparation services as part of a comprehensive suite of concrete cutting, coring, demolition, and structural repair capabilities. Penhall’s surface preparation offering includes scarifying, grinding, and hydrodemolition, with the equipment range and field experience to match the right method to the specific requirements of each project substrate, coating system, and structural condition.

Because Penhall provides the full project workflow, from pre-work GPR scanning through concrete removal and surface preparation to structural repair and restoration, clients benefit from a single contractor who understands how each phase of the project affects the next. The surface preparation method selected at the planning stage affects the adhesion of the overlay placed three weeks later. Getting that decision right from the beginning is what Penhall brings to the project.

Penhall’s Behavior-Based Safety (BBS) program ensures that every surface preparation project, including dust-intensive scarifying operations, is executed with rigorous attention to worker health and job site safety.

With locations across the country, Penhall can mobilize quickly for surface preparation projects of any size or complexity, in any region.

20210502_104009
scarifying-1

frequently asked questions

Concrete Reinforcement Explained: Rebar, PT Cables, and Embedded Utilities

A complete guide to the types of concrete reinforcement, what each one does, why it’s used, and why understanding what’s inside the concrete is critical before any cutting, coring, or demolition work begins.

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Plain concrete is strong in compression but weak in tension. Concrete reinforcement, most commonly steel rebar, post-tension cables, or welded wire, compensates for this weakness by carrying the tensile forces that concrete alone cannot resist.
  • The four primary types of concrete reinforcement are: mild steel rebar, post-tensioned (PT) cables and tendons, welded wire reinforcement (WWR), and fiber reinforcement. Fiberglass (GFRP) rebar is a growing alternative in corrosion-sensitive applications.
  • Post-tensioned concrete is fundamentally different from conventionally reinforced concrete. PT cables are under extreme tension and cannot be cut without triggering a potentially catastrophic structural event. GPR scanning before any cutting or coring in PT structures is non-negotiable.
  • Embedded utilities, electrical conduit, plumbing, gas lines, data cables, hydronic tubing, are routinely cast into concrete during construction and create serious hazards if encountered unexpectedly during cutting, coring, or demolition.
  • Reinforcement type and density are the two most significant variables driving the cost and complexity of concrete cutting, coring, and demolition work.
  • Penhall Company offers GPR concrete scanning to identify reinforcement and utilities before any cutting or coring begins, as well as full concrete cutting, coring, and demolition services nationwide.

Why Concrete Needs Reinforcement

Concrete is one of the most widely used construction materials in the world, and for good reason. It’s extraordinarily strong in compression, able to resist the crushing forces of heavy loads, tall structures, and the weight of the built environment. A standard 4,000 PSI concrete mix can withstand roughly 4,000 pounds of compressive force per square inch before failing.

But concrete has a significant structural limitation: it is weak in tension. Tensile strength, resistance to being pulled apart or bent, is typically only about 10 percent of its compressive strength. A 4,000 PSI concrete mix may have a tensile strength of just 300 to 400 PSI. That’s enough for a simple footing on stable, uniform soil, but it’s nowhere near adequate for a beam that spans an opening, a slab that must carry vehicle loads, a bridge deck subjected to dynamic stress, or any structural element that experiences bending.
When a concrete beam bends under load, the top surface is in compression and the bottom surface is in tension. Without reinforcement, the tension side cracks and the beam fails. Concrete reinforcement solves this problem by embedding materials with high tensile strength inside the concrete, creating a composite structural system in which each material contributes what it does best: concrete carries compression, reinforcement carries tension.

This is the foundational principle behind all reinforced concrete materials, and understanding it is the first step toward understanding why different reinforcement types are used in different applications, and why what’s inside a concrete structure matters so much to anyone working on it.

Types of Concrete Reinforcement

Mild Steel Rebar (Deformed Reinforcing Bar)

Mild steel rebar is the most common form of concrete reinforcement in the world. Rebar, short for reinforcing bar, consists of steel bars with a deformed (ribbed or lug) surface profile that provides mechanical bond with the surrounding concrete. The deformations prevent the bar from simply sliding through the hardened concrete matrix when tension is applied.
Rebar is categorized by grade, diameter, and yield strength. In North America, the most common grades are:

Grade 40 (40,000 PSI yield strength): used in lighter residential applications, now largely replaced by Grade 60 in most markets.

Grade 60 (60,000 PSI yield strength): the standard for most commercial and industrial construction in the United States.

Grade 75 and Grade 80: higher-strength bars used in applications requiring greater tensile capacity with smaller bar diameters, such as precast elements or seismic-resistant structures.

Bar size is designated by number in the U.S. system, #3 through #18, where the number roughly corresponds to the bar’s diameter in eighths of an inch. A #4 bar is approximately 1/2 inch in diameter; a #8 bar is approximately 1 inch in diameter. The larger the bar, the more tensile force it can carry, and the more resistance it presents to a diamond blade or drill bit.

Rebar is a passive reinforcement system. It does not carry any load until the concrete around it cracks and the tensile force is transferred to the steel. At that point, the rebar resists the tension and prevents the crack from widening into a structural failure. This is fundamentally different from post-tensioned reinforcement, which actively prestresses the concrete before any load is applied.

How Rebar Affects Cutting and Coring

Rebar is the reinforcement type most commonly encountered during concrete cutting and coring operations, and it has a significant impact on both cost and production rates. Diamond blades and drill bits are designed to cut through concrete, they can cut through rebar as well, but at a much higher rate of wear.

When a diamond blade or core bit encounters steel, the abrasive particles that do the cutting are consumed far faster than when cutting plain concrete. A blade that might yield 500 linear feet on an unreinforced slab may yield only 150 to 200 feet on a heavily reinforced one. That is a 2.5x to 3x increase in blade cost alone, before accounting for the slower cutting speed.

The density and orientation of rebar also matters. A single layer of #4 bars at 12 inches on center is manageable. Multiple layers of #8 bars at 6 inches on center in both directions represents a much more challenging and costly cutting environment. Experienced contractors account for this variability when pricing work, which is why rebar information is essential input for any accurate cutting or coring estimate.

Post-Tensioned Cables and Tendons

Post-tensioned (PT) concrete is a form of prestressed concrete in which high-strength steel tendons or cables are threaded through the slab or beam, typically enclosed in plastic sheaths, and then tensioned using hydraulic jacks after the concrete has reached sufficient strength. The tension is locked in place using steel anchors cast into the edge or soffit of the structural member. Once the jacks are removed, the cables remain under permanent high tension, placing the entire concrete section in compression.

This prestress dramatically changes the structural behavior of the concrete. A post-tensioned slab or beam can span greater distances, carry heavier loads, and be constructed with less material than an equivalently performing conventionally reinforced section. This is why PT concrete is widely used in:

Parking structures and podium decks

High-rise building floors and transfer plates

Bridge decks and box girders

Large-span commercial and industrial slabs

Swimming pools and water-retaining structures

The Life-Safety Risk of Cutting Post-Tensioned Concrete

Post-tensioned cables are under enormous tension, typically 150,000 to 270,000 PSI of stress in the steel itself. A single 0.5-inch diameter PT strand carries a jacking force of approximately 30,000 to 33,000 pounds. When a PT cable is cut, the stored energy in the strand is released instantaneously and violently. The cable can retract at high speed, destroying the concrete around it, projecting fragments, and potentially causing structural collapse if multiple tendons are cut.

This is not a theoretical risk. It is a documented cause of fatalities on construction sites. Cutting through a PT cable with a concrete saw or core drill without knowing it is there is one of the most dangerous situations in concrete work.

The protocol for working in post-tensioned concrete is non-negotiable:

A GPR (Ground Penetrating Radar) scan must be performed before any cutting or coring to locate PT tendons.

Structural drawings must be reviewed to confirm PT layout, tendon spacing, and anchor locations.

Cut and core locations must be planned to avoid PT cables, ideally with structural engineer review.

If a PT cable must be cut as part of a planned renovation or demolition, the structure must first be assessed by a structural engineer, and the cables must be de-stressed in a controlled sequence before cutting begins.

Penhall’s crews are trained to identify indicators of post-tensioned construction, anchor pockets, PT end caps, tendon blisters on slab edges and soffits, and to require GPR scanning before proceeding with any cutting or coring in PT structures.

Building wall 2 (1) (1)
20211005_113626_Daniel Plemel

How to Identify a Post-Tensioned Slab

Visual and documentary indicators of post-tensioned construction include:

Anchor pockets or stressing pockets: rectangular or rounded recesses on the slab edge or soffit where the PT jacking equipment was applied.

PT end caps: plastic caps covering exposed tendon ends, usually visible at slab edges or in parking structure fascias.

Tendon blisters: raised profiles on the slab soffit indicating the path of draped tendons in two-way PT slabs.

Construction drawings: structural drawings that specify “post-tensioned” design, tendon layout, and anchor schedules.

Thinner-than-expected slabs: PT construction allows slabs to be thinner than conventional rebar designs for the same span. An unexpectedly thin slab for its span length should raise suspicion.

When in doubt, the only reliable answer is a GPR scan. Visual indicators can be obscured by finishes, coatings, or previous repairs. Structural drawings may not be available for older buildings. GPR scanning provides direct subsurface evidence of what is inside the slab before any work begins.

Welded Wire Reinforcement (WWR)

Welded wire reinforcement (also called welded wire fabric or WWF) consists of a grid of steel wires, smooth or deformed, welded at each intersection to form a flat mat or roll. It is used primarily in slabs-on-ground, precast panels, and light structural applications where a distributed, uniform reinforcement pattern is more efficient than individually placed rebar.

WWR is specified by wire spacing and wire diameter. Common designations follow the W-number system (smooth wire) or D-number system (deformed wire), where the number indicates the cross-sectional area of the wire in hundredths of a square inch. A W4 wire has a cross-sectional area of 0.04 square inches; a W8 has 0.08 square inches.

In terms of impact on cutting and coring operations, WWR is generally less aggressive than rebar, the individual wires are smaller in diameter and the steel volume is lower, but it still accelerates blade and bit wear relative to plain concrete. Its presence should be noted when scoping cutting and coring work.

Fiber Reinforcement

Fiber reinforcement involves adding discrete fibers directly to the concrete mix during batching, distributing reinforcement uniformly throughout the concrete matrix rather than placing it in specific locations. Fibers are used primarily to control plastic shrinkage cracking, improve impact and abrasion resistance, and in some applications, partially or fully replace traditional reinforcement in non-structural elements.

The main types of fiber reinforcement used in concrete are:

Steel fibers: hooked, crimped, or straight steel filaments that improve post-crack flexural toughness and impact resistance. Used in industrial floors, precast tunnel segments, and shotcrete.

Synthetic fibers (polypropylene, nylon, polyethylene): primarily used in low dosages to control plastic shrinkage cracking during curing. At higher dosages, structural synthetic fibers can contribute meaningfully to flexural performance.

Glass fibers (GFRC): used in glass fiber reinforced concrete panels and architectural precast. Alkali-resistant glass formulations are required for long-term durability in concrete.

Basalt fibers: an emerging option offering high tensile strength and corrosion resistance, derived from volcanic rock.

From a cutting and coring standpoint, fiber-reinforced concrete presents relatively minor additional resistance compared to plain concrete in most applications. Steel fiber concrete at higher dosages can increase blade and bit wear to a degree, but far less dramatically than rebar or PT cables.

Fiberglass (GFRP) Rebar

Glass fiber reinforced polymer (GFRP) rebar is a non-metallic alternative to steel rebar that is gaining adoption in applications where corrosion resistance is critical: marine structures, bridge decks in aggressive deicing environments, wastewater treatment facilities, and MRI rooms where magnetic interference must be eliminated.

GFRP rebar has a tensile strength comparable to or higher than Grade 60 steel rebar, but it does not corrode, does not conduct electricity, and is transparent to radar and radio frequency signals. It is also significantly lighter than steel.

For cutting and coring purposes, GFRP rebar is less damaging to diamond blades and bits than steel rebar, it cuts more like a hard plastic than steel. However, it still creates resistance and must be accounted for in production estimates. Importantly, GPR scanning cannot reliably detect GFRP rebar because it is not reflective to radar signals in the same way steel is. This is an important limitation to understand when working in structures where GFRP may have been used.

Embedded Utilities in Concrete: The Hidden Hazard

In addition to structural reinforcement, concrete structures routinely contain embedded utilities that were cast in place during original construction, or added later through core-drilled penetrations and patched-over conduit runs. These are not structural elements, but they are every bit as important to identify before any cutting or coring work begins.

Common Types of Embedded Utilities

The range of utilities that can be found inside concrete is wide:

  • Electrical conduit and wiring: the most commonly encountered embedded utility in commercial and industrial slabs, walls, and elevated decks. Can carry low-voltage data wiring or high-voltage power. Cutting through a live electrical circuit is an electrocution and fire hazard.
  • Plumbing pipes: supply and drain lines are frequently cast into concrete slabs and walls, especially in multi-story construction where the concrete structure serves as both floor and ceiling. Hitting a pressurized supply line causes immediate flooding; hitting a drain line causes a different but still disruptive mess.
  • Gas lines: less common but present in some structures, particularly in industrial and older commercial buildings. A core drill or saw through a gas line is a fire and explosion hazard.
  • Hydronic heating tubing: radiant floor heating systems embed plastic or metal tubing in slabs at regular intervals. These are pressurized with heated water and easy to damage with a core drill. In older systems, the tubing may be degraded and difficult to detect by visual inspection alone.
  • Data and communications conduit: fiber optic, coaxial, and structured cabling systems are routinely run through conduit cast into or beneath concrete slabs and walls. Severing a data line may not pose a physical safety hazard, but the operational and financial impact in a hospital, data center, or trading floor can be severe.
  • Fire suppression piping: sprinkler system supply mains are frequently routed through concrete walls and slabs. Hitting a pressurized fire line produces immediate large-volume water discharge.
  • Drain and sanitary lines: cast-in floor drains and their associated piping, including large-diameter drain pipes cast through structural slabs, are common in industrial and parking structures.

Why Embedded Utilities Create Cutting and Coring Risk

Unlike rebar, which creates a predictable cost and wear impact, embedded utilities create unpredictable and potentially severe safety consequences. Rebar that wasn’t accounted for in the estimate means a higher blade cost and a longer job. An electrical line that wasn’t accounted for can mean a hospitalization.

The key challenge with embedded utilities is that they are often not documented. Original as-built drawings may not reflect field changes made during construction. Renovation work may have added conduit runs that aren’t on any drawing. Previous repairs may have embedded utilities in locations where none were expected. In buildings that have been through multiple renovation cycles, the subsurface landscape inside the concrete can be extraordinarily complex.

This is precisely why GPR scanning before cutting or coring is not merely a best practice, it is a professional and safety obligation in any project where unknown utilities may be present.

GPR Scanning: The Only Reliable Way to Know What’s Inside

Ground Penetrating Radar (GPR) works by transmitting radar pulses into the concrete and recording the reflections from embedded objects, rebar, PT cables, conduit, pipes, voids, and other anomalies. The resulting data can be interpreted in real time by a trained technician to identify what is present, where it is located, and at what depth.

GPR scanning is fast, non-destructive, and can be performed on slabs, walls, columns, and beams. A typical scan of a proposed cut or core location takes minutes and can immediately confirm whether the planned location is clear or whether repositioning is needed.

Penhall’s concrete scanning services use GPR equipment to identify reinforcement, PT cables, and embedded utilities before cutting or coring begins. Penhall recommends scanning as a standard pre-work step on virtually every cutting and coring project, not as an optional add-on, but as a fundamental component of safe and accurate project execution.

Important limitations to understand about GPR:

  • GPR detects metallic and high-contrast objects reliably. GFRP rebar, plastic conduit without a metallic tracer wire, and certain low-contrast materials may not be clearly visible.
  • In very heavily congested slabs with dense rebar layers at multiple depths, objects below the uppermost reinforcement layer may be difficult to image.
  • GPR scanning identifies the presence and location of embedded objects; it does not necessarily identify what those objects are. Conduit and rebar at the same depth can look similar on a scan. Experienced interpretation is essential.

Even with these limitations, GPR scanning provides dramatically more information than proceeding without it, and on any project involving post-tensioned concrete or unknown utility locations, it is indispensable.

How Reinforced Concrete Materials Affect Cutting, Coring, and Demolition

Every type of concrete reinforcement and every embedded utility category creates a different set of challenges for the crews and equipment performing cutting, coring, and demolition work. Understanding these interactions is what separates an accurate project estimate from a costly surprise.

Impact on Blade and Bit Wear

Diamond blades and core bits are consumable tooling. Their service life, and therefore their cost contribution per linear foot or per core, varies enormously based on what they encounter inside the concrete.

In ascending order of impact on tooling wear: plain concrete, fiber-reinforced concrete, welded wire reinforcement, mild steel rebar, and post-tensioned steel. A heavily reinforced slab with multiple layers of large-diameter rebar can reduce blade life to a fraction of what it would be in plain concrete, dramatically increasing tooling cost per unit of production.

Impact on Production Rates

Reinforcement doesn’t just consume blades faster, it also slows cutting and coring speed. When a blade or bit hits steel, the operator typically reduces feed rate to protect the tooling and the equipment. The combination of slower advance and more frequent blade changes means that a reinforced concrete project takes significantly longer per unit than an unreinforced one of the same dimensions.

This is why “how much does this weigh” isn’t the right question when scoping concrete cutting or coring. The right questions are: what is the concrete’s PSI, what reinforcement is present, what is its size and spacing, and has a GPR scan been performed to confirm what’s inside?

Structural Implications of Cutting Reinforced Concrete

Cutting or coring through a reinforced concrete member removes reinforcement from the structural system. In many cases this is acceptable, a small core through a slab at a location engineered to avoid critical reinforcement has negligible structural impact. But larger cuts, cuts through beams, walls, or columns, or cuts that remove significant rebar have structural consequences that must be assessed and managed.

For any cutting or coring that removes meaningful reinforcement from a structural element, a structural engineer should review the proposed work before it begins. In post-tensioned structures, this is essentially mandatory. Penhall routinely works with structural engineers of record and project owners’ engineering consultants to confirm that proposed cut and core locations are structurally acceptable.

Selective Demolition in Reinforced Concrete

Selective demolition, the controlled removal of specific concrete elements while preserving the surrounding structure, is one of the most technically demanding applications in the concrete industry. In reinforced structures, selective demolition requires a precise understanding of the reinforcement layout, the load path of the structure, and the sequence in which material can be safely removed. Penhall’s selective demolition services combine pre-work GPR scanning, structural review, and experienced field execution to ensure that reinforced concrete can be removed safely, efficiently, and without compromising the integrity of the structure that remains.

Penhall’s Services for Reinforced Concrete

Working safely and effectively in reinforced concrete requires the right combination of pre-work intelligence, experienced crews, and appropriate equipment. Penhall Company provides the full spectrum of services needed to execute cutting, coring, and demolition in the most complex reinforced concrete environments:

GPR concrete scanning: pre-work scanning to locate rebar, PT cables, embedded utilities, and voids before any cutting or coring begins. Non-destructive, fast, and interpretable in real time on the job site.

Concrete cutting: flat sawing, wall sawing, wire sawing, and hand sawing for slabs, walls, and structural members in all reinforcement conditions, including post-tensioned structures.

Concrete coring: precision core drilling from 1 inch to 60+ inches in diameter, in all reinforcement conditions.

Selective demolition: controlled removal of reinforced concrete elements with full attention to structural implications and surrounding structure protection.

Hydrodemolition: high-pressure water concrete removal that preserves embedded rebar, removes deteriorated concrete without microfracturing the sound material, and provides a superior bonding surface for repair work.

Structural repair: concrete restoration and repair services following cutting, coring, or demolition, including FRP strengthening for reinforced concrete elements.

As North America’s largest provider of concrete cutting, coring, and demolition services, Penhall brings the scale, equipment depth, and field experience to handle reinforced concrete work of any complexity. With locations across the country, Penhall can mobilize quickly for projects in any region.

frequently asked questions
