At a Glance

  • Fiber reinforced polymer (FRP) is a strengthening method used to add load capacity or extend service life on an existing concrete structure without adding significant weight.
  • FRP is often specified when a structure needs added strength, but full replacement is not justified by cost, schedule, or continued service requirements.
  • Load requirements, remaining service life, and access conditions determine whether FRP, added rebar reinforcement, or replacement fits the project best.
  • Common applications include bridge girders and columns, parking structure beams, and industrial members carrying increased load demands.
  • FRP resists corrosion well because it will not rust, but it carries different fire and UV exposure limits than steel reinforcement, so exposure conditions matter in the specification.
  • A structural engineer needs to evaluate loading, environment, and existing condition before FRP is specified as the repair method, not a general contractor working from a catalog spec.
Penhall Sacramento-16
penhall lax edited-24

Repair, Reinforce, or Replace: The Decision in Front of Structural Engineers

Aging transportation and civil infrastructure rarely reaches a clean choice between fixing a structure in place and leaving it alone. Bridge components, parking structure beams, and industrial members age unevenly. Some sections show real deterioration while the surrounding structure remains sound. Full replacement solves the problem but comes with cost, schedule, and often closure impacts that owners want to avoid when a targeted repair will do the job. Reinforcement with FRP is one of the tools available to close that gap, but it fits some situations far better than others.

What FRP Reinforcement Does and How It Is Applied

FRP systems add tensile or flexural strength to an existing concrete member by bonding fiber material to the surface or embedding it near the surface. Fiber type varies by application: carbon fiber offers the highest strength-to-weight ratio and sees the most use on structural upgrades, glass fiber costs less and works well where strength demands are lower, and aramid fiber sees more specialized use where impact resistance matters.

Common installation methods

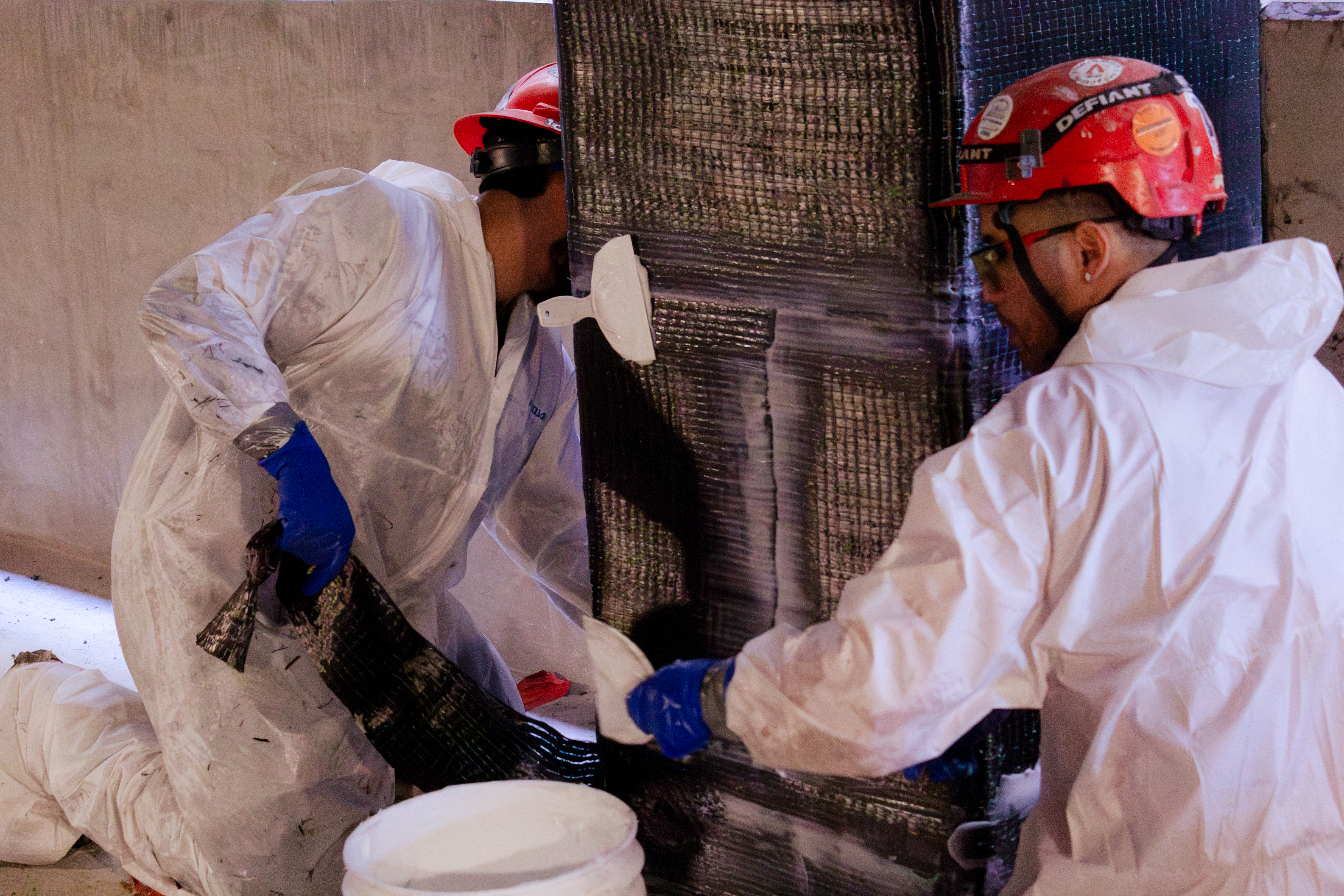

  • Wet layup, where fiber sheets are saturated with resin and applied directly to a prepared concrete surface
  • Near-surface mounted (NSM) bars, where FRP rods are set into grooves cut into the concrete cover and bonded in place
  • Pre-cured FRP strips, which are manufactured off site and bonded to the structure with an adhesive

Surface preparation determines how well an FRP system performs over time. The concrete surface has to be sound, clean, and free of laitance or contamination before bonding, since the strength of the system depends on the bond between the fiber and the substrate holding under load.

When FRP Is the Right Specification

  • A structure needs added load capacity and the underlying concrete is still structurally sound
  • Section loss from corrosion or deterioration is present but has not compromised the member beyond repair
  • The environment involves corrosion exposure where added steel reinforcement would face the same deterioration risk
  • Added weight from a conventional concrete jacket or steel plate would create other problems, such as exceeding a foundation's load capacity
  • Access conditions limit the use of heavier construction methods or require the structure to stay in service during the work

When FRP Is Not the Right Fit

  • The concrete substrate has deteriorated too far for a reliable bond, such as widespread delamination or advanced section loss
  • The application requires a fire rating that FRP resin systems cannot meet without added protection
  • The structure needs a change in geometry or load path that reinforcement alone cannot deliver
  • A cost comparison shows replacement is the more practical choice once schedule, traffic control, and closure costs are factored in

Applications on Aging Transportation and Civil Infrastructure

Bridges make up a large share of FRP reinforcement work, most often on girders and columns that show deterioration but retain enough section to carry an FRP wrap or strip system. Parking structures are another common application, particularly on beams and slabs where corrosion from de-icing chemicals has reduced rebar section without compromising the member outright. Industrial structures see FRP used to reinforce members carrying new or increased load demands, such as equipment additions that raise the design load beyond what the original structure was built for.

Evaluating Load Requirements and Long-Term Performance

  1. Complete a condition assessment to document existing deterioration, section loss, and substrate quality
  2. Establish the current load rating and the target load capacity the structure needs to reach
  3. Evaluate environmental exposure, including moisture, chemical exposure, and temperature range at the site
  4. Have the structural engineer design the FRP system, including fiber type, layup schedule, and anchorage details
  5. Install the system following the manufacturer's specification and the engineer's design
  6. Complete quality assurance testing, such as bond testing, to confirm the installed system performs as designed

Long-term performance depends on getting each of these steps right. An FRP system installed over a substrate that was not properly prepared, or designed without an accurate load assessment, will not deliver the service life the specification assumes.

Choosing a Contractor for FRP Structural Upgrades

FRP installation calls for a contractor with documented experience preparing substrates, installing fiber systems to manufacturer specifications, and coordinating with the structural engineer on design details and field conditions. Project teams should confirm a contractor's history on similar structure types, its quality assurance process for bond testing, and its ability to adjust installation sequencing around active transportation or facility operations.

Penhall supports FRP structural upgrades on bridges, parking structures, and industrial facilities. Learn more about Penhall's Fiber Reinforced Polymer, Bridge Services, and Structural Repair capabilities.

Penhall Sacramento-12
penhall lax edited-43

frequently asked questions

Sequencing Selective Demolition in Occupied Facilities: Engineering Protocols for Structural Isolation and Risk Mitigation

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • What It Is: Selective demolition removes targeted walls, slabs, foundations, or structural sections while the rest of a facility stays fully operational as opposed to full-structure teardown.
  • Scheduling Discipline: Work is sequenced around production shifts, maintenance windows, and shutdown days so the demolition scope never dictates the facility's operating calendar.
  • Containment First: Dust, noise, and vibration are physically isolated from live production, warehouse, or refinery zones using containment barriers, negative-air systems, and vibration-controlled equipment.
  • Trade Coordination: Electrical, mechanical, fire protection, and process piping trades are sequenced into the demolition schedule through lockout/tagout (LOTO) coordination and shared logistics planning.
  • Single-Source Scope: Pairing selective demolition with concrete breaking, removal, and interior demolition services under one contractor reduces schedule risk and eliminates finger-pointing between subs.
  • Integrated Single-Source Execution: Combining subsurface GPR scanning, mechanical scarification, robotic hydrodemolition, perimeter saw-cutting, and structural concrete repair under one contract eliminates trade hand-off delays during tight lane closure windows.

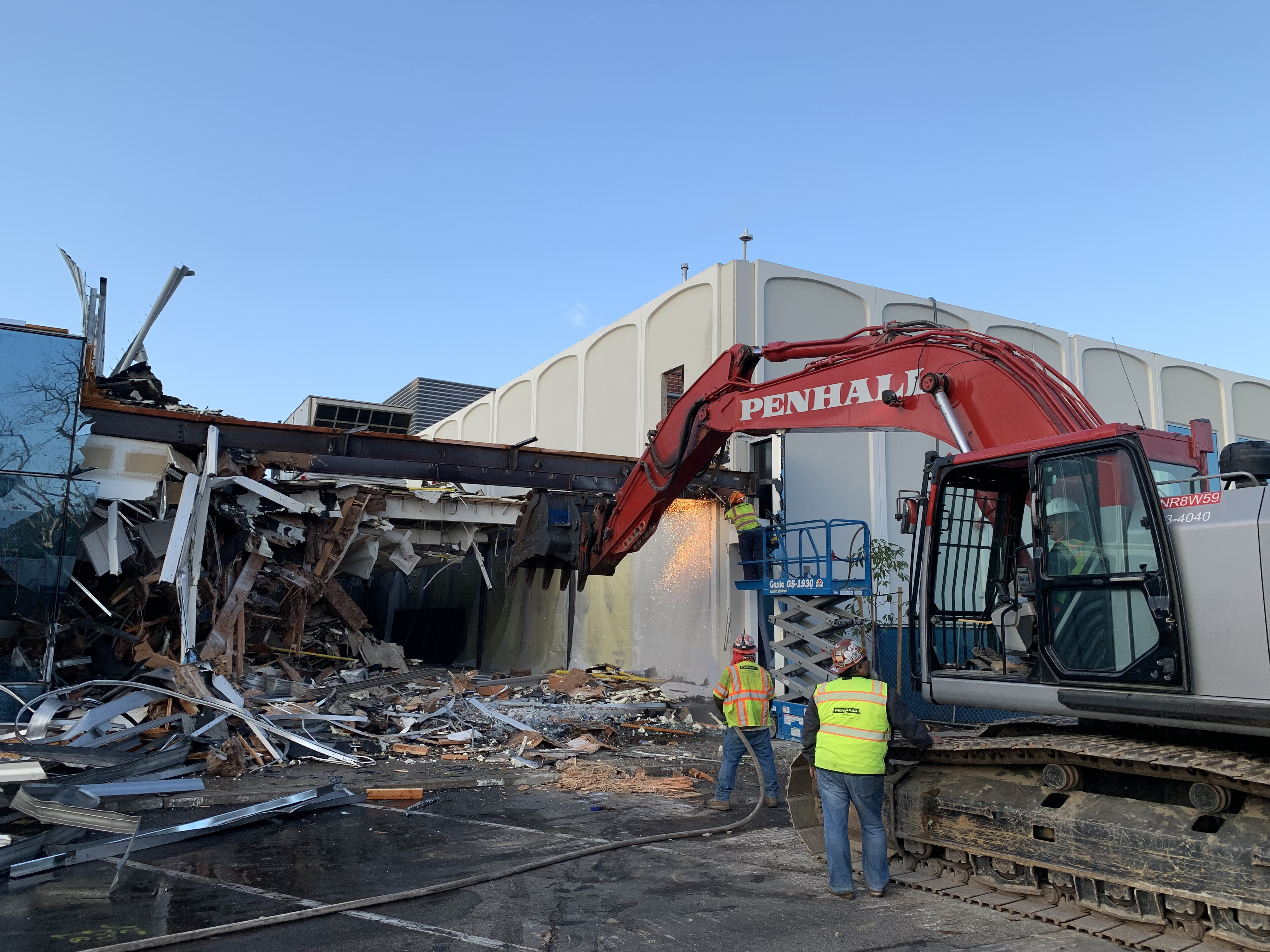

2

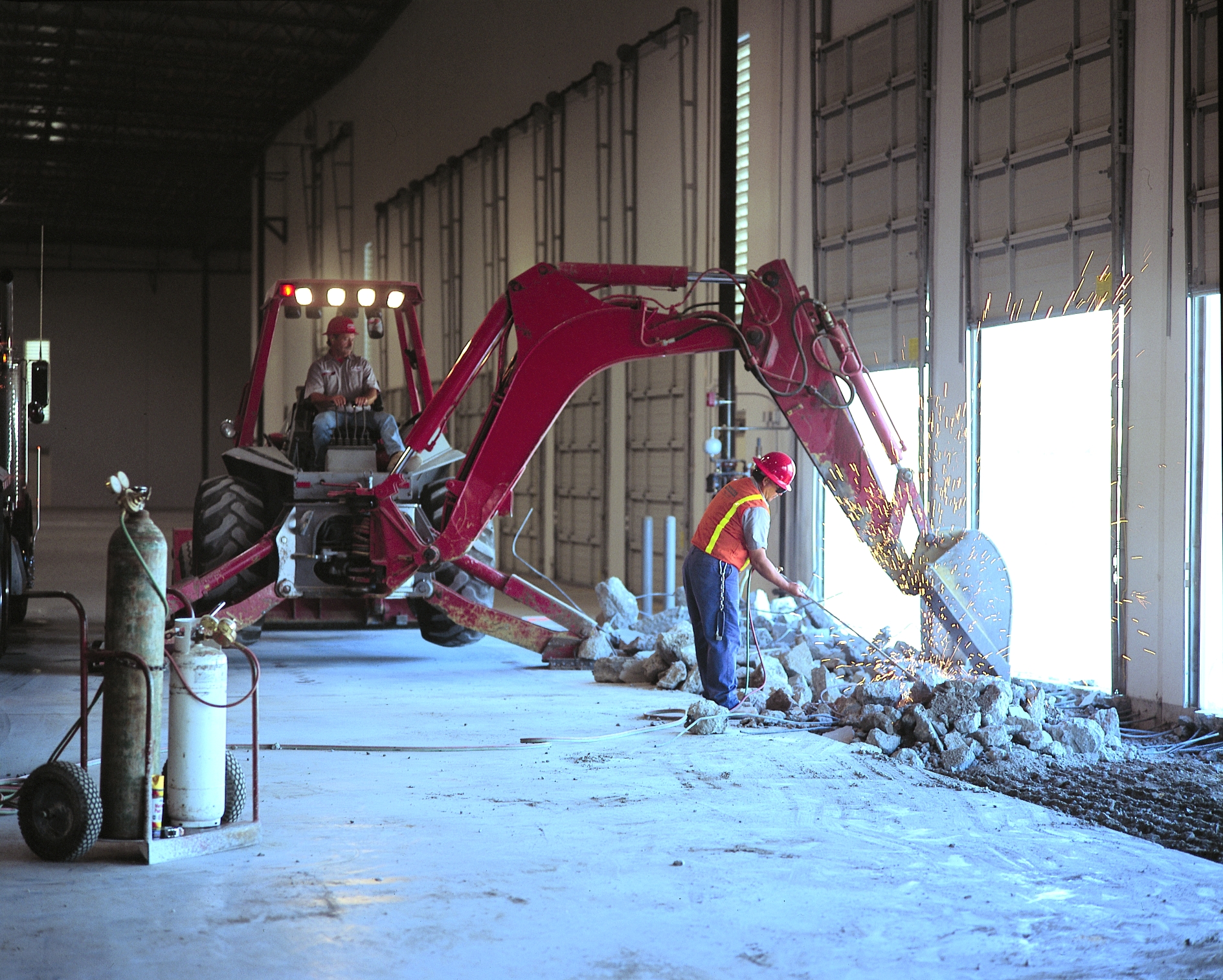

Backhoe and torch

What Is Selective Demolition?

Selective demolition is the removal of specific building components like interior walls, floor slabs, foundations, mezzanines, or structural sections without taking down the surrounding structure or shutting down the rest of the facility. It's the standard approach for any project where a plant, warehouse, distribution center, or refinery needs to modify part of its footprint while operations continue everywhere else.

Unlike full-building demolition, selective demolition is defined by precision and sequencing: cutting and removing only what's scoped, protecting everything adjacent to it, and doing the work in a sequence that fits around the facility's operating schedule instead of forcing a full shutdown.

For GCs and owners, that makes selective demolition less of a "how do we tear this down" problem and more of a "how do we do this without stopping the business" problem. This is where scheduling, containment, and trade coordination become the real scope of work.

The Challenge: Operations Can't Stop

Manufacturing plants, warehouses, and refineries rarely have downtime built into their calendars. A production line stopping for even a few hours can cost far more than the demolition scope itself, and most facilities have zero appetite for an open-ended shutdown while a contractor figures out logistics on the fly.

That reality creates a specific set of constraints GCs and owners have to plan around:

  • No full shutdown available. Demolition has to happen around production shifts, not instead of them.
  • Adjacent operations are sensitive. Dust migrating onto a production line, vibration reaching calibrated equipment, or noise disrupting a warehouse pick schedule can create problems well beyond the demo zone itself.
  • Live utilities and process lines run through or near the work area. Electrical conduit, compressed air, process piping, and fire suppression lines are frequently routed through the exact walls, slabs, or foundations being removed.
  • Other trades are on-site at the same time. Electrical, mechanical, and structural crews often need access to the same area before, during, or immediately after demolition — and scheduling conflicts between trades are one of the most common sources of project delay.

Solving for these constraints is what separates a selective demolition plan that protects the schedule from one that quietly extends it.

Scheduling: Building the Sequence Around Production

Phased teardown work starts with a sequencing plan built around the facility's actual operating calendar. That typically means:

  • Shift and shutdown alignment. Demolition activities are scheduled into planned maintenance windows, off-shift hours, or weekend shutdowns to avoid touching active production time.
  • Zone-by-zone phasing. Rather than opening the entire scope at once, work is broken into phases that isolate one section at a time, letting the rest of the facility continue operating around it.
  • Milestone-based hand-offs. Each phase is scoped with a clear completion point so structural, mechanical, or electrical trades can move in immediately behind demolition without waiting on the full scope to finish.
  • Contingency built into the sequence. Unexpected conditions are accounted for in the schedule logic up front, rather than treated as change orders that blow up the timeline later.

A sequencing plan that accounts for all of this up front is what keeps a phased teardown from turning into an open-ended disruption to the facility's operations.

Containment: Keeping Demolition From Becoming an Operations Problem

In an occupied facility, containment is what keeps demolition from becoming a production, safety, or environmental problem somewhere else in the building. Effective containment strategy typically covers:

  • Physical isolation. Floor-to-ceiling containment barriers separate the work zone from adjacent production floors, warehouse aisles, or process areas.
  • Dust and air quality control. Negative-air systems with HEPA filtration keep airborne dust from migrating into occupied or sensitive zones, which matters as much for OSHA respirable silica compliance as it does for protecting product or equipment nearby.
  • Vibration and noise management. Equipment selection — sawing versus breaking, hydraulic versus pneumatic — is chosen based on how much vibration and noise the adjacent operation can tolerate, not just how fast the demolition crew can move.
  • Housekeeping and debris logistics. Debris routing is planned to avoid crossing active aisles, dock doors, or production paths, so demolition traffic doesn't collide with the facility's day-to-day material flow.

For teams handling the concrete removal piece of a phased teardown, coordinated containment and debris handling is also core to how Penhall's concrete breaking & removal crews approach occupied-site work.

Coordination With Other Trades

Selective demolition rarely happens in isolation. In an active plant, warehouse, or refinery, electrical, mechanical, fire protection, and structural trades are usually staged in around the same footprint — and poor coordination between trades is one of the most common causes of schedule slip on occupied-facility projects.

Getting this right generally means:

  • Utility lockout/tagout (LOTO) coordination. Before any cutting or breaking starts, electrical, mechanical, and process utilities serving the work area are identified, verified, and locked out in coordination with facility maintenance staff.
  • Sequenced trade hand-offs. Structural shoring, electrical rough-in, and mechanical rework are scheduled to follow demolition phases in order, so trades aren't waiting on each other or working in the same footprint simultaneously.
  • Shared site logistics. Laydown areas, access routes, and crane or lift usage are planned jointly across trades to avoid the kind of on-site conflicts that stall multiple crews at once.
  • Single point of communication. A clear line of accountability between the demolition contractor, other trades, and facility operations staff keeps schedule and safety information from getting lost between subcontractors.

Interior Demolition Services for Live Facilities

Much of this phased work falls under interior demolition which includes removing walls, mezzanines, interior slabs, or equipment pads inside a facility that's still operating around the work zone. Interior demolition services carry their own set of constraints beyond structural teardown:

  • Confined work areas. Interior spaces often mean tighter access, lower ceiling clearance, and less room for large equipment.
  • Finish protection. Adjacent flooring, ceilings, and finishes outside the demo scope need to be protected from dust, debris, and incidental damage during removal.
  • Floor load limits. Interior work has to respect the building's live-load and point-load ratings, which can rule out heavier equipment in favor of smaller units.
  • Multi-trade footprint. Interior scopes frequently overlap with MEP rework, making the trade coordination piece above just as relevant indoors as it is on a slab-on-grade teardown.

Application Snapshots

Manufacturing Plants: Selective demolition around production lines is typically phased into scheduled maintenance shutdowns, with equipment foundations and slab sections removed in sequence to avoid disrupting adjacent lines still running.

Warehouses and Distribution Centers: Teardown of racking foundations, dock areas, or interior walls is scheduled around pick/pack cycles and inventory flow, with containment planned to keep dust and debris away from active aisles.

Refineries: Selective demolition near process units requires strict LOTO coordination, hot work permitting, and containment planning to work safely around live piping and process equipment without interrupting adjacent operations.

Why a Single-Source Scope Reduces Risk

Splitting selective demolition, concrete cutting, and concrete removal across multiple subcontractors creates exactly the kind of coordination gaps this article has been describing — different schedules, different site logistics, and no single point of accountability if something goes wrong.

Penhall handles selective demolition alongside demolition and concrete breaking & removal scopes under one contract, which means:

  • One schedule to manage instead of several overlapping ones.
  • One point of contact for facility operations, other trades, and project management.
  • Consistent containment, safety, and site logistics standards across every phase of the teardown.

Planning a Phased Teardown in an Active Facility?

Contact Penhall's team to walk through scheduling, containment, and trade coordination for your next occupied-facility demolition project. Reach our 24/7 national dispatch hotline at 1-800-736-4255, or request a quote to get started.

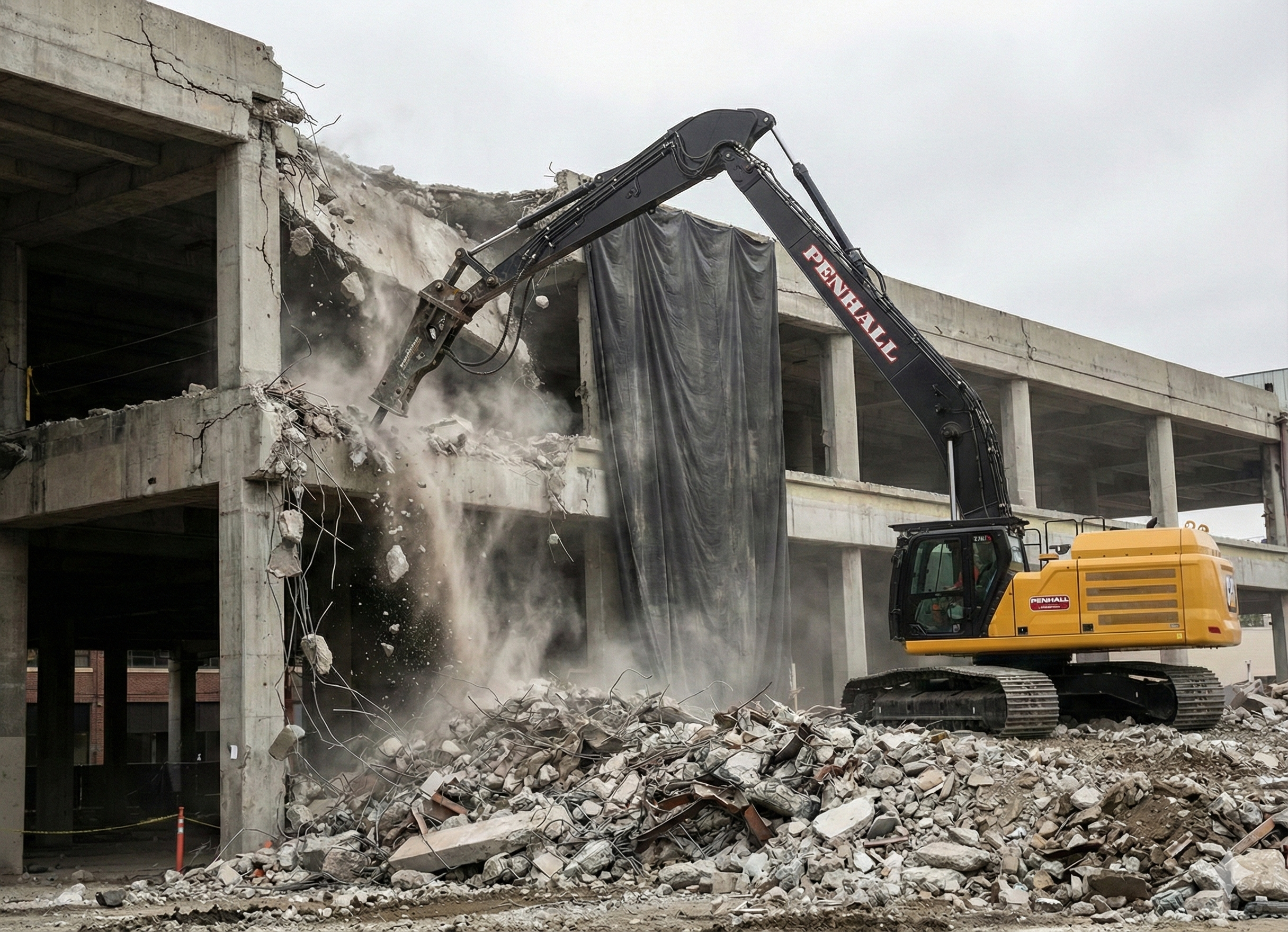

Penhall Demo

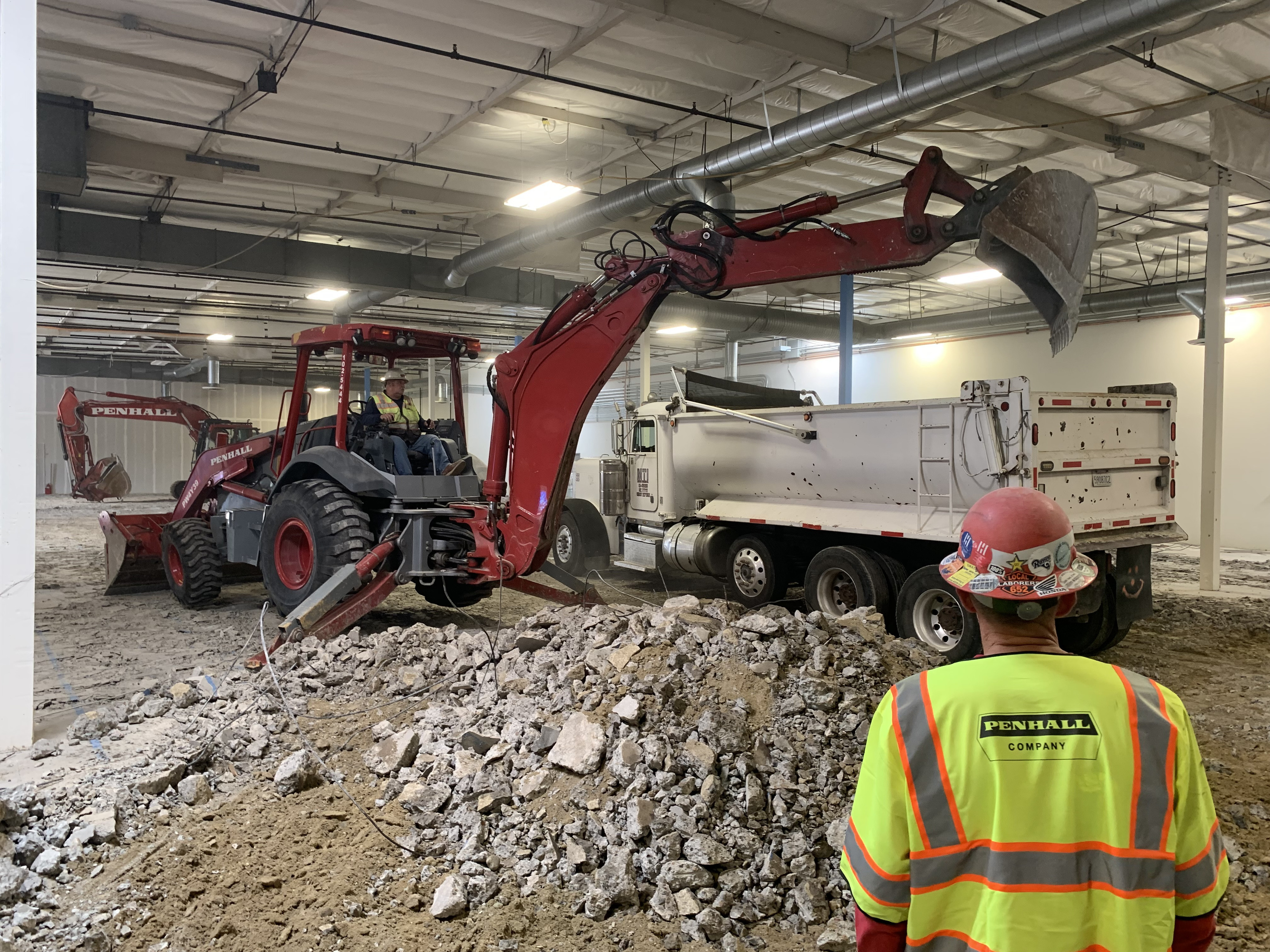

03

frequently asked questions

Rebar Mapping for Structural Assessment on Aging Infrastructure: What Engineers Need to Know

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • GPR rebar scanning locates embedded rebar without demolition or core drilling, preserving structural integrity during assessment.
  • When original drawings are missing, outdated, or inaccurate, rebar mapping provides a reliable basis for repair and retrofit decisions.
  • Rebar depth, spacing, diameter estimates, and cover thickness data all inform corrosion risk evaluation and load capacity analysis.
  • Bridges, parking structures, and industrial facilities each present distinct scanning challenges that require field-experienced crews and proper equipment calibration.
  • Early identification of reinforcement anomalies -- such as congested zones, misplaced bars, or insufficient cover -- can prevent costly structural failures and project overruns.
  • GPR rebar scanning integrates with broader structural assessment workflows, including structural repair planning, concrete rehabilitation, and bridge inspection programs.
truck with view
Penhall GPR Scanning (2)

The Problem with Aging Infrastructure Documentation

When a structural engineer walks onto a 1960s-era parking deck or a bridge built before computerized documentation became standard, the first question is often the same: where is the rebar, and is it where it should be?

Original construction drawings, when they exist at all, may reflect design intent rather than as-built conditions. Reinforcement placement in older structures frequently deviated from plans due to field adjustments, substitutions, or simple human error during placement. Decades of carbonation, chloride ingress, and repeated load cycles compound the uncertainty. Before any repair scope can be defined, engineers need to know what is actually inside the concrete.

Ground penetrating radar (GPR) rebar scanning answers that question without a jackhammer.

What GPR Rebar Scanning Actually Does

GPR works by emitting high-frequency electromagnetic pulses into a concrete substrate and recording the time it takes for those signals to reflect back from embedded objects and interfaces. Rebar, post-tension cables, voids, and layer boundaries all produce distinct return signatures. The result is a subsurface profile that a trained technician can interpret in real time.

In the context of rebar mapping, GPR rebar scanning produces:

  • Rebar location in both plan view and cross-section
  • Depth of cover from the surface to the top of each bar
  • Bar spacing across a given area
  • Estimated bar diameter based on signal amplitude and hyperbola geometry
  • Identification of anomalies such as missing bars, crossed layers, congested zones, or significant section loss

Modern GPR systems used for concrete rebar scanning can resolve features at depths of 12 to 18 inches in typical reinforced concrete, with accuracy sufficient to guide core sample placement, anchor installation, and saw-cut operations.

Why Aging Infrastructure Creates Higher Stakes

Newer construction typically comes with complete, accessible documentation. Design drawings, submittals, pour records, and inspection reports are available digitally and provide a starting point for any structural assessment.

Aging infrastructure is a different situation. Consider what engineers routinely encounter:

Missing or incomplete drawings. Structures built before the 1990s may have paper-only records that were lost, damaged, or never archived. In some cases, only partial plans survived -- covering the original footprint but not subsequent additions or modifications.

Undocumented repairs and modifications. A parking structure that underwent deck patching in 1988 may have had rebar added, removed, or relocated without formal documentation. A bridge with a widened deck may have integrated new reinforcement in ways that are not reflected in the original as-builts.

Deterioration that obscures assessment. Spalled concrete, corroded rebar, and carbonated cover layers change the acoustic and electrical properties of the substrate. Scanning rebar in concrete that has experienced significant deterioration requires technicians who understand how signal return patterns shift in compromised material.

Regulatory and liability pressure. Bridge inspection programs, building department audits, and litigation-related assessments all place a premium on documented, defensible data. Visual inspection alone does not satisfy that standard when subsurface reinforcement is in question.

For all of these reasons, GPR rebar scanning has become a standard component of structural due diligence on assets built before modern documentation practices were widespread.

Three Asset Classes Where Rebar Mapping Is Particularly Valuable

Bridges

Bridge decks are among the most demanding environments for concrete rebar scanning. Chloride exposure from deicing chemicals is the leading cause of reinforcement corrosion in northern climates, and early corrosion is often invisible at the surface. GPR allows engineers to map cover depth across an entire deck, identifying zones where reduced cover creates higher corrosion risk -- and where patch repairs may have introduced rebar at inconsistent depths.

For bridges undergoing load rating analysis, rebar mapping provides input data for moment capacity calculations. A bar that is one inch deeper than assumed in the original analysis can meaningfully affect the calculated capacity of a member. When original drawings are unavailable or suspect, GPR-derived rebar location data becomes the input for finite element models and rating calculations.

Penhall's Bridge Services capabilities include scanning integrated with bridge inspection and repair scopes, providing engineers with a single source for assessment and execution.

Parking Structures

Multi-level parking structures are consistently among the most deterioration-prone concrete assets in urban environments. They combine thin deck slabs, high chloride exposure from vehicle drip, repetitive dynamic loading, and construction methods that, historically, did not always achieve specified cover depths.

Rebar mapping on parking structures is used to:

  • Establish baseline cover depth data for corrosion risk zonation
  • Confirm reinforcement layout before slab saw-cutting or core drilling during drainage system repairs
  • Support repair design by identifying areas of reduced section that may require supplemental reinforcement
  • Document existing conditions before ownership transfer or refinancing that triggers structural review

Because parking decks often have post-tensioned components in addition to mild reinforcement, scanning rebar in concrete in these environments requires equipment and operators capable of distinguishing PT tendons from rebar -- a distinction that matters significantly for saw-cut clearance.

Industrial Facilities

Industrial floors, equipment foundations, and elevated slabs present their own set of challenges. These structures are often heavily loaded, have been modified repeatedly, and may contain embedded conduit, anchor systems, and drainage structures that complicate the reinforcement picture.

For structural repair or new penetration work, engineers and contractors need to know not just where the rebar is, but what else is in the slab. GPR concrete rebar scanning at industrial facilities typically occurs alongside utility mapping, so the subsurface model reflects all embedded elements -- not just reinforcement.

How Rebar Mapping Informs Repair and Retrofit Decisions

The output of a GPR rebar scanning engagement is not just a map. When used correctly, it becomes part of a structural decision chain.

Defining repair boundaries. Engineers specifying full-depth deck replacement or partial-depth patching need to know whether the underlying reinforcement is in a location that allows the repair to be executed as designed. Rebar too close to the surface can require modified saw-cut depths; unanticipated bar clustering can require revised joint layouts.

Evaluating corrosion risk by zone. Cover depth data from scanning rebar in concrete, combined with half-cell potential surveys and chloride content testing, allows engineers to produce a risk-stratified deterioration map. This directly supports the prioritization of repair zones and the sequencing of maintenance budgets.

Supporting retrofit design. When structural upgrades require new anchors, adhesive anchors, or mechanical fasteners, GPR rebar scanning confirms clear zones ahead of drilling. For seismic retrofit work on bridges and industrial structures, rebar mapping verifies that existing reinforcement is sufficient to develop the forces required by new connection elements -- or flags where supplemental reinforcement may be needed.

Reducing contractor risk. A repair contractor working from a GPR-verified rebar map can submit more confident unit prices and avoid change orders driven by subsurface surprises. That has direct value to asset owners managing fixed-budget repair programs.

What to Expect from a GPR Rebar Scanning Engagement

A well-executed concrete rebar scanning scope includes:

Pre-field coordination. Any available drawings, repair records, or prior inspection reports should be reviewed before scanning. Even incomplete documentation improves the accuracy of field interpretation.

Equipment selection. Antenna frequency selection affects both depth penetration and resolution. Assessments focused on cover depth and near-surface rebar typically use higher-frequency antennas (900 MHz to 2.6 GHz). Deeper investigations, such as evaluating post-tension tendons or thick foundations, use lower frequencies with wider beam angles.

Systematic grid scanning. Accurate rebar mapping requires overlapping scan lines in orthogonal directions. Skipping lines or relying on spot checks produces incomplete data and is not appropriate for structural assessment applications.

Data processing and reporting. Raw GPR data requires processing to convert two-way travel time to depth and to produce plan-view rebar maps. Reports should include calibration methodology, depth confidence intervals, and any areas where signal quality was compromised by reinforcement congestion or surface conditions.

Integration with the broader assessment. Rebar scanning data is most useful when it feeds directly into the structural engineer's assessment model, repair specification, or drawing set. The scanning provider and the engineer of record should coordinate on deliverable format requirements before the field work begins.

Limitations Engineers Should Understand

GPR rebar scanning is a powerful assessment tool, but it has real limitations that need to be factored into project planning.

Congested reinforcement. When multiple layers of closely spaced rebar are present, signals from deeper bars can be obscured by shallower ones. This is common in bridge girder flanges and heavily reinforced industrial foundations. In these conditions, GPR provides reliable data on the top mat but may not fully resolve lower layers.

Highly conductive concrete. Salt-contaminated concrete and conductive aggregates absorb electromagnetic energy and reduce effective depth penetration. Scanning results in severely deteriorated or chloride-saturated decks should be interpreted with awareness of signal attenuation effects.

Diameter estimation accuracy. GPR provides estimated bar diameters based on signal amplitude. These estimates are useful for preliminary assessment but should be confirmed by core extraction in critical applications.

The scanning is not the engineering. GPR rebar scanning services produce field data. Converting that data into structural conclusions requires a licensed engineer applying appropriate analysis methods. The scan itself does not constitute a structural assessment.

Connecting Rebar Mapping to a Complete Assessment Program

Rebar mapping rarely stands alone. On aging infrastructure, it typically occurs as part of a larger condition assessment that may include:

  • Visual inspection and distress mapping
  • Delamination surveys by sounding or impact echo
  • Half-cell potential and resistivity testing for corrosion activity
  • Chloride content sampling at multiple depths
  • Core extraction for compressive strength and petrographic analysis

When the full picture is assembled, the structural engineer has a defensible, data-supported basis for repair prioritization, specification development, and cost estimation.

Penhall provides Concrete Scanning, Structural Repair, and Bridge Services as integrated capabilities, which means the assessment data and the repair execution can stay within a single accountable relationship. For asset owners managing aging infrastructure on a defined maintenance budget, that continuity reduces coordination overhead and improves the reliability of scope-to-cost translation.

Penhall LAX GPR-3
penhall lax edited-43

frequently asked questions

Concrete Removal and Breaking: Methods, Equipment, and Applications on Commercial Projects

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Commercial concrete removal requires selecting the right method based on site conditions, proximity to active operations, structural sensitivity, and debris management requirements.
  • The four primary methods used on commercial and industrial projects are hydraulic breaking, robotic demolition, sawing and removal, and selective hand demolition.
  • Utility scanning and coordination must precede any concrete breaking work to protect embedded systems and avoid costly damage or safety incidents.
  • Robotic demolition equipment is the preferred approach in low-headroom, confined, or high-vibration-sensitive environments where full-size equipment cannot safely operate.
  • Sawing and removal produces clean, controlled cuts that protect adjacent structures and allow for precise removal boundaries, making it well suited for phased work in occupied facilities.
  • Project sequencing matters: concrete removal that happens without proper planning for debris handling, utility protection, and replacement phasing leads to schedule overruns and rework.

Why Method Selection Matters on Commercial and Industrial Sites

Concrete removal on a commercial construction or industrial maintenance project is not a uniform task. A warehouse floor replacement, a bridge deck rehabilitation, a parking structure repair, and a manufacturing facility expansion each present different constraints: vibration sensitivity, access limitations, dust and noise restrictions, structural adjacency concerns, and the need to maintain operations in surrounding areas.

Choosing the wrong removal method creates problems that go beyond the breaking work itself. Excessive vibration can damage adjacent structures or sensitive equipment. Uncontrolled demolition near active utilities creates serious risk. Poor sequencing between removal, scanning, and replacement can stall downstream trades and push a project off schedule.

The methods covered here -- hydraulic breaking, robotic demolition, sawing and removal, and selective hand demolition -- each have conditions where they perform well and conditions where they should be avoided. Understanding those distinctions allows general contractors, project owners, and facility managers to plan work that is efficient, safe, and appropriate for the site.

Hydraulic Breaking

Hydraulic breaking is the standard approach for large-scale concrete removal on open commercial and infrastructure projects. Hydraulic breakers, typically mounted on excavators or skid steers, deliver high-impact force through a steel tool driven into the concrete surface. This breaks the slab or structure into manageable sections that can be loaded and removed.

When hydraulic breaking is appropriate:

  • Open sites with sufficient equipment access and overhead clearance
  • Large volume removal where production rate is a priority
  • Exterior work or interior spaces where vibration and noise are not primary constraints
  • Projects where demolition debris will be stockpiled and processed on site

Limitations to account for:

Hydraulic breaking is not precise. It generates significant vibration, noise, and airborne dust. On projects adjacent to occupied spaces, sensitive equipment, or existing structures with limited tolerance for vibration, the method requires careful evaluation or may need to be replaced with an alternative. Debris management also requires planning: broken concrete must be removed from the work zone efficiently to maintain production rates and site safety.

For large commercial demolition projects -- parking lots, industrial slabs, bridge approach slabs -- hydraulic breaking remains one of the most cost-effective and time-efficient options available when site conditions allow.

Robotic Demolition

Robotic demolition equipment has expanded the range of projects where controlled, mechanical concrete breaking is feasible. Remote-controlled demolition robots are compact, low-profile machines that can work in environments inaccessible to standard excavators -- low-headroom parking structures, occupied buildings, confined utility vaults, and spaces where operator safety in close proximity to unstable structure is a concern.

When robotic demolition is appropriate:

  • Interior demolition in occupied or partially occupied facilities
  • Low-headroom environments such as parking garages or basement levels
  • Spaces with ventilation restrictions where full-size diesel equipment is not permitted
  • Projects where precision and reduced vibration are required alongside mechanical breaking force
  • Hazardous environments where remote operation protects workers

Equipment capabilities:

Modern demolition robots can be fitted with hydraulic breakers, crushers, and shear attachments, allowing them to perform a range of tasks beyond simple breaking. Their electric or hydraulic drive systems reduce emissions concerns in enclosed spaces. Operators work at a safe distance from the demolition face, which is a significant advantage in structurally compromised or hazardous environments.

Robotic demolition does not replace high-volume breaking for large open sites, but it fills a critical role in the commercial and industrial project mix where access, safety, or environmental constraints make conventional equipment unsuitable. Learn more about Penhall's demolition services.

Sawing and Removal

Concrete sawing is a controlled cutting process that uses diamond-tipped saw blades or wire to produce precise, straight cuts through concrete slabs, walls, and structural members. On commercial projects, sawing is frequently used to define removal boundaries before breaking begins, or as the primary removal method when the work requires clean edges, minimal vibration, and controlled depth.

Common sawing applications on commercial projects:

  • Defining saw-cut joints at the perimeter of a repair area before slab removal
  • Full-depth slab cutting for section removal and replacement
  • Wall sawing to create openings in concrete walls or barriers
  • Wire sawing for large-section cuts on bridge piers, foundations, or thick structural elements
  • Removing concrete in occupied facilities where vibration and noise must be minimized

Why sawing and removal fits phased commercial work:

Many commercial and industrial facilities cannot shut down completely for concrete replacement. A distribution center, hospital, data center, or manufacturing plant may need concrete work completed in sections, around active operations, without disturbing adjacent areas. Sawing defines clean removal boundaries that protect in-service sections of floor or structure, allows for precise coordination with replacement phasing, and reduces vibration transmission to surrounding areas.

Sawing also produces a cleaner substrate at the repair boundary. In overlay and repair applications, a saw-cut edge performs better than a broken edge because it provides a uniform interface for bonding.

Explore Penhall's concrete breaking and removal capabilities to understand how sawing integrates with broader project scopes.

Selective Hand Demolition

Not every concrete removal task calls for mechanical equipment. In areas with extremely tight access, near sensitive embedded utilities or structural elements, or where the removal must be executed with fine control to protect adjacent work, selective hand demolition with jackhammers, chipping guns, and hand tools is the right approach.

When selective hand demolition is appropriate:

  • Removing concrete immediately around embedded utilities, conduit, or rebar that must be preserved
  • Partial-depth removal such as scarifying a deteriorated surface layer while leaving the substrate intact
  • Areas too confined for even compact robotic equipment
  • Final cleanup and detailing after mechanical breaking
  • Situations where removal boundaries are irregular or defined by structural conditions that require real-time judgment

Integration with other methods:

Selective hand demolition rarely stands alone as the primary method on a commercial project. It typically follows mechanical breaking to clean out corners, remove material adjacent to sensitive elements, or achieve final elevations and edges that equipment cannot reach. On projects where sawing defines the removal boundary, hand demolition may be used to break and remove the cut section in areas where lifting equipment cannot work effectively.

Scanning and Utility Coordination Before Breaking Begins

One of the most consequential steps in any concrete removal project is what happens before the first break. Concrete slabs, walls, and structures on commercial and industrial sites routinely contain embedded post-tension cables, conduit, rebar, water lines, and other utilities that are not visible from the surface and may not be fully documented in as-built drawings.

Ground-penetrating radar (GPR) scanning identifies subsurface conditions before breaking begins. This is not optional on commercial projects -- hitting a post-tension cable during demolition creates an immediate safety hazard and can cause structural distress to adjacent sections. Severing an active conduit delays the project and creates liability. Damaging a waterline in an occupied facility creates far larger problems than the cost of the scan.

Utility coordination with facility managers and applicable utility owners should accompany the scanning process. On projects where as-built documentation is incomplete or where the facility has been modified over time, field scanning is the baseline for safe removal planning.

Proper sequencing looks like this:

  1. Review available as-built drawings and identify known embedded systems
  2. Complete GPR scanning across the removal area
  3. Mark subsurface findings on the slab surface for field reference
  4. Coordinate with facility management and utility owners to confirm findings and establish protection requirements
  5. Define removal boundaries and method selection based on scanning results
  6. Execute breaking work with markings maintained and visible to equipment operators

Skipping or abbreviating this process is one of the most common reasons commercial concrete removal projects encounter unplanned delays and cost overruns.

Sequencing Concrete Removal with the Broader Project Scope

On commercial construction and infrastructure projects, concrete removal is rarely an isolated scope item. It connects to the trades and activities that follow: base preparation, utility rough-in or replacement, formwork, and concrete placement. How removal is sequenced affects everything downstream.

Common sequencing considerations:

Phased removal in occupied facilities. When the facility must remain in operation, removal must be sequenced in sections that maintain safe access and operations. This typically means establishing clear separation between work zones and in-service areas, often using concrete saw cuts as the defining boundary between active and inactive sections.

Debris handling and haul routes. Broken concrete must leave the site. On projects with limited site access or tight schedules, debris staging and haul-out timing must be planned alongside the breaking work itself. Equipment congestion that delays haul-out slows breaking production.

Substrate preparation. Replacement concrete or overlays require a prepared substrate. The removal method affects what preparation is needed. Hydraulic breaking typically leaves a rough, fractured surface that may require additional grinding or scarification. Saw cuts leave clean edges that are ready for repair material. Planning for substrate preparation as part of the removal scope prevents surprises during replacement.

Utility replacement integration. If existing utilities within the slab are being replaced as part of the project, utility rough-in typically follows removal and precedes replacement concrete. Coordinating the removal scope with utility contractors avoids conflicts and rework.

Choosing a Contractor for Commercial Concrete Removal

The scale and complexity of commercial and industrial concrete removal requires a contractor with the equipment, experience, and project management capability to execute the work safely and on schedule. Key factors to evaluate:

  • Experience on projects of similar scale and type (industrial, infrastructure, occupied facilities)
  • In-house scanning capabilities or established scanning coordination processes
  • Equipment fleet that covers the range of methods likely to be required: hydraulic breaking, robotic demolition, sawing, and hand demolition
  • Familiarity with utility coordination requirements and post-tension slab protocols
  • Demonstrated ability to work within facility operating schedules on phased projects

Concrete removal scopes that appear straightforward at the outset frequently encounter conditions -- hidden utilities, post-tension systems, structural constraints -- that require the contractor to adapt. A contractor with limited method capability or experience will have fewer options when conditions change.

Penhall has performed concrete breaking and removal on commercial, industrial, and infrastructure projects across the country. Our crews are equipped for hydraulic breaking, robotic demolition, sawing and removal, and hand demolition, and our scanning capabilities support proper pre-work planning on every project.

Scope definition before assessment is a risk signal. A contractor who quotes square footage without a floor condition assessment is pricing based on assumptions. Those assumptions may be wrong in either direction.

The Bottom Line: Matching the Repair to the Condition

Concrete floor repair in commercial and industrial facilities works best when the decision follows the condition rather than leading it. Patching, resurfacing, and replacement are each the right answer for a specific set of conditions. The cost difference between them is significant, and so is the operational disruption. Getting the assessment right at the front end avoids the more expensive outcome of a repair approach that does not match the actual damage.

Surface preparation is what makes any of these approaches work. The repair material is only as durable as the bond to the substrate beneath it.

For facilities with active deterioration or upcoming floor repair work, early involvement of an experienced contractor produces better scope definition and better outcomes than waiting until conditions become critical.

Learn more about Penhall's capabilities in structural repair and scarifying and shaving.

201_ Demo_ Estancia HS Pool _ Doyle Palmer.jpg2
0607

frequently asked questions

Commercial and Industrial Concrete Floor Repair: When to Patch, Resurface, or Replace

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Concrete floor deterioration in warehouses, manufacturing plants, and distribution centers follows predictable patterns. Early identification of damage type determines the right repair strategy.
  • Patching is appropriate for localized, isolated damage covering less than 25% of the floor surface with no underlying structural issues.
  • Resurfacing works best when damage is widespread but shallow, and when the existing slab retains structural integrity.
  • Full removal and replacement is warranted when the slab has systemic structural failure, extensive subbase problems, or when repeated patching has failed.
  • Surface preparation is the single biggest factor in repair durability. A repair that bonds poorly to the existing slab will fail regardless of the material used.
  • Scarifying and shaving the concrete before any repair restores proper surface profile and removes contamination that prevents bonding.
  • Consulting a qualified contractor early in the evaluation process prevents costly over-engineering or under-engineering of the repair scope.

Why Industrial Concrete Floors Deteriorate

Concrete floors in commercial and industrial settings endure conditions that accelerate deterioration far beyond what residential or light commercial slabs experience. Forklift traffic, heavy point loads from racking systems, chemical spills, thermal cycling, and deicing salt infiltration all work against slab integrity over time.

The result is a spectrum of damage conditions, from minor surface scaling to full-depth cracking and subbase failure. Each condition has a distinct cause, a distinct failure mechanism, and a distinct repair approach. Misidentifying the damage type leads to repairs that fail early, which wastes budget and creates the same safety and operational hazards the repair was meant to eliminate.

Understanding what you are looking at before committing to a scope of work is the foundation of effective concrete floor repair in warehouses, manufacturing plants, and distribution centers.

Evaluating Floor Condition: A Systematic Approach

Before any decision about patching, resurfacing, or replacement, a proper condition assessment is necessary. The assessment should cover four areas.

Surface condition. Look for scaling, spalling, delamination, and surface erosion. These are the most visible signs of deterioration, but surface damage alone does not indicate the depth or severity of the problem.

Crack mapping. Document crack patterns, widths, and locations. Hairline shrinkage cracks are normal and generally non-structural. Cracks wider than 1/4 inch, pattern (map) cracking across large areas, and cracks with vertical displacement (faulting) are more serious indicators of structural movement or subbase failure.

Slab stability. Rocking or deflecting slabs indicate voids beneath the surface. Chain drag testing, where an experienced contractor drags a chain across the floor and listens for hollow sounds, is a simple field method. Ground-penetrating radar provides a more definitive picture of void locations and subbase conditions.

Joint condition. Control joints and expansion joints protect the slab from stress buildup. When joint edges have spalled or the joint filler has failed, wheels and forks impact the unsupported edge repeatedly, causing progressive damage in a pattern called joint edge spalling or joint deterioration.

This assessment produces a damage map of the facility, which forms the basis for the repair decision matrix.

The Decision Framework: Patch, Resurface, or Replace

No single rule covers every situation, but the following criteria provide a starting framework for facility managers and project engineers working through the decision.

When to Patch

Patching is appropriate when:

  • Damage is localized to specific areas representing less than 20 to 25 percent of the total floor surface
  • The surrounding slab is structurally sound with no evidence of voids, subbase failure, or systemic cracking
  • Damage is full-depth in isolated areas, such as around drain openings, column bases, or areas with documented point load history
  • Joint edge spalling is limited in scope and confined to identifiable high-traffic lanes
20210501_031530

Resurfacing is not a structural repair. If applied over a slab with movement, voids, or ongoing cracking, the overlay will reflect the same cracks and fail. A resurfacing decision must be preceded by a subbase assessment and any necessary void filling.

When to Replace

Full removal and replacement is the appropriate scope when:

  • Structural cracking is systemic, with crack widths exceeding 1/4 inch, vertical displacement, or pattern cracking across more than 30 to 40 percent of the slab area.
  • Subbase investigation reveals extensive voids, saturated soils, or compromised base course material.
  • Previous repair attempts have failed repeatedly in the same locations, indicating an underlying condition that surface repairs cannot address.
  • The floor has settled unevenly and cannot be corrected to acceptable flatness tolerances without full-depth work.
  • Chemical contamination has penetrated the full slab depth, preventing adequate bond for any overlay or patch system.

Replacement is the highest-cost option in the short term but is often the most cost-effective decision over the facility's operational life when the underlying conditions make lower-intervention approaches unreliable.

Surface Preparation: The Factor That Determines Repair Success

Surface preparation receives less attention than material selection in most discussions of concrete floor repair, but it has greater influence over long-term repair performance. A premium repair material applied to a poorly prepared substrate will fail. A standard repair material applied to a properly prepared substrate will outperform it significantly.

The goal of surface preparation is twofold: remove all contamination that would inhibit bond, and create a surface profile that gives the repair material mechanical interlock with the existing concrete.

Common Contamination Sources in Industrial Facilities

  • Hydraulic fluid and lubricant infiltration from equipment maintenance
  • Forklift battery acid
  • Curing compounds and surface sealers from previous treatments
  • Laitance (the weak surface layer that forms during concrete placement)
  • Carbonation of the concrete surface from atmospheric exposure

Any of these contaminants, left in place, creates a bond-breaking layer between the old concrete and the repair material. Mechanical preparation removes them.

Mechanical Preparation Methods

Shot blasting is the standard preparation method for large floor areas. It removes the surface layer, exposes aggregate, and creates a consistent surface profile (measured in CSP, or Concrete Surface Profile). Shot blasting is fast, contained, and produces minimal dust with proper equipment.

Scarifying and shaving is used when more aggressive material removal is needed, when existing coatings must be removed, or when high spots must be brought down to restore floor flatness. Scarifying cuts into the concrete surface with rotating carbide cutters, producing a more open, aggressive profile suitable for thick overlays or where the surface layer is significantly contaminated or deteriorated.

Grinding is appropriate for lighter profiling work, seam preparation, or when the objective is a smoother finish profile.

Saw cutting defines the perimeter of patch areas with clean, vertical edges. Feathered edges on patches fail; saw-cut boundaries with a minimum depth of 1/4 inch prevent edge delamination.

Profile Requirements by Repair Type

  • Thin overlays (less than 1/4 inch): CSP 3 to 4 (shot blast or light scarify)
  • Thick overlays (1/4 inch or greater): CSP 5 to 7 (medium to heavy scarify)
  • Full-depth patching: saw cut perimeter, removal to sound concrete, aggregate exposure

Getting surface preparation right requires equipment matched to the scale of the project and operators experienced with industrial floor conditions. Over-preparation (too aggressive a profile for the overlay thickness) and under-preparation (insufficient profile for bond strength) are both common errors.

Special Considerations for Warehouses and Distribution Centers

Warehouse floor repair introduces operational constraints that manufacturing environments may not share. The floor is a production asset. Downtime for repairs has a direct cost in throughput, and repairs that fail within months of installation create recurring disruptions.

Several factors specific to warehouse and distribution center floor repair warrant attention.

Floor flatness tolerance. Modern racking systems and high-reach forklifts operate within strict floor flatness tolerances (F-number systems define these limits). A repair that restores the floor structurally but leaves a high spot or low spot within a racking aisle creates an equipment clearance problem. Grinding and shaving after patching or resurfacing may be required to restore tolerance.

Joint protection. Armored joint systems, where a steel or polymer insert is installed at the joint edge, substantially extend joint life in high-traffic aisles. If joints are being opened for repair, incorporating armored joints is worth evaluating for the aisles with the highest forklift frequency.

Rapid-return materials. Standard repair mortars cure over 24 to 72 hours. Rapid-setting repair materials return to service in as little as one to four hours, which significantly reduces the operational impact of floor repair in active facilities. These materials carry a cost premium, but the tradeoff is often favorable when dock throughput is the constraint.

Staging repair in sections. Large-scale floor repair in operating warehouses is almost always staged in sections, working around active racking and operations. Proper sequencing and coordination with facility operations is as important to project success as the technical execution.

Working With a Qualified Contractor

Industrial concrete floor repair is not a commodity service. The range of damage conditions, substrate variables, repair materials, and preparation requirements means that contractor experience and equipment capability have a direct effect on repair longevity.

When evaluating contractors for warehouse floor repair or industrial concrete floor repair, look for:

  • Direct experience with your facility type (warehouse, manufacturing, food processing, etc.)
  • Access to appropriate surface preparation equipment for the project scale
  • Familiarity with rapid-return material systems if operational constraints are tight
  • A clear assessment process before the scope is defined, not after

Scope definition before assessment is a risk signal. A contractor who quotes square footage without a floor condition assessment is pricing based on assumptions. Those assumptions may be wrong in either direction.

The Bottom Line: Matching the Repair to the Condition

Concrete floor repair in commercial and industrial facilities works best when the decision follows the condition rather than leading it. Patching, resurfacing, and replacement are each the right answer for a specific set of conditions. The cost difference between them is significant, and so is the operational disruption. Getting the assessment right at the front end avoids the more expensive outcome of a repair approach that does not match the actual damage.

Surface preparation is what makes any of these approaches work. The repair material is only as durable as the bond to the substrate beneath it.

For facilities with active deterioration or upcoming floor repair work, early involvement of an experienced contractor produces better scope definition and better outcomes than waiting until conditions become critical.

Learn more about Penhall's capabilities in structural repair and scarifying and shaving.

61276246099__92CC9FDE-2301-4BCF-B83B-C45444193F85
TGC 6

frequently asked questions

Precision Concrete Cutting for Infrastructure & Utility Upgrades

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Commercial concrete cutting and coring are load-bearing decisions, not just demolition tasks. Wrong sequencing damages structural integrity and delays adjacent trades.
  • GPR scanning before any cut or core is the standard that separates responsible contractors from reactive ones. It maps rebar, post-tension cables, conduits, and voids without a single saw blade touching the slab.
  • Horizontal directional drilling installs utility conduit beneath roads, bridges, and waterways without surface disruption, protecting existing infrastructure and eliminating lane closures in many scenarios.
  • Phased execution and underground utility coordination are not optional on infrastructure projects. They are the methodology.
  • Penhall integrates scanning, cutting, coring, and directional drilling under one contractor scope, reducing interface risk across trades.

Why Structural Concrete Repair in Commercial Facilities Is Different from Standard Patching

Structural concrete repair in commercial and industrial settings is an engineering intervention, not a maintenance task. A cosmetic crack in a parking garage fascia and a corroded post-tension cable in the same structure both present as concrete problems, but they occupy entirely different categories of risk, methodology, and urgency.

The deterioration mechanisms that affect commercial and industrial concrete are specific to how those structures are built and how they are used. Post-tensioned floor systems, hollow core slab assemblies, and reinforced industrial foundations each fail through distinct pathways. Applying the wrong repair approach to any of them does not fix the structure. Epoxy injection on a delaminating hollow core unit, or patching over a corroded tendon anchorage zone, conceals the failure while it continues to progress underneath.

Penhall's structural repair work in commercial and industrial environments starts with accurate diagnosis. The repair specification follows from what the structure actually needs, not from what is easiest to apply. That distinction separates structural repair from maintenance patching, and it is the difference between a repair that holds and one that fails on a shorter cycle than the original deterioration.

Post-Tensioned Concrete: What Fails, Why, and What Repair Requires

How Post-Tension Systems Work and Where They Break Down

Post-tensioned concrete uses high-strength steel tendons or cables threaded through ducts cast into the concrete slab or beam. After the concrete reaches design strength, hydraulic jacks tension the cables to predetermined loads, then anchor them at each end. The compressed concrete gains significant flexural capacity as a result. This system is common in parking structures, mid-rise commercial floors, and transfer slabs because it allows longer spans with thinner sections.

The failure modes are specific to this configuration. Corrosion of post-tension cables is the most consequential. In bonded systems, moisture that infiltrates duct failures or inadequate grout fill reaches the high-strength steel, which is more susceptible to hydrogen embrittlement and stress corrosion cracking than conventional rebar. In unbonded systems, the sheathing that protects individual tendons can be damaged during construction, deteriorated by age, or compromised by later construction activity. Coring through an unmarked tendon location is one of the most common causes of sudden, localized strand failure.

Anchorage zone deterioration is a separate but related failure path. The concrete at each bearing point concentrates the tendon load. Corrosion at the anchor plate, deterioration of the pocket cap, or carbonation of the grout can reduce the effective bearing area and cause the tendon to lose tension or, in advanced cases, fail at the anchor.

Diagnosing Post-Tension Failures Before They Become Structural Emergencies

Ground-penetrating radar (GPR) and half-cell potential surveys identify the location of tendons and indicate areas of active corrosion before visible distress appears. Lift-off testing measures actual tendon stress and identifies cables that have lost a meaningful portion of their design prestress. In bonded systems, radiography or borescope inspection of duct grout voids can confirm whether moisture pathways exist.

The diagnostic phase is not optional. Tendon locations must be confirmed before any core drilling, saw cutting, or mechanical anchoring in a post-tensioned floor. Severing a stressed tendon releases energy and can cause immediate local collapse of the slab. Penhall's GPR scanning capabilities exist specifically to protect against this scenario in both planned repair work and emergency response situations.

Repairing Post-Tensioned Concrete: The Technical Requirements

Repair of corroded or failed post-tension cables in occupied commercial buildings requires careful planning because the structural system is continuous. Replacing a failed tendon section means cutting back concrete to expose the duct, removing the damaged strand, threading a replacement or coupling to an intact section, re-tensioning to design load, and restoring the concrete. Each step affects the stress state of adjacent bays.

Anchorage zone repairs involve removing deteriorated concrete to the depth of sound material, treating corroded anchor hardware, and placing high-strength repair mortar or concrete to restore bearing. Where the tendon has lost stress and replacement is not feasible, supplemental post-tensioning or supplemental mild steel reinforcement in a new concrete overlay may restore design capacity.

This work requires close coordination with a structural engineer of record. Penhall operates as the execution contractor, providing the concrete removal, scanning, and placement capabilities, working from repair drawings that specify the structural requirements for each intervention.

Hollow Core Slab Repair: Understanding a Frequently Misdiagnosed System

What Hollow Core Slabs Are and How They Carry Load

Hollow core slabs are precast prestressed concrete units manufactured with longitudinal voids running the length of each plank. The voids reduce dead load while retaining depth for flexural stiffness. Hollow core systems are standard in commercial office buildings, parking structures, multi-family construction, and industrial mezzanines because they can be fabricated to long spans, delivered to site, and erected quickly.

The structural behavior of a hollow core slab depends on the integrity of the prestressing strands at the bottom of each unit, the topping slab where one exists, and the grout keys at the longitudinal joints between planks. Each of these elements deteriorates through different mechanisms, and a repair approach that addresses one without accounting for the others will not restore full system performance.

How Hollow Core Units Fail in Commercial and Industrial Buildings

Strand corrosion is the primary structural failure mechanism. Because the prestressing strands in hollow core units carry the full flexural tension, even partial section loss from corrosion significantly reduces load capacity. Moisture access occurs through joint grout failures, deteriorated topping slabs, or penetrations that were not properly sealed. In parking structures, chloride-laden water migrating down through failed waterproofing reaches the planks and initiates active corrosion.

Longitudinal joint failures are a less dramatic but important performance issue. When grout keys between planks crack or erode, the load-sharing behavior of the system degrades and individual planks carry higher-than-designed loads. In industrial settings with heavy point loads from racking systems or forklifts, this redistribution can be significant.

End bearing failures occur when hollow core units do not have sufficient bearing length on their support, when the support material deteriorates, or when thermal movement causes the unit to creep off its bearing. This failure mode often presents as a diagonal crack near the support end.

Concrete in the webs between voids can spall or crack without obvious external symptoms. Internal delamination is not visible from the underside and requires destructive investigation or specialized scanning to detect.

Repair Methodology for Hollow Core Systems

Repair of hollow core slabs depends heavily on the extent and location of deterioration. Where damage is limited to the topping slab or grout keys, removing the failed material and replacing it with a properly bonded repair mortar or a new topping can restore system integrity. Where strand corrosion is active and the section has lost structural capacity, the plank requires either removal and replacement or supplemental structural reinforcement.

Partial plank replacement is more common in commercial buildings than full-floor replacement. It involves temporary shoring of adjacent structure, saw cutting to isolate the affected unit or section, carefully removing the damaged plank without disturbing adjacent bays, and installing a new precast unit or cast-in-place replacement section with appropriate connections to the existing system.

Penhall's selective demolition capabilities are directly relevant here. Removing a hollow core plank in an occupied building without damaging adjacent units, the supporting structure below, or the finishes above requires controlled saw cutting and specialized lifting. The precision required is the same precision that Penhall brings to any selective demolition project in occupied or sensitive environments.

Industrial Concrete Repair: Foundation and Floor Systems Under Sustained Attack

What Makes Industrial Concrete Deterioration Different

Industrial facilities subject their concrete floors, foundations, slabs-on-grade, and containment structures to conditions that commercial buildings do not experience. Chemical attack from process fluids, oils, and cleaning agents degrades the cement matrix from the surface inward. Thermal cycling in facilities with high-temperature processes creates expansion and contraction stresses beyond normal service ranges. Vibration and impact loading from heavy equipment accelerates fatigue cracking. Hydrostatic pressure in below-grade slabs can cause uplift, delamination, or steady moisture infiltration that softens the slab and initiates reinforcement corrosion.

Industrial concrete repair cannot be specified from a product datasheet as a result. The repair material and method must be selected based on the specific deterioration mechanism present, the chemistry of the attacking agents, the structural loads that will continue after repair, and the operational constraints of the facility.

Foundation Deterioration in Industrial Settings

Industrial foundations often support equipment with significant dynamic loads: presses, compressors, turbines, and conveyor systems. Concrete under sustained vibration develops fatigue cracking that propagates differently than static-load cracking. Grout pads under equipment base plates can deteriorate through chemical contamination or abrasion, transferring loads in an uneven pattern that damages the concrete below.

Repair of industrial foundations involves removing contaminated or deteriorated concrete to sound material, cleaning and preparing the reinforcing steel, placing a cementitious or epoxy repair mortar matched to the load and chemical exposure conditions, and restoring equipment alignment. Where the foundation has lost section, structural analysis may require supplemental reinforcement or a new concrete cap.

Slab-on-Grade Repair in High-Load Industrial Environments

Industrial slabs-on-grade fail through joint deterioration, subgrade settlement, and surface abrasion, but also through more serious mechanisms including reinforcement corrosion from below and full-depth cracking from overloading or inadequate design for changes in use. Repair strategy depends on root cause. A surface repair applied over an actively settling subgrade will fail. A full-depth slab repair placed without addressing drainage or waterproofing will re-saturate.

Penhall's concrete removal capabilities allow precise full-depth removal of failed slab sections for replacement, controlled joint reconstruction, and preparation of repair areas to the standard profiles required for bonded repair systems. The removal work is as technical as the repair work; removing only what needs to come out, without damaging sound adjacent material or embedded infrastructure, is a precision requirement, not an approximation.

Grounding Grid Integrity and Structural Concrete Repair

Why Grounding Systems Are a Structural Repair Consideration

In industrial facilities including power generation plants, substations, manufacturing facilities, and data centers, a buried grounding grid connects electrical equipment to earth ground through a network of conductors embedded in or below the concrete. This grounding grid is safety-critical infrastructure. A compromised grounding system creates shock hazards, equipment damage risk, and potential regulatory non-compliance.

Structural concrete repair work in these environments intersects with grounding grid integrity in specific ways. Core drilling, saw cutting, and mechanical anchoring all have the potential to sever grounding conductors embedded in or passing through concrete slabs and foundations. In facilities where the grounding grid was installed during original construction and documentation is incomplete, the exact routing of conductors may not be known.

Where corrosion is the deterioration mechanism affecting the concrete, the same electrochemical conditions attacking the reinforcing steel may also be affecting buried grounding conductors. Identifying areas of active corrosion during the repair investigation phase should prompt a review of grounding grid continuity in the same zones.

Managing Grounding Grid Risk During Concrete Repair Projects

Pre-work scanning of concrete in industrial facilities where grounding grids are present is a direct safety requirement. GPR scanning identifies metallic conductors, including grounding grid elements, before cutting or drilling begins. In facilities where grid documentation exists, field verification against as-built drawings is standard practice.

Repair work that requires removal of concrete containing grounding conductors must include a plan for temporary grounding continuity during the work and permanent reconnection that meets the facility's electrical engineering requirements. Penhall coordinates with the facility's electrical engineering team on these requirements as a standard part of pre-work planning for industrial concrete repair in affected facility types.

The grounding grid is one of several embedded infrastructure systems, alongside post-tension cables, conduit runs, and piping sleeves, that make industrial concrete repair fundamentally different from work in simpler structures. Managing all of them accurately is a project management and technical competency requirement, not a safety checkbox alone.

Selective Demolition as a Structural Repair Strategy

Why What You Remove Matters

Selective demolition in structural repair is not simply making room for new material. The removal process itself determines whether the repair will perform. Over-removal damages adjacent sound concrete and creates stress concentrations at repair boundaries. Under-removal leaves deteriorated material that will continue to degrade and undermine the repair from within.

The standard for concrete removal in structural repair is removal to sound concrete, confirmed by hammer sounding, pull-off testing, or petrographic analysis where the failure mechanism warrants it. In post-tension and hollow core systems, the geometry of the removal must also account for the structural consequences of removing restraint from a pre-stressed system. That calculation belongs in the repair specification, not in field decision-making.

Penhall's selective demolition work in structural repair contexts uses hydrodemolition, saw cutting, and mechanical breaking depending on the geometry of the repair area, the required boundary profile, and the sensitivity of adjacent structure. Hydrodemolition uses high-pressure water to remove deteriorated material while leaving sound concrete and intact reinforcing steel largely undisturbed. This produces a better repair bond surface than mechanical methods in many applications and reduces micro-cracking at the repair perimeter.

Occupied Facility Constraints

Commercial and industrial concrete repair almost always occurs in partially or fully occupied facilities. Operational shutdowns for concrete repair work carry significant cost and business disruption. Repair sequences must be phased to maintain structural continuity throughout the work, temporary shoring must be adequate for the loads that will be on the structure during each phase, and construction activity must be managed to protect occupants, operations, and adjacent structure.

Penhall's experience in occupied commercial and industrial facilities, where the operational context is as much a project constraint as the structural one, is a direct differentiator in complex structural repair engagements.

When to Escalate from Maintenance Repair to Structural Assessment

The indicators that a concrete repair situation has crossed from maintenance to structural concern include:

  • •Cracks that are wide, actively growing, or accompanied by differential deflection between adjacent structural elements
  • •Any sign of post-tension tendon failure: sudden cracking in a fan pattern, visible tendon exposure, or audible wire breaks
  • •Hollow core planks with visible longitudinal cracking along the prestress strand lines, significant deflection, or evidence of end bearing movement
  • •Spalling or delamination over a large area of an industrial foundation or floor under equipment loads
  • •Recurring repairs in the same location after multiple repair cycles
  • •Any structural concern in a post-tensioned or prestressed system that cannot be fully explained by available documentation

In all of these situations, the appropriate first step is a structural assessment by a licensed structural engineer before repair work begins. Penhall works alongside engineering teams on structural repair projects, providing the technical concrete removal, scanning, and construction capabilities that translate a repair specification into executed work.

frequently asked questions

Structural Concrete Repair in Commercial & Industrial Facilities

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Post-tension cable failures are often invisible until significant structural capacity has already been lost; early detection through specialized scanning prevents catastrophic outcomes.
  • Hollow core slab systems require a different repair methodology than cast-in-place concrete; misdiagnosis leads to ineffective repairs and recurring failures.
  • Industrial concrete foundations face unique deterioration mechanisms including chemical attack, dynamic loading, and hydrostatic pressure that standard repair protocols do not address.
  • Selective demolition and concrete removal are active parts of a structural repair strategy, not just preparatory steps; what you remove matters as much as what you replace.
  • Grounding grid integrity is a structural concern in industrial facilities, not only an electrical one; concrete repair work that disrupts buried grounding systems creates compounding liability.
  • Repair cost trajectories accelerate sharply once deterioration crosses structural thresholds; the window for targeted intervention is narrower than most facility managers expect.

Why Structural Concrete Repair in Commercial Facilities Is Different from Standard Patching

Structural concrete repair in commercial and industrial settings is an engineering intervention, not a maintenance task. A cosmetic crack in a parking garage fascia and a corroded post-tension cable in the same structure both present as concrete problems, but they occupy entirely different categories of risk, methodology, and urgency.

The deterioration mechanisms that affect commercial and industrial concrete are specific to how those structures are built and how they are used. Post-tensioned floor systems, hollow core slab assemblies, and reinforced industrial foundations each fail through distinct pathways. Applying the wrong repair approach to any of them does not fix the structure. Epoxy injection on a delaminating hollow core unit, or patching over a corroded tendon anchorage zone, conceals the failure while it continues to progress underneath.

Penhall's structural repair work in commercial and industrial environments starts with accurate diagnosis. The repair specification follows from what the structure actually needs, not from what is easiest to apply. That distinction separates structural repair from maintenance patching, and it is the difference between a repair that holds and one that fails on a shorter cycle than the original deterioration.

Post-Tensioned Concrete: What Fails, Why, and What Repair Requires

How Post-Tension Systems Work and Where They Break Down

Post-tensioned concrete uses high-strength steel tendons or cables threaded through ducts cast into the concrete slab or beam. After the concrete reaches design strength, hydraulic jacks tension the cables to predetermined loads, then anchor them at each end. The compressed concrete gains significant flexural capacity as a result. This system is common in parking structures, mid-rise commercial floors, and transfer slabs because it allows longer spans with thinner sections.

The failure modes are specific to this configuration. Corrosion of post-tension cables is the most consequential. In bonded systems, moisture that infiltrates duct failures or inadequate grout fill reaches the high-strength steel, which is more susceptible to hydrogen embrittlement and stress corrosion cracking than conventional rebar. In unbonded systems, the sheathing that protects individual tendons can be damaged during construction, deteriorated by age, or compromised by later construction activity. Coring through an unmarked tendon location is one of the most common causes of sudden, localized strand failure.

Anchorage zone deterioration is a separate but related failure path. The concrete at each bearing point concentrates the tendon load. Corrosion at the anchor plate, deterioration of the pocket cap, or carbonation of the grout can reduce the effective bearing area and cause the tendon to lose tension or, in advanced cases, fail at the anchor.

Diagnosing Post-Tension Failures Before They Become Structural Emergencies

Ground-penetrating radar (GPR) and half-cell potential surveys identify the location of tendons and indicate areas of active corrosion before visible distress appears. Lift-off testing measures actual tendon stress and identifies cables that have lost a meaningful portion of their design prestress. In bonded systems, radiography or borescope inspection of duct grout voids can confirm whether moisture pathways exist.

The diagnostic phase is not optional. Tendon locations must be confirmed before any core drilling, saw cutting, or mechanical anchoring in a post-tensioned floor. Severing a stressed tendon releases energy and can cause immediate local collapse of the slab. Penhall's GPR scanning capabilities exist specifically to protect against this scenario in both planned repair work and emergency response situations.

Repairing Post-Tensioned Concrete: The Technical Requirements

Repair of corroded or failed post-tension cables in occupied commercial buildings requires careful planning because the structural system is continuous. Replacing a failed tendon section means cutting back concrete to expose the duct, removing the damaged strand, threading a replacement or coupling to an intact section, re-tensioning to design load, and restoring the concrete. Each step affects the stress state of adjacent bays.

Anchorage zone repairs involve removing deteriorated concrete to the depth of sound material, treating corroded anchor hardware, and placing high-strength repair mortar or concrete to restore bearing. Where the tendon has lost stress and replacement is not feasible, supplemental post-tensioning or supplemental mild steel reinforcement in a new concrete overlay may restore design capacity.

This work requires close coordination with a structural engineer of record. Penhall operates as the execution contractor, providing the concrete removal, scanning, and placement capabilities, working from repair drawings that specify the structural requirements for each intervention.

Hollow Core Slab Repair: Understanding a Frequently Misdiagnosed System

What Hollow Core Slabs Are and How They Carry Load

Hollow core slabs are precast prestressed concrete units manufactured with longitudinal voids running the length of each plank. The voids reduce dead load while retaining depth for flexural stiffness. Hollow core systems are standard in commercial office buildings, parking structures, multi-family construction, and industrial mezzanines because they can be fabricated to long spans, delivered to site, and erected quickly.

The structural behavior of a hollow core slab depends on the integrity of the prestressing strands at the bottom of each unit, the topping slab where one exists, and the grout keys at the longitudinal joints between planks. Each of these elements deteriorates through different mechanisms, and a repair approach that addresses one without accounting for the others will not restore full system performance.

How Hollow Core Units Fail in Commercial and Industrial Buildings

Strand corrosion is the primary structural failure mechanism. Because the prestressing strands in hollow core units carry the full flexural tension, even partial section loss from corrosion significantly reduces load capacity. Moisture access occurs through joint grout failures, deteriorated topping slabs, or penetrations that were not properly sealed. In parking structures, chloride-laden water migrating down through failed waterproofing reaches the planks and initiates active corrosion.

Longitudinal joint failures are a less dramatic but important performance issue. When grout keys between planks crack or erode, the load-sharing behavior of the system degrades and individual planks carry higher-than-designed loads. In industrial settings with heavy point loads from racking systems or forklifts, this redistribution can be significant.

End bearing failures occur when hollow core units do not have sufficient bearing length on their support, when the support material deteriorates, or when thermal movement causes the unit to creep off its bearing. This failure mode often presents as a diagonal crack near the support end.

Concrete in the webs between voids can spall or crack without obvious external symptoms. Internal delamination is not visible from the underside and requires destructive investigation or specialized scanning to detect.

Repair Methodology for Hollow Core Systems

Repair of hollow core slabs depends heavily on the extent and location of deterioration. Where damage is limited to the topping slab or grout keys, removing the failed material and replacing it with a properly bonded repair mortar or a new topping can restore system integrity. Where strand corrosion is active and the section has lost structural capacity, the plank requires either removal and replacement or supplemental structural reinforcement.

Partial plank replacement is more common in commercial buildings than full-floor replacement. It involves temporary shoring of adjacent structure, saw cutting to isolate the affected unit or section, carefully removing the damaged plank without disturbing adjacent bays, and installing a new precast unit or cast-in-place replacement section with appropriate connections to the existing system.

Penhall's selective demolition capabilities are directly relevant here. Removing a hollow core plank in an occupied building without damaging adjacent units, the supporting structure below, or the finishes above requires controlled saw cutting and specialized lifting. The precision required is the same precision that Penhall brings to any selective demolition project in occupied or sensitive environments.

Industrial Concrete Repair: Foundation and Floor Systems Under Sustained Attack

What Makes Industrial Concrete Deterioration Different

Industrial facilities subject their concrete floors, foundations, slabs-on-grade, and containment structures to conditions that commercial buildings do not experience. Chemical attack from process fluids, oils, and cleaning agents degrades the cement matrix from the surface inward. Thermal cycling in facilities with high-temperature processes creates expansion and contraction stresses beyond normal service ranges. Vibration and impact loading from heavy equipment accelerates fatigue cracking. Hydrostatic pressure in below-grade slabs can cause uplift, delamination, or steady moisture infiltration that softens the slab and initiates reinforcement corrosion.

Industrial concrete repair cannot be specified from a product datasheet as a result. The repair material and method must be selected based on the specific deterioration mechanism present, the chemistry of the attacking agents, the structural loads that will continue after repair, and the operational constraints of the facility.

Foundation Deterioration in Industrial Settings

Industrial foundations often support equipment with significant dynamic loads: presses, compressors, turbines, and conveyor systems. Concrete under sustained vibration develops fatigue cracking that propagates differently than static-load cracking. Grout pads under equipment base plates can deteriorate through chemical contamination or abrasion, transferring loads in an uneven pattern that damages the concrete below.

Repair of industrial foundations involves removing contaminated or deteriorated concrete to sound material, cleaning and preparing the reinforcing steel, placing a cementitious or epoxy repair mortar matched to the load and chemical exposure conditions, and restoring equipment alignment. Where the foundation has lost section, structural analysis may require supplemental reinforcement or a new concrete cap.

Slab-on-Grade Repair in High-Load Industrial Environments

Industrial slabs-on-grade fail through joint deterioration, subgrade settlement, and surface abrasion, but also through more serious mechanisms including reinforcement corrosion from below and full-depth cracking from overloading or inadequate design for changes in use. Repair strategy depends on root cause. A surface repair applied over an actively settling subgrade will fail. A full-depth slab repair placed without addressing drainage or waterproofing will re-saturate.

Penhall's concrete removal capabilities allow precise full-depth removal of failed slab sections for replacement, controlled joint reconstruction, and preparation of repair areas to the standard profiles required for bonded repair systems. The removal work is as technical as the repair work; removing only what needs to come out, without damaging sound adjacent material or embedded infrastructure, is a precision requirement, not an approximation.

Grounding Grid Integrity and Structural Concrete Repair

Why Grounding Systems Are a Structural Repair Consideration

In industrial facilities including power generation plants, substations, manufacturing facilities, and data centers, a buried grounding grid connects electrical equipment to earth ground through a network of conductors embedded in or below the concrete. This grounding grid is safety-critical infrastructure. A compromised grounding system creates shock hazards, equipment damage risk, and potential regulatory non-compliance.

Structural concrete repair work in these environments intersects with grounding grid integrity in specific ways. Core drilling, saw cutting, and mechanical anchoring all have the potential to sever grounding conductors embedded in or passing through concrete slabs and foundations. In facilities where the grounding grid was installed during original construction and documentation is incomplete, the exact routing of conductors may not be known.

Where corrosion is the deterioration mechanism affecting the concrete, the same electrochemical conditions attacking the reinforcing steel may also be affecting buried grounding conductors. Identifying areas of active corrosion during the repair investigation phase should prompt a review of grounding grid continuity in the same zones.

Managing Grounding Grid Risk During Concrete Repair Projects

Pre-work scanning of concrete in industrial facilities where grounding grids are present is a direct safety requirement. GPR scanning identifies metallic conductors, including grounding grid elements, before cutting or drilling begins. In facilities where grid documentation exists, field verification against as-built drawings is standard practice.

Repair work that requires removal of concrete containing grounding conductors must include a plan for temporary grounding continuity during the work and permanent reconnection that meets the facility's electrical engineering requirements. Penhall coordinates with the facility's electrical engineering team on these requirements as a standard part of pre-work planning for industrial concrete repair in affected facility types.

The grounding grid is one of several embedded infrastructure systems, alongside post-tension cables, conduit runs, and piping sleeves, that make industrial concrete repair fundamentally different from work in simpler structures. Managing all of them accurately is a project management and technical competency requirement, not a safety checkbox alone.

Selective Demolition as a Structural Repair Strategy

Why What You Remove Matters

Selective demolition in structural repair is not simply making room for new material. The removal process itself determines whether the repair will perform. Over-removal damages adjacent sound concrete and creates stress concentrations at repair boundaries. Under-removal leaves deteriorated material that will continue to degrade and undermine the repair from within.

The standard for concrete removal in structural repair is removal to sound concrete, confirmed by hammer sounding, pull-off testing, or petrographic analysis where the failure mechanism warrants it. In post-tension and hollow core systems, the geometry of the removal must also account for the structural consequences of removing restraint from a pre-stressed system. That calculation belongs in the repair specification, not in field decision-making.

Penhall's selective demolition work in structural repair contexts uses hydrodemolition, saw cutting, and mechanical breaking depending on the geometry of the repair area, the required boundary profile, and the sensitivity of adjacent structure. Hydrodemolition uses high-pressure water to remove deteriorated material while leaving sound concrete and intact reinforcing steel largely undisturbed. This produces a better repair bond surface than mechanical methods in many applications and reduces micro-cracking at the repair perimeter.

Occupied Facility Constraints

Commercial and industrial concrete repair almost always occurs in partially or fully occupied facilities. Operational shutdowns for concrete repair work carry significant cost and business disruption. Repair sequences must be phased to maintain structural continuity throughout the work, temporary shoring must be adequate for the loads that will be on the structure during each phase, and construction activity must be managed to protect occupants, operations, and adjacent structure.

Penhall's experience in occupied commercial and industrial facilities, where the operational context is as much a project constraint as the structural one, is a direct differentiator in complex structural repair engagements.

When to Escalate from Maintenance Repair to Structural Assessment

The indicators that a concrete repair situation has crossed from maintenance to structural concern include:

  • •Cracks that are wide, actively growing, or accompanied by differential deflection between adjacent structural elements
  • •Any sign of post-tension tendon failure: sudden cracking in a fan pattern, visible tendon exposure, or audible wire breaks
  • •Hollow core planks with visible longitudinal cracking along the prestress strand lines, significant deflection, or evidence of end bearing movement
  • •Spalling or delamination over a large area of an industrial foundation or floor under equipment loads
  • •Recurring repairs in the same location after multiple repair cycles
  • •Any structural concern in a post-tensioned or prestressed system that cannot be fully explained by available documentation

In all of these situations, the appropriate first step is a structural assessment by a licensed structural engineer before repair work begins. Penhall works alongside engineering teams on structural repair projects, providing the technical concrete removal, scanning, and construction capabilities that translate a repair specification into executed work.

frequently asked questions

GPR Utility Locating: How It Fits Into Subsurface Utility Locating and Mapping

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Ground penetrating radar utility locating is one method within a broader subsurface utility investigation workflow. It excels at locating non-conductive utilities that electromagnetic induction cannot detect, including plastic gas lines and PVC conduit.
  • GPR does not positively identify every utility in the ground on its own. Soil conditions, depth, utility material, and signal interference all affect data quality and require trained interpretation.
  • The most accurate subsurface utility locating programs layer GPR with electromagnetic (EM) methods, vacuum excavation confirmation, and existing record review.
  • Proper site preparation, antenna frequency selection, and grid pattern scanning meaningfully improve GPR data reliability.
  • Quality Level B subsurface utility location work, which includes both EM and GPR, produces the type of documented output required for ASCE 38 design-level projects.
scan w truck outside
scan wall

What Ground Penetrating Radar Utility Locating Actually Does

GPR maps subsurface anomalies based on material contrast. It detects what EM cannot, but it requires skilled interpretation and site-specific calibration to produce reliable data.

Ground penetrating radar utility locating works by transmitting radio wave energy pulses into the ground and recording the reflections that return when those waves encounter a change in material density. A buried pipe, conduit, or void creates a reflective boundary that appears on the GPR screen as a hyperbolic arc. A trained technician reads those arcs, accounts for signal velocity in the specific soil type present, and marks the approximate depth and horizontal position of the anomaly.

The fundamental output of a GPR scan is a two-dimensional cross-section of the subsurface called a radargram. On a radargram, depth is represented on the vertical axis and horizontal distance traveled is on the horizontal axis. Each hyperbolic shape represents a point-source reflection, typically a pipe, cable, or conduit crossing the scan line perpendicularly. The apex of that hyperbola marks the utility's location. Reading radargrams accurately takes field experience and cannot be automated reliably on complex or congested sites.

GPR is not a metal detector. It responds to dielectric contrast, meaning the difference in electrical properties between a buried object and the surrounding soil. This is why GPR can locate plastic water mains, PVC conduit, fiber optic ducts, and concrete-encased duct banks that electromagnetic induction misses entirely. Conversely, GPR can struggle to distinguish a steel pipe from a concrete foundation edge if both produce similar reflective signatures in the same scan line.

Where GPR Fits in a Subsurface Utility Investigation Workflow

Subsurface utility locating is not a single-method process. The American Society of Civil Engineers standard ASCE 38-22 defines four Quality Levels of subsurface utility information, ranging from D (records only) through A (vacuum excavation confirmation). GPR utility locating operates primarily at Quality Level B, alongside electromagnetic induction, as part of the field investigation that produces designatable utility data.

A standard workflow for a commercial or infrastructure site typically moves through these stages:

Stage 1: Records collection and conflict assessment. The crew gathers as-built drawings, 811 one-call markings, utility owner records, and any prior survey data. These records establish expected utility corridors and flag potential conflicts before field work begins.

Stage 2: Electromagnetic induction scanning. EM locating traces conductive utilities, including metallic water mains, gas lines, electrical conduit, and steel-jacketed telecommunications lines. EM is faster across large areas and produces a reliable signal on conductive targets with a good ground contact.

Stage 3: GPR scanning to fill detection gaps. Non-conductive utilities, abandoned lines not visible on records, and congested duct banks in close proximity often fall outside what EM detects reliably. GPR scanning runs in a grid pattern over the investigation area to capture these targets. It also provides independent depth confirmation on lines already located by EM.

Stage 4: Correlation and mapping. Field data from EM and GPR is correlated with the records from Stage 1. Anomalies that do not match any known utility are flagged for vacuum excavation confirmation before excavation proceeds.

Stage 5: Quality Level A confirmation where required. On high-consequence projects, vacuum excavation exposes selected utilities for physical measurement of depth, diameter, and material, converting Quality Level B data to Quality Level A.

Running GPR in isolation without EM correlation and records review is how misses happen. Each method covers detection gaps the others leave behind.

What GPR Utility Locating Can and Cannot Detect

Understanding GPR's detection envelope prevents both overconfidence in its results and unnecessary skepticism about its role.

GPR reliably detects:

  • Plastic, PVC, and HDPE water and gas lines
  • Concrete-encased duct banks and conduit systems
  • Fiber optic and telecommunications ducts
  • Steel, ductile iron, and copper metallic utilities (though EM is typically more efficient for these)
  • Concrete structures, footings, and slabs below grade
  • Voids, sinkholes, and subsidence zones
  • Reinforcement steel (rebar) in concrete structures

GPR detection is reduced or unreliable when:

  • Soils are high in clay content or moisture-saturated. Clay attenuates the GPR signal rapidly, often limiting penetration depth to 18 inches or less in severe conditions.
  • Utilities run parallel to the scan line rather than perpendicular to it. Parallel targets do not produce the hyperbolic reflection needed for confident identification.
  • Multiple utilities are closely spaced. Signal overlap between adjacent lines can obscure individual pipes in congested corridors.
  • Conductive soil fills, road base material, or buried debris create high-amplitude background clutter that masks weaker reflections from smaller-diameter utilities.
  • Depth exceeds the antenna's effective penetration range for the soil conditions present.

These limitations are not reasons to avoid GPR. They are inputs for planning scan frequency, antenna selection, and field confirmation strategy.

Antenna Frequency Selection and Its Effect on Results

GPR antenna frequency is the primary variable that controls the trade-off between penetration depth and resolution. Higher frequency antennas resolve smaller targets more clearly but attenuate faster in the ground. Lower frequency antennas penetrate deeper but cannot distinguish closely spaced targets or small-diameter utilities.

The most common antenna ranges used in underground utility locating services work are:

200 to 400 MHz antennas are standard for utility locating on most site types. They balance depth penetration (typically 8 to 15 feet in moderate soils) with enough resolution to identify pipes in the 4-inch diameter range and larger. Most municipal infrastructure and commercial utility corridors fall within this range.

500 to 900 MHz antennas resolve shallower targets with greater clarity. They are appropriate for congested shallow duct banks, shallow conduit, and sites where maximum depth is less important than distinguishing closely spaced utilities at 3 to 6 feet of depth.

100 MHz and below are used when deep penetration is required, such as geological investigation, deep foundation work, or void detection below 20 feet. Resolution at these frequencies is insufficient for standard utility line differentiation.

On sites with variable soil conditions or uncertain utility depth, crews may run dual-frequency passes to capture both shallow and deep targets in a single investigation. Antenna selection should be part of the pre-job planning conversation, not a default choice made in the field.

How to Set Up a Job Site for Reliable GPR Results

Site preparation is where GPR data quality is won or lost before the antenna touches the ground. Several field conditions are within the project team's control and directly affect signal quality.

Surface condition. GPR antennas must maintain contact with the surface. Broken pavement, standing water, thick gravel beds, and heavy debris scatter the signal before it enters the ground. Surface preparation, including clearing loose material from scan lanes, measurably improves data coherence.

Scan line grid planning. Utilities run in multiple orientations across a site. Scanning in a single direction only captures utilities oriented perpendicular to that pass. A complete investigation covers orthogonal scan lines, typically in both X and Y directions at a maximum of 18-inch spacing for comprehensive coverage, tighter on congested sites. Mark scan lines before field work begins so coverage is documented.

Interference identification. Metal objects at or near the surface, overhead utilities directly above the scan corridor, and vehicles parked adjacent to the scan area all introduce noise. Identifying and removing or documenting these interference sources before scanning prevents false positives and ambiguous data interpretation.

Calibration passes. On sites where known utility depths exist from records or previous vacuum excavation, a calibration pass over a known target allows the technician to determine the actual signal velocity in the site's specific soil matrix. Calibrated velocity produces more accurate depth estimates across the rest of the site.

Pre-scan EM work first. Complete electromagnetic induction passes before GPR whenever possible. EM results allow the GPR crew to cross-reference expected utility locations and orient their scan lines for maximum perpendicular intercept with target utilities.

GPR Data Output and Documentation Standards

GPR utility locating produces deliverables that should be documented, not just verbally communicated. On projects governed by ASCE 38-22, Quality Level B data must be recorded in a format that supports plan incorporation.

Standard GPR documentation outputs include:

Radargram files. Raw data files from the GPR control unit, stored in the equipment manufacturer's format and archived for re-processing or review if questions arise post-investigation.

Interpreted utility maps. Field-marked surface positions transferred to a site base map, annotated with estimated depth, utility type where identified, confidence rating, and anomaly flags for targets requiring confirmation.

Scan coverage diagrams. A record of scan line locations and directions, confirming that the investigation area was systematically covered. This is the basis for demonstrating that negative results (no utility found in a given area) reflect actual coverage, not missed scans.

Field notes. Documentation of soil conditions, surface preparation status, antenna frequencies used, calibration data, interference sources, and any conditions that may have limited signal quality in specific zones.

Quality Level B deliverables are the standard for projects where designers need subsurface utility information before finalizing plans. Providing raw field marks without documented backup leaves the project team without the chain of evidence needed to defend excavation decisions if a utility conflict occurs.

How Penhall Approaches Underground Utility Locating Services

Penhall's underground utility locating services combine GPR utility locating, electromagnetic induction, and vacuum excavation into a coordinated workflow managed by experienced field crews. The process is calibrated to each site's soil conditions, utility complexity, and project Quality Level requirements before the first scan pass begins.

Penhall's field technicians document GPR results in a format that supports plan-level deliverables, conflict mapping, and vacuum excavation follow-up on anomalies that require physical confirmation. For projects with tight excavation schedules or congested utility corridors, coordinating the subsurface utility locating scope early, before design is finalized or excavation permits are pulled, reduces the risk of field-discovered conflicts that delay work.

To discuss a subsurface utility locating scope for an upcoming project, contact Penhall directly.

frequently asked questions

Utility Mapping for Construction: How Subsurface Utility Mapping Prevents Conflicts and Rework

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Subsurface utility mapping combines ground penetrating radar (GPR), electromagnetic locating, and vacuum excavation to produce verified, georeferenced maps of underground infrastructure before excavation begins.
  • Utility mapping is a retrieval-stage deliverable, not just a safety checkbox. Crews get scaled plan drawings, 3D models, and field-marked layouts they can act on immediately.
  • Unlocated or mislocated utilities are among the leading causes of costly rework, project delays, and utility strikes. Mapping addresses all three.
  • ASCE 38-22 defines four Quality Levels (QL-D through QL-A) for subsurface utility engineering. Higher quality levels require physical verification, which is what distinguishes professional SUE services from simple record review.
  • Mapping integrates directly into phasing, sequencing, and subcontractor coordination, reducing last-minute conflicts during cuts, boring, and deep excavation.
  • GPR mapping works on concrete, asphalt, and open soil, making it applicable across site types from urban street cuts to greenfield development.
Screenshot 2026-03-04 184118
utility locating flags

What "Utility Mapping" Actually Means on a Construction Site

Utility mapping is a planning and risk management tool. The value of the deliverable is directly proportional to the rigor of the investigation method.

Utility mapping is the process of identifying, locating, and documenting the position of underground utilities before excavation, demolition, or construction activity begins. In practice, that means combining multiple detection technologies with field verification and translating the findings into a deliverable format the project team can use: scaled drawings, georeferenced data files, or physical surface markings that show where gas lines, water mains, electrical conduits, telecommunications infrastructure, and drainage systems are buried.

The term covers a spectrum of rigor. At the lowest end, a utility map might be assembled from as-built records and utility owner mark-outs, which are frequently incomplete or inaccurate due to decades of undocumented repairs, relocations, and additions. At the highest end, a subsurface utility engineering (SUE) investigation combines geophysical detection with vacuum excavation to physically expose and measure utility positions, then integrates those findings into a deliverable tied to project survey control.

For construction teams, the distinction matters because the quality of the mapping determines how much confidence the field crew has when making the first cut. A map assembled from outdated records provides liability documentation. A map produced through professional subsurface utility mapping provides operational intelligence.

The Outputs: What Your Team Actually Receives

The output of a utility mapping engagement should be a usable, actionable deliverable tied to your project's coordinate system and immediately applicable to design, phasing, and field operations.

A professional subsurface utility mapping engagement produces deliverables that feed directly into project documentation, not a report that sits in a folder.

Scaled plan drawings show horizontal utility positions overlaid on the project survey base map, typically in plan view with depth annotations where physical verification was performed. These drawings can be issued in CAD format (DWG/DXF) or PDF, and they reference the project coordinate system so they align with civil drawings from day one.

GPR scan data and processed interpretations show anomalies and reflections in the subsurface profile, reviewed by trained technicians who interpret utility signatures from background noise. Raw data is often retained for QA documentation.

Surface markings applied using color-coded paint or flags follow APWA standards and allow field crews to visualize utility corridors directly on the ground surface. This is the format that saw operators, drill crews, and excavator operators work from in real time.

3D utility models are increasingly common on larger projects, particularly those using BIM workflows. Georeferenced utility data is integrated into the project model, allowing clash detection between proposed structures, foundations, and buried infrastructure before a single shovel moves dirt.

Depth data is the critical variable that record drawings rarely provide accurately. Where vacuum excavation or test holes are performed, actual depth measurements are incorporated into the deliverable, eliminating the guesswork that drives conservative and expensive utility avoidance buffers.

The ASCE 38-22 Quality Level Framework

Scoping the right quality level for each project zone is a cost management decision as much as a technical one. Blanket QL-A coverage is rarely necessary; targeted application is the professional standard.

Understanding quality levels is essential for scoping a subsurface utility mapping engagement correctly. ASCE 38-22 (Standard Guideline for Investigating and Documenting Existing Utilities) defines four quality levels that represent increasing degrees of accuracy and verification.

Quality Level D (QL-D) is a records review only. Utility owner records, as-builts, and permit drawings are compiled and reviewed. No field investigation is performed. QL-D is useful for early desktop screening but provides the lowest confidence for field operations.

Quality Level C (QL-C) adds a field survey of visible utility appurtenances such as manholes, valve boxes, and meters, and reconciles them with available records. Still no subsurface detection.

Quality Level B (QL-B) is where subsurface utility locating begins. Geophysical methods, primarily GPR mapping and electromagnetic locating, are applied to detect and horizontally position buried utilities. This is the most common scope for pre-construction utility mapping on commercial and infrastructure projects.

Quality Level A (QL-A) adds physical verification through vacuum excavation or test holes, providing precise three-dimensional position data for critical utilities. QL-A is required where design decisions, structural elements, or deep excavation will occur in close proximity to high-risk utilities.

Project teams should specify quality levels by zone, concentrating QL-A investigation in high-conflict areas such as proposed pile locations, deep utility crossings, and areas with known utility congestion, while applying QL-B across broader project areas.

How GPR Mapping Works in the Field

GPR mapping and electromagnetic locating are complementary technologies. Professional subsurface utility mapping engagements deploy both, with field technicians experienced enough to interpret results accurately.

Ground penetrating radar is the primary geophysical technology used in subsurface utility locating and mapping. A GPR antenna transmits electromagnetic pulses into the ground and records the reflections that return when those pulses encounter materials with different dielectric properties, including pipe walls, conduit, and the disturbed soil that surrounds buried utilities.

The antenna is moved across the survey area in a systematic grid pattern. Data is collected continuously and displayed as a radargram showing subsurface reflections at depth. Trained technicians interpret hyperbolic reflection signatures characteristic of cylindrical utilities and distinguish them from geological features, reinforcement, and interference.

GPR works through concrete, asphalt, and native soil. It is particularly effective for detecting non-conductive utilities such as plastic pipe and fiber conduit that electromagnetic locating cannot identify through induction. On concrete surfaces, GPR also detects rebar and post-tensioning cables, a critical capability for concrete cutting scopes.

Electromagnetic locating complements GPR by applying a signal directly to conductive utilities through physical connection or inductive coupling. The signal is then traced from the surface, providing high positional accuracy for metallic utilities where a connection point can be established.

The combination of both methods is the professional standard for underground utility mapping because each technology addresses the other's blind spots.

Timing and Logistics

Utility mapping is most cost-effective as a pre-design or pre-construction investment. The later in the project sequence it is commissioned, the narrower the window to act on what it finds.

The highest-value window for utility mapping is during design development, when there is still time to adjust alignments, relocate utilities proactively, and sequence work to avoid high-conflict zones. Mapping at this stage informs the design rather than reacting to it.

The second-highest-value window is during pre-construction, before subcontractors mobilize and before excavation begins. At this stage, mapping deliverables drive subcontractor coordination meetings, establish no-dig zones, and inform the shoring and dewatering design for deep excavation.

Mapping requested reactively, after a utility conflict is discovered during excavation, costs many times more than proactive mapping because the project is already stopped. Emergency utility locating can be mobilized, but it cannot recover the schedule time already lost.

For phasing and sequencing specifically, mapping deliverables allow project managers to phase excavation work around utility corridors rather than through them. Areas with high utility density can be scheduled for hand dig or vacuum excavation. Boring and HDD alignments can be designed with verified utility positions rather than record drawings alone. Pile layout can be adjusted to clear identified utilities before the drilling subcontractor mobilizes.

The Cost of Not Mapping: Utility Strikes, Rework, and Project Delays

The ROI on utility mapping is calculated against the cost of utility strikes, rework, and delay, not against the cost of doing nothing. On most projects, the calculus is straightforward.

The Common Ground Alliance publishes annual data on excavation damage in the United States. Utility strikes cause service outages, environmental releases, project shutdowns, and in cases involving gas or electrical infrastructure, fatalities. Beyond the safety dimension, a single utility strike on a congested urban site can trigger a cascade of consequences: the utility must be repaired by the utility owner on their timeline, not the contractor's. The excavation area is typically placed off-limits pending investigation. Subcontractors already mobilized absorb standby costs. Schedule float that took months to build disappears in hours.

Rework costs from utility conflicts extend beyond strike events. Crews that discover an unmarked utility mid-excavation face decisions with no good options: work around it with improvised methods, stop and wait for locating, or remove and reinstall the conflicting utility. None of these are in the original budget.

Utility mapping quantifies and manages this risk rather than accepting it. The investment in professional subsurface utility locating and mapping is a fraction of the cost of a single significant utility conflict on most project types.

Penhall's Subsurface Utility Mapping Capabilities

Penhall delivers subsurface utility mapping and locating services across the United States, supporting owners, general contractors, engineers, and utility owners on projects ranging from urban infrastructure rehabilitation to large-scale site development.

Penhall's utility mapping crews combine GPR scanning, electromagnetic locating, and field interpretation to produce deliverables that meet project requirements from early planning through construction support. Where physical verification is required, Penhall integrates vacuum excavation capabilities to support QL-A investigation in critical zones.

Deliverables are produced in the formats project teams use, including CAD drawings, georeferenced data, and BIM-compatible formats. Field crews apply APWA color-coded surface markings coordinated with plan deliverables, so the documentation and the field layout tell the same story.

Penhall has the national footprint to support multi-site programs and the field experience to work efficiently in the complex, congested utility environments common to urban construction, transportation infrastructure, and industrial facility projects.

frequently asked questions

Precision Commercial Concrete Resurfacing and Surface Preparation for Infrastructure Projects

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • Commercial concrete resurfacing extends service life 15-25 years by bonding a new wear layer to a structurally sound slab. ICRI CSP 3-5 surface profiles are required for polymer-modified overlays; inadequate prep is the leading cause of delamination failure.
  • Concrete surface preparation is not a single method but a decision tree: the appropriate technique (scarifying, shot blasting, diamond grinding, or hydrodemolition) depends on contamination depth, existing profile, overlay system, and project specification per ICRI Guideline No. 310.2R.
  • Scarifying concrete removes up to 1/2" of surface per pass using rotating cutting wheels, making it the correct tool for coating removal, deep laitance elimination, and CSP 4-9 profile creation on heavily scaled or contaminated slabs.
  • Coring concrete per ASTM C42 extracts 2"- to 4"-diameter cylinders to measure compressive strength, carbonation depth, chloride ion penetration, and delamination thickness before any overlay or resurfacing decision is made.
  • Cross slope correction on commercial parking lots, roadways, and accessible routes must target 1%-2% per AASHTO and ADA standards. Deviations beyond 2% on pedestrian surfaces trigger ADA non-compliance; deviations below 1% cause standing water and freeze-thaw deterioration.
20201004_151910
20201004_152105

What Is Commercial Concrete Resurfacing?

Commercial concrete resurfacing is the application of a bonded overlay system, typically 1/4" to 2" thick, to a structurally sound but deteriorated slab to restore load-bearing capacity, surface texture, cross slope, and service life without full-depth replacement.

Resurfacing is appropriate when the existing slab retains structural integrity (compressive strength of at least 3,000 psi verified by core testing per ASTM C42), but the surface exhibits scaling, spalling, delamination, freeze-thaw damage, or loss of skid resistance. It is not appropriate over slabs with active cracking from differential settlement, insufficient subbase compaction, or expansive soils without addressing the root cause first.

Overlay System Selection by Application

Overlay Type Thickness Range Compressive Strength Best Application Bond Mechanism
Thin-Bonded Polymer-Modified 1/4" - 3/4" 4,000-6,000 psi Parking decks, walkways, industrial floors Epoxy or latex bonding agent; CSP 3-5 required
Unbonded Concrete Overlay 4" - 6" 4,500+ psi Heavy-traffic roadways, truck courts Separation layer (bond breaker); no profile required
Ultrathin Bonded Wearing Course 3/4" - 1.5" 5,000-8,000 psi Bridge decks, airport aprons, DOT roads Epoxy binder; ICRI CSP 5-7 required
Polyurea/Polyurethane Coating 40-80 mils N/A (flexible) Waterproofing, chemical resistance Mechanical adhesion; CSP 3-4 required
Cementitious Microtoping 1/8" - 1/4" 3,000-4,500 psi Aesthetic restoration, light pedestrian Moisture-tolerant primer; CSP 2-3 required

Resurfacing becomes cost-ineffective when full-depth delamination affects more than 25% of the slab area (identified via chain-drag sounding per ASTM D4580 or ground-penetrating radar), when rebar is corroding and section loss exceeds 20%, or when subgrade conditions have produced slab deflection under load. In these cases, partial or full-depth replacement is the more durable and economical solution.

What Is Concrete Surface Preparation?

Concrete surface preparation is the systematic mechanical, chemical, or thermal treatment of a slab surface to achieve a defined International Concrete Repair Institute (ICRI) Concrete Surface Profile (CSP), remove contaminants, eliminate laitance, and establish the tensile bond strength necessary for an overlay or coating system to perform to specification.

ICRI Guideline No. 310.2R-2013 defines 9 CSP levels (CSP 1-9) measured in surface amplitude. Selecting the wrong profile level is the most common cause of premature delamination. A thin epoxy coating requires CSP 2-3 (0.001"-0.006" amplitude). A bonded cementitious overlay requires CSP 4-6. An ultrathin structural wearing course requires CSP 5-7. Mismatch between specified and achieved profile voids most manufacturer warranties.

Surface Preparation Methods Compared

Method CSP Range Achieved Removal Depth Best For Limitations
Diamond Grinding CSP 1-3 < 1/16" Profile leveling, joint grinding, cross slope correction Cannot remove coatings > 20 mils or heavy contamination
Scarifying CSP 4-9 1/16" - 1/2" per pass Coating removal, laitance, scaling, surface profiling Produces aggressive texture; requires follow-up grind for some coatings
Shot Blasting CSP 3-7 < 1/8" Large flat areas, parking structures, warehouse floors Ineffective near edges/walls; requires containment system
Milling / Cold Planing CSP 6-9 1/4" - 2" per pass Full overlay removal, cross slope restoration, pavement rehab High vibration; not suitable for bridge decks or thin slabs
Hydrodemolition CSP 5-9 Variable, selective Selective removal, rebar-tight areas, bridge decks Water management required; higher mobilization cost
Abrasive Blasting CSP 3-5 < 1/16" Spot treatment, vertical surfaces, small areas Slow; not suitable for large horizontal areas

Pre-Preparation Diagnostics: Advanced Entity Testing

Before selecting a preparation method, a competent contractor performs subsurface diagnostic testing to characterize the slab condition. Skipping this step produces incorrect method selection and scope errors.

  • Chain drag / hammer sounding (ASTM D4580): Identifies hollow, delaminated areas acoustically. Cost-effective first screen; covers 100% of surface area.
  • Ground-penetrating radar (GPR): Maps rebar depth, spacing, and condition; detects subsurface voids; locates post-tension cables without contact. Penetrates 18"-24" in concrete.
  • Electromagnetic induction (cover meter): Measures precise rebar depth (accurate to +/- 1/4") and estimates bar diameter. Required before any coring or milling operation.
  • Phenolphthalein carbonation testing: Determines carbonation front depth (typically 0.25" to 1.5" in aged slabs). Carbonated concrete has reduced pH, compromising passive rebar protection.
  • Chloride ion profiling (ASTM C1152): Quantifies chloride concentration at 1" depth increments. Chloride levels above 0.6 lb/yd3 at rebar depth indicate active corrosion risk.
  • Tensile pull-off testing (ASTM C1583): Measures in-place tensile bond strength of existing overlay or substrate. Minimum 200 psi required for most bonded overlay systems.

What Is Scarifying Concrete?

Scarifying concrete is a high-production mechanical surface preparation method that uses a rotating drum equipped with multiple tungsten carbide or hardened steel cutting wheels to fracture and remove surface concrete at a controlled depth, creating ICRI CSP 4-9 profiles appropriate for bonded overlays, coating systems, and coating removal.

A single-pass concrete scarifier removes between 1/16" and 1/2" of material depending on drum configuration, cutter spacing, machine speed, and concrete hardness. Multiple passes increase removal depth. Walk-behind units process 1,500-3,000 SF/hour; ride-on scarifiers achieve 8,000-15,000 SF/hour on open floor areas.

Scarifying vs. Shot Blasting vs. Diamond Grinding

Factor Scarifying Shot Blasting Diamond Grinding
ICRI CSP Output CSP 4-9 (aggressive) CSP 3-7 (moderate) CSP 1-3 (fine)
Removal Depth 1/16" - 1/2" per pass < 1/8" < 1/16"
Coating Removal Yes, up to 1/4" thick coatings Yes, up to 50 mils No; for profile only
Production Rate 1,500-15,000 SF/hr 3,000-10,000 SF/hr 500-3,000 SF/hr
Edge Access Within 1/2" of walls Limited (4"-6" from edges) Within 1/4" of walls
Dust Generation High; HEPA vacuum required Contained in blast cycle Moderate; wet or dry
Substrate Vibration Moderate Low Low
Ideal Follow-on Shot blast or grind to refine Ready for most overlays Apply coating directly

When scarifying is the correct preparation method, the existing surface has contamination deeper than 1/8" (oils, deicers, chlorides); failed coatings or membranes bonded to the slab; scaling damage from freeze-thaw exceeding CSP 3; or a specified bonded overlay requiring CSP 5+. It is also used to roughen slabs that have been over-ground or trowel-burnished to a CSP below the overlay manufacturer's requirement.

What Is Coring Concrete?

Coring concrete is the extraction of cylindrical samples from in-place concrete using a diamond-tipped rotary drill per ASTM C42, producing 2" to 4" diameter cores used to evaluate compressive strength, carbonation depth, chloride ion penetration, delamination presence, overlay bond integrity, and existing slab thickness prior to any resurfacing or structural modification.

Compressive strength from field cores is evaluated at a diameter-to-length ratio of 2:1 after correction factors are applied per ASTM C42 Section 7.4. A core with a length-to-diameter ratio below 1.75 requires a strength correction factor of 0.87-0.96. Results below 3,000 psi typically indicate the slab cannot support a bonded overlay without full-depth repair or replacement in that zone.

Coring Protocol for Pre-Resurfacing Assessment

  • Core frequency: Minimum 1 core per 1,000 SF for condition assessment; 1 per 500 SF in areas with visible distress or suspected delamination.
  • Core diameter: 3" standard for compressive strength testing; 4" when extracting cores through existing overlays to preserve bond interface for examination.
  • Rebar clearance: Use electromagnetic cover meter before drilling. Maintain minimum 3" clear from rebar to avoid cutting reinforcement and generating ASTM C42 exclusion conditions.
  • Chloride sampling: Extract concrete powder at 0"-1", 1"-2", and 2"-3" increments during coring using a vacuum drill system. Submit to lab per ASTM C1152 within 24 hours of extraction.
  • Documentation: Photograph core extraction location, core top and bottom surfaces, and any delamination or voids encountered. Map core locations on site plan with GPS coordinates or dimensioned reference points.

Advanced Diagnostic Integration: Beyond the Core

Coring alone provides point data. For large infrastructure projects, core results are most valuable when integrated with GPR scan data to correlate anomalies with physical samples. A GPR anomaly at 1.5" depth confirmed by a core showing delaminated overlay and zero bond strength at the same depth produces a defensible condition map for scope and pricing.

What Is Cross Slope and Why Does It Matter for Commercial Concrete?

Cross slope is the transverse grade of a paved surface measured perpendicular to the direction of travel, expressed as a percentage, and it governs surface drainage performance, vehicle stability, pavement structural durability, and ADA pedestrian accessibility compliance on commercial facilities and public infrastructure.

On roadways and parking lots, AASHTO Green Book standards specify a cross slope of 1.5%–2% on tangent sections to ensure positive drainage without exceeding vehicle stability thresholds. Under ADA Standards for Accessible Design (Section 402.2), pedestrian accessible routes may not exceed a 2% (1:50) cross slope in any direction; running slope is separately governed. FHWA Technical Advisory T 5040.36 cross-references these standards for federal-aid highway projects.

Cross Slope Failure Modes and Their Consequences

Cross Slope Condition Primary Failure Mode Secondary Effect Applicable Standard
< 1% (insufficient drainage) Standing water, freeze-thaw D-cracking Black ice formation; slip liability AASHTO Green Book 3-22
1% - 2% (target range) No failure mode; optimal performance Positive drainage; ADA-compliant if pedestrian ADA Sec. 402.2; AASHTO
2% - 4% (marginal; roadway acceptable) ADA non-compliance on ped. routes Tire wear asymmetry on tangent roads ADA Sec. 402.2
> 4% (excessive) Vehicle stability risk; hydro pooling at transitions Accelerated overlay delamination at transitions AASHTO; local traffic eng.
Reverse cross slope (negative) Ponding at curb or gutter; structural undercutting Frost heave amplification All drainage standards

Cross Slope Correction Methods for Commercial Infrastructure

Correcting out-of-tolerance cross slope on existing commercial concrete requires one of three approaches, selected based on deviation magnitude, slab condition, and overlay compatibility:

  • Diamond grinding (deviation < 3/8"): Removes high spots to restore correct slope geometry. Achieves tolerance of +/- 1/8" over 10-foot straightedge per ACPA grinding specifications. Best suited for joints, localized high crowns, and ADA ramp corrections.
  • Bonded overlay with variable thickness (deviation 3/8" to 1.5"): Places a polymer-modified or cementitious overlay in feathered variable depth to build up low areas and restore positive drainage slope. Requires substrate preparation to CSP 4-5.
  • Full-depth milling and resurfacing (deviation > 1.5" or slab approaching end of service life): Cold milling removes the existing surface to a grade-controlled depth, restoring designed cross slope geometry before overlay application. Most precise method for large-area slope restoration.

Measurement and Verification

Cross slope on commercial facilities is measured using a digital level or slope measurement device calibrated to +/- 0.01%, with readings taken at 5-foot intervals across the cross section and 10-foot intervals in the direction of travel. Pre-construction and post-construction cross slope surveys are documented on as-built drawings and retained for ADA compliance records. On federally funded projects, FHWA requires pavement smoothness testing per ASTM E1274 (Profilograph Index) alongside cross slope verification.

How Proper Surface Preparation Impacts Long-Term Durability

The service life of any bonded concrete overlay system is more sensitive to surface preparation quality than to overlay material selection. A premium polyurea coating applied over a CSP 1 substrate on a contaminated slab will delaminate faster than a commodity latex-modified overlay applied over a properly scarified CSP 4-5 surface free of laitance and chloride contamination.

Three failure mechanisms account for the majority of premature overlay failures in commercial and infrastructure applications:

  • Insufficient profile amplitude: The overlay cannot achieve mechanical interlock. Tensile pull-off strength falls below 200 psi (ASTM C1583 threshold), leading to delamination under thermal cycling or traffic load.
  • Subsurface moisture vapor transmission (MVT): Vapor pressure from the substrate migrates through the overlay bond line. On slabs-on-grade, MVT should be below 3 lbs per 1,000 SF per 24 hours (ASTM F1869 calcium chloride test) or RH below 75% at 40% slab depth (ASTM F2170) before coating application.
  • Residual contaminants: Chloride ions, petroleum products, or curing compounds below the mechanical preparation depth suppress bonding chemistry. Chloride levels above 0.2 lb/yd3 at the surface are incompatible with most cement-based overlays without inhibitor treatment.
IMG_0289
20240910_132647

frequently asked questions

Precision Concrete Coring in Post-Tension & Structural Slabs

CALL FOR A QUOTE
1-800-736-4255

At a Glance

  • What this covers: Safe concrete coring in post-tension and structural slabs requires GPR subsurface scanning to +/- 0.5 in. accuracy before a drill touches the surface. Skipping this step risks severing tendons under 30,000+ psi of stored stress.
  • Who performs this work: ACI- or ASCC-certified core drilling contractors with documented ground-penetrating radar capability and structural engineer coordination, in compliance with ACI 318-19 and OSHA 29 CFR 1926 Subpart Q.
  • How cables are found: A 1.6 GHz or 2.0 GHz GPR antenna maps post-tension tendon position, depth, and drape profile before layout is marked; electromagnetic induction provides secondary confirmation for unbonded mono-strand systems.
  • How deep cables sit: Draped post-tension cables in a typical 8-to-10-inch commercial slab range from 1 inch above the bottom at midspan to near mid-depth at supports; depth varies continuously along the span and must be mapped, not assumed.
  • Why precision matters: Diamond wet-core drilling maintains a bore diameter tolerance of +/- 1/16 in., and every penetration larger than 6 inches in a post-tension slab requires structural engineer review to assess load-path and tendon stress-field impact.
  • What sets specialists apart: Experienced core drilling contractors deliver GPR scan images, core logs, and as-drilled records that satisfy building department documentation requirements and protect GCs from structural liability on commercial projects.

What Is Concrete Coring and Why Does It Matter on Structural Slabs?

Concrete coring is the process of cutting a precise cylindrical hole through a concrete slab, wall, or foundation using a rotating diamond-tipped drill barrel. On post-tension or structural slabs, the method used before and during drilling determines whether the structure remains safe or suffers irreversible damage.

Standard coring on unreinforced or lightly reinforced slabs is a relatively forgiving operation. Structural slab coring is not. Commercial buildings constructed after the 1970s, including office towers, parking structures, hospitals, and mixed-use podiums, overwhelmingly rely on post-tensioned concrete for their floor systems. These slabs contain high-strength steel tendons stressed to between 150,000 and 200,000 psi and anchored at the slab perimeter. A single severed tendon releases stored elastic energy that can initiate progressive cracking, permanent deflection, or partial collapse of the bay.

Mechanical, electrical, plumbing, fire suppression, and data infrastructure all require penetrations through these slabs. Placing those penetrations accurately without compromising structural integrity is the defining competency of a qualified core drilling contractor.

Understanding Post-Tension Slabs Before Any Core Drill Touches the Surface

A post-tension slab is a reinforced concrete floor system in which high-strength steel tendons, either unbonded monostrand (wrapped in grease and plastic sheathing) or grouted multi-strand, are threaded through the slab formwork, cast in place, and then tensioned against anchorage hardware after the concrete reaches design strength, typically at 75% or greater of the 28-day compressive strength per ACI 318-19 Section 26.10.

How Post-Tension Cables Are Positioned in a Slab

Post-tension tendons in a flat-plate or flat-slab system are arranged in two perpendicular banded and distributed patterns, with banded tendons concentrated near column lines and distributed tendons spread across the bay at regular intervals. Spacing between individual strands typically ranges from 4 to 6 feet in the banded direction and 4 to 5 feet in the distributed direction, though field conditions, pour sequence, and contractor installation variability mean actual positions frequently deviate from structural drawings.

This deviation is precisely why structural drawing review alone is insufficient before coring. On renovation and tenant improvement projects, the original structural engineer of record (EOR) may no longer be accessible, and as-built post-tension layout drawings may not exist. GPR scanning resolves the actual installed condition, not the design intent.

How Deep Are Post-Tension Cables in a Slab?

Post-tension cables in a standard 8-to-10-inch commercial slab are profiled at a variable depth along their span. This variable positioning is the drape profile, and it is deliberate. At midspan, where bending tension is highest at the bottom of the slab, tendons are positioned approximately 1 to 1.5 inches above the bottom surface (inside the minimum cover requirement of 3/4 inch for interior conditions per ACI 318-19 Table 20.6.1.3). At column supports, where bending reverses, tendons rise toward the mid-depth or upper third of the slab section.

The practical implication: a tendon that a GPR scan shows at 3 inches of depth at one location may be at 1.5 inches of depth just 4 feet away. Depth changes continuously. Assuming a safe drilling depth based on a single scan point is a structural risk. A qualified core drilling contractor maps the full drape profile across the intended core location and establishes a minimum safe clearance before committing core barrel position.

Key figure: Typical post-tension tendon drape in an 8-inch slab spans from 1.0 in. above the soffit at midspan to approximately 3.5 to 4.0 in. from the bottom (mid-depth) at column supports. GPR resolution at 1.6-2.0 GHz provides depth accuracy to +/-0.5 in. in concrete with 28-day compressive strength of 4,000-5,000 psi.

Locating Post-Tension Canyons Before Coring

Locating post-tension cables before coring is a non-negotiable first step on any structural slab, and ground-penetrating radar (GPR) is the industry-standard technology for doing it accurately, non-destructively, and without cutting power or coordinating with the building's electrical systems.

Ground-Penetrating Radar (GPR) Scanning

GPR emits short pulses of electromagnetic energy into the concrete substrate and measures the reflected signals that return when the wave encounters a material with different dielectric properties. Steel tendons, rebar, conduit, and voids all produce distinct hyperbolic reflection signatures. A 1.6 GHz or 2.0 GHz ground-coupled antenna provides the frequency-depth trade-off required for standard slab thickness: sufficient resolution to differentiate a 0.5-inch tendon from adjacent reinforcing steel, at penetration depths reaching 12 to 18 inches.

The output is a B-scan radargram, a cross-sectional subsurface image, that a trained GPR operator interprets to identify tendon location, depth, and spacing. Safe core locations are marked directly on the slab surface, typically with paint or chalk grid lines, at a standoff distance of not less than 2 inches from any identified tendon. On dense layouts, the operator works with the project structural engineer to evaluate whether a safe core path exists or whether the core location must be relocated.

GPR scanning also detects secondary hazards that traditional coring misses: embedded conduit runs, post-installed anchor locations, sleeves, waterproofing membrane layers, and subsurface voids from incomplete consolidation or prior water intrusion. Detecting these entities before drilling prevents costly rework and reduces schedule impact on occupied facilities.

Electromagnetic Induction and X-Ray Subsurface Imaging

Electromagnetic induction (EMI) scanning provides a complementary confirmation method for unbonded mono-strand post-tension systems. Monostrand tendons are ferromagnetic, and an EMI scanner detects the disruption in a generated magnetic field caused by each tendon, producing a plan-view heat map of steel density across the scan area. EMI is particularly effective at distinguishing the closely spaced, parallel tendons of a banded post-tension layout in areas where GPR radargrams are difficult to interpret due to signal interference from wire mesh or tight rebar spacing.

Concrete x-ray imaging remains the highest-resolution subsurface imaging method available for concrete, capable of resolving tendon position to within 1/8 inch, but its application on commercial coring projects is limited by radiation safety exclusion zone requirements and the logistics of positioning both the X-ray source and detector plate on opposite sides of the slab. X-ray is typically reserved for forensic structural investigation or highly congested areas where GPR interpretation is inconclusive and the structural consequence of error is severe.

The Step-by-Step Process for Safe Coring in Post-Tension Slabs

Safe post-tension slab coring follows a defined sequence that integrates structural coordination, subsurface scanning, and precision drilling. Each phase builds on the last and cannot be safely skipped or reversed.

1. Pre-Mobilization Document Review: Obtain available structural drawings, post-tension shop drawings, and as-built records from the EOR or building owner. Identify banded vs. distributed tendon zones, column bay dimensions, and any documented prior penetrations or repairs.

2. Structural Engineer Coordination: Submit proposed core locations to the EOR or a licensed structural engineer for review before scanning begins. For cores larger than 6 inches in diameter or within 18 inches of a column, written engineer approval is standard practice and required by many jurisdictions.

3. GPR Scan Grid Execution: Establish a minimum 24 x 24 inch scan grid centered on each proposed core location. Scan in both perpendicular directions to generate crossing B-scans that confirm tendon position in plan and depth in profile.

4. Safe-Zone Marking: Mark the exact tendon centerlines and depth annotations on the slab surface. Confirm a minimum 2-inch horizontal clearance from any tendon before approving the final drill point.

5. Core Drill Setup and Wet Drilling: Mount the core drill stand on a vacuum pad or mechanical anchor. Begin wet-method diamond coring using continuous water flow to control heat, reduce dust, and extend barrel life. Maintain a controlled penetration rate of 1 to 3 inches per minute in 4,000-5,000 psi concrete to prevent barrel deflection.

6. Real-Time Depth Monitoring: Track core barrel penetration depth against the mapped tendon profile throughout the cut. If the drill operator encounters unexpected resistance or a change in cutting behavior consistent with steel contact, drilling stops immediately.

7. Core Removal and Void Documentation: Remove the core plug intact where possible to allow visual inspection of the cut concrete matrix. Document core length, diameter, any reinforcement or tendon contact, and final penetration depth.

8. As-Drilled Record and Closeout: Deliver a complete as-drilled package including the GPR scan image, annotated slab plan, core log, operator certification, and equipment calibration records. This documentation satisfies building department requirements and provides the GC with structural liability protection.

Precision Coring vs. Traditional Coring: A Technical Comparison

The table below compares GPR-guided precision coring against traditional unguided coring across the dimensions that matter most on commercial structural slab projects.

Factor Precision Coring (GPR + Wet Core Drill) Traditional Unguided Coring
Cable detection before drilling GPR scan to +/-0.5 in. accuracy prior to setup None; relies on operator judgment
Tendon strike risk Minimal; cores placed in verified safe zones High; undocumented tendon layouts common
Structural engineer sign-off Standard on all post-tension work Rarely required
Dust & slurry control Wet-method diamond core with vacuum slurry recovery Dry or wet; slurry often uncontrolled
Core diameter tolerance +/-1/16 in. with carbide-tipped diamond barrel Variable; operator skill-dependent
Documentation GPR scan image, core log, as-drilled record Typically none
Typical mobilization notice 24-48 hours with site coordination Same-day common
Regulatory compliance ACI 318-19 structural concrete, OSHA 29 CFR 1926 Inconsistent

The cost difference between precision coring and unguided coring is real but modest relative to the liability exposure of a tendon strike. Tendon repair on a typical commercial slab involves structural engineer assessment, specialized coupler hardware, post-tension re-stressing equipment, and potential structural shoring. That repair scope routinely exceeds $25,000 to $75,000 per incident, exclusive of schedule impact, tenant disruption, and litigation risk.

Structural Risk Mitigation and Subsurface Coordination on Large Commercial Sites

Large commercial sites, including multi-building campuses, hospital systems, airport facilities, and institutional structures, present coring risk at a different scale than a single-tenant renovation. Volume of penetrations, coordination across multiple trades, occupied-facility constraints, and distributed structural documentation all compound the challenge.

Effective structural risk mitigation on these projects starts with a pre-construction subsurface coordination meeting that aligns the GC, structural engineer, core drilling contractor, MEP engineers, and the commissioning building owner. The agenda should cover:

  • A centralized core penetration log that tracks requested, scanned, approved, and completed cores by location and date across the entire project
  • A defined submittal process for GPR scan results, with a minimum 48-hour review window before drilling begins at any new location
  • Clear rules for core relocation authority, covering who can approve a field adjustment to a core point if scanning reveals a conflict and what documentation is required
  • Occupied-floor protocols for noise, vibration, and slurry containment, including after-hours drilling windows where structural slab penetrations are directly above operating clinical, data center, or manufacturing environments
  • A stop-work trigger definition: any GPR anomaly that cannot be conclusively interpreted as rebar, tendon, or conduit halts drilling at that location pending engineer review

On projects with BIM coordination workflows, post-tension tendon models at LOD 300 or higher can be imported into the clash detection environment to pre-screen proposed MEP penetration locations before any field scanning occurs. This digital pre-coordination layer reduces the volume of conflict discoveries in the field and shortens the GPR scan scope to confirming as-installed conditions rather than discovering them from scratch.

When to Call Specialized Core Drilling Contractors

The selection question is not whether a contractor can operate a core drill. It is whether they have the scanning capability, the structural literacy, and the documentation discipline to protect the building, the schedule, and the GC's liability position when they work in a post-tension slab.

Penhall's concrete coring teams operate across commercial, industrial, and infrastructure markets with in-house GPR scanning capability, structural engineer coordination protocols, and full documentation workflows on every post-tension slab project. Contact your regional Penhall office to discuss project scope and mobilization requirements.

penhall concrete coring
penhall concrete coring

frequently asked questions

Diamond Sawcutting

CALL FOR A QUOTE
1-800-736-4255

What Are Concrete Saws?

Concrete saws are specialized power tools used to cut through concrete, asphalt, brick, masonry, and other dense, stone-like materials. They are a core piece of concrete cutting equipment on commercial, industrial, and infrastructure job sites where precision, depth control, and safety matter.
Concrete cutting saws come in several sizes and configurations depending on the application. Handheld saws are often used for smaller openings and detail work, while walk-behind concrete saws are designed for flatwork such as slabs, roadways, and bridge decks. Track-mounted and remote-controlled saws are used for highly controlled or hazardous cutting environments where accuracy and operator safety are critical.
These saws can be powered by hydraulic, gasoline, diesel, or electric motors, with the power source typically determined by jobsite conditions, cutting depth requirements, and environmental considerations.

Types of Concrete Saws Used in Diamond Sawcutting

Different concrete saws are designed for different cutting scenarios. Common types include:

Handheld Concrete Saws

Compact and maneuverable, handheld concrete saws are used for wall penetrations, curb cuts, and limited-access areas. They are often paired with diamond blades for clean, controlled cuts.

Walk-Behind Concrete Saws

Walk-behind concrete saws are commonly used for slab cutting, expansion joints, trenching, and roadway work. These saws provide consistent depth control and are well-suited for long, straight cuts in horizontal surfaces.

Track-Mounted and Specialty Saws

For projects that demand extreme precision or operate in restricted or hazardous environments, track-mounted or remote-controlled saws are used. These systems are common in large-scale commercial and infrastructure projects.

Diamond Blades and Diamond Sawcutting Explained

Diamond sawcutting relies on diamond blades rather than traditional cutting edges. Despite the name, diamond blades do not “slice” material. Instead, they function as high-performance grinding wheels.

Diamond blades cut concrete by rotating at high speeds and grinding away material through abrasion. Industrial-grade diamonds are embedded into a metal bond along the blade’s edge, allowing the blade to maintain cutting efficiency even when encountering reinforced concrete and aggregate.

Common Diamond Blade Manufacturing Methods

Diamond blades are manufactured using several bonding techniques, each suited to different cutting demands:

Sintered Diamond Blades
The most common type used in professional concrete cutting. Diamonds are mixed with metal powders and bonded to a steel core through high heat and pressure, creating a durable blade designed for extended use.

Electroplated Diamond Blades
Diamonds are bonded to the blade surface using an electrical current. These blades offer fast cutting speeds but typically have a shorter service life.

Vacuum-Brazed Diamond Blades
Diamonds are welded directly to the blade surface without a metal bond. This method exposes more diamond surface area, allowing for aggressive cutting in specific applications.

Compared to abrasive or grinding wheels, diamond blades provide greater cutting efficiency, improved accuracy, and longer service life, making them the preferred choice for professional diamond sawcutting.

Safety Considerations and the Importance of Water-Fed Cutting

Concrete saws generate significant friction and heat during operation. Without proper controls, cutting can produce excessive dust, overheating, and premature blade wear.
Water-fed cutting systems are critical for safe and effective concrete saw operation. Continuous water flow serves several purposes:

  • Cools the blade to prevent overheating and warping
  • Reduces airborne silica dust for safer working conditions
  • Improves cutting efficiency and blade longevity
  • Produces cleaner, more controlled cuts

These safety considerations are one of the primary reasons professional concrete cutting services rely on specialized equipment and trained operators rather than general-purpose tools.

When to Hire a Professional Concrete Cutting Contractor

While concrete saws are powerful tools, diamond sawcutting is not a typical DIY or general contractor task. Projects involving structural concrete, reinforced slabs, tight tolerances, or safety-sensitive environments benefit from professional concrete cutting services.
A professional concrete cutting contractor brings:

  • Proper saw and blade selection for the material and depth
  • Dust and slurry control systems
  • Compliance with safety and environmental regulations
  • Precision cutting that protects surrounding structures

For complex or large-scale projects, working with an experienced provider like Penhall ensures accurate results while minimizing risk. Learn more about Penhall’s expertise in professional concrete cutting and diamond sawcutting services.

frequently asked questions

How Roadway Grinding & Grooving Provide a Safer Driving Experience

The next time you cruise down a new stretch of highway or witness a jetliner touch down seamlessly, think about the invisible engineering that made that smooth, safe experience possible. That engineering is often the result of two precise, high-impact techniques: concrete grinding and grooving.

These processes are an important piece of modern pavement restoration, transforming worn-out, hazardous concrete into high-performance surfaces that enhance safety, reduce noise, and extend the lifespan of our essential transportation infrastructure from busy interstates to critical airport runways.

Diamond Grinding

When engineers talk about grinding, they are typically referring to diamond grinding, a technique designed to correct surface irregularities and improve ride quality.

What is Grinding?

Diamond grinding uses specialized equipment fitted with numerous diamond-tipped saw blades to shave off a thin, uniform layer of the concrete surface. This process is essentially like a massive, industrial-scale planer, correcting flaws across the entire slab.

Why is Grinding Necessary?

The goal of grinding is to restore the pavement's smoothness, which naturally degrades over time due to heavy traffic and environmental stress:

1. Eliminating Faulting: Grinding removes the vertical steps or "bumps" that develop at the joints between concrete slabs (known as faulting or warping). This is what creates the jarring "thump-thump" sensation on older highways.

2. Improving Ride Quality (IRI): The quality of a road is measured by the International Roughness Index (IRI). Grinding can drastically reduce the IRI, leading to a smoother, quieter, and more comfortable ride for drivers.

3. Noise Reduction: The newly textured surface resulting from grinding is smoother and more uniform than rough, faulted concrete, often leading to a noticeable reduction in tire-pavement noise.

Diamond Grooving

Grooving is the process of cutting deliberate, precise channels into the pavement. Unlike grinding, which focuses on smoothness, grooving's sole purpose is maximizing safety and performance, especially in wet conditions.

Safety Mechanics

Grooving works by applying two mechanical principles developed originally for airport runways.

1. Water Displacement: The grooves act as immediate drainage channels, pulling water, oil, or slush away from the point where the tire meets the concrete. This prevents the formation of a liquid film, which is the cause of hydroplaning at high speeds.

2. Mechanical Interlock: The diamond-cut grooves create sharp, vertical edges. These edges provide physical resistance for the tire tread to push against, offering essential mechanical grip and increasing the overall coefficient of friction, which is vital for braking and steering stability.

machinery doing airport runway grooving

Patterns Matter

The direction of the grooves is customized based on the application.

  • Transverse Grooving: Cuts are made perpendicular to the direction of travel. This is crucial for runways and high-speed braking zones because it maximizes water evacuation along the path of movement.

  • Longitudinal Grooving: Cuts run parallel to the direction of travel. This is common on highways as it improves steering control and helps vehicles track cleanly through curves.

Concrete Grinding and Grooving Combined

While both processes can be used separately, the most comprehensive and effective pavement restoration projects utilize them in tandem:

1. Grind First: The pavement is ground to eliminate all bumps and dips, ensuring a perfectly smooth profile.

2. Groove Second: The high-traction safety pattern is then precisely cut into the newly leveled surface.

This sequence delivers the best long-term outcome: a smooth, comfortable ride (from grinding) combined with superior, all-weather skid resistance (from grooving).

What are the Benefits of Diamond Grinding and Grooving

The strategic investment in diamond grinding and grooving yields massive returns for public safety and infrastructure budgets:

  • Drastic Accident Reduction: Studies have repeatedly shown that the increased skid resistance and hydroplaning prevention provided by grooving can lead to significant reductions in wet-weather accidents.

  • Extended Pavement Life: By correcting surface flaws and restoring the integrity of the concrete structure, these techniques can add 15 to 30 years of service life to the pavement. This is often far more cost-effective and longer-lasting than simply laying down a new asphalt overlay.

  • Fuel and Vehicle Savings: Smoother roads reduce the dynamic load on vehicles, leading to less wear and tear on suspension systems, reduced tire wear, and better fuel economy for trucks and cars alike.

By using the unmatched precision of diamond cutting, engineers ensure that every mile of grooved and ground pavement meets the highest standards of safety, setting the stage for smoother travel and a more durable future for our roads and runways.

What Is Concrete Coring? A Guide to Concrete Core Drilling

CALL FOR A QUOTE
1-800-736-4255

Concrete is the backbone of modern infrastructure, but constructing and maintaining complex buildings, roads, and bridges requires the ability to create precise, clean openings in this durable material. This is where concrete coring services come in, as highly specialized, controlled drilling techniques essential across the construction and engineering industries.

What is concrete coring?

Concrete coring is a method of drilling perfectly round holes through concrete structures using a rotary drilling machine and a diamond-tipped cylindrical bit. The technique is named because it extracts a solid, cylindrical piece of concrete, known as a core sample, from the drilled opening.
The technique's primary purpose is to create openings for utility routing, post-setting, or to extract samples for structural testing. The historical shift from rudimentary hole-making methods to diamond coring marked a significant advance in construction efficiency and quality.

Importance and Versatility

Coring is overwhelmingly preferred over older, impact-based methods like jackhammering for several critical reasons:

Precision and Cleanliness: It creates a smooth, perfectly sized hole with minimal spalling or damage to the surrounding concrete.

Non-Destructive: Unlike jackhammering, coring is a low-impact technique that minimizes noise, dust, and, most importantly, avoids introducing micro-fractures into the remaining structure, thereby maintaining structural integrity.

Speed: Modern core drills are significantly faster and more efficient for creating numerous holes.

Applications and Use Cases

Mechanical, Electrical, and Plumbing (MEP)

This is the most common application. Coring creates the necessary pathways for:

Conduits and cables for electrical wiring.

Pipes for plumbing and fire suppression systems.

Openings for HVAC (heating, ventilation, and air conditioning) ductwork installation.

Structural Testing and Analysis

Core drilling is a crucial quality control measure for new and aging structures. Cylindrical core samples are extracted and taken to a laboratory for destructive testing to determine the concrete's compressive strength and composition. This ensures the concrete meets the specified engineering requirements.

Anchoring and Fastening

Precise holes are required for securely connecting new elements to an existing structure. Creating openings for chemical anchors, expansion bolts, and rebar dowels used in structural connections.

Civil Engineering and Infrastructure

Coring is essential for the maintenance and inspection of large infrastructure projects. Road, bridge, and dam maintenance requires extracting cores to check for internal defects, moisture content, or material degradation.

Demolition and Remediation

In highly controlled environments, coring can be used for creating controlled access openings and using large-diameter bits to remove structurally compromised sections without undue vibration.

Equipment and Tooling

Core Drilling Machines (Core Drills)

The machines are built to provide high torque and stable rotation.
Handheld systems are used for smaller diameter holes (typically under 3 inches) and in areas with restricted access. Rig-mounted systems are anchored to the structure and feature a heavy-duty mast and carriage, necessary for larger, deeper, or non-vertical cuts.
They are commonly powered by electric motors, though hydraulic power is used for high-power, high-torque applications, and pneumatic power is used in sensitive or explosive environments.

Core Drill Bits

The bit is the heart of the coring operation.

Construction: The bit consists of a hollow steel tube (barrel) with cutting segments brazed onto the leading edge.

Segments: The cutting segments are made from a mixture of metal powders and industrial diamonds (a super-abrasive material). The bond (the metal matrix holding the diamonds) must be carefully matched to the concrete: a soft bond is used for hard, dense aggregate, while a hard bond is used for softer, abrasive material.

Sizes: Diameters range from a fraction of an inch up to over 60 inches for specialty applications.

Accessories

Essential accessories ensure safety, precision, and environmental compliance.

Drill Stands and Securing: Drill stands hold the rig; they are secured using mechanical anchors (often a bolt through a pre-drilled hole) or vacuum bases for non-penetrating securing on smooth surfaces.

Slurry Management: Nearly all concrete coring involves water. Slurry management systems—such as vacuum systems and containment rings—are crucial for collecting the watery concrete residue and preventing environmental contamination or slip hazards.

Sizes: Diameters range from a fraction of an inch up to over 60 inches for specialty applications.

Concrete Coring Techniques

Pre-Coring Assessment

Before a single hole is drilled, a critical assessment must take place.

Scanning: It is standard best practice to use Ground Penetrating Radar (GPR) or similar tools (e.g., pachometers or magnetic scanners) to scan the concrete for embedded hazards like rebar, post-tension cables, and live electrical conduits or pipes. Hitting these elements can be structurally catastrophic and extremely dangerous.

Marking: The precise center and depth of the hole are clearly marked on the surface.

Setup and Securing

The drill rig must be secured correctly to manage the immense torque generated during the process. The rig is anchored securely, and the mast is carefully leveled to ensure the hole is plumb (perfectly vertical) or at the required angle.

The Drilling Operation

Wet Coring: The primary method involves a continuous flow of water. The water cools the diamond segments to prevent overheating and premature wear, and it flushes the slurry (the fine cuttings) away from the cutting face, maintaining optimal cutting efficiency.

Dry Coring: Used sparingly where water runoff is strictly prohibited (e.g., active electrical rooms). It requires specialized, more expensive bits and a lower RPM to prevent overheating, often utilizing a dust-extraction vacuum.

Maintaining Constant Pressure and RPM: The operator must maintain a steady, optimal pressure and RPM (revolutions per minute) to maximize efficiency and bit life. Too little pressure causes the bit to glaze, and too much can damage the segments.

Safety and Best Practices

Safety is paramount, as concrete coring involves high-speed machinery and potential structural hazards.

Personal Protective Equipment (PPE)

All operators must wear:

Gloves

Eye protection (safety glasses or face shield)

Hearing protection (earplugs or earmuffs)

Waterproof clothing and steel-toe boots to manage wet conditions and falling debris.

Structural Integrity Concerns

The most crucial safety practice is pre-coring scanning to avoid cutting through post-tension cables (which can explosively release under tension) or large quantities of rebar, especially in columns and beams. Any coring job near critical structural elements requires consultation with a structural engineer.

Electrical and Utility Hazards

The pre-coring scan is essential to prevent electrocution or rupture of gas/water lines. Hitting a live electrical line is one of the most significant hazards in coring.

Ergonomics and Hazard Prevention

Proper machine setup is crucial for operator safety. The rig must be correctly anchored to manage torque (kickback) if the bit jams. A machine that isn't secured can spin violently, causing severe injury. Controlling water runoff is necessary to prevent slip hazards on the job site.

Concrete coring is far more than just drilling a hole; it is a specialized trade demanding precision, safety consciousness, and technical skill. It is the only way to introduce clean, controlled openings into concrete without compromising the structure's integrity.

Advancements continue to improve efficiency and safety. Robotic coring systems are emerging for remote operation in hazardous areas, and continuous improvements in diamond technology are leading to faster, longer-lasting core bits.

Ultimately, the successful execution of any coring job depends on a trained professional concrete contractor who understands the equipment, the material, and the critical importance of a thorough pre-coring scan.

CONCRETE SERVICES

Post-Tension Cables: The Unsung Heroes of Modern Construction

In the world of modern construction, there's an unsung hero that's been quietly revolutionizing the way we build: post-tension cables.

CALL FOR A QUOTE
1-800-736-4255

What Are Post-Tension Cables?

Post-tension cables are high-strength steel tendons embedded inside concrete to reinforce and strengthen structural elements such as slabs, beams, and decks. They are placed within the concrete during construction and tensioned after the concrete has cured, creating compressive forces that improve strength, reduce cracking, and allow for longer spans with less material.
Because post-tension cables are hidden inside concrete and placed under significant force, they are considered high-risk structural elements. Identifying their location before any concrete cutting, concrete coring, or drilling is critical for safety and structural integrity.

What Is a Post-Tension Cable and How Does It Work?

A post-tension cable is part of a post-tensioning system used to reinforce concrete. Unlike traditional reinforced concrete, where steel rebar provides passive reinforcement, post-tension cables are actively stressed after the concrete hardens.
Once tensioned, the cable applies compression to the concrete, counteracting tensile forces that would otherwise cause cracking or failure. This approach allows engineers to design thinner slabs, longer spans, and more efficient structures without sacrificing strength.
Post-tension systems are widely used in commercial, industrial, and residential construction, particularly where weight reduction and crack control are priorities.

What Are Post-Tension Cables Used For?

Post-tension cables are commonly used in structures where strength, durability, and flexibility are essential, including:

  • Parking garages
  • High-rise buildings
  • Office and mixed-use developments
  • Residential slabs and foundations
  • Bridges and elevated structures

In residential construction, post-tensioned slabs are often used in regions with expansive soils, where ground movement can cause cracking in conventional foundations.

Components of a Post-Tensioning System

A post-tensioning system is made up of several key components, each of which plays a critical role in the overall performance of the structure. At the heart of the system are the cables themselves, which are typically made of high-strength steel strands, wires, or bars. These cables are designed to withstand enormous tensile forces, with strength and durability characteristics that far exceed those of conventional reinforcement.

The cables are typically arranged in one of two configurations: single strands or multiple strands bundled together. In either case, the cables are coated with a corrosion-inhibiting grease and encased in a plastic sheathing to protect them from the elements and ensure their long-term performance.

The cables are anchored at each end by a device called a tendon. Tendons come in two main types: unbonded and bonded. Unbonded tendons are free to move within the concrete, while bonded tendons are grouted in place after tensioning. The choice between unbonded and bonded tendons depends on factors such as the specific application, environmental conditions, and design requirements.

The tensioning of the cables is accomplished using a jacking system, which applies a precise amount of force to the cables, typically using hydraulic or mechanical means. This force is then locked in place using anchors at each end of the tendon.

Finally, the space between the cables and the surrounding concrete is filled with a high-strength grout, which serves to protect the cables from corrosion and ensure effective load transfer between the cables and the concrete.

Where Are Post-Tension Cables Typically Located?

Post-tension cables are most often found inside concrete slabs, decks, beams, and transfer girders. In many buildings, they are installed in patterns that follow load paths rather than straight, evenly spaced lines.
Because they are encased in concrete and not visible at the surface, their presence is not always obvious. This is especially true in older buildings or structures where drawings are unavailable or outdated.

How Deep Are Post-Tension Cables?

The depth of post-tension cables varies depending on the structure’s design, slab thickness, and engineering requirements. Cables may be located closer to the bottom, middle, or top portion of a slab depending on the loads they are designed to resist.
Because depth and layout vary widely, assumptions about cable depth are unsafe. Professional assessment and scanning are the only reliable ways to determine cable location before cutting or drilling.

What Happens If You Cut a Post-Tension Cable?

Cutting a post-tension cable can have serious consequences. These cables are under extreme tension, and damaging one can result in:

Sudden release of stored energy

Serious injury or fatality to workers

Structural damage to the slab or building

Costly repairs and project delays

Can a Post-Tension Cable Be Repaired?

Post-tension cable repair is complex and highly specialized. It typically requires structural engineering review, controlled stress relief, and specialized repair systems designed for post-tensioned structures.
Because improper repairs can further weaken the structure or create hidden risks, post-tension cable repair should only be addressed by qualified professionals following engineered repair plans. This is not a DIY or field-improvised process.

How Do You Find Post-Tension Cables in Concrete?

Post-tension cables are located using professional concrete scanning and imaging technologies. These methods allow specialists to identify the presence, layout, and general depth of embedded cables before any cutting, coring, or drilling begins.

Professional detection is especially important when:

  • Construction drawings are unavailable or unreliable
  • Working in occupied or existing buildings
  • Performing structural modifications
  • Cutting near slab edges or load-bearing elements

Companies like Penhall provide advanced scanning and detection services to help teams locate post-tension cables and other embedded elements before work begins, reducing risk and preventing costly damage.

Before You Cut: Why Professional Detection Matters

Post-tension cables are integral to the structure’s performance and safety. Cutting or drilling without knowing where they are located puts workers, buildings, and project timelines at risk.

Professional detection ensures:

  • Safer job sites
  • Informed cutting and coring decisions
  • Protection of structural integrity
  • Compliance with safety best practices

When post-tension cables may be present, identifying them before concrete cutting is not optional. It is essential.

The Post-Tensioning Process: A Step-by-Step Guide

The post-tensioning process begins with careful design and planning. Engineers must calculate the precise tension levels and cable placements required to achieve the desired structural performance. This involves taking into account factors such as the loads the structure will be subject to, the span lengths, and the properties of the concrete and reinforcement.

Once the design is finalized, the first step in the installation process is to place the conduits or ducts that will house the post-tension cables. These are typically made of plastic or metal and are carefully positioned within the formwork before the concrete is poured.

After the concrete has been poured and allowed to cure to a sufficient strength, the post-tension cables are fed through the conduits. This is typically done using a specialized threading machine or by hand, depending on the size and complexity of the project.

Once the cables are in place, the tensioning process begins. The cables are anchored at one end and then stretched using a hydraulic jack at the other end. The amount of tension applied is carefully controlled and monitored to ensure that it meets the design specifications. After the desired tension level is achieved, the cables are locked off at the anchors, maintaining the tension within the structure.

The final step in the post-tensioning process is grouting. A high-strength grout is injected into the conduits, filling the space around the cables. This grout serves to protect the cables from corrosion and bond them to the surrounding concrete, creating a composite structure that acts as a single unit.

Advantages and Disadvantages of Post-Tensioning

Post-tensioning offers several significant advantages over conventional reinforced concrete construction:

Increased strength and span capabilities: By applying tension to the reinforcement after the concrete has hardened, post-tensioning allows for longer spans and thinner slabs compared to traditional methods. This can result in more open, flexible floor plans and reduced material usage.

Improved crack control and durability: The compressive forces introduced by post-tensioning help to minimize cracking in the concrete, leading to improved durability and a longer service life for the structure.

Flexibility in design: Post-tensioning allows for greater freedom in architectural design, enabling the creation of more complex and expressive structures.

However, post-tensioning also has some potential drawbacks:

Higher initial cost: The specialized equipment and expertise required for post-tensioning can result in higher upfront costs compared to conventional reinforced concrete.

Potential for corrosion: If not properly protected, post-tension cables can be vulnerable to corrosion, particularly in harsh environmental conditions. This can lead to costly repairs and maintenance over the life of the structure.

Challenges in repairs and maintenance: If issues do arise with post-tensioned structures, repairs and maintenance can be more complex and expensive compared to conventional reinforced concrete.

Safety Considerations and Regulations

Given the high forces involved in post-tensioning and the critical role that the cables play in the structural integrity of the building, safety is of paramount importance. Proper design and installation are crucial, and all work must be carried out by trained and certified professionals.

During the post-tensioning process, strict safety precautions must be followed to protect workers and ensure the integrity of the structure. This includes careful monitoring of the tensioning process, the use of appropriate personal protective equipment, and adherence to established safety protocols.

Post-tensioned structures are subject to a range of building codes and standards, which vary by jurisdiction. These codes typically specify requirements for materials, design, installation, and testing to ensure the safety and performance of the finished structure. Regular inspections and testing are also typically required to monitor the condition of the cables and anchorages over time.

Common Applications and Case Studies

Post-tensioning has found wide application in a variety of structures, from high-rise buildings and bridges to parking garages and residential homes. One of the most notable examples of post-tensioned construction is the Burj Khalifa in Dubai, the tallest building in the world. The tower's record-breaking height was made possible in part by the use of post-tensioned floor plates, which allowed for thinner slabs and more efficient use of material.

In the residential sector, post-tensioned slabs have become increasingly popular, particularly in areas with expansive soils. The ability of post-tensioning to resist soil movement and minimize cracking has made it an attractive option for homebuilders looking to provide a stable, durable foundation.

Other notable examples of post-tensioned structures include the Incheon Airport in South Korea, the Linn Cove Viaduct on the Blue Ridge Parkway in North Carolina, and the Alamillo Bridge in Seville, Spain. Each of these structures showcases the unique capabilities of post-tensioning in terms of span length, design flexibility, and structural efficiency.

Future Trends in Post-Tensioning Technology

As with any technology, post-tensioning continues to evolve and improve over time. One area of ongoing research and development is in the use of new materials, such as fiber-reinforced polymers (FRPs), which offer the potential for even greater strength and durability compared to traditional steel cables.

Another trend is toward more sustainable and environmentally friendly approaches to post-tensioning. This includes the use of recycled and recyclable materials, as well as designs that minimize material usage and embodied energy.

Finally, there is growing interest in the integration of post-tensioning with smart building technologies, such as sensors and monitoring systems that can provide real-time data on the performance and condition of the structure. This data can be used to optimize maintenance and repair strategies, as well as to inform future designs.

The Importance of Post-Tension Cables in Modern Construction

Post-tension cables have revolutionized the way we build, enabling structures that are stronger, more efficient, and more durable than ever before. From towering skyscrapers to humble residential slabs, post-tensioning has proven itself to be a versatile and valuable tool in the modern builder's toolkit.

As we look to the future, it's clear that post-tensioning will continue to play a vital role in shaping our built environment. With ongoing advancements in materials, design, and technology, the possibilities for post-tensioned structures are virtually limitless. So the next time you marvel at a soaring bridge or a sleek high-rise, take a moment to appreciate the humble post-tension cable – the unsung hero of modern construction.

Glossary of Terms

Tendon: A sheathed cable or group of cables used to apply post-tensioning forces to concrete.

Anchorage: A device used to lock off the tension in a post-tensioned cable at the ends of a tendon.

Grout: A high-strength cement-based material used to fill the space around post-tension cables, providing corrosion protection and ensuring load transfer.

Unbonded tendon: A post-tension tendon that is free to move relative to the surrounding concrete.

Bonded tendon: A post-tension tendon that is bonded to the surrounding concrete through grouting after tensioning.

Resources and Further Reading

For those interested in learning more about post-tensioning, the following resources provide a wealth of additional information:

Post-Tensioning Institute (PTI): https://www.post-tensioning.org/

American Concrete Institute (ACI): https://www.concrete.org/

"Post-Tensioning Manual" by the Post-Tensioning Institute

"Design of Post-Tensioned Slabs" by Bijan O. Aalami

"Post-Tensioned Concrete: Principles and Practice" by K. Dirk Bondy

These resources offer detailed technical information, design guidelines, case studies, and best practices for the use of post-tensioning in concrete construction. Whether you're a seasoned professional or just starting to explore this fascinating technology, these resources are an invaluable source of knowledge and inspiration.

frequently asked questions About Post-Tension Cables

CONTACT US TODAY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Site Contact Information

(XXX) XXX-XXXX


Site Location

Location*

After submitting this form a Penhall Company representative will be in contact with you to confirm your request. If this request is urgent, please call 1-800-PENHALL to be connected with the nearest Penhall branch. Upon submitting this form you will also receive occasional updates about our services and company announcements. You may unsubscribe from these e-mails at anytime. Grinding and grooving services are conducted by Emery Sapp & Sons, Inc. For specific inquiries related to grinding and grooving, click here or reach out to Chris Fitzpatrick at chris.fitzpatrick@emerysapp.com

CONCRETE SERVICES

Ground Penetrating Radar vs. X-Ray: A Comprehensive Comparison

In the world of non-destructive testing and subsurface exploration, two technologies have emerged as powerful tools for revealing what lies beneath the surface: Ground Penetrating Radar (GPR) and X-ray imaging. While both methods provide valuable insights, they differ in their fundamental principles, applications, and suitability for various projects. This article aims to explore the key differences between GPR and X-ray, helping readers understand which technology best fits their needs.

CALL FOR A QUOTE
1-800-736-4255

The Fundamentals of Ground Penetrating Radar (GPR)

Ground Penetrating Radar is a non-invasive geophysical method that uses electromagnetic waves to create a detailed image of the subsurface. GPR systems emit high-frequency radio waves into the ground, which are then reflected by subsurface features and recorded by a receiver. The strength and timing of these reflections provide information about the depth, location, and properties of the subsurface materials.

GPR antennas come in various frequencies, each suitable for different applications. High-frequency antennas (900 MHz to 2.5 GHz) offer high resolution but limited depth penetration, making them ideal for shallow investigations such as concrete scanning. Low-frequency antennas (10 MHz to 500 MHz) provide greater depth penetration but lower resolution, making them suitable for deeper subsurface exploration, such as locating buried utilities or archaeological features.

The data collected by GPR is processed and visualized as a radargram, a two-dimensional image that represents the subsurface features along the survey line. Interpreting radargrams requires skill and experience, as the reflections can be complex and influenced by factors such as soil type, moisture content, and the presence of multiple layers or objects.

One of the key strengths of GPR is its non-destructive nature. It allows for subsurface investigation without the need for excavation or drilling, making it an attractive option for many applications. Additionally, GPR can provide real-time data, allowing for on-site interpretation and decision-making. It is also relatively fast, enabling the coverage of large areas in a short amount of time.

The Fundamentals of X-Ray Technology

X-ray technology relies on the use of ionizing radiation to create images of the internal structure of objects. X-rays are a form of electromagnetic radiation with shorter wavelengths and higher energy than visible light. When X-rays pass through an object, they are absorbed or scattered depending on the density and composition of the materials they encounter. This interaction creates a shadow image on a photographic film or digital detector, revealing the internal structure of the object.

X-ray systems come in various forms, each tailored to specific applications. Medical X-ray systems are designed for imaging the human body, while industrial X-ray systems are used for non-destructive testing of materials and components. These systems can range from portable handheld devices to large, fixed installations.

The process of acquiring an X-ray image involves placing the object between an X-ray source and a detector. The source emits a beam of X-rays that passes through the object, and the detector captures the resulting shadow image. The image, known as a radiograph, shows the internal structure of the object, with denser materials appearing lighter and less dense materials appearing darker.

One of the key strengths of X-ray technology is its ability to provide high-resolution images of dense materials, such as metals and ceramics. X-rays can penetrate these materials and reveal internal flaws, defects, and structural details that may not be visible from the surface. X-ray systems are widely available and relatively inexpensive compared to other advanced imaging technologies.

Key Differences Between GPR and X-Ray

Feature
Safety & Radiation Safer, uses non-hazardous electromagnetic waves Uses ionizing radiation, requiring safety measures such as area clearing, PPE, and jobsite closures
Depth & Penetration Penetrates 12-24 inches on average, up to 36 inches in concrete Limited to the thickness of the concrete being scanne
Imaging & Accuracy Produces radargrams that require skilled interpretation Provides clearer, more detailed images, often considered more accurate for structural details
Versatility & Applications Detects metallic and non-metallic objects, including plastic conduits and voids; works on slab-on-grade concrete Requires access to both sides of the concrete structure; designed specifically for concrete scanning
Speed & Efficiency Faster, covers larger areas quickly, provides real-time data Slower process, often requires off-site data development
Cost-effectiveness More cost-effective due to faster scanning, lower equipment and personnel costs, and fewer safety requirements More expensive due to specialized equipment, training, and additional safety measure

While both GPR and X-ray are used for non-destructive testing and imaging, they differ in several key aspects:

Type of Radiation

GPR uses non-ionizing electromagnetic waves in the radio frequency range, which are generally considered safe for operators and the environment. In contrast, X-rays are a form of ionizing radiation that can be harmful to living tissues. This difference has significant implications for safety and the required precautions during operation.

Penetration Depth

GPR's penetration depth depends on the frequency of the antenna and the properties of the materials being investigated. In general, GPR can penetrate deeper into the subsurface than X-rays, especially in soils and other porous materials. Low-frequency GPR systems can achieve depths of several meters, while high-frequency systems are limited to shallower depths, typically less than a meter.

X-ray penetration depth is primarily determined by the energy of the X-ray beam and the density of the materials being imaged. X-rays can penetrate dense materials like concrete and steel, but their penetration depth is generally limited to the thickness of the object being scanned.

Resolution and Image Quality

X-ray imaging typically provides higher resolution and clearer images than GPR, especially for dense materials. X-ray images can reveal fine details and internal structures with sub-millimeter accuracy. This makes X-ray imaging particularly suitable for detecting small defects, cracks, or inclusions in materials like concrete or metal components.

GPR, on the other hand, produces lower-resolution images that may require more interpretation. The resolution of GPR images depends on the frequency of the antenna and the properties of the materials being investigated. Higher frequencies provide better resolution but limited penetration depth, while lower frequencies offer greater depth penetration but lower resolution.

Target Materials

GPR is suitable for a wide range of materials, including soils, rocks, concrete, asphalt, and even water. It can detect both metallic and non-metallic objects, such as plastic pipes, voids, and changes in material properties. This versatility makes GPR a valuable tool for applications like utility mapping, archaeological surveys, and environmental investigations.

X-ray imaging is primarily used for dense materials like concrete, metals, and ceramics. It is particularly effective for detecting internal flaws, voids, and reinforcement details in concrete structures. X-ray imaging is also widely used in medical applications for visualizing bones and other dense tissues.

Safety Considerations

The use of X-rays requires strict safety measures to protect operators and bystanders from the harmful effects of ionizing radiation. This includes proper shielding, personal protective equipment, and adherence to radiation safety protocols. X-ray operations may require clearing the area and restricting access to the scanning site.

GPR, on the other hand, does not pose significant safety risks, as the electromagnetic waves used are non-ionizing and generally considered safe for human exposure. However, operators should still follow manufacturer guidelines and avoid direct contact with the antenna during operation.

Cost and Equipment

The cost and complexity of GPR and X-ray equipment can vary significantly depending on the specific application and system requirements. In general, GPR equipment is more affordable and widely available than X-ray systems. GPR systems can range from simple handheld units to advanced multi-channel systems with specialized software for data processing and interpretation.

X-ray equipment tends to be more expensive and specialized, especially for industrial applications. X-ray systems require a radiation source, detector, and appropriate shielding, which can add to the overall cost. Additionally, X-ray operations may require specialized training and certification for operators.

Applications of GPR and X-Ray

GPR and X-ray imaging find applications across various fields, each leveraging the unique strengths of the respective technologies.

GPR is widely used in:

Utility mapping and locating buried infrastructure

Archaeological surveys and cultural heritage preservation

Environmental investigations, such as locating underground storage tanks or contamination plumes

Geotechnical investigations, such as bedrock profiling and soil characterization

Concrete scanning for locating reinforcement, voids, or deterioration

Forensic investigations and law enforcement

X-ray imaging is commonly used in:

Medical diagnostics, such as bone imaging and dental radiography

Industrial non-destructive testing, such as weld inspection and component quality control

Security screening, such as baggage inspection at airports

Art and artifact analysis, such as examining paintings for hidden details or forgeries

Material science research, such as studying the internal structure of materials

Forensic investigations and law enforcement

Final Thoughts

Ground Penetrating Radar and X-ray imaging are both powerful tools for non-destructive testing and subsurface exploration. While they share the goal of revealing what lies beneath the surface, they differ in their fundamental principles, capabilities, and applications.

GPR offers a safe, versatile, and cost-effective solution for a wide range of subsurface investigations, providing real-time data and the ability to detect both metallic and non-metallic objects. It is particularly useful for applications that require deeper penetration and the mapping of larger areas.

X-ray imaging, on the other hand, excels in providing high-resolution images of dense materials, making it an invaluable tool for detecting internal flaws, defects, and structural details. However, the use of ionizing radiation requires strict safety measures and specialized equipment.

As technology advances, both GPR and X-ray imaging continue to evolve, with improvements in resolution, data processing, and user-friendliness. Hybrid systems that combine the strengths of both technologies, such as Xradar Guaranteed Concrete Scanning, are also emerging as potential alternatives for specific applications.

Ultimately, the choice between GPR and X-ray imaging depends on the specific requirements of the project, the materials being investigated, and the desired outcomes. Understanding the key differences between these technologies is crucial for making informed decisions and achieving the best results.

CONTACT US TODAY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Site Contact Information

(XXX) XXX-XXXX


Site Location

Location*

After submitting this form a Penhall Company representative will be in contact with you to confirm your request. If this request is urgent, please call 1-800-PENHALL to be connected with the nearest Penhall branch. Upon submitting this form you will also receive occasional updates about our services and company announcements. You may unsubscribe from these e-mails at anytime. Grinding and grooving services are conducted by Emery Sapp & Sons, Inc. For specific inquiries related to grinding and grooving, click here or reach out to Chris Fitzpatrick at chris.fitzpatrick@emerysapp.com

IRVING, TX — JANUARY 3, 2023 – Penhall Company, the nation’s leader in concrete cutting and removal services, today announced it has acquired the equipment of COBRA Concrete Cutting of Pinellas, Inc., located in Pinellas, Florida. Penhall Company has hired the former COBRA Concrete Cutting of Pinellas, Inc., Operations Manager, Steve Milligan to manage our Pinellas location. The location offers a multitude of concrete solution services to the construction industry throughout Tampa, St Petersburg, Clearwater, and surrounding areas. Dan Curnow, a veteran of the Penhall Company and concrete cutting industry will help transition Steve Milligan, the current COBRA Concrete Cutting of Pinellas, Inc., Operations Manager, to Penhall Company.

“In a business where safety, customer service and reliable delivery of services are important, the asset purchase of COBRA Concrete Cutting of Pinellas, Inc., Pinellas, Florida, location, will enhance the Penhall Company’s service capabilities and expand our services throughout the greater Tampa markets,” said Greg Rice, President and Chief Executive Officer of Penhall Company. “We welcome Steve into our Red and Gray family.”

With over 40 branch/service locations throughout the US and Canada, Penhall Company serves a broad range of end markets including retail, military, government, hospitality, highway, residential, mining, refining, chemical and utilities. With the acquisition of the assets of the COBRA Concrete Cutting of Pinellas, Inc., Penhall Company positions itself to offer a full range of services to the Tampa, St Petersburg, Clearwater, Florida, and surrounding areas to include: Concrete Cutting and Coring, Concrete Breaking, Specialized Demolition, GPR concrete scanning, Digital X-Ray, Utility Locating, Fiber-Reinforced Polymer for concrete strengthening, Grinding and Grooving, and Bridge Services.

IRVING, TX — October 3, 2022 – Penhall Company, the nation’s leader in concrete cutting and removal services, today announced it has acquired the equipment of Capitol Drilling & Sawing located in Memphis, Tennessee. In addition, Penhall Company has hired the former Capitol Drilling & Sawing employees located in the Memphis office. The Memphis Office of Capitol Drilling & Sawing was formerly operated as Bluff City Cutting and Concrete, established in 1997. The location offers a multitude of concrete solution services to the construction industry throughout Memphis, Western Tennessee, and surrounding areas. Michael Totty, a veteran of the Penhall Company will help transition Norman Mitchell, the current Capitol Drilling & Sawing Operations Manager, and its other employees to Penhall Company.

“In a business where safety, customer service and reliable delivery of services are important, the asset purchase of Capitol Drilling & Sawing, Memphis location, will enhance the Penhall Company’s service capabilities and expand our services throughout the Memphis, Western Tennessee, and surrounding markets,” said Greg Rice, President and Chief Executive Officer of Penhall Company. “We welcome the employees of the Capitol Drilling & Sawing Memphis location into our Red and Gray family.”

With over 40 branch/service locations throughout the US and Canada, Penhall Company serves a broad range of end markets including retail, military, government, hospitality, highway, residential, mining, refining, chemical and utilities. With the acquisition of the assets of the Capitol Drilling & Sawing Memphis, Tennessee location, Penhall Company positions itself to offer a full range of services to the Memphis, Tennessee, and surrounding areas to include: Concrete Cutting and Coring, Concrete Breaking, Specialized Demolition, GPR concrete scanning, Digital X-Ray, Utility Locating, Fiber-Reinforced Polymer for concrete strengthening, Grinding and Grooving, and Bridge Services.
